Basic Gas Regulator | Adjustable Flow | C10

Brand: GASCO
Model: FD-REG-MFV
User Manual: Click Here
Blog Article: Click Here

Features:

• ⚛️  QUALITY: Quality and basic gas regulator for gas detectors.
• 🏕️ USE: Fits all gas calibration bottles with C10 thread.
• 🏋 FLOW RATE: Adjustable between 0.0 - 1.0 LPM.
• 🚀 COMPATIBLE: Compatible with GASCO, RAE, RKI, BW, Industrial Scientific, Forensics Detectors, CTI, MESA, AIRGAS gas bottles.
• 🕵️ TRUST: ** 1-year limited warranty ** Customer support in Los Angeles, CA, USA.

Details: A gas regulator controls the gas flow to your gas detector or analyzer and also reduces the pressure from a compressed reference gas or calibration gas bottle (which is at a high pressure and compressed to fit a large amount of gas in a small volume of space). A gas regulator allows one to control the gas flow to your instrument for proper and safe calibration. Safety is paramount when working with pressurized gases, so please adhere to safety protocols to prevent accidents and ensure accurate calibration results.

Specifications

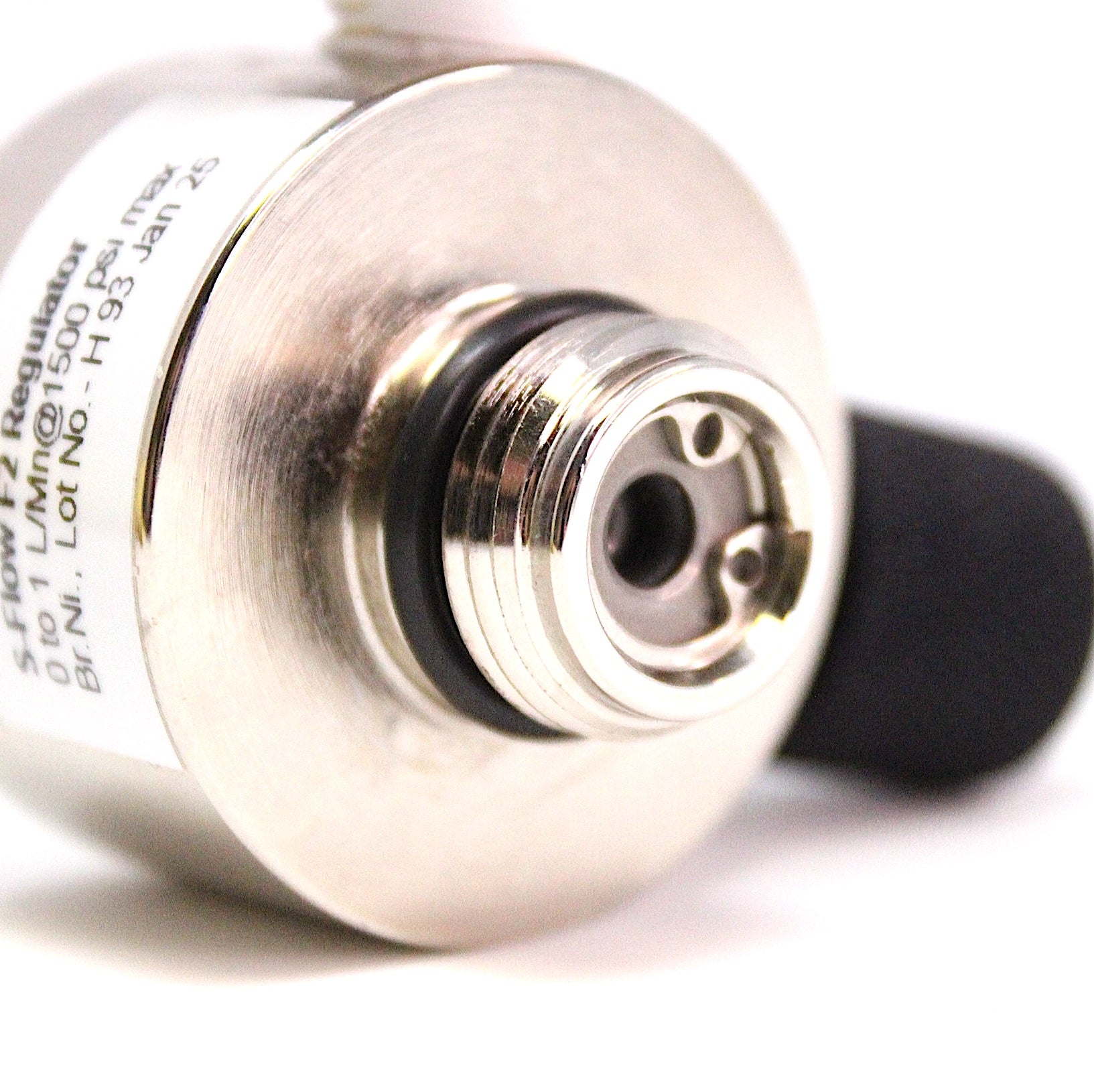

Connection Thread: C10 (5/8"-18 UNF)
Material: Nickel-plated Brass
Gas Use Type: Reactive and Non-Reactive

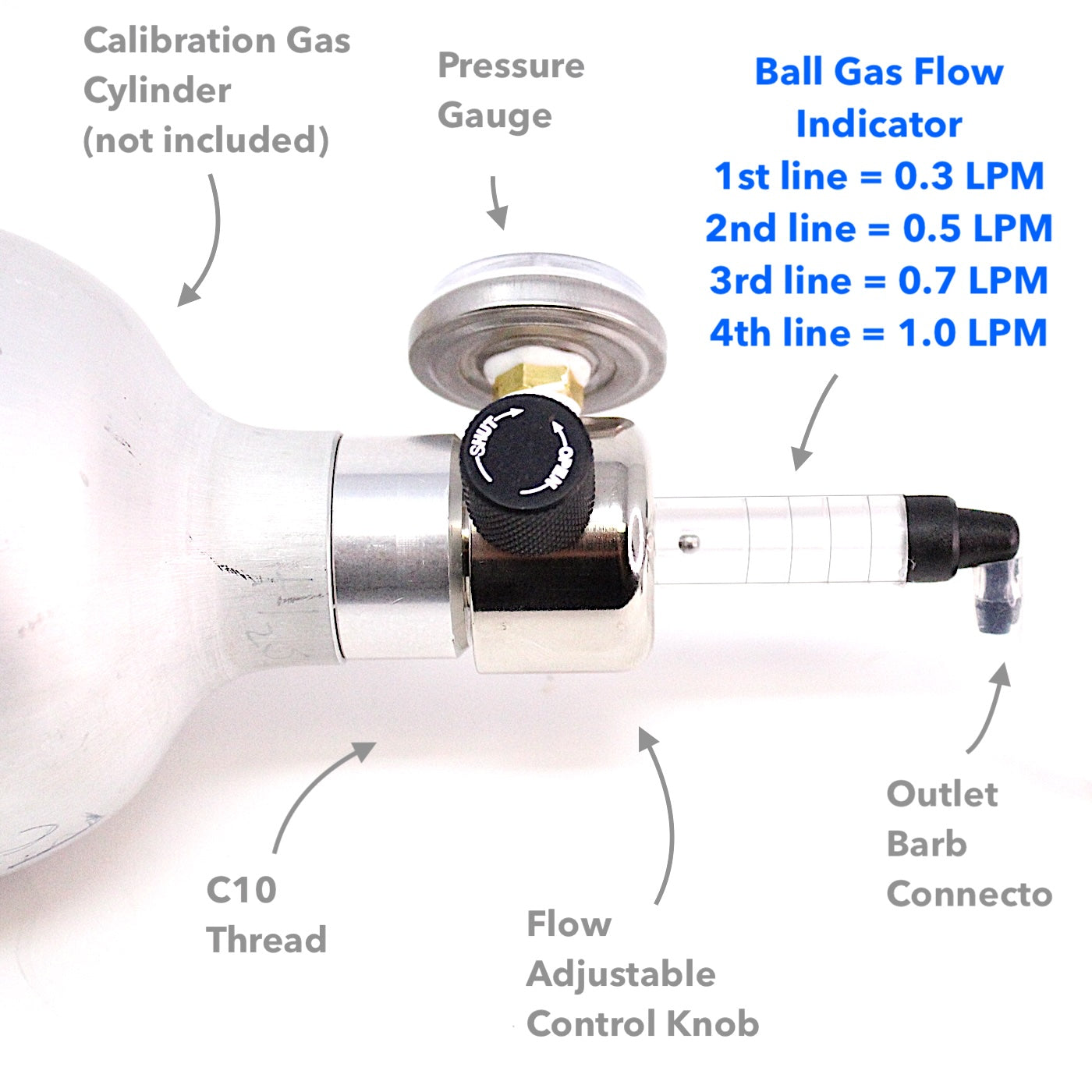

Flow (LPM): Adjustable between 0.0 - 1.0 LPM (1st line = 0.3LPM, 2nd line = 0.5LPM, 3rd line = 0.7 LPM, 4th line = 1.0 LPM)
Barb Size: 6mm outer diameter

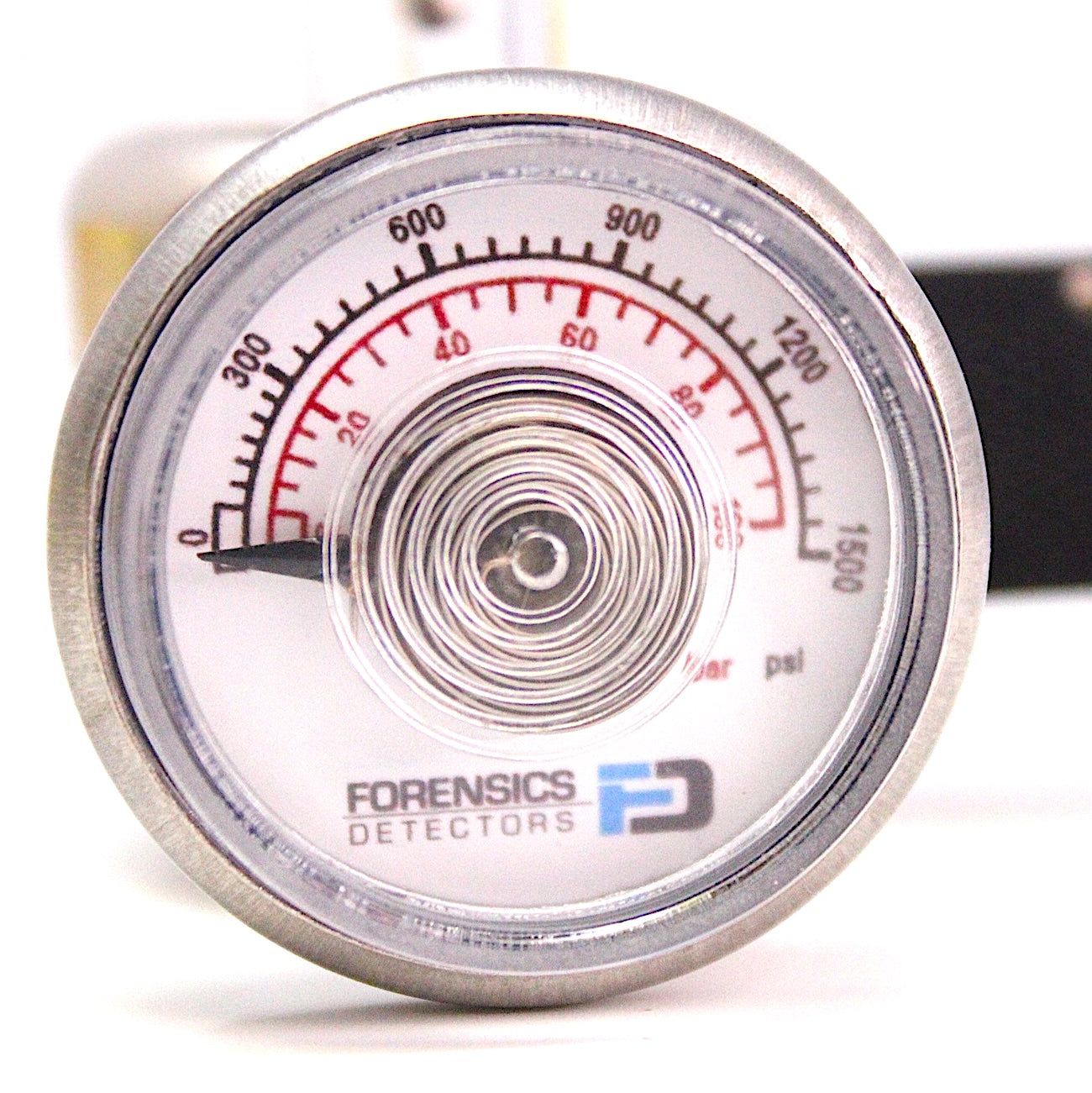

Gauge Max Pressure: 1500 PSI
Dimensions: 3.2 x 2.1 x 2.0 inches
Weight: 14 oz
