Moisture & Humidity Gas Filter | Large

  • Sale
  • $75.00
  • Regular price $125.00

Compatible Detectors: All

  • ⚛️  Description: This is a generic moisture filter, otherwise known as a humidity filter, water-vapor filter, or air dryer filter. This tool is used to reduce the moisture content of an air or gas sample prior to analysis by a gas sensor. Removing moisture is important as most sensor technologies have cross-sensitivity to water vapor. These filters are commonly used in combustion line setups, breath analysis, or in humid sample environments (tanks, silos, caves, etc...).

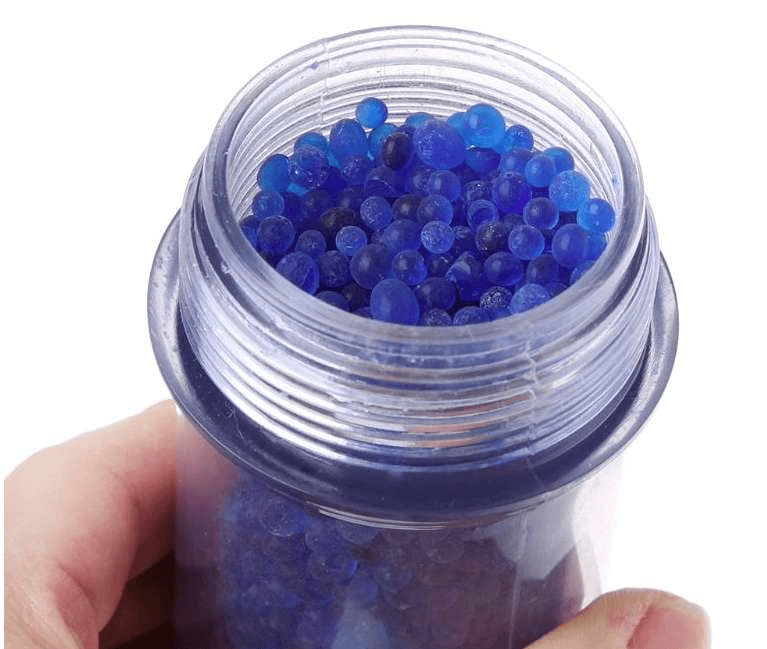

  • 📶  How does it work? Silica gel is a desiccant that can hold 30 to 40% of its weight in water. Water molecules stick to silica bead surfaces through adsorption. Each bead has many tiny interconnected pores, resulting in a high surface area. These desiccant beads are dark blue and will change to a light pink when they have absorbed the maximum amount of moisture and need to be changed. Note: when they start to turn pink, they have usually about 40% life left. How soon you change them depends on personal preference and how important it is that you get no moisture in your air line.
  • 👫  Instructions: Connect the filter in line with the air supply line tubing. The filter is bi-directional so it does not matter which way it is connected. One end is the input and the other is the output to the sensor.
  • 🔣  Specifications:

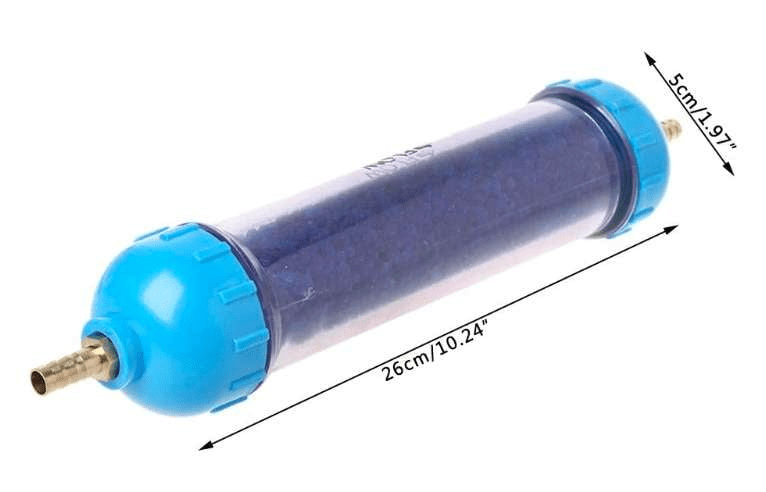

    • Dimensions: 5 cm x 26 cm / 1.97 in x 10.24 in
    • Weight: 1 lb

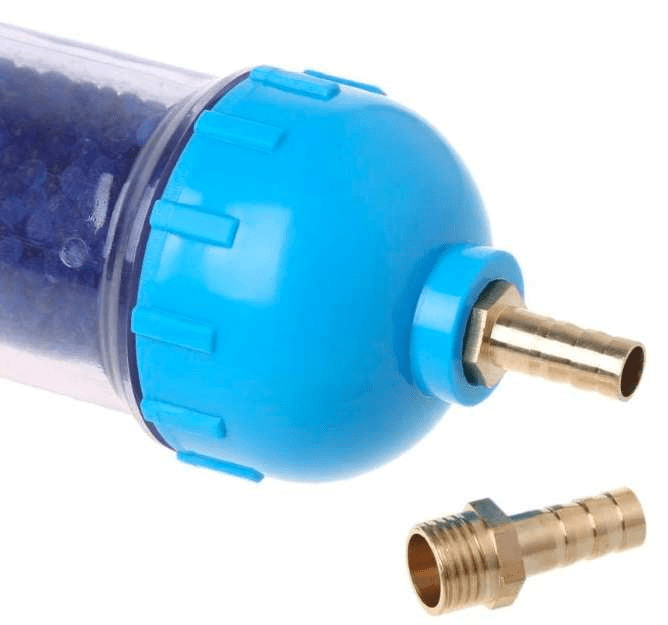

    • Barb length: 1 in
    • Barb outer diameter: 8.3 mm / 0.32 in
    • Active material: blue beads cobalt chloride (0.005%)
