Combustion & Moisture Line Filter Kit

  • Sale
  • $55.00
  • Regular price $125.00

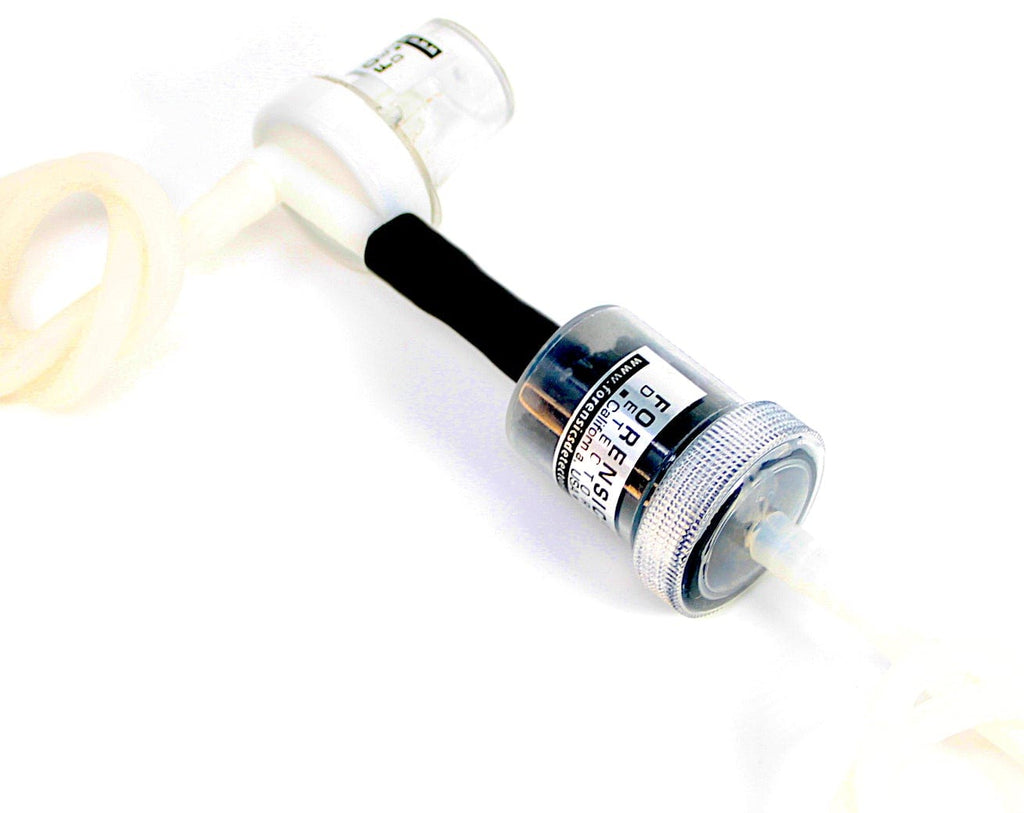

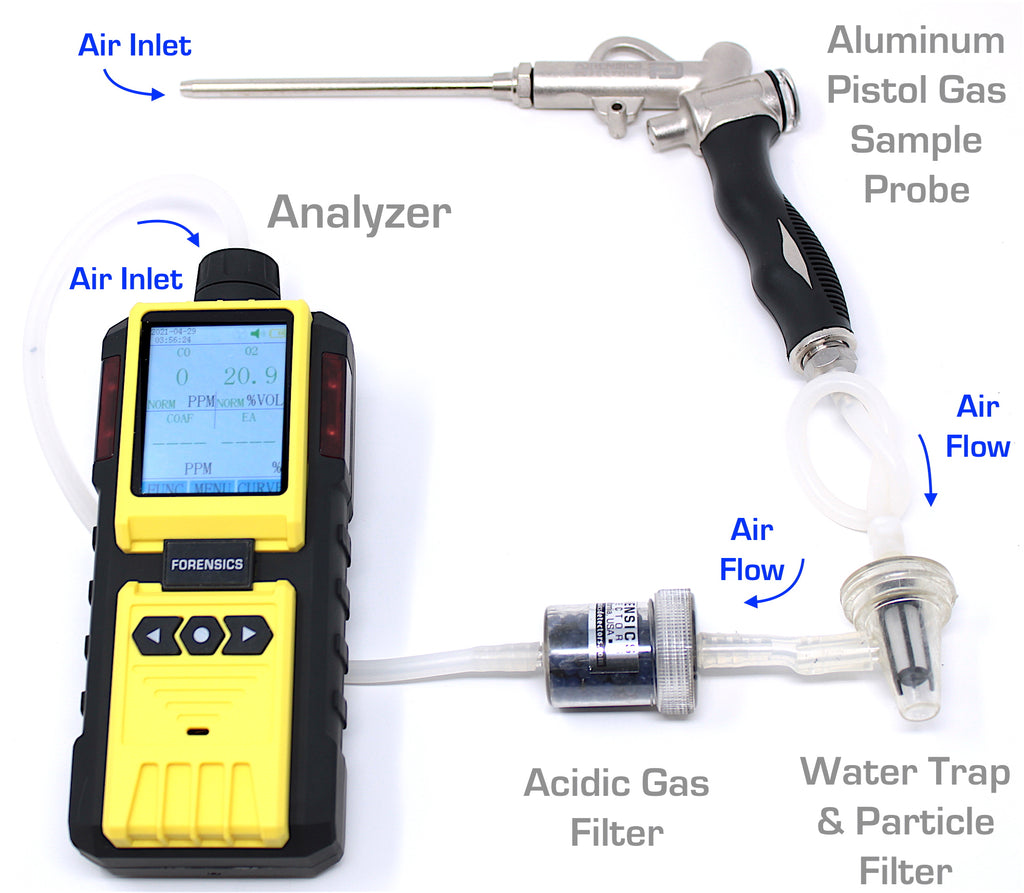

This combustion line kit is compatible with the FD-4A, FD-4S, and FD-600 combustion analyzers. It is also can be used in gas sample filtering of volatile gases and of gas streams that have high humidity and condensate. The kit includes:

  • High temperature and flexible silicone tubing: 3 mm ID and 6 mm OD

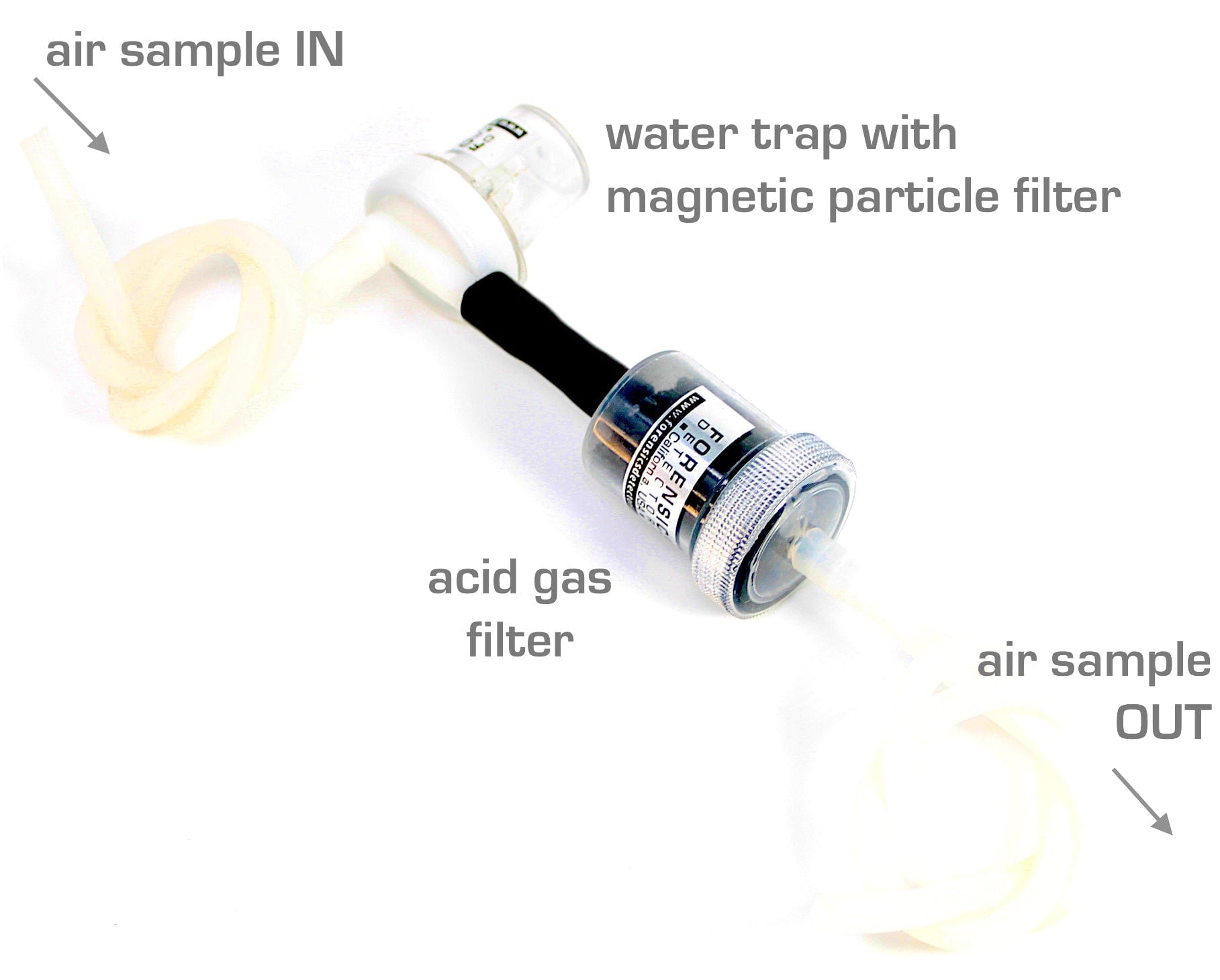

  • Water trap and magnetic particle filter (to trap any metal particles and trap condensate and larger particles also)
  • Filter media consists of a special blend to eliminate moisture, humidity, and acidic gasses. The filter media is composed of activated charcoal, silica gel, activated alumina, and potassium permanganate.

The length of the assembly is about 2 feet.
