Gas Sampling Pump & Probe

Brand: FORENSICS DETECTORS
Model: FD-PUMP
User Manual PUMP: Click Here
Quick Start Guide with Detector & Pump: Click Here

Features:

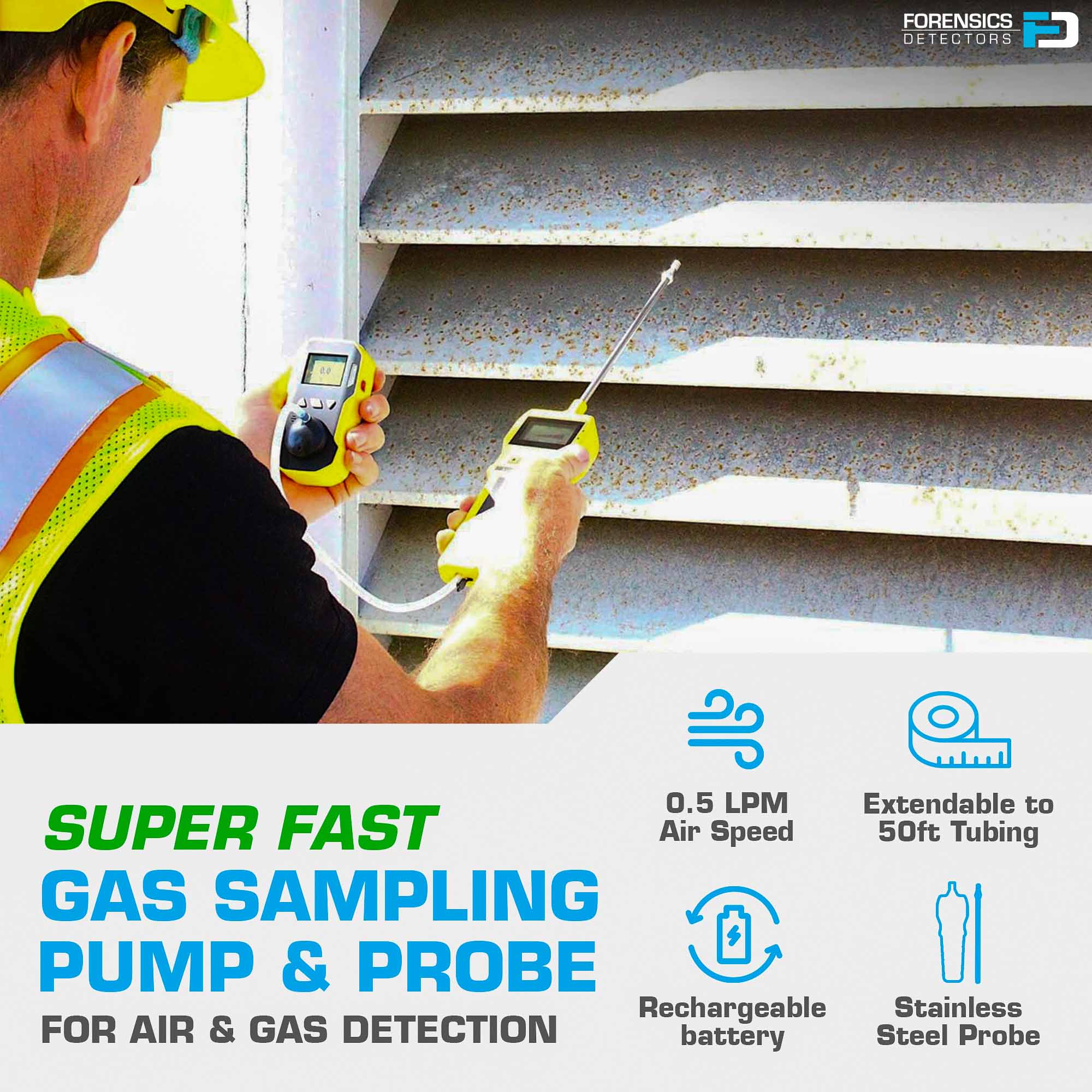

• 🎆 USES: Hand-held electric pump (0.5 LPM, 500 cc/min) ideal for point and remote gas sampling (up to 50 feet) for air and toxic gas.

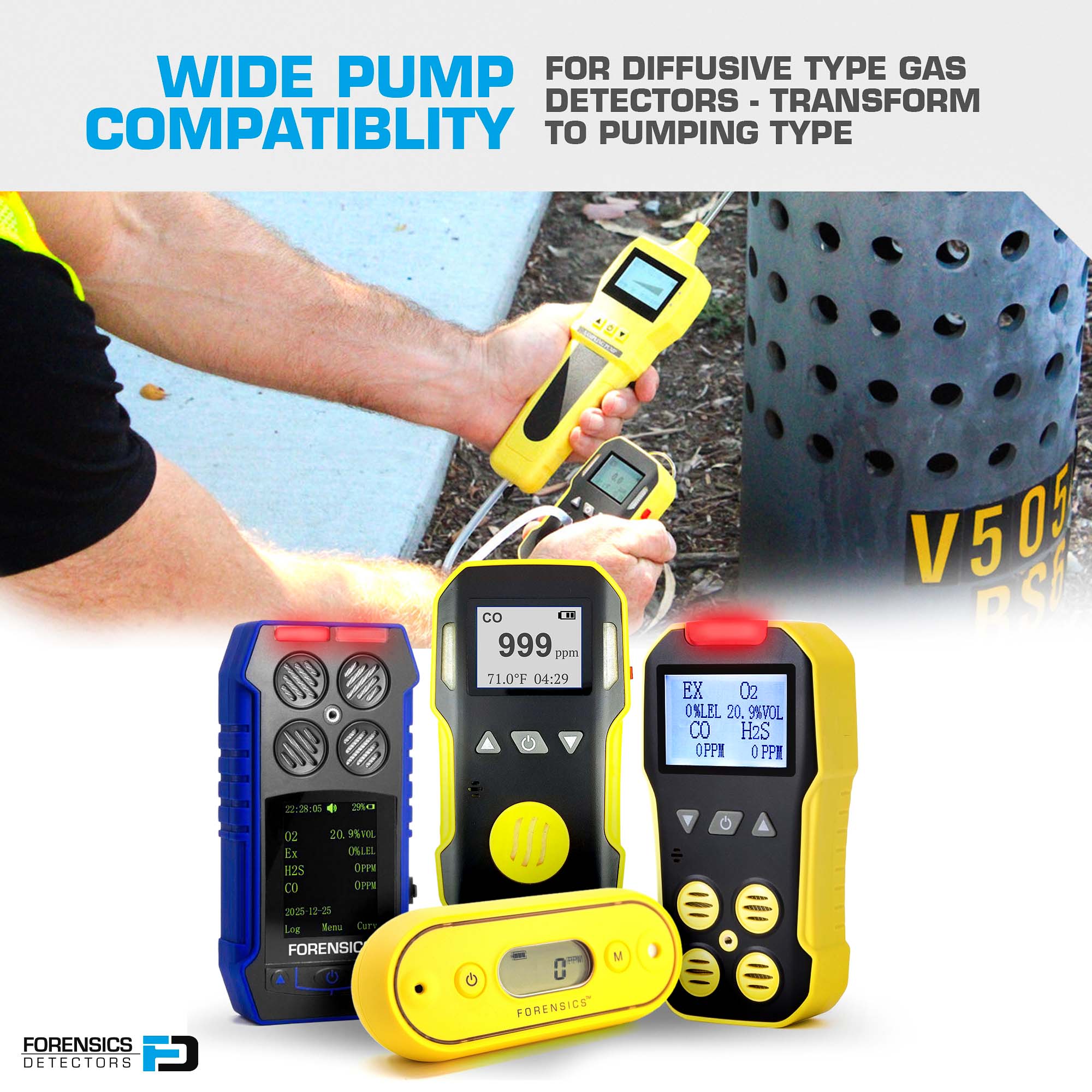

• 🏭 DETECT: Compatible with most diffusive type gas detectors. Gas tube plugs into detector's calibration cap.
• 🏹 FEATURES: Operates at a convenient 0.5L PM flow rate with temperature, time, date, and pump power reading on a high-resolution LCD screen with a backlight.
• 💪 STRONG: Strong ABS construction. Comes with all accessories, USB cable, probe, pump, and standard 3 feet of 1/8 inch ID silicone tubing.
• 🕵️ TRUSTWORTHY: ** 1-year limited warranty **

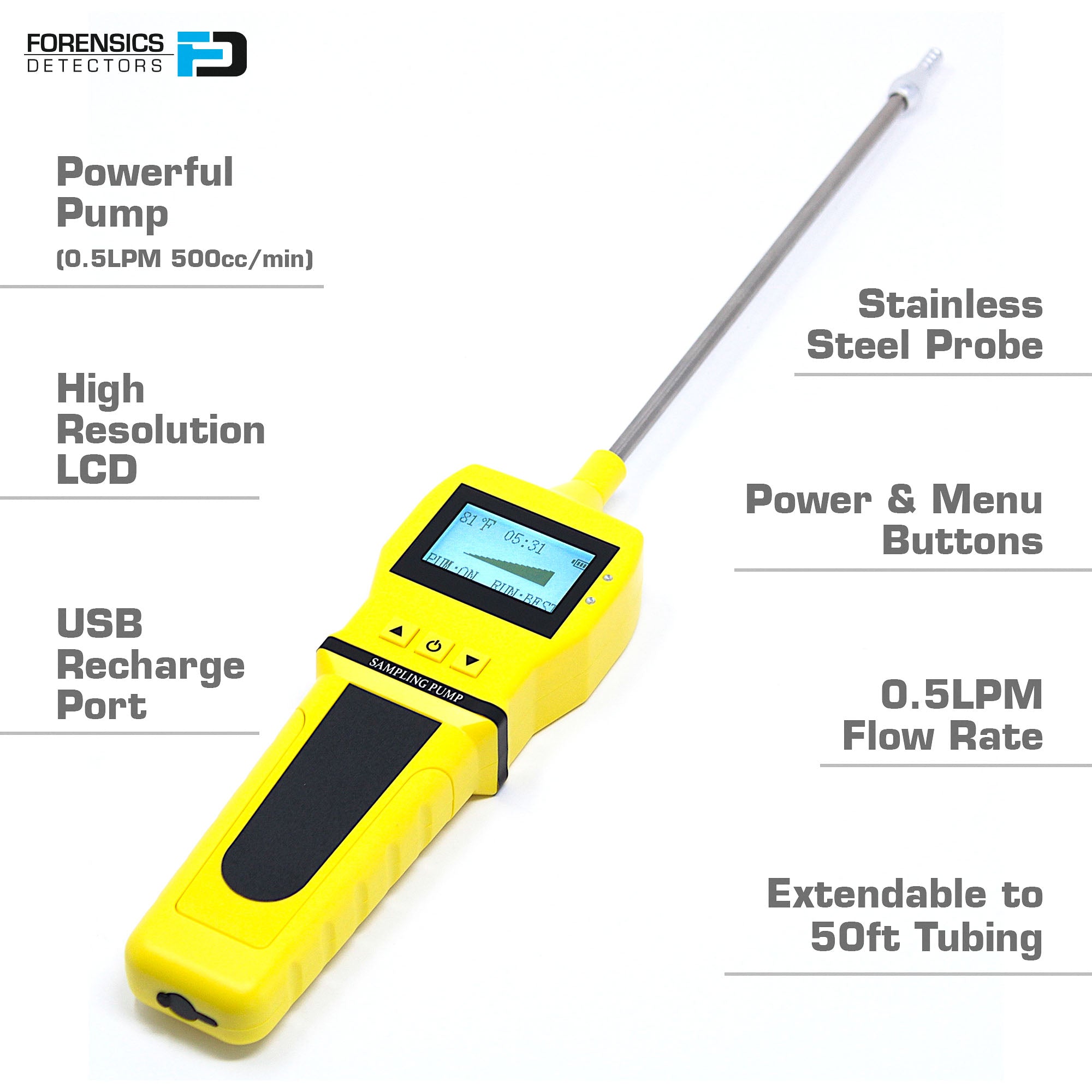

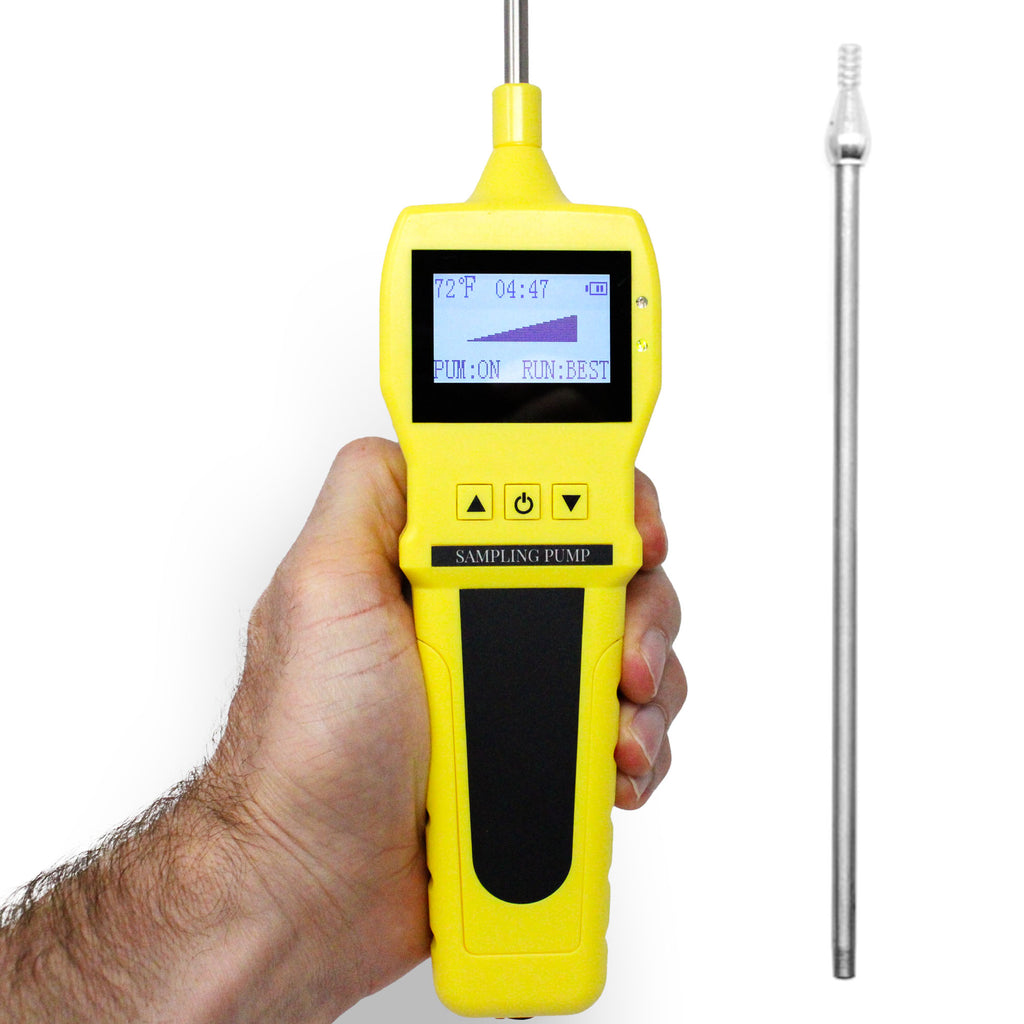

Details: The GAS SAMPLING PUMP by FORENSICS is used for sampling gas with a detector or for filling a gas sample bag. Samples of particulates, vapors, and gases. Can draw samples from up to 50 ft (15 m) away. Quickly convert diffusion instruments to remote gas or point sampling. Gas input is measured through a stainless steel probe (8.6 inches in length). Gas output is a male 3/16" tube barb connector that connects to standard tubing ID (1/8" diameter). Advanced features include temperature detection, time, date, and backlight, a high-resolution LCD. The power and pump resistance are also clearly indicated, so the user has insight into the pump load. Ideal for point sampling in "toxic gas" environments to avoid harmful inhalation and exposure.

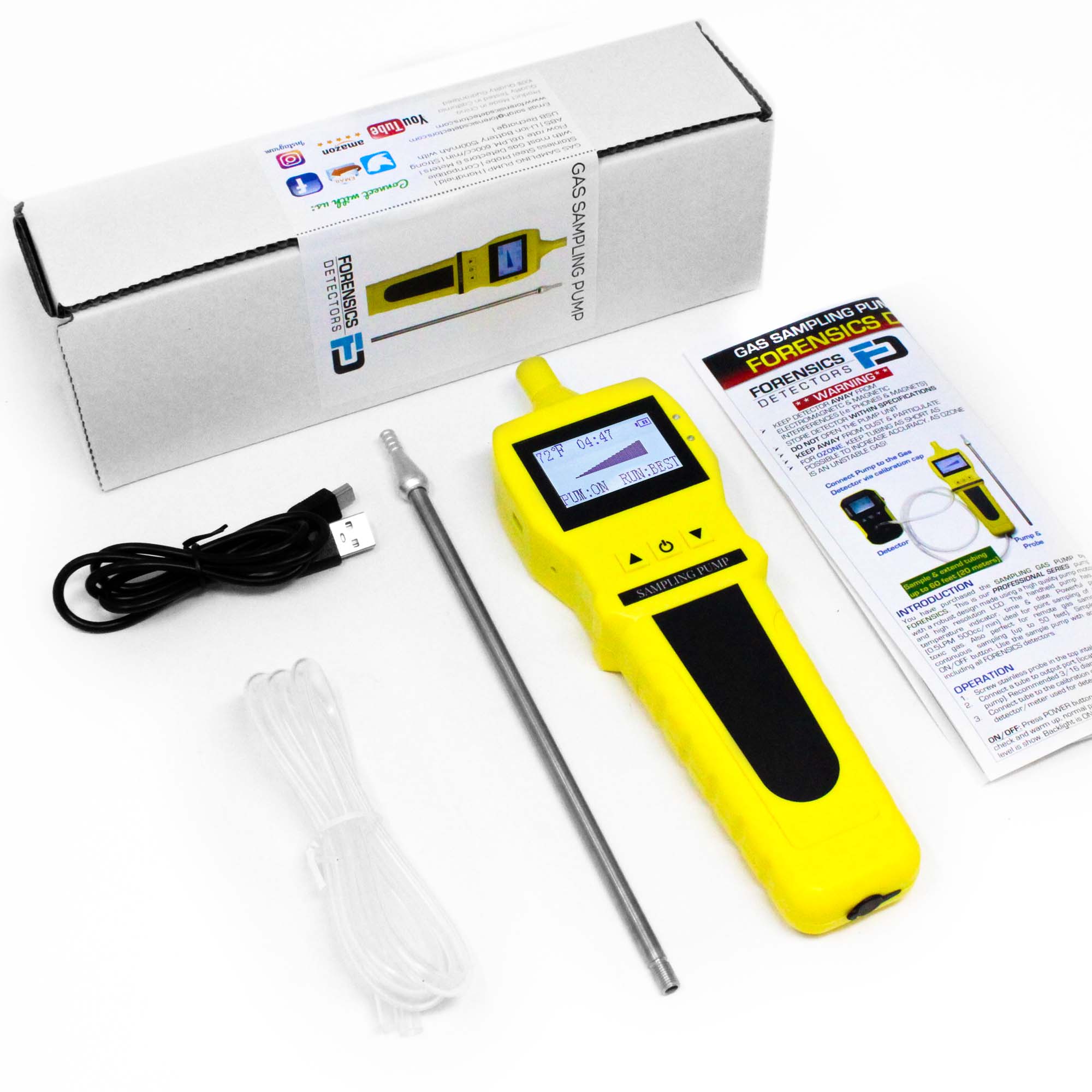

Included: Sampling gas pump, English manual, mini USB charging cable, stainless probe, and 3 ft silicone tubing.

Specifications

Flow Rate: 0.5 LPM (500 cc/min)
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Noise: < 60 dB
Weight: 140 g (with battery)
Dimensions: 65 mm x 30 mm x 225 mm
Voltage: DC 3.7V Li battery 1800 mAh
Probe Thread: M6 x 0.75 mm
Barb Outer Diameter: 3/16" (4.78 mm)
