Brand: FORENSICS DETECTORS
Model: FD-TEDLAR
Compatible: FD-PUMP
-
⚛️ Description: Instead of using a detector to determine gas concentrations, sometimes users must obtain a gas sample. In some cases, using a gas detector or on-site analyzer is not appropriate. The detector specifications may not be fitting for on-site analysis due to limited range, resolution, or specificity. It may be deemed more appropriate and cost-effective to collect a sample for later analysis or a third-party gas testing lab. Applications include indoor air sampling, hazardous waste sites, leaking underground storage tanks, stack sampling, soil gas sampling, gas blending, exhaust gas, calibration test standards, and most other gas sampling needs.
-

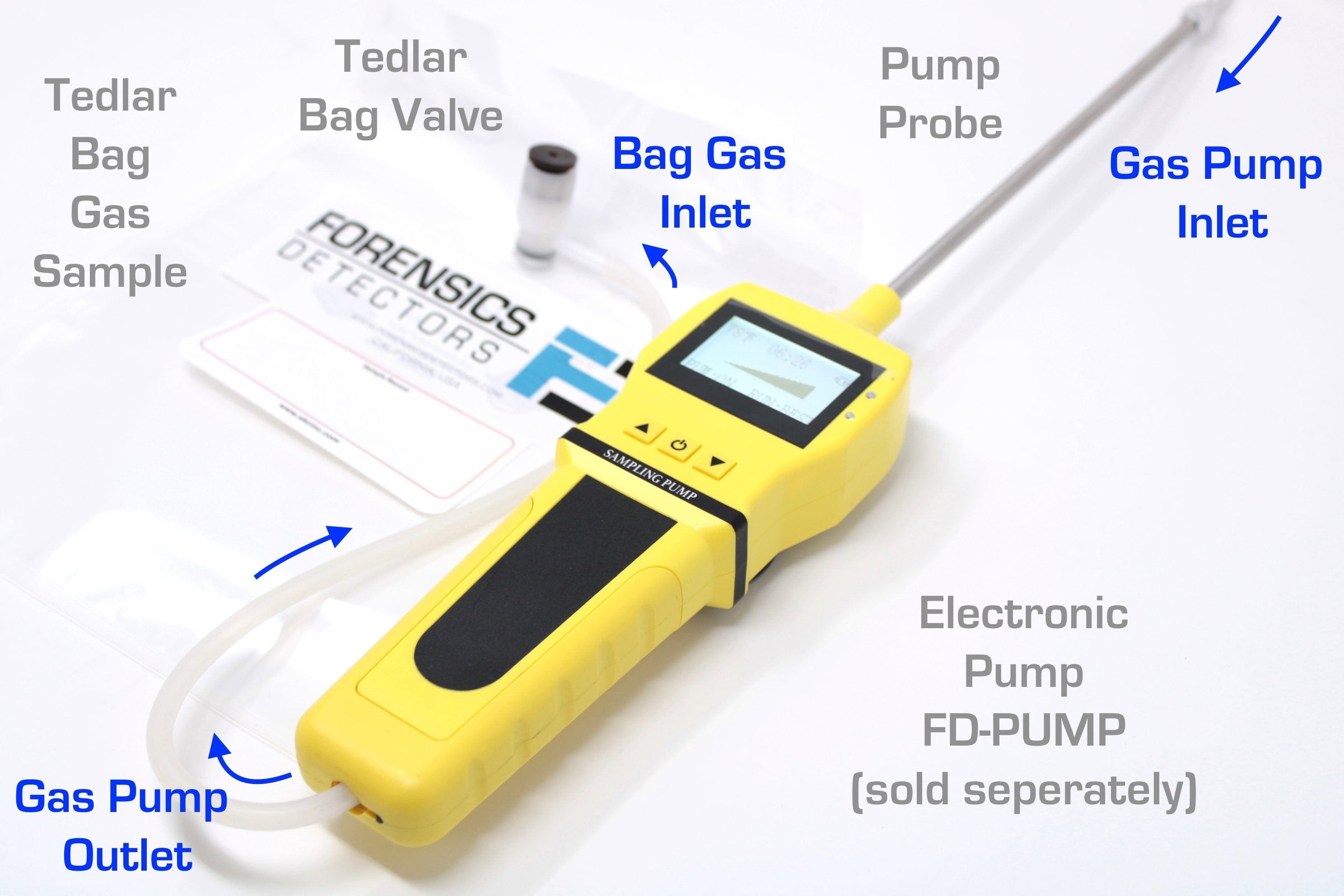

👫 Instructions: Use this bag with a pump (i.e. FD-PUMP) to collect your gas sample. The bag comes with a valve, rotary on-off switch, and barb to connect your tubing. Once you have collected your air sample, you can send it to a lab for inspection.
- 🔣 Specifications:
- Volume = 1 liter
- Dimensions: 8 in x 10 in
- Material: 2 mil Tedlar PVF film, polypropylene fitting - MADE IN USA
- Valve barb = 1/ in” ID.
- Tedlar PVF film is tough, durable, and considered chemically inert to a wide range of compounds. Tedlar Air Sample Bags are made from classic DuPont® film - the industry standard - with good stability for VOCs, sulfur compounds, carbon monoxide, carbon dioxide, methane, and sulfur hexafluoride.
