Brand: FORENSICS DETECTORS
Model: FD-PROBE-3INCH
Compatible Detectors: FD-600 & FD-600M (all versions), FD-311 (all versions)
- ⚛️ Description: This 3-inch probe can be used in various gas and air quality sampling applications where a small form factor and probe gauge are desired. Perfect for gas leak detection applications. This probe comes standard in our O2 weld analyzer and inert gas leak detectors.

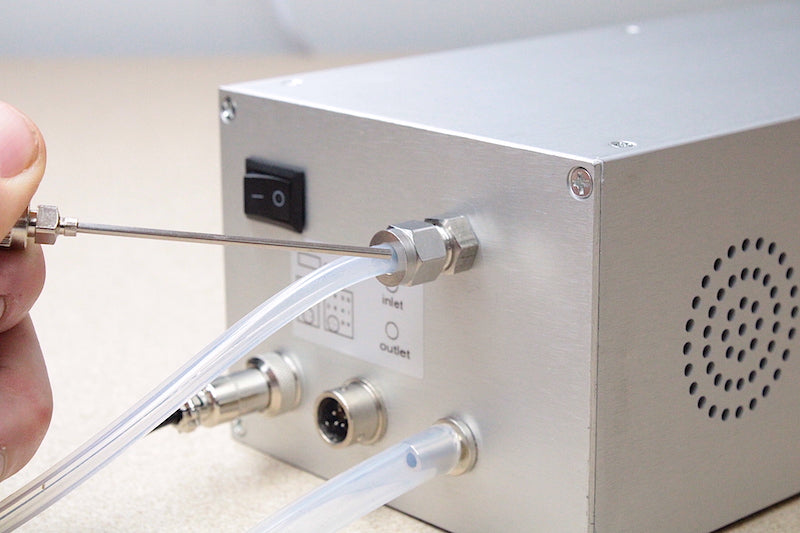

- 📶 How does it work? You can connect the tubing directly to a detector with a micro-pump, such as our FD-600 analyzers. When fastened to a pump inlet port, it can serve as a sampling probe. Examples of applications include breath, food, leak detection probes, incubators, and small confined spaces. You can also cut the tubing very short and attach it to your pump analyzer barb (FD-600, FD-311, or FD-600M) for one-hand point sampling (see images).

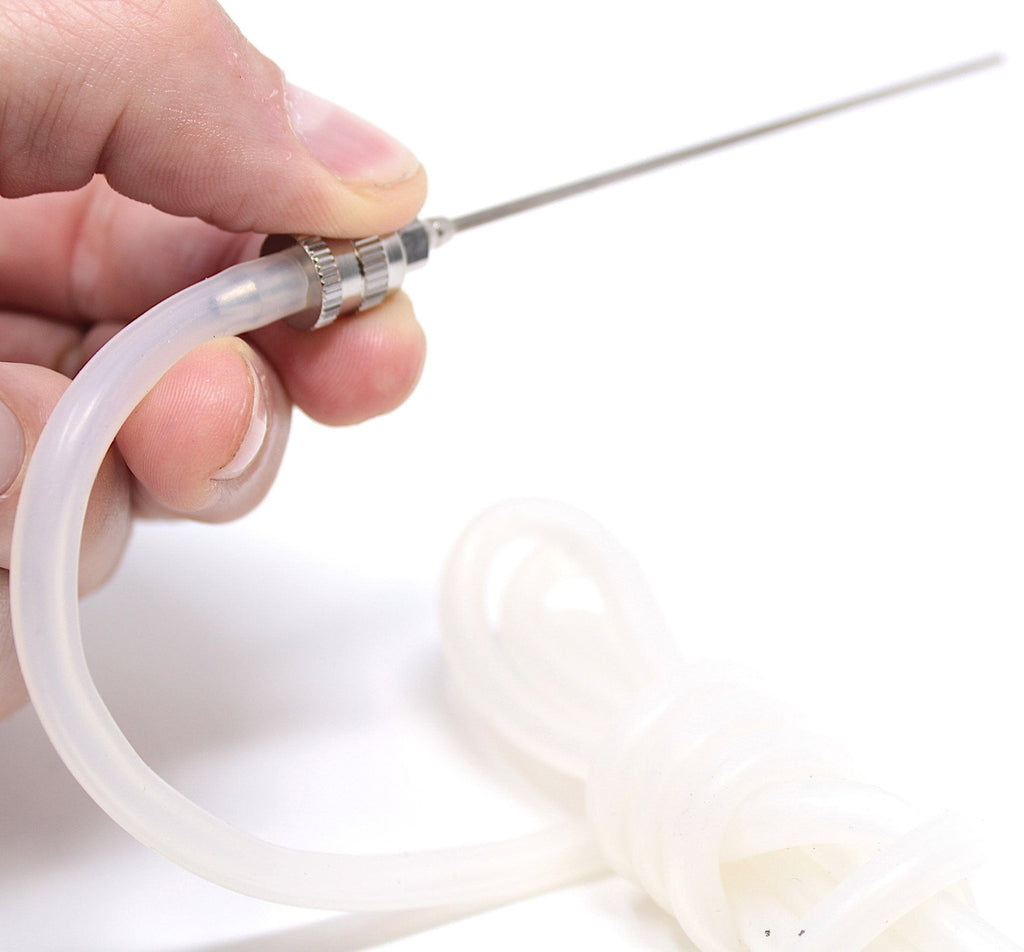

- 👫 Instructions: As shown in the image, hold the probe. The probe tip will draw the air through the tubing to your detector. The tubing on the other end must be connected to a pump or analyzer with a built-in pump.
- 🔣 Specifications:

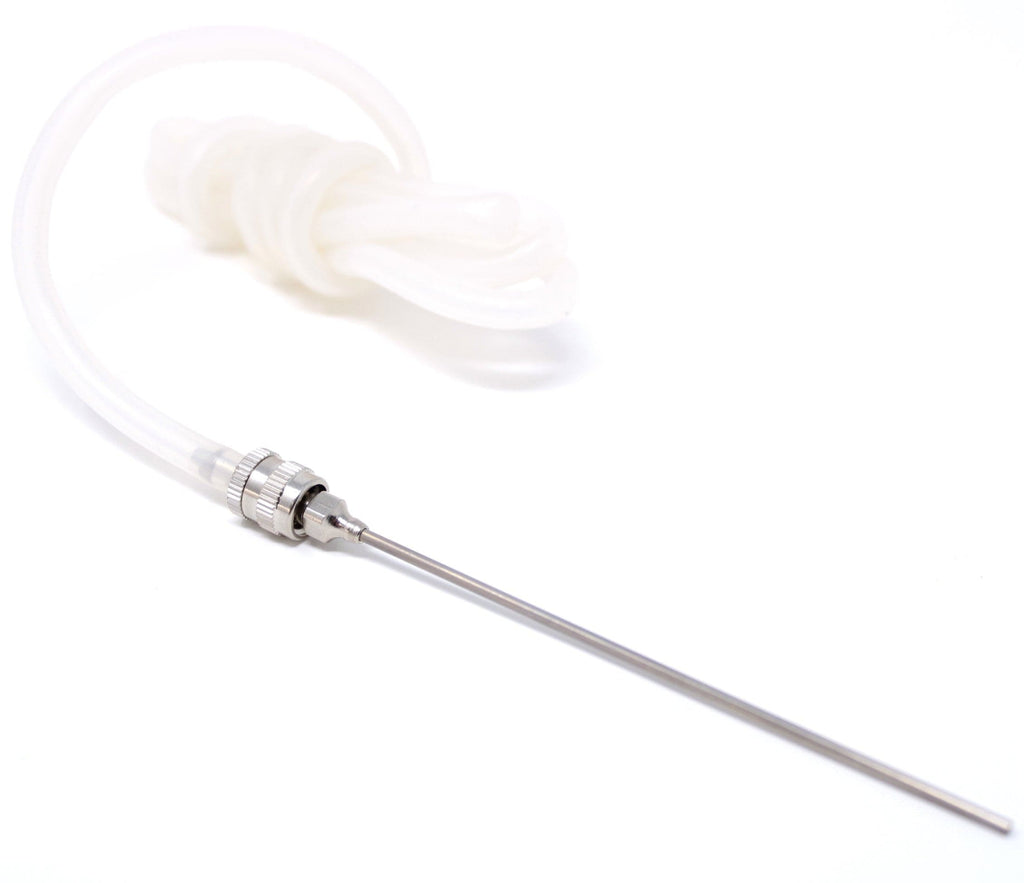

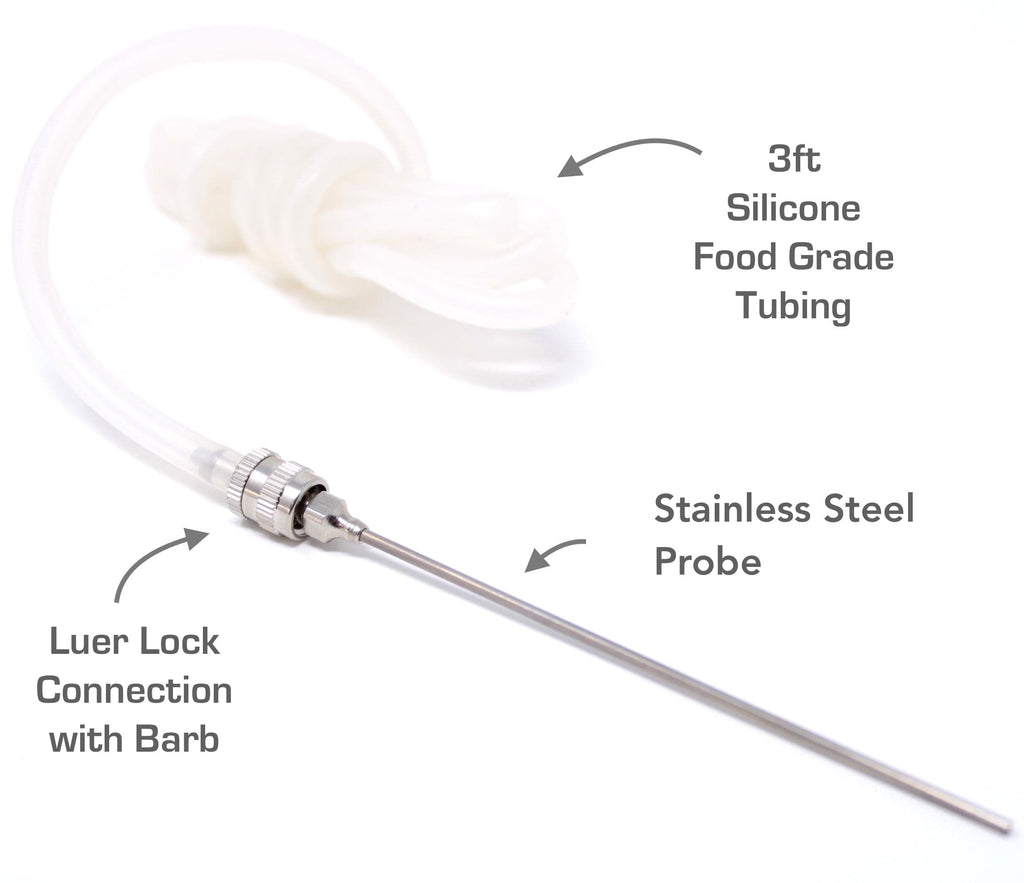

- 1 x stainless steel probe (75 mm in length and 2 mm in diameter)
- Stainless steel Luer lock connectors for easy on and easy off
- High temperature and flexible silicone tubing (ID 3 mm, OD 6 mm)
- The total length of the assembly is about 3 feet.
