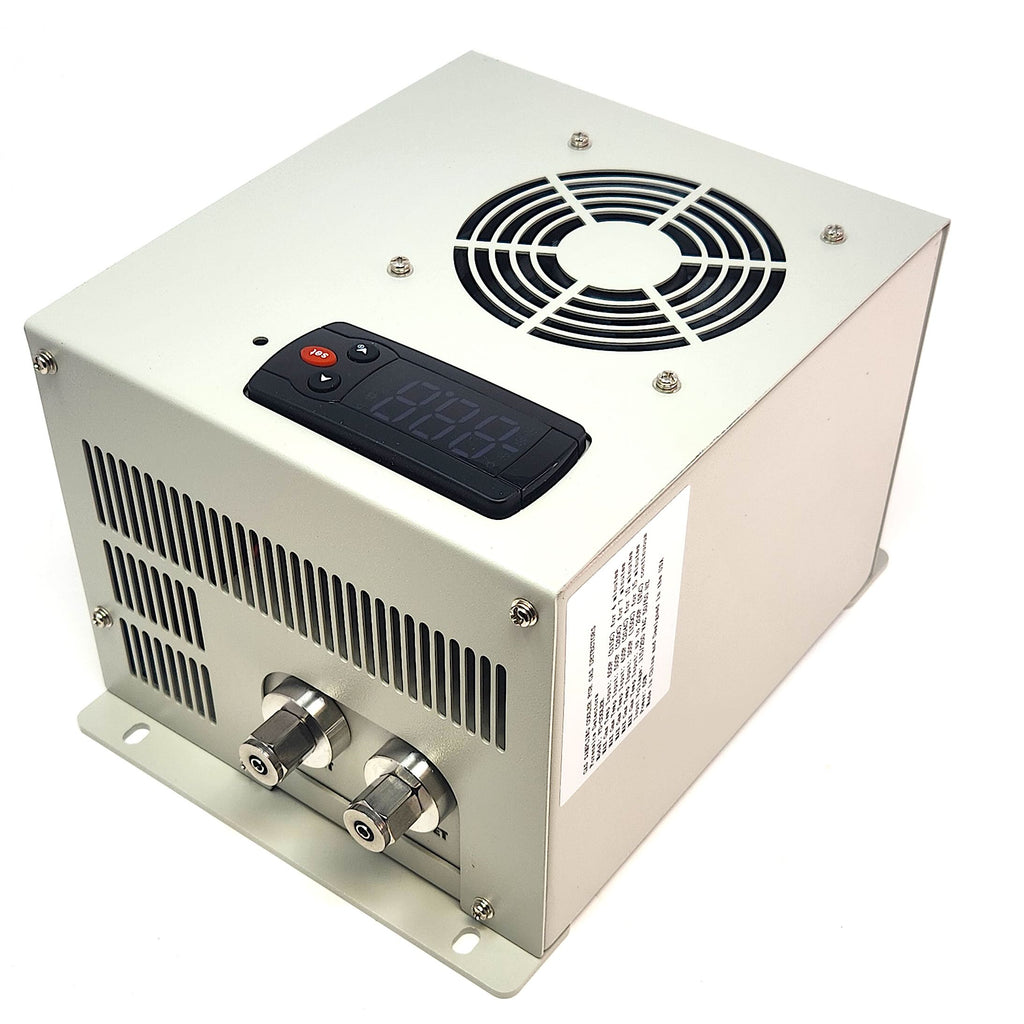

Gas Sample Cooler | High Temp Gas Conditioner

Brand: FORENSICS DETECTORS
Model: FD-COOLER
Compatible Detectors: FD-600 (all versions), FD-600M (all versions), FD-311 (all versions), FD-PUMP, FD-311 (all versions)

• 🎆  Description: This is a special Gas Cooler and High-Temperature Gas Conditioning system made for high-temperature gas sampled from flue gas, exhaust gas, ovens, kilns, and other combustion processes.
• ⚛️  MAX Temperature: The unit has a built-in cooling system that cools and conditions the air sample to prevent any high-temperature damage to your gas detector.
• 🏭  Uses: Sampling very high-temperature gas streams such as those working with commercial boilers, flue gases, exhausts, ovens, kilns, and high-temperature manufacturing processes.

• 🕵️  Compatability: This gas cooling system is the perfect companion for any analyzer with a built-in pump such as the Forensics Detectors FD-600 and FD-311 analyzers.

Details: The hot gas is probed with the 1-foot metal probe. The suction from the analyzer (not included) draws the gas through the water trap. Due to the sudden temperature change, condensation will occur and be trapped in the unit. We also recommend a external water trap from the outlet before entering the gas detector, just in case to catch any residual condensation. If your detector does not include a built-in pump, you will need an external pump to create a suction or vacuum and draw the gas sample through the system. In this case, we recommend FD-PUMP.

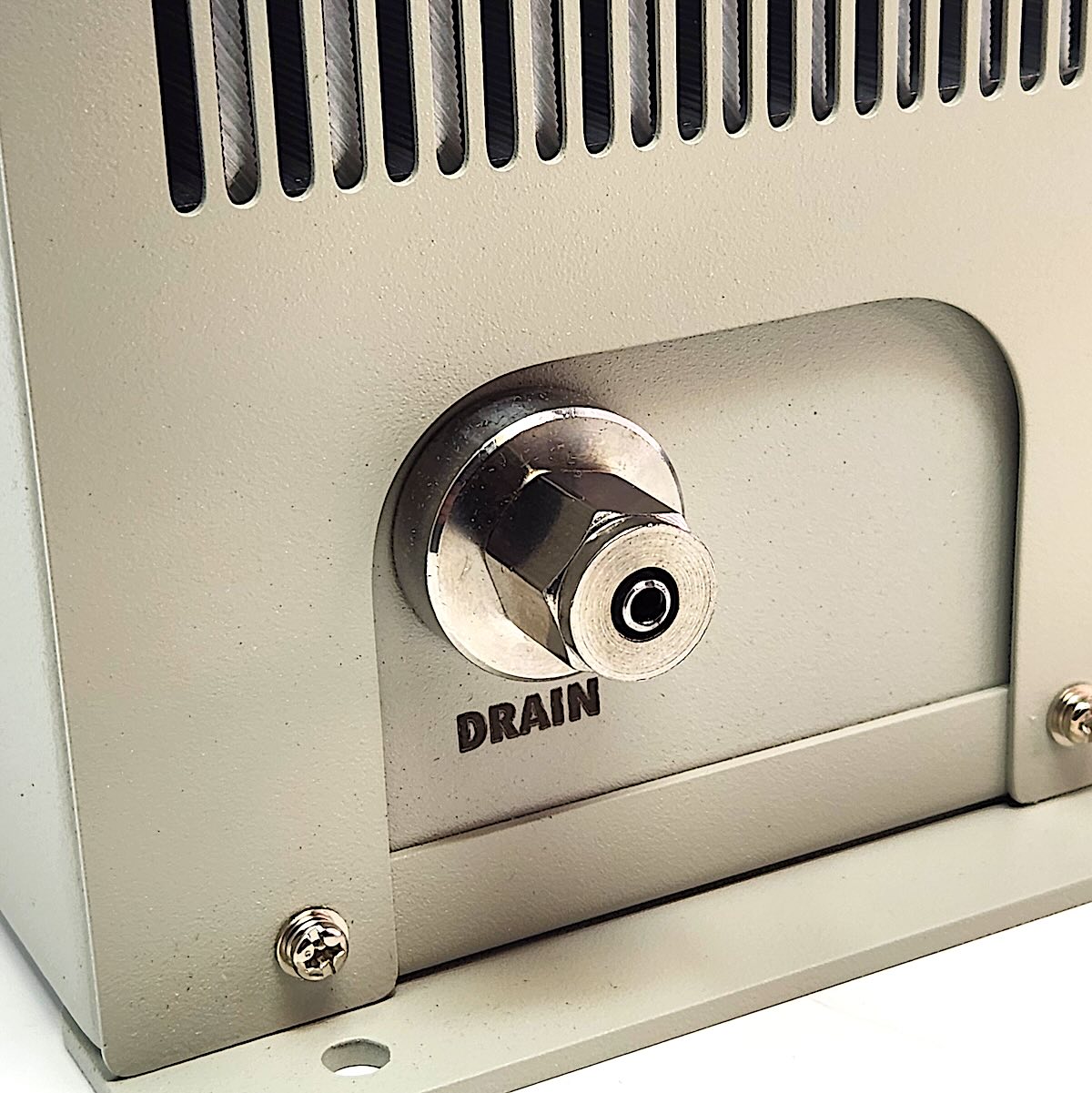

Instructions: Turn on the Fan. Ensure all connections are tight and the water trap is empty. Connect the gas analyzer and ensure the gas analyzer pump is ON. Again, I repeat, your gas detector or analyzer must have a pump and draw the air to the sensor which will move the hot air through the cooler. Then, ensure the DRAIN plug is blocked. This is only used to drain the condenser when testing has been completed, or when you see that the water level in the cooler is full (water will be released through the outlet). Turn on the power. Set the temperature to 21 °C, the recommended outlet temperature. Once all is confirmed OK, place your probe in the high-temperature gas stream for testing. Take your measurement. Be aware that many components will get skin-burn hot, including the metal probe, so operate this system and the probe with high-temperature protective PPE gloves.

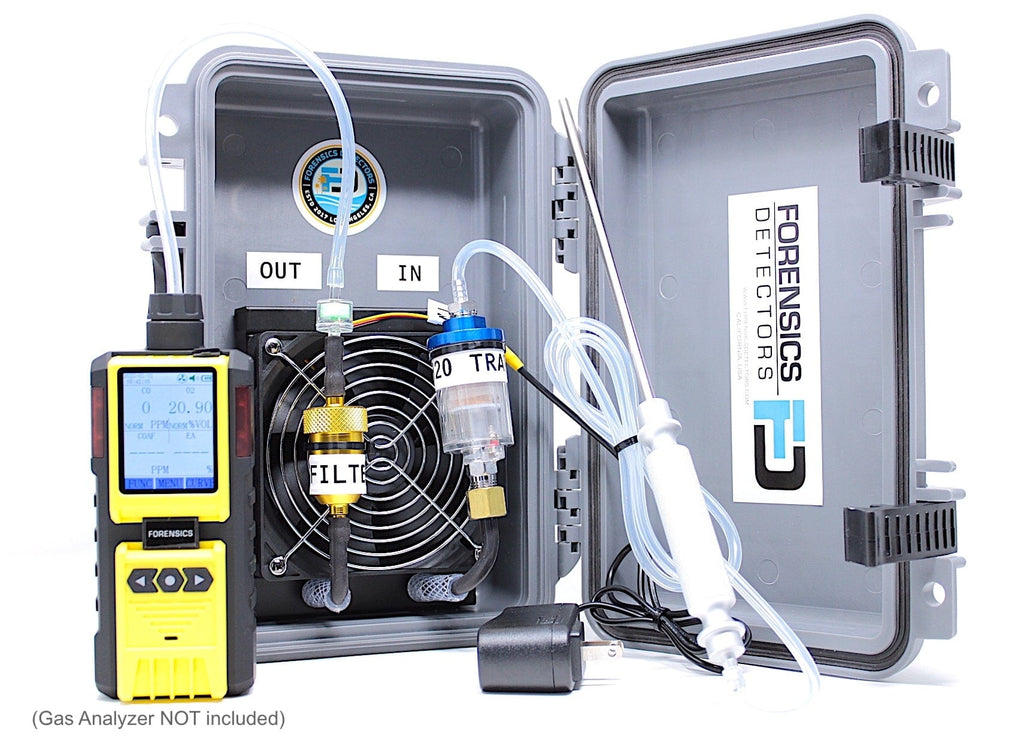

Included: The system comprises a 1-foot gas sampling metal probe, 3ft silicone tubing, high-temperature silicone tubing and a fan-cooled radiator.

Specifications

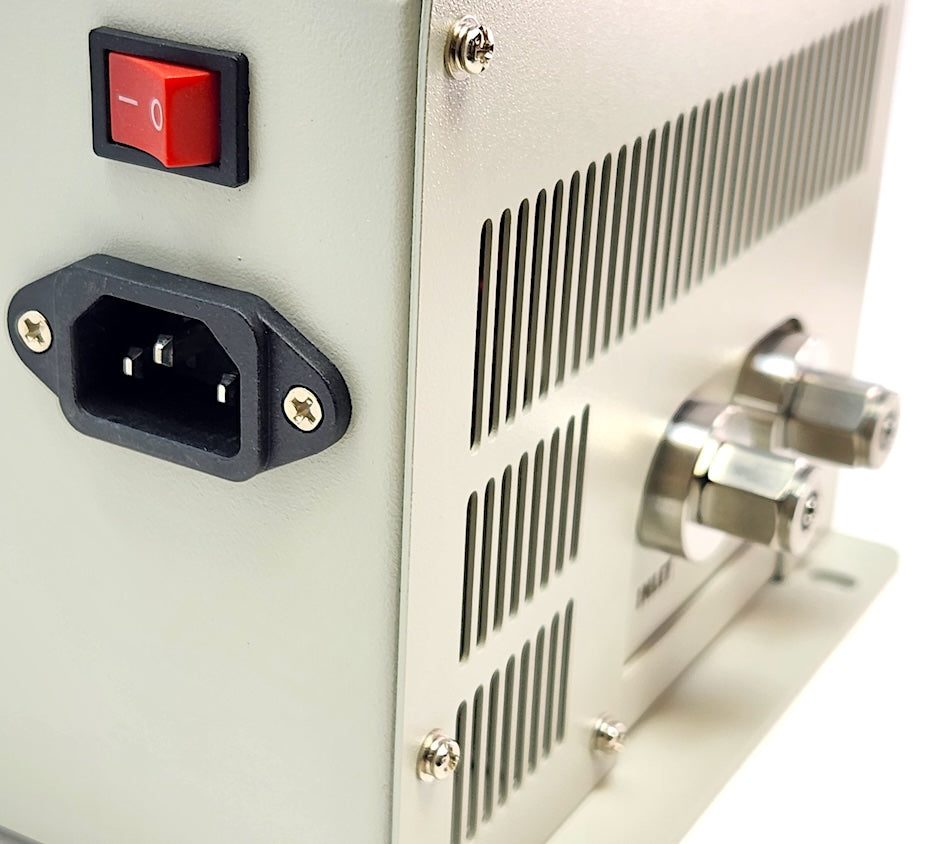

Voltage: 115/230 VAC 50/60 HZ
Power: 60W

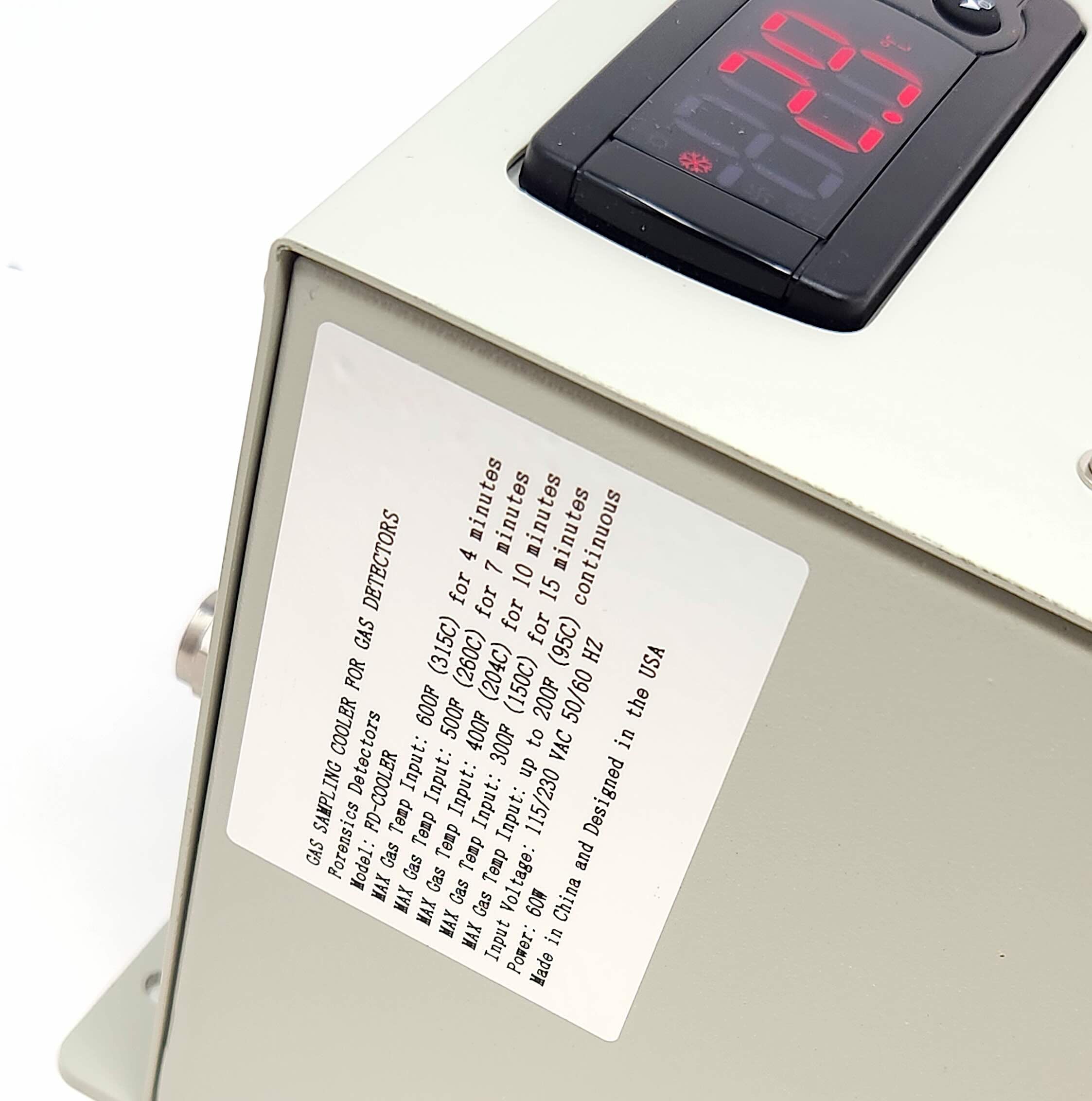

Working Temperature:
MAX Gas Temp Input: 600F (315C) for 4 minutes
MAX Gas Temp Input: 500F (260C) for 7 minutes
MAX Gas Temp Input: 400F (204C) for 10 minutes
MAX Gas Temp Input: 300F (150C) for 15 minutes
MAX Gas Temp Input: up to 200F (95C) continuous
Weight: 5lb
Required Flow: 0.3-0.7 LPM

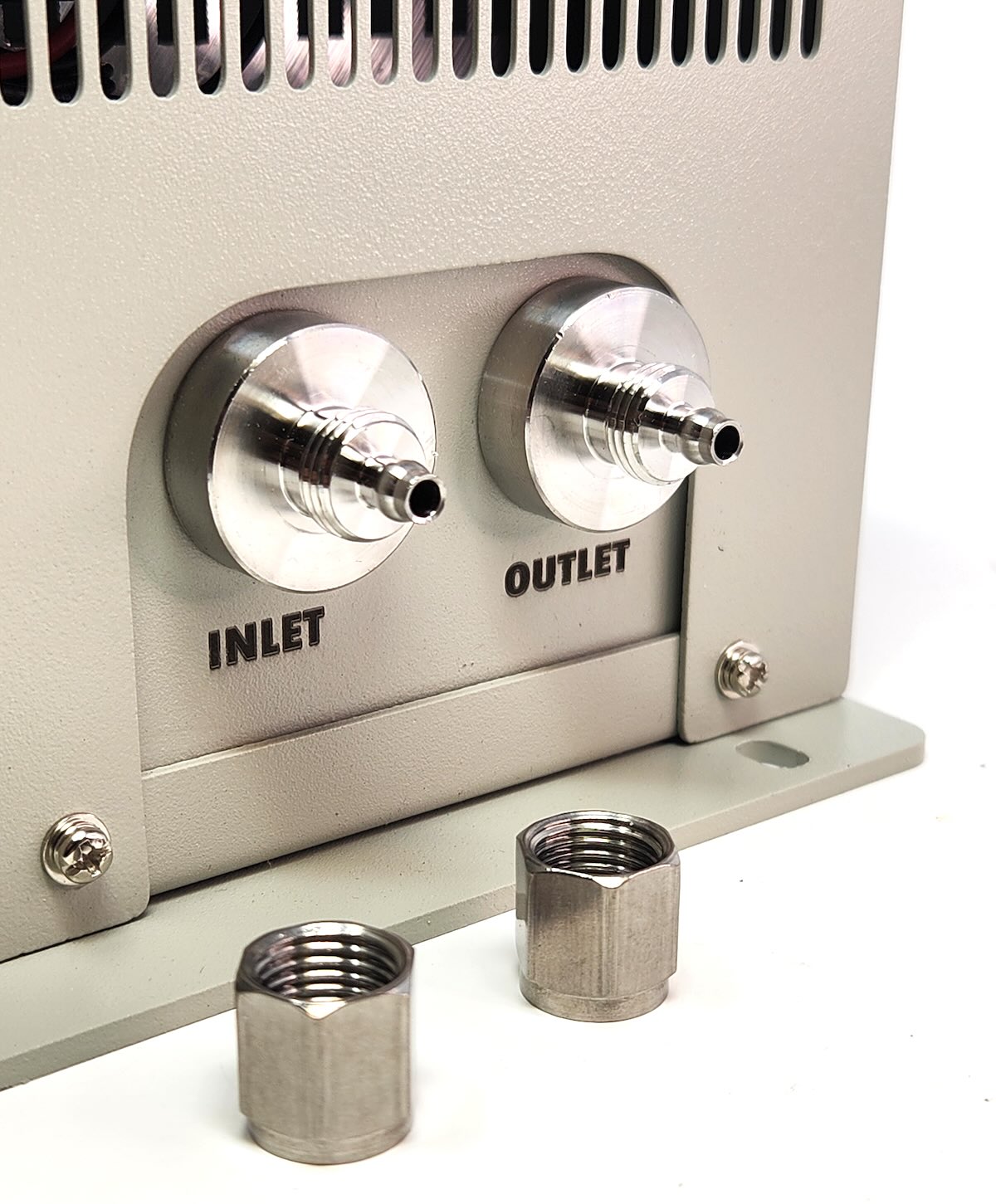

Barb OD: 3mm (input and output)
Probe: 1-foot length with 3ft silicone tubing
Case Dimensions: Length 11.7 inches, Width 8.3 inches, Height 3.8 inches.
