The Forensics Multimeter | Professional

  • Sale
  • $59.00
  • Regular price $95.00




Brand: FORENSICS DETECTORS
Model: FD-MULTIMETER

Features:

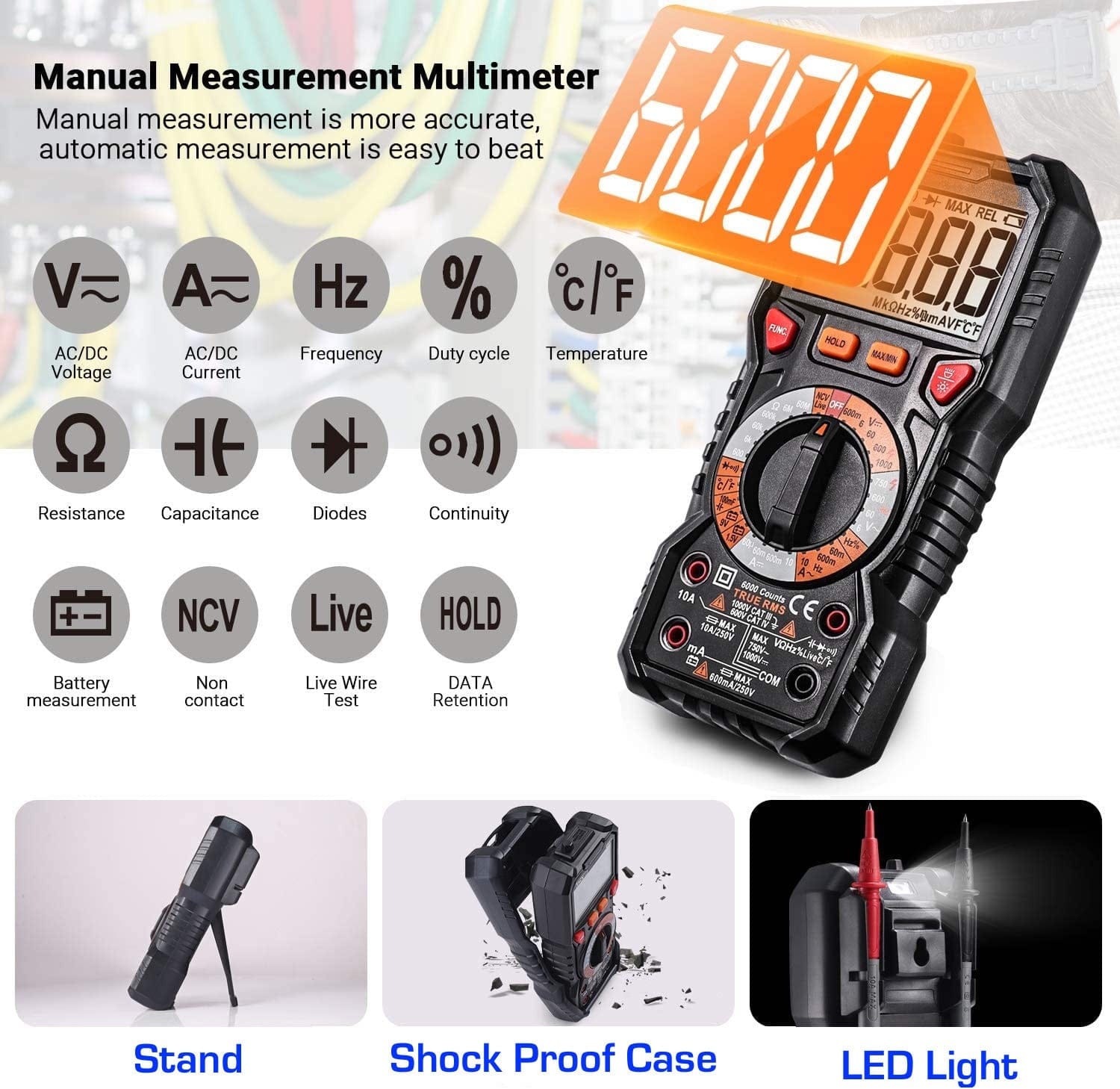

  • ⚛️ FUNCTIONS: True RMS, 6000 counts, AC/DC voltage, AC/DC current, resistance, capacitance, frequency/duty, diode test, continuity test, temperature, and battery tester.
  • 📶 RANGE: Manual range is more accurate and stable than automatic range measurements. Intelligent socket LED indicators to ensure correct lead plug-in. Double insulation protection ensures the safety of testing. Safety compliance: CAT.III 1000V CAT.IV 600V, CE, RoHS certified.
  • ❇️ FEATURES: JUMBO digits, work LED, non-contact voltage measurement, live wire testing, durable case, stand, thermocouple, and batteries.
  • 💪 STRONG: Shockproof, dust-proof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** 100% quality guaranteed **

Details: This multimeter is for the serious user. For those looking for a cheap weekend multimeter, don't bother. This is a professional multimeter with advanced top-shelf functions, such as true TRMS, 6000 counts, large digits, non-contact voltage measurements, large ranges of DC, AC voltages, and currents. Also at Forensics Detectors, Dr. Koz dislikes auto-ranging meters and believes they are annoying to use. Therefore, we have kept the tried and tested manual dial function. Not as hard or advanced to use as a digital oscilloscope but excellent in its own right.

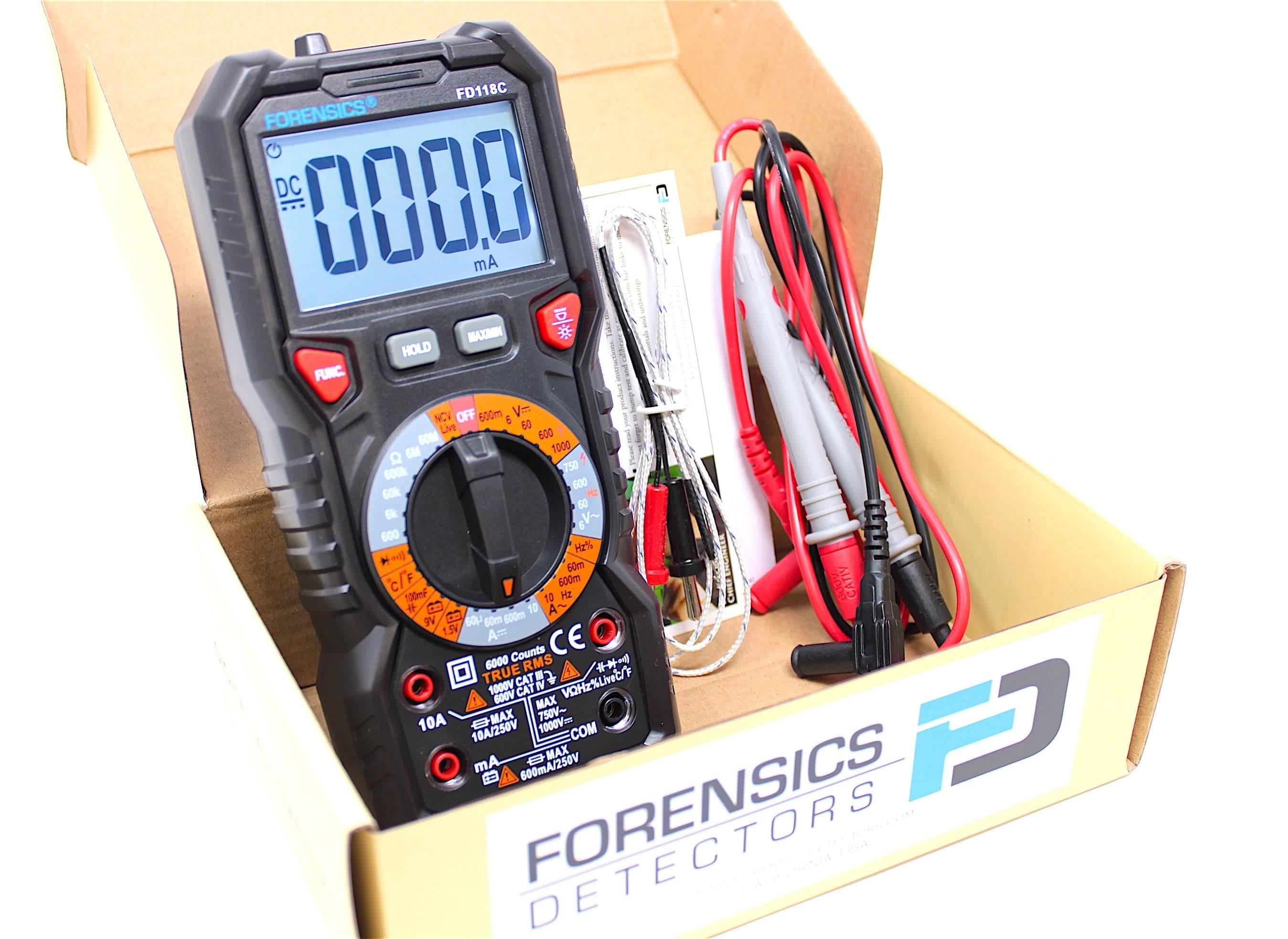

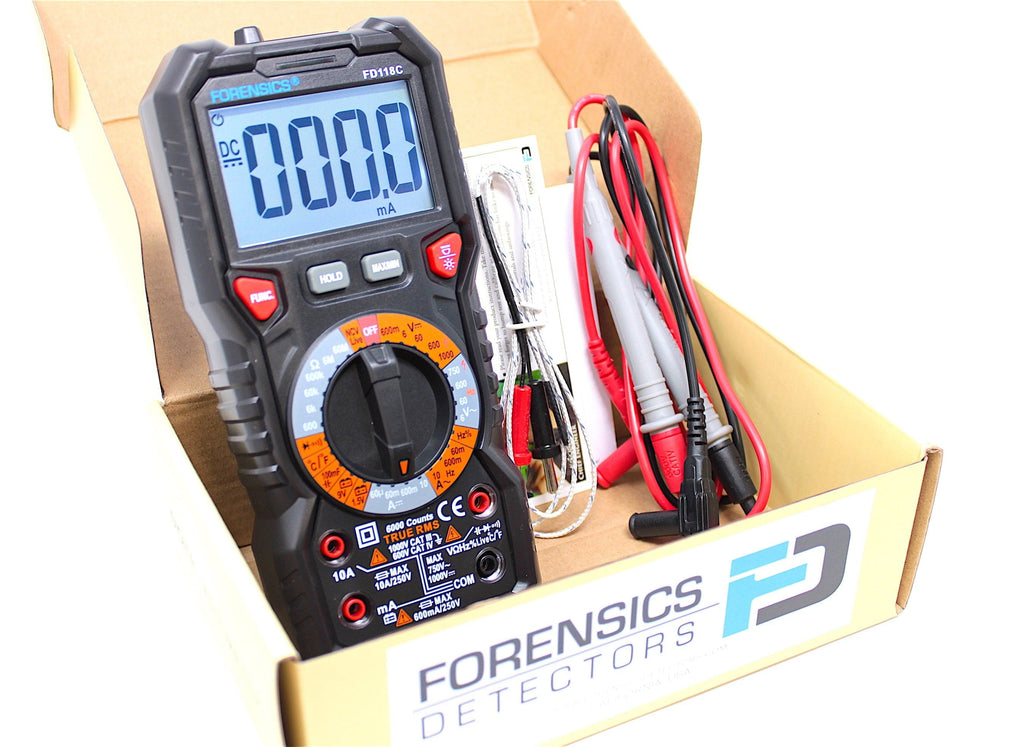

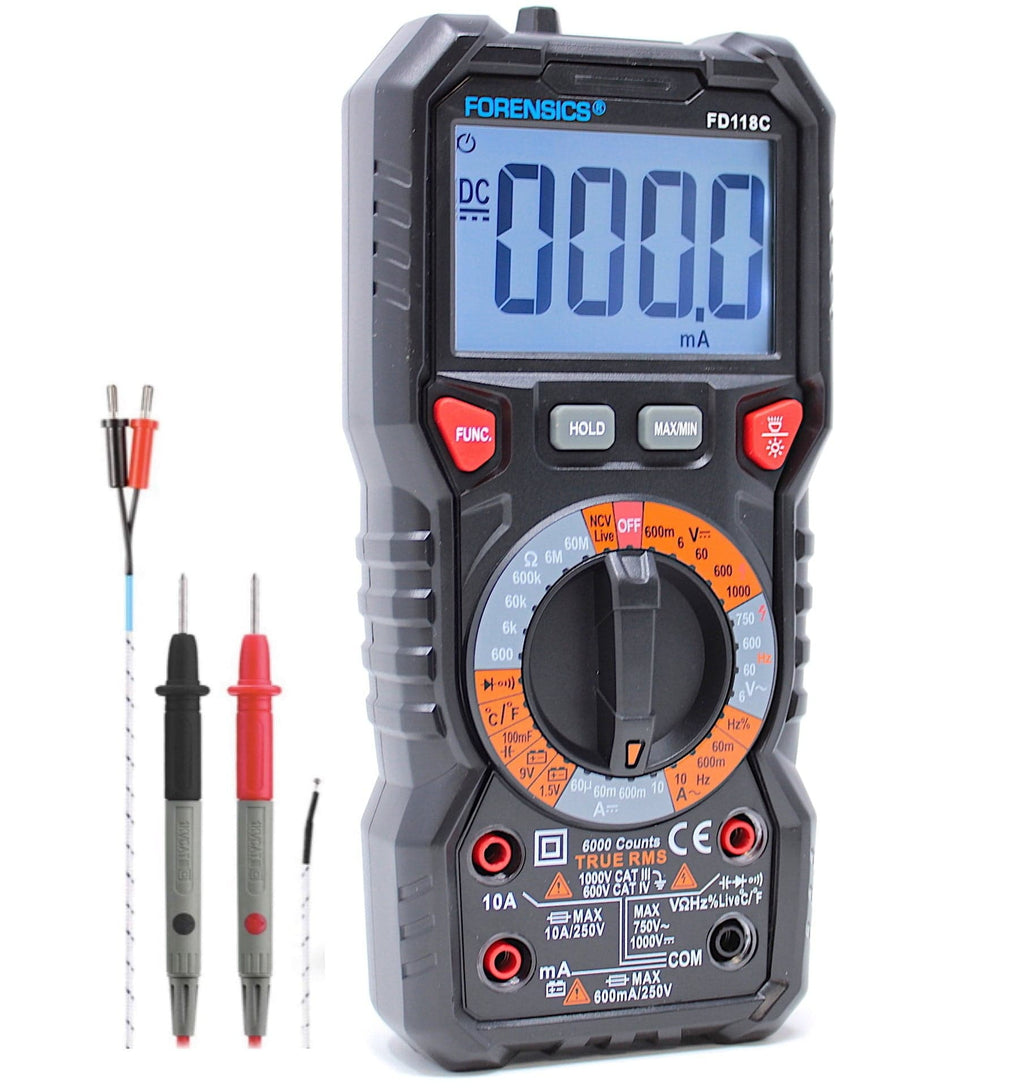

Included: Multimeter, 2 x AA batteries, test leads, thermocouple for temperature measurements, and an English Manual.

Specifications

DC voltage: 600 mV / 6 V / 60 V / 600 V / 1000 V ± (0.5% + 3)
AC voltage: 6 V / 60 V / 600 V / 750 V ± (1% + 5)
DC current: 60 uA / 60 mA / 600 mA / 6A ± (0.8% + 3) 10A ± (1.2% + 3)
AC current: 60 mA / 600 mA ± (1% + 3) 10 A ± (1.5% + 3)
Resistance: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ ± (0.8% + 3) ± (5% + 5)
Capacitance: 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF / 100 mF ± (5% + 5)
Frequency: 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz ± (1% + 3)
Temperature: -40 ~ 1000 ℃ / -40 ~ 1832 ℉ ± (1% + 3)

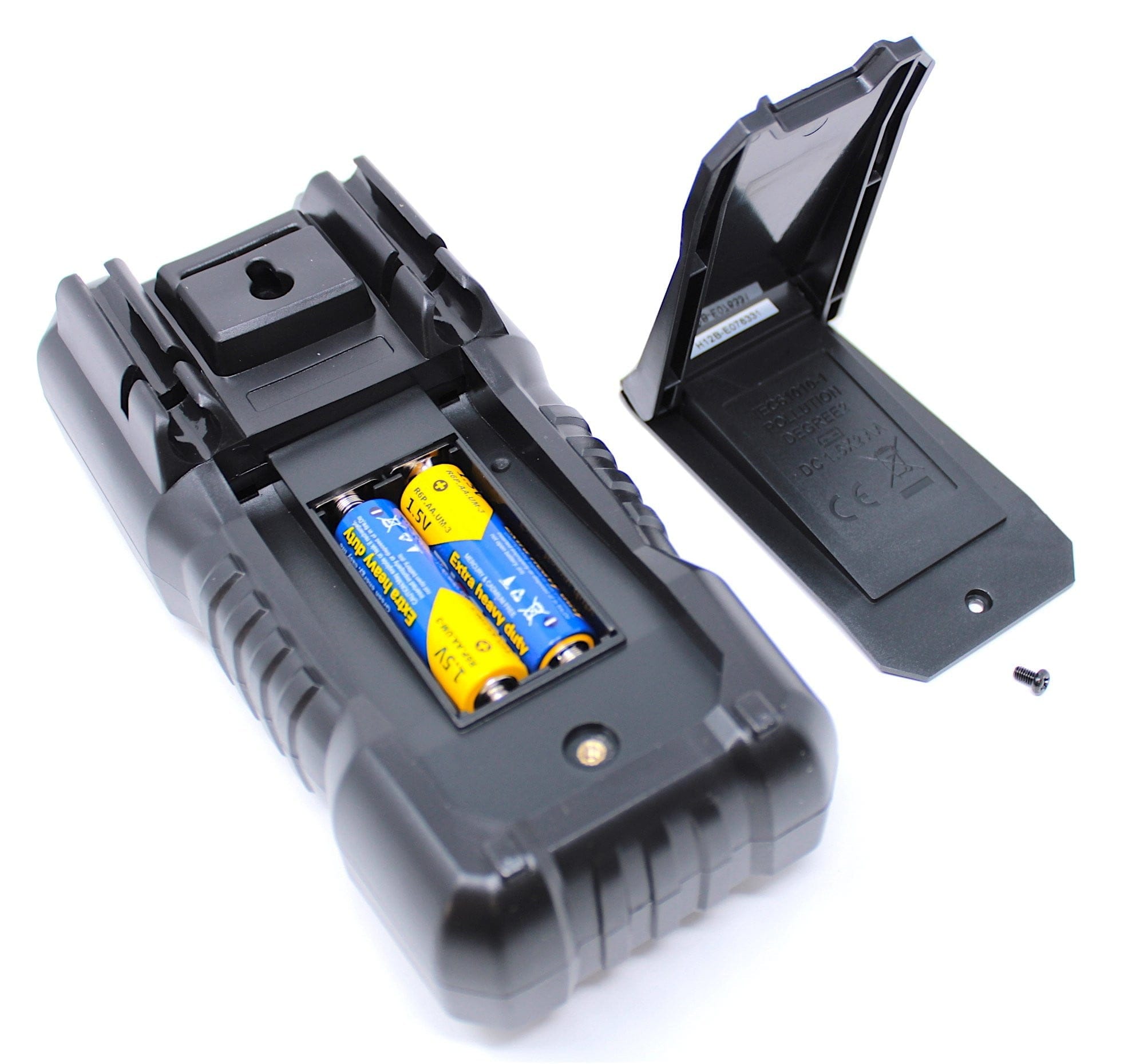

Power supply: 2 x AA batteries (included)
Safety level: EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V
Display: Jumbo LED digits
