Brand: FORENSICS DETECTORS
Model: FD-90E-YELLOW
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- ⚛️ ACCURATE: Sensor made in Japan, sensitive ppm (0 - 10,000ppm) concentration display.

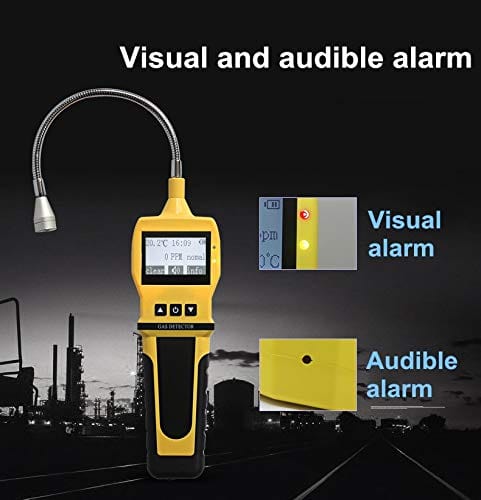

- 🔔 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🌋 USES: Designed for inspectors, utility workers, refinery workers, maintenance engineers, and technicians.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

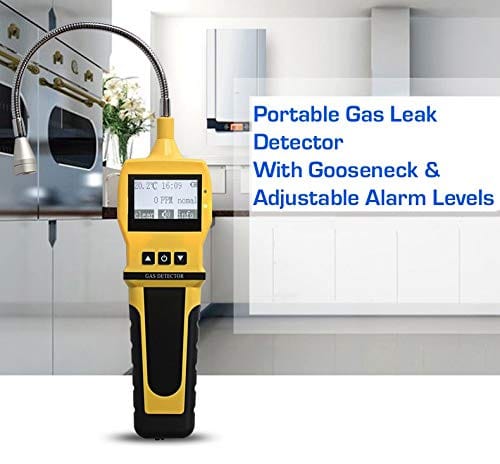

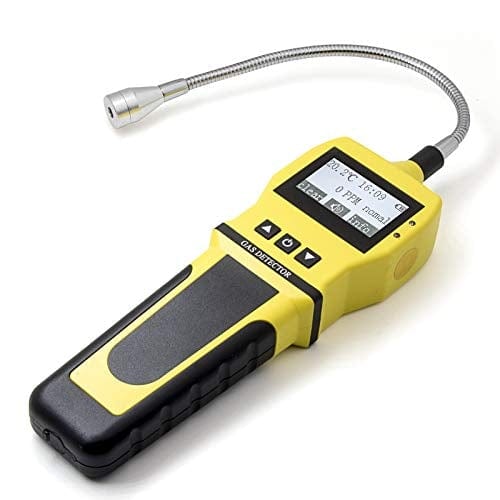

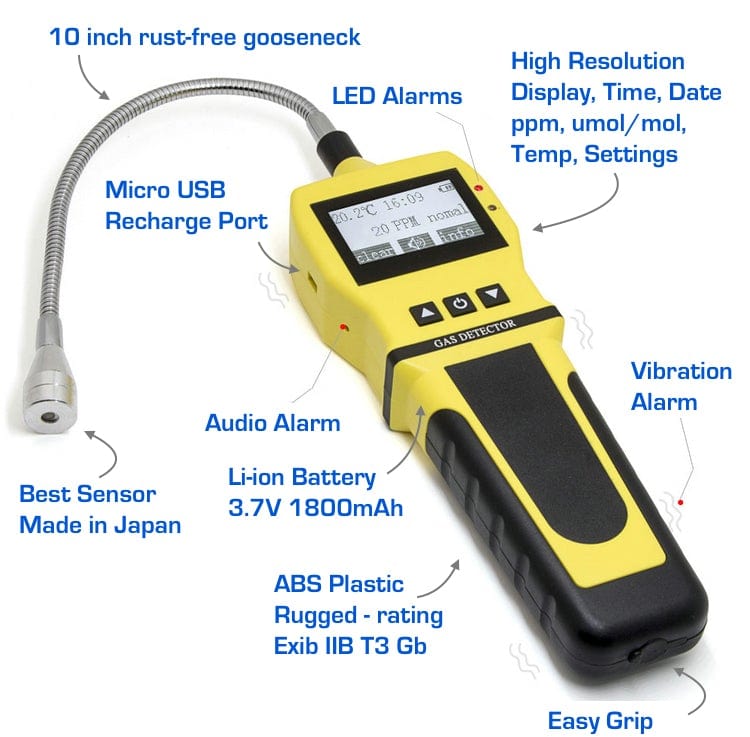

Details: A professional GAS LEAK DETECTOR by FORENSICS with advanced specifications, features, and functions, constructed with a premium Japanese FIGARO gas sensor. This detector features an advanced microprocessor, a high-resolution LCD for clear display, and advanced alarm functions with adjustable light, sound, and vibration. Applications include detecting sewer gas, combustibles, and propane at home or in industrial settings for inspectors, utility workers, refinery workers, maintenance engineers, technicians, and others who want to monitor combustible gas leaks. This detector is used in waterworks, underground storage tanks, oil rigs, tanks, and silos in the maritime industry. For personal protection from combustible gases, we recommend FD-90A-EX, and for a pump, we recommend FD-600-EX.

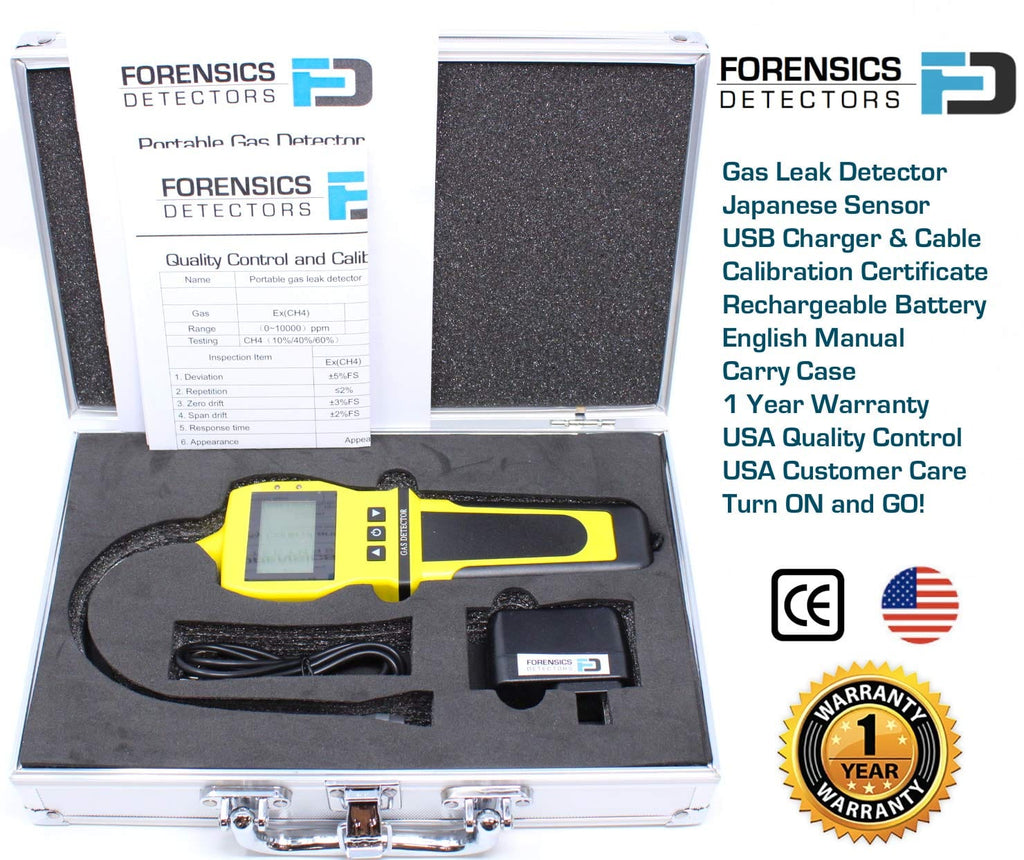

Included: Gas leak detector, aluminum case, user manual, USB charging cable, calibration certificate and USB charger.
Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, diesel vapors, ethanol, ethylene oxide, gasoline vapors, hexane, isopropanol, methane, naphtha, natural gas, paint thinners, propane, flammable solvents, sewer gas, and hundreds of other combustible gases.
Specifications
Combustible Gas (LEL) Detection: 0 - 10,000 ppm (methane) with 1 ppm resolution
Gas Sensor Type: Semiconducting Metal Oxide (Tin Oxide)
Gas Sensor Life: 5 years
Sampling Method: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: ≤ 30 sec
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Display Type: Backlit monochrome LCD
Power Source: DC 3.7V Li-ion battery, 2000 mAh
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb | 📋 PDF
Protection Category: IP65
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Charge Time: 4 hours
Operating Time: > 24 hours
Weight: 11 oz / 300 g
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
