Nitrous Oxide (N2O) Analyzer | USA NIST Calibration

  • Sale
  • $2,995.00
  • Regular price $4,499.00


Brand: FORENSICS DETECTORS
Model: FD-600M-N2O
Data Logging: Click Here
User Manual: Click Here
Blog Article:
Click Here

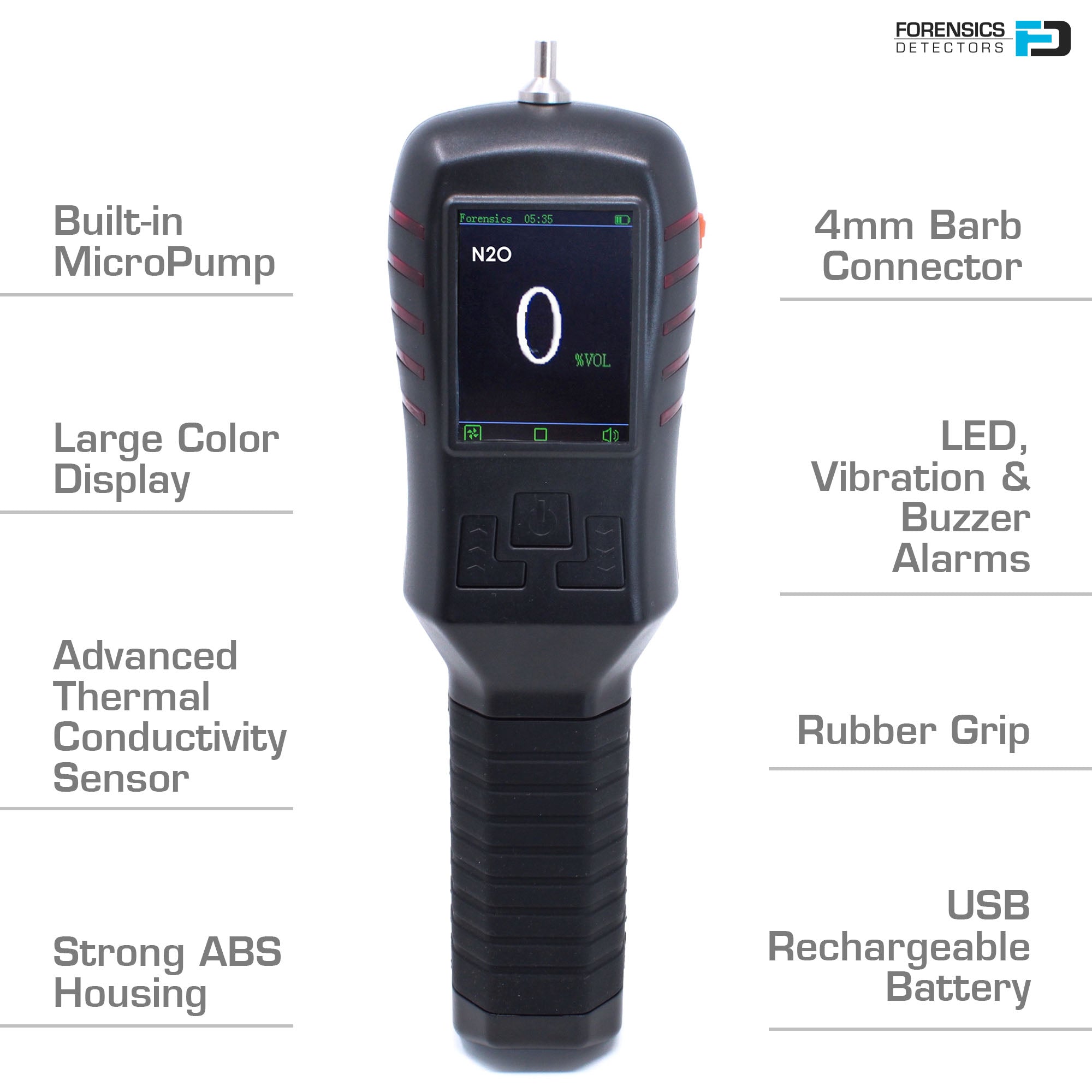

Features:

  • 🎆 DETECT: This nitrous oxide (N2O) gas monitor measures 0-1000 ppm with a 1 ppm resolution. It is USA NIST traceable and calibrated in Los Angeles, CA.
  • 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
  • 📲 ALARMS: Adjustable low and high alarms.
  • 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof exceeding ATEX certified Ex ib IIC T4 Gb. IP65.
  • 📊 GAS DATA LOGGER: This data logger functions with a built-in TF Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

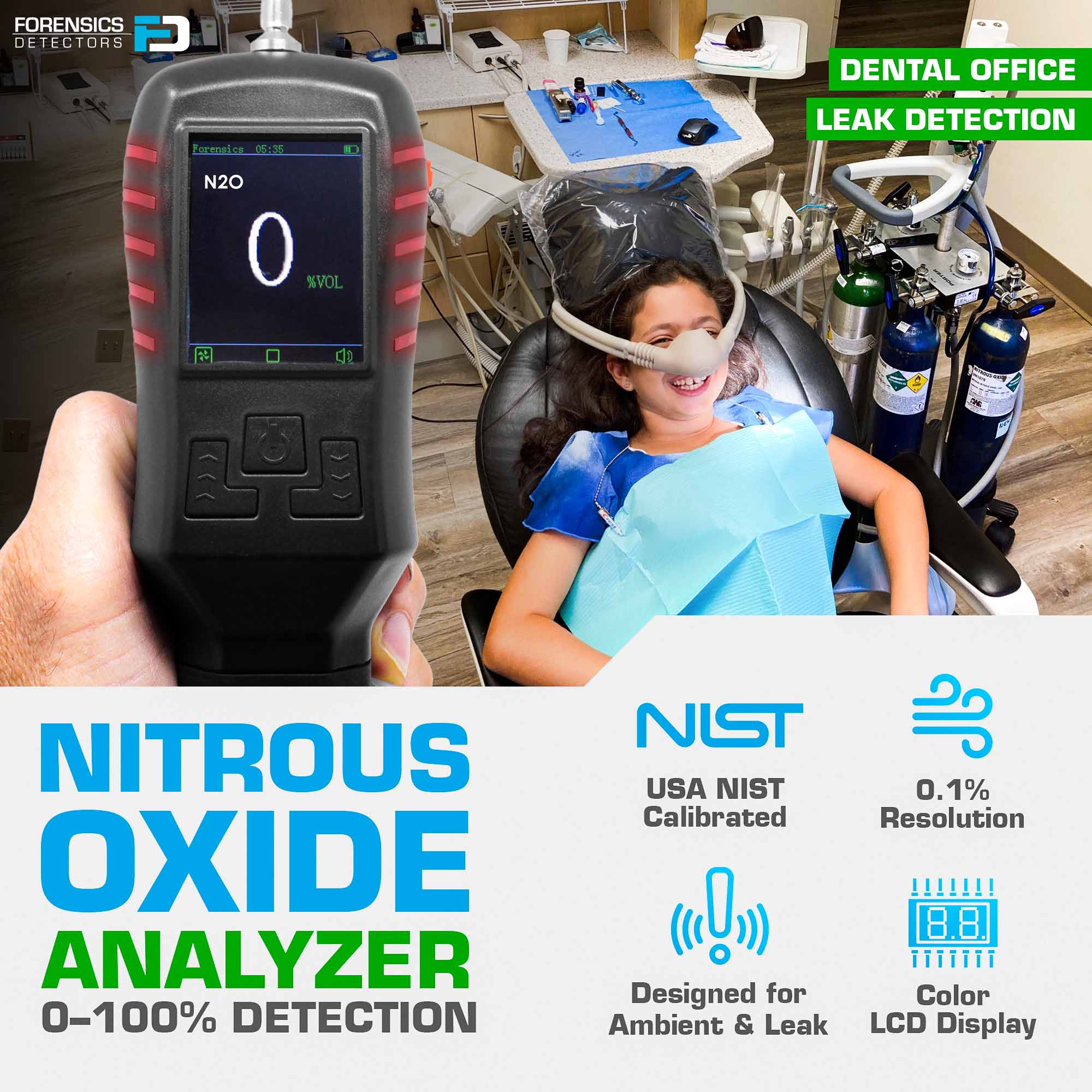

Details: The FD-600M-N2O is a professional Nitrous Oxide Analyzer advanced safety device designed to ensure the well-being of medical and dental staff through precise leak detection and occupational safety monitoring. The unit is used in medical operating rooms, X-ray departments, dental clinics, and veterinary facilities, providing reliable nitrous oxide gas analysis for leak detection and continuous air monitoring for occupational safety.

The FD-600M-N2O is easy to use with its user-friendly interface and one-button operation. Its lightweight, portable design allows for effortless movement between different areas of your facility. The analyzer features instantaneous graphing, alarming, and data-logging functionality.

The built-in 512MB memory card can store 1,000,000 logs, equivalent to 277 hours of continuous monitoring at one sample per second. Data retrieval is a breeze – simply connect the device to a computer using a Type C USB cable and access the logged CSV files as you would with an external drive. This data can be easily imported into spreadsheet software for data analysis and visualization.

For extended monitoring periods, the FD-600M-N2O can be set to larger sample rates and connected to a power source, allowing for days of uninterrupted sampling. The built-in pump ensures super-fast detection and response times, while the included soda lime filter removes CO2 cross-interference, enhancing overall accuracy. A 3-inch stainless steel probe facilitates precise leak detection and point sampling.

Calibrated to USA NIST traceable sources in Los Angeles, CA, the FD-600M-N2O Professional Nitrous Oxide Analyzer guarantees accuracy and reliability in your safety protocols. This powerful, versatile device is an indispensable tool for maintaining the highest safety standards in healthcare environments where nitrous oxide is used and may be present.

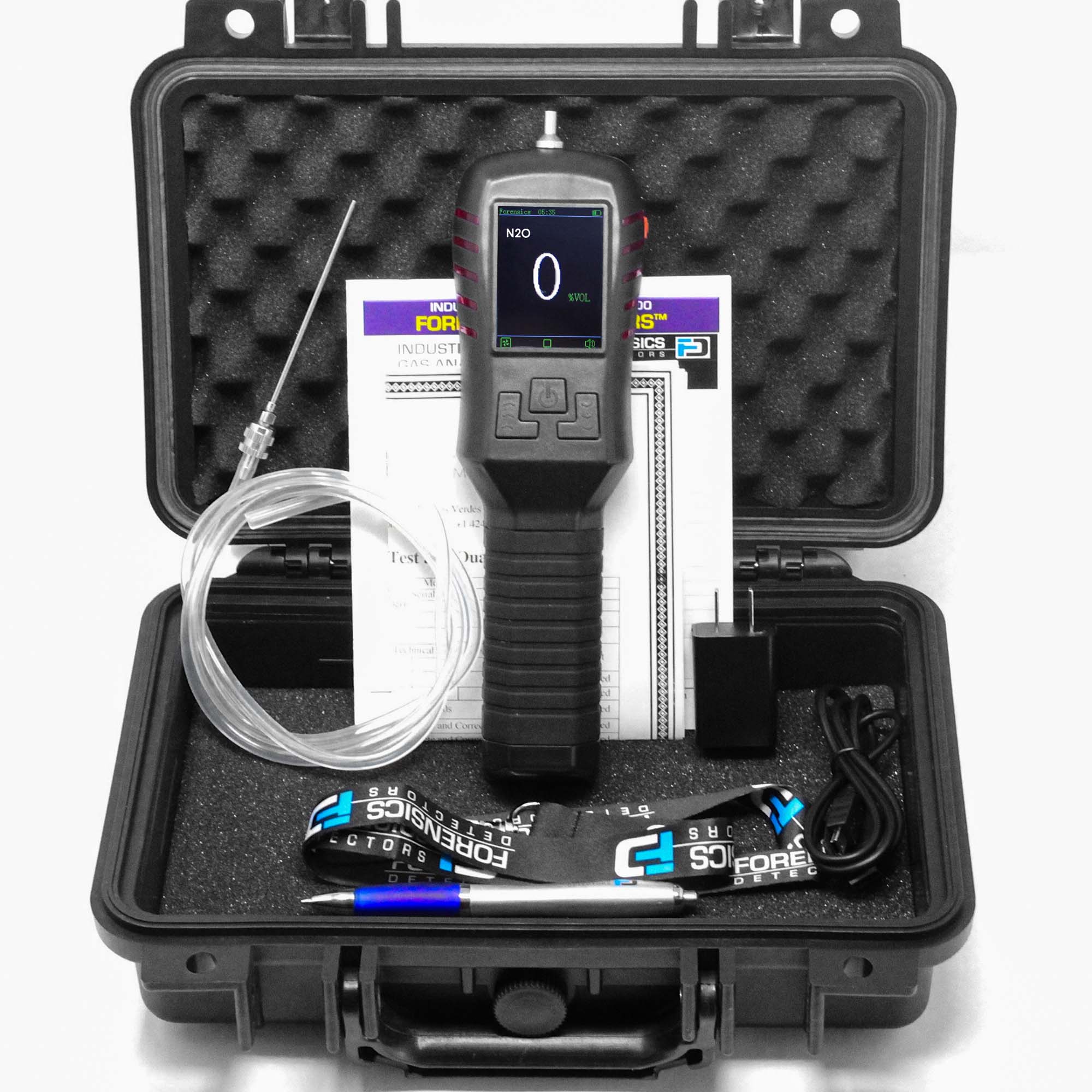

Included: Nitrous Oxide Gas Analyzer and Datalogger, English manual, USB charging cable, charger, analyzer case, 3-inch stainless probe with CO2 soda ash filter assembly, and USA NIST calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (N2O)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing

Accessories (sold separately):
Bump Gas (N2O)
Gas Detector Stand

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Nitrous Oxide (N2O) Range: 0 - 1000 ppm with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Source
Gas Sensor Type: Infra-Red Sensor (NDIR) with Dual Beam Pyroelectric Receivers
Gas Sensor Life: > 5 years
Error (worst case): <±5% F.S.
Response Time: <30 seconds
Store/Oper. Temp: 0°F - 122°F
Store/Oper. Humidity: <95%RH
Datalogging Memory: Time stamped with a Memory Card (512MB) that can store 1,000,000 logs (equivalent to 277 hours at 1 sample/sec)
Datalogging File Format: *.CSV file format
Battery: DC3.7V Li-Ion battery 4000mAh
Charging Time: 4 hours
Operation Time: > 5 hours
Dimension/Weight: 9.09 x 3.43 x 2.36 inches, 800grams
Rating: ATEX certified Ex ib IIC T4 Gb. IP65.
Pump Noise: <60dB
Pump Flow Rate: 0.3 to 0.7 LPM
Inlet Air Barb: 3mm (1/8 inch) outer diameter barb
Filter: CO2 absorbent media (soda lime) to remove CO2 NDIR cross-interference
Probe: 3-inch stainless steel probe with luer lock connector
Charger Port: USB Type C (use at least 1A/5V charger)
Display: 3.5-inch color HD display
Recommended Calibration Period: every 6 to 12 months

Carry Case Weight: 3.1 lb with analyzer & accessories
Carry Case Dimensions: 9 x 7 x 5 inches
