Brand: FORENSICS DETECTORS
Model: FD-90A-ACID
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- ⚛️ DETECT: Sensitive to acidic gases such as acetic acid (C2H4O2), hydrochloric acid (HCl), sulfuric acid (H2SO4), hydrofluoric acid (HF), nitric acid (HNO3), peracetic acid (C₂H₄O₃), and formic acid (CH2O2).
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: This gas detector is sensitive to acidic gases such as acetic acid (C2H4O2), hydrochloric acid (HCl), sulfuric acid (H2SO4), hydrofluoric acid (HF), nitric acid (HNO3), peracetic acid (C₂H₄O₃), and formic acid (CH2O2). Tracking and monitoring acidic gases is important in processing, spot checking, indoor gas cloud checking, laboratory, and personal safety. Advanced features such as temperature detection, alarm recording, alarm setting, backlight high-resolution LCD, calibration features, and others are included. An alternative is the FD-600-ACID, which does have a built-in pump, making it the best candidate for point sampling and leak detection.

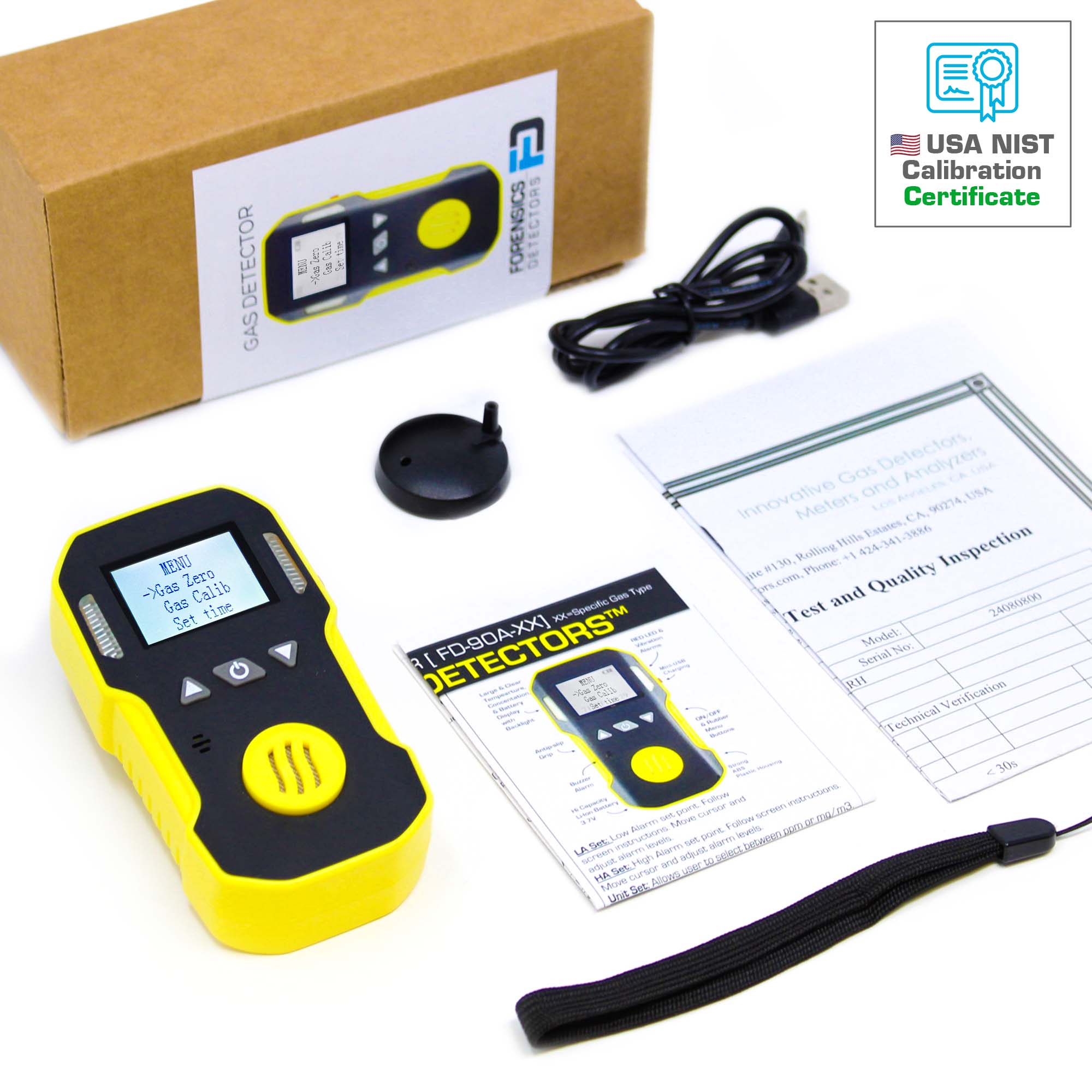

Included: Acid gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (NO2) (Surrogate Gas 10ppm NO2:10ppm ACID is used for calibration. A NO2 NIST gas standard is employed since none exists for generic ACID gas)
Calibration Gas Regulator (C10)
Tubing
Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (email us)
Specifications
Acid Gas and Vapor Detection: 0 - 10 ppm with 0.01 ppm resolution. Sensitive to acidic gases such as acetic acid (C2H4O2), hydrochloric acid (HCl), sulfuric acid (H2SO4), hydrofluoric acid (HF), nitric acid (HNO3), peracetic acid (C₂H₄O₃), and formic acid (CH2O2)
Recommended Calibration Period: 12 months
Sampling Type: Diffusive (no pump). Optional external pump available.
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec

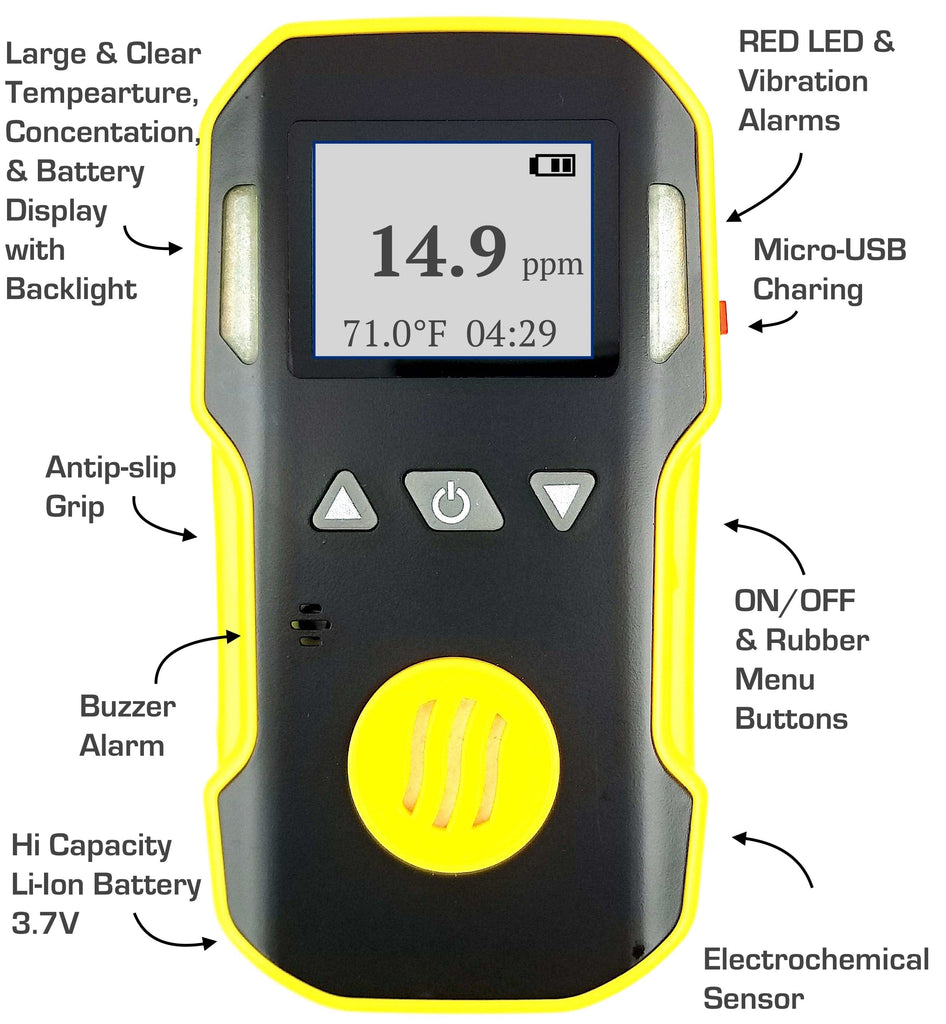

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Alarm: LED, Buzzer, and Vibration
Datalogging: No
Store / Operating Temp: 0°F - 122°F (-18°C to 50°C)
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Explosion Rating: ATEX certified Ex ib IIC T4 Gb (PDF)
Weight: 5 oz / 140 g
Dimensions: 4.3 x 2.3 x 1.7 inches (10.9 × 5.8 × 4.3 cm)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
