Hydrogen Fluoride Gas Detector | USA NIST Calibration

Save 54%

Price:
Sale price$595.00 Regular price$1,295.00



Brand: FORENSICS DETECTORS
Model: FD-90A-HF
User Manual: Click here
Blog Article: Click Here

Features:

  • 🗽 ACCURATE: Professional and accurate Hydrogen Fluoride (HF) gas detector, 0 - 10 ppm with 0.1 ppm resolution. Electrochemical sensor.
  • 🚄 DETECT: Electrochemical cell sensor with accuracy: ≤ ± 10% F.S. and response time: T < 30 sec. Zero and span calibration options.
  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.

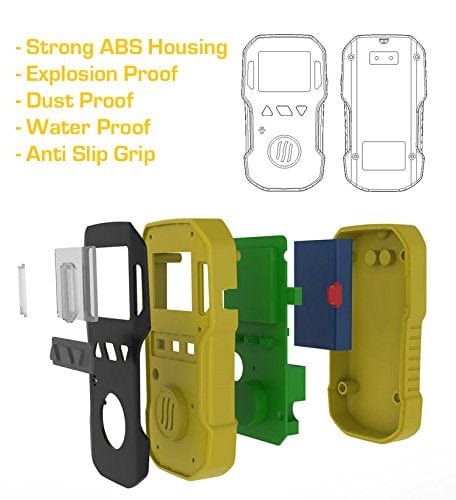

  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

Details: A professional Hydrogen Fluoride (HF) gas detector by FORENSICS with advanced functions that comes factory-calibrated. Hydrogen fluoride gas is a toxic and corrosive gas that requires gas detection to protect workers directly working with it. Most people are likely more familiar with hydrogen fluoride gas's liquid form that readily combines with water to generate hydrofluoric acid, but hydrogen fluoride gas itself is an important gas used in various industrial settings, primarily for manufacturing purposes. It is often used in the production of materials such as refrigerants, herbicides, pharmaceuticals, aluminum, and plastics. Exposure limits for HF are 3ppm 8 hour-TWA OSHA, and 0.4ppm 8 hour-TWA CAL OSHA. IDLH is 30ppm.

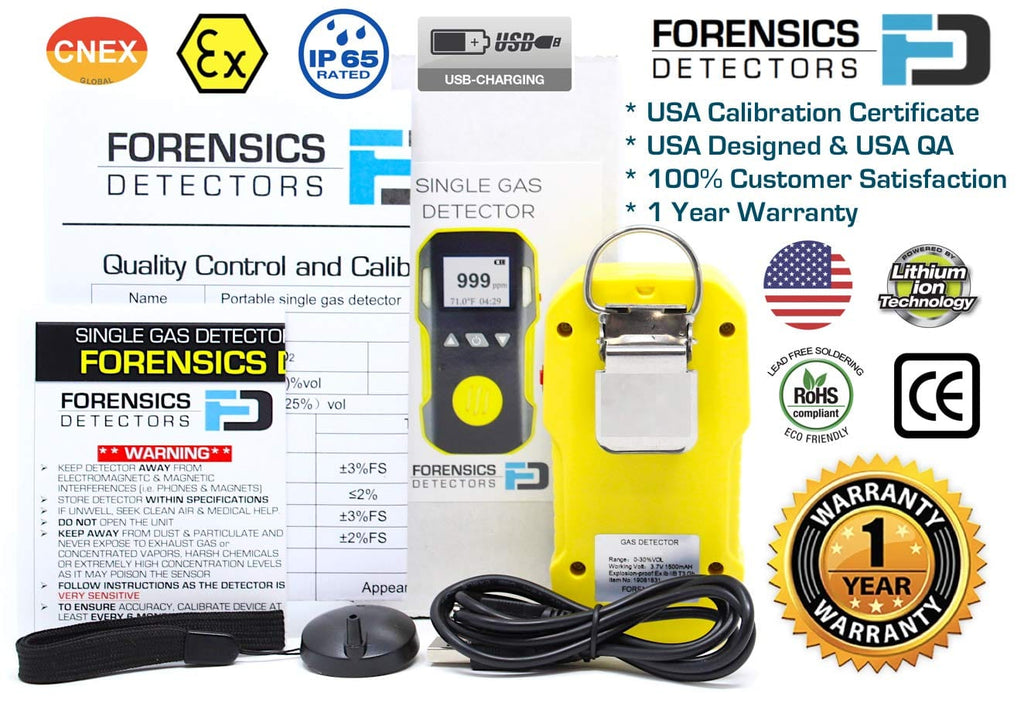

Included: HF gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (Cl2)(Surrogate Gas 2ppm Cl2 : 1ppm HF is used for calibration. A Cl2 NIST gas standard is employed since none exists for HF)
Calibration Gas Regulator (C10)
Tubing

Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
HF Gas Sensor Replacement (email us)

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Hydrogen Fluoride (HF) detection: 0 - 10 ppm with 0.1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: electrochemical gas sensor
Gas sensor life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response time: T < 30 sec

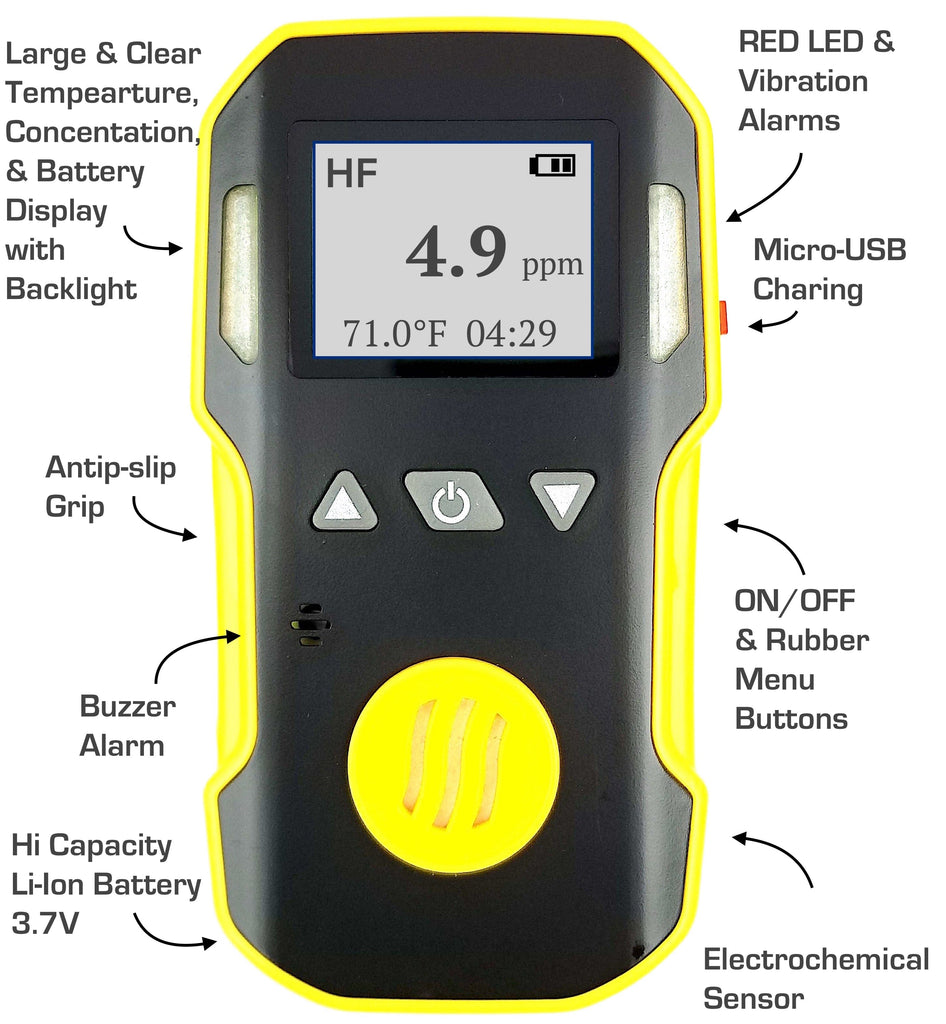

Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working time: > 24 hours
Charging time: 3 hours
Sensor life: 2 - 3 years
Protection category: IP65
Explosion rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
