Brand: FORENSICS DETECTORS
Model: FD-600-O3
Data Logging: Click Here
YouTube: How to Measure Ozone?
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- 🎆 DETECT: Built-in pump to verify ozone sterilization levels. Ozone electrochemical sensor 0 - 20 ppm with 0.1 ppm resolution, with a built-in pump for super-fast detection.
- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
- 📲 DATA LOGGING: USB recharging and real-time data acquisition.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

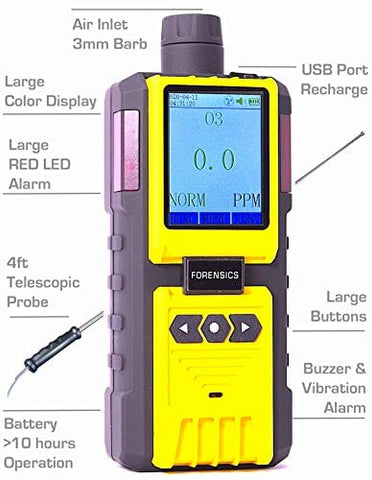

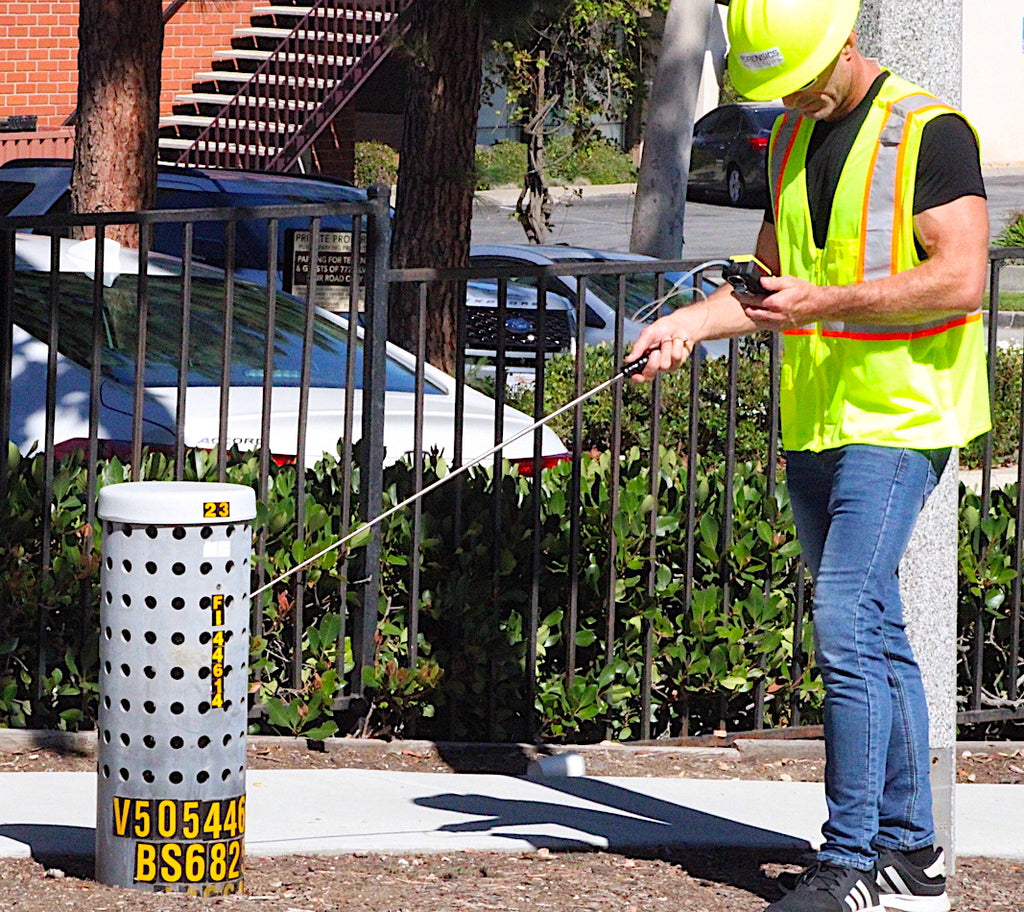

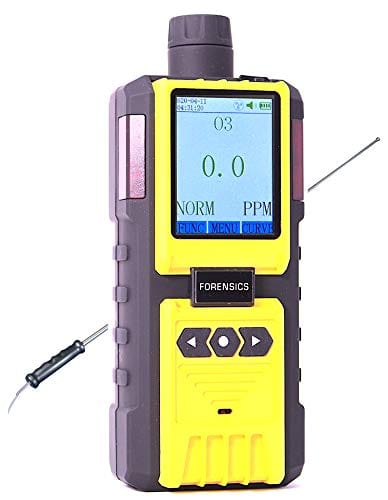

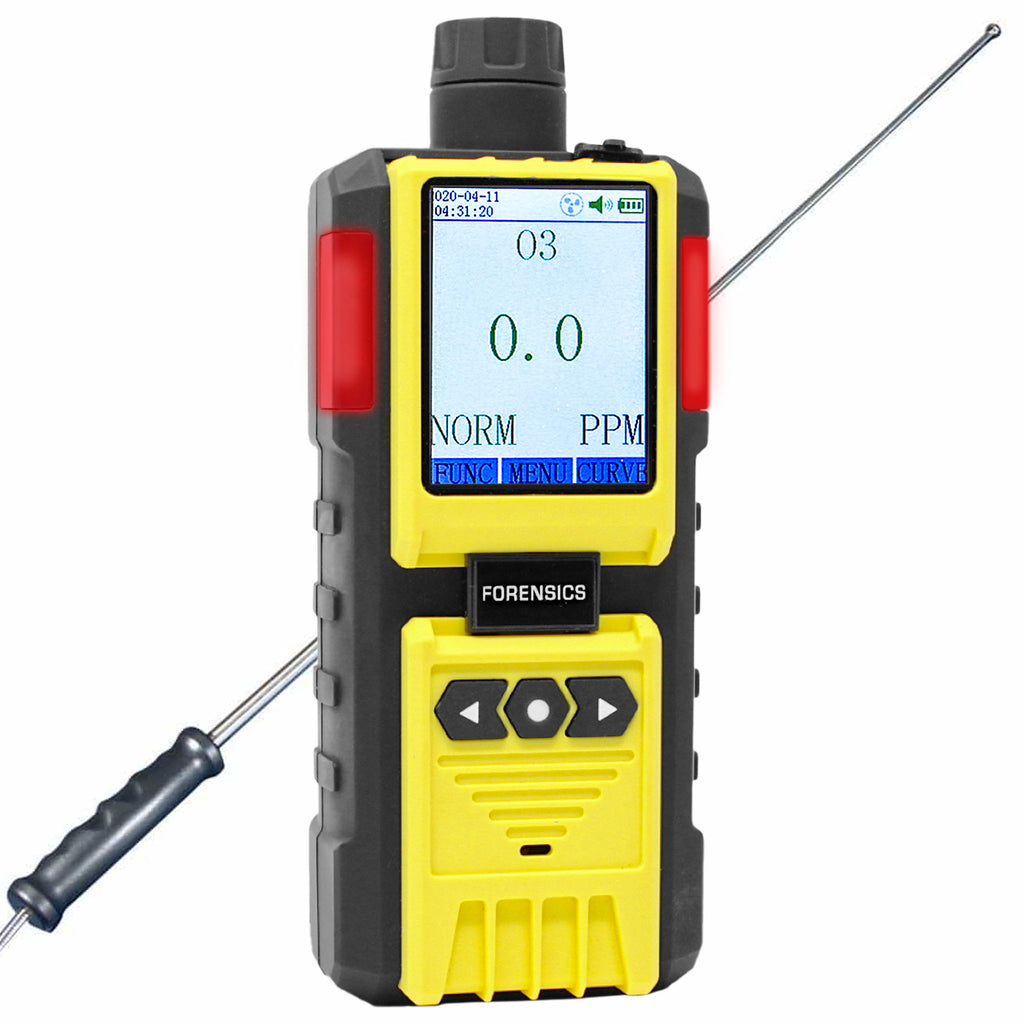

Details: This is FORENSICS DETECTORS' best OZONE DETECTOR with a built-in pump allowing for faster response and point probe or continuous sampling, and ideal for any leak detection. This device is perfect for verifying indoor ozone levels, such as in a chamber during the sterilization of pathogens. The ozone analyzer has a 32-bit microprocessor with a color LCD and graphing capability and a built-in pump that draws the air into the analyzer for fast response. This ozone analyzer is perfect for sanitation work, water treatment, sterilization, R&D, engineering, and scientific applications. Please note that ozone is a unique gas and cannot be calibrated with a calibration gas bottle setup like most gases. Order your ozone calibration service, which must be performed in our laboratory analyzer with special calibrated equipment necessary to perform ozone gas detector calibration. If you require a more basic O3 detector, we recommend our handheld Ozone meter.

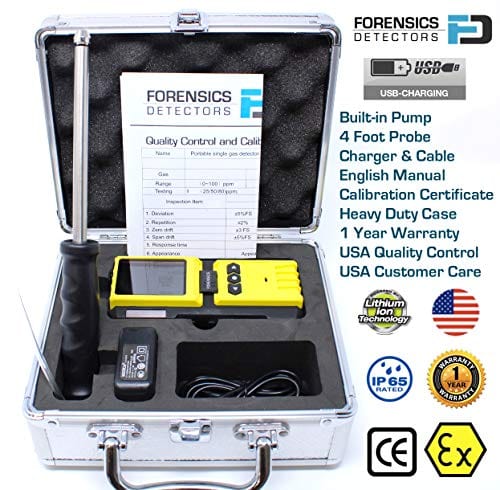

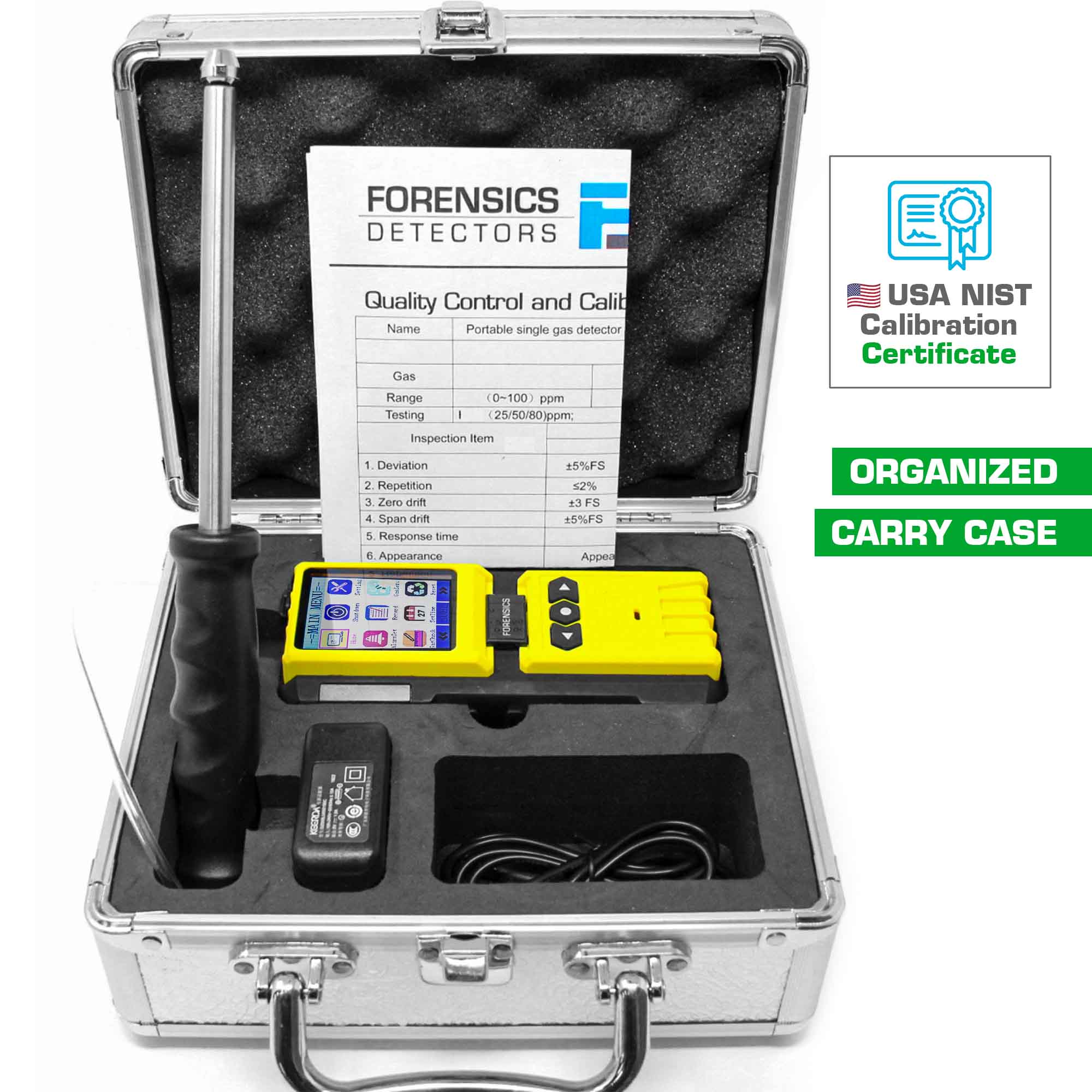

Included: Ozone analyzer, user manual, USB charging cable, charger, analyzer case, stainless probe with tubing, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.
Accessories (DIY sold separately):
Ozone Bump Tester
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (O3)
Telescopic Probe
Tubing (3ft)
Specifications
Ozone Gas (O3) Detection: 0 - 20 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Pumped (built-in sampling pump)
Recommended Calibration Period: 12 months
Datalogging: Yes (instructions included)
Error: ≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion Rating: ATEX certified Ex ia IIC T4 Ga (PDF)
Weight: 14 oz (400 g)
Dimensions: 5.1 × 2.6 × 1.2 inches (13.0 × 6.6 × 3.0 cm)
Charge Time: 4 hours
Operating Time: > 10 hours
Pump Rate: 0.1 LPM - 0.3 LPM (100 - 300 cc/min)
Alarm: LED Alarm
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
