Brand: FORENSICS DETECTORS
Model: FD-90A-PH3
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:

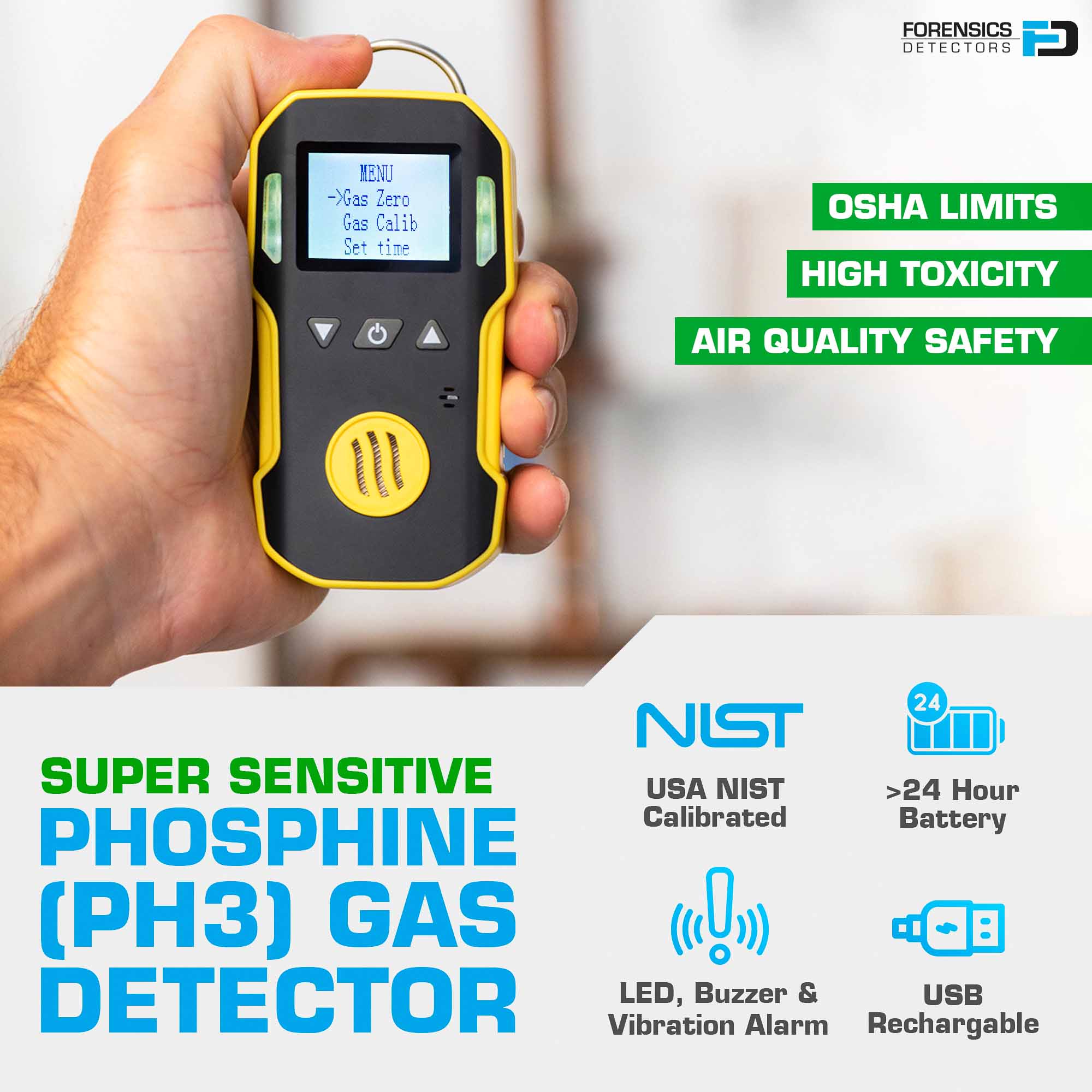

- 🏭 ACCURACY: Professional series phosphine (PH3) gas detector, 0 - 20 ppm with 0.1 ppm resolution. Electrochemical sensor.

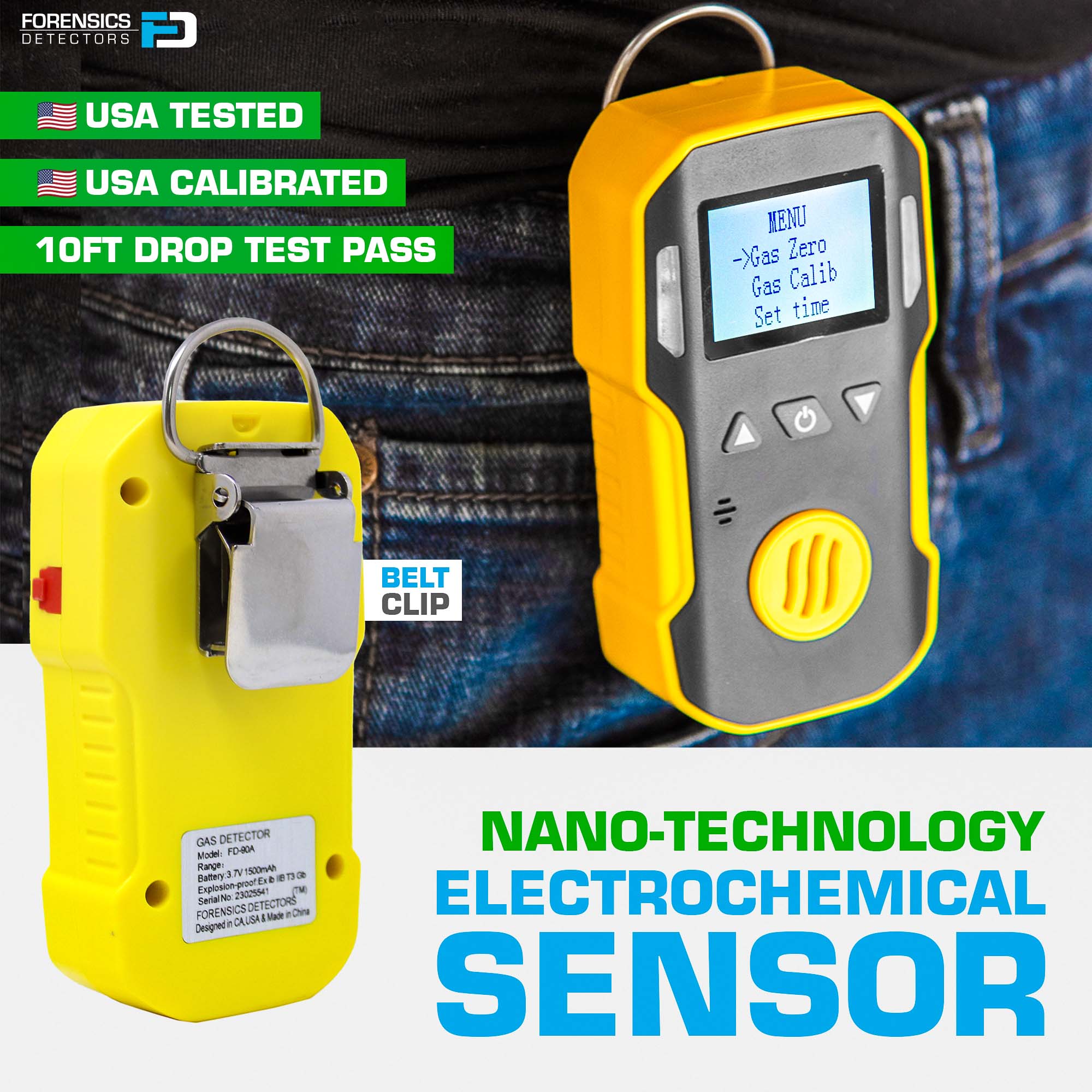

- ⚛️ DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: The professional phosphine (PH3) detector by FORENSICS has all the advanced features and functions. Phosphine is used as an insecticide and rodenticide for the fumigation of grains, animal feed, and leaf-stored tobacco. It is also used as an intermediate in the synthesis of flame retardants for cotton fabrics, as a doping agent for n-type semiconductors, as a polymerization initiator, and as a condensation catalyst. Phosphine is a colorless, flammable, and toxic gas. ACGIH, NIOSH, and OSHA exposure limits are recommended at 0.3 ppm, with a short-term exposure limit of 1 ppm.

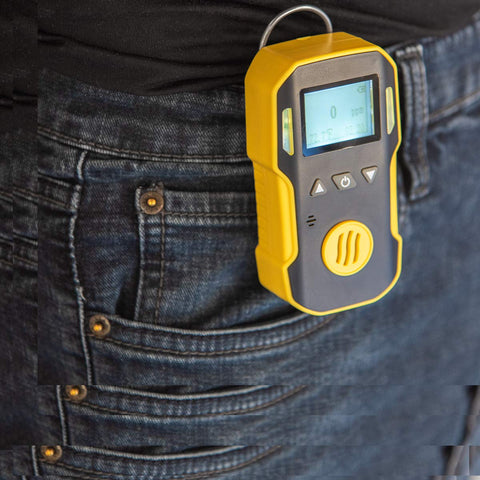

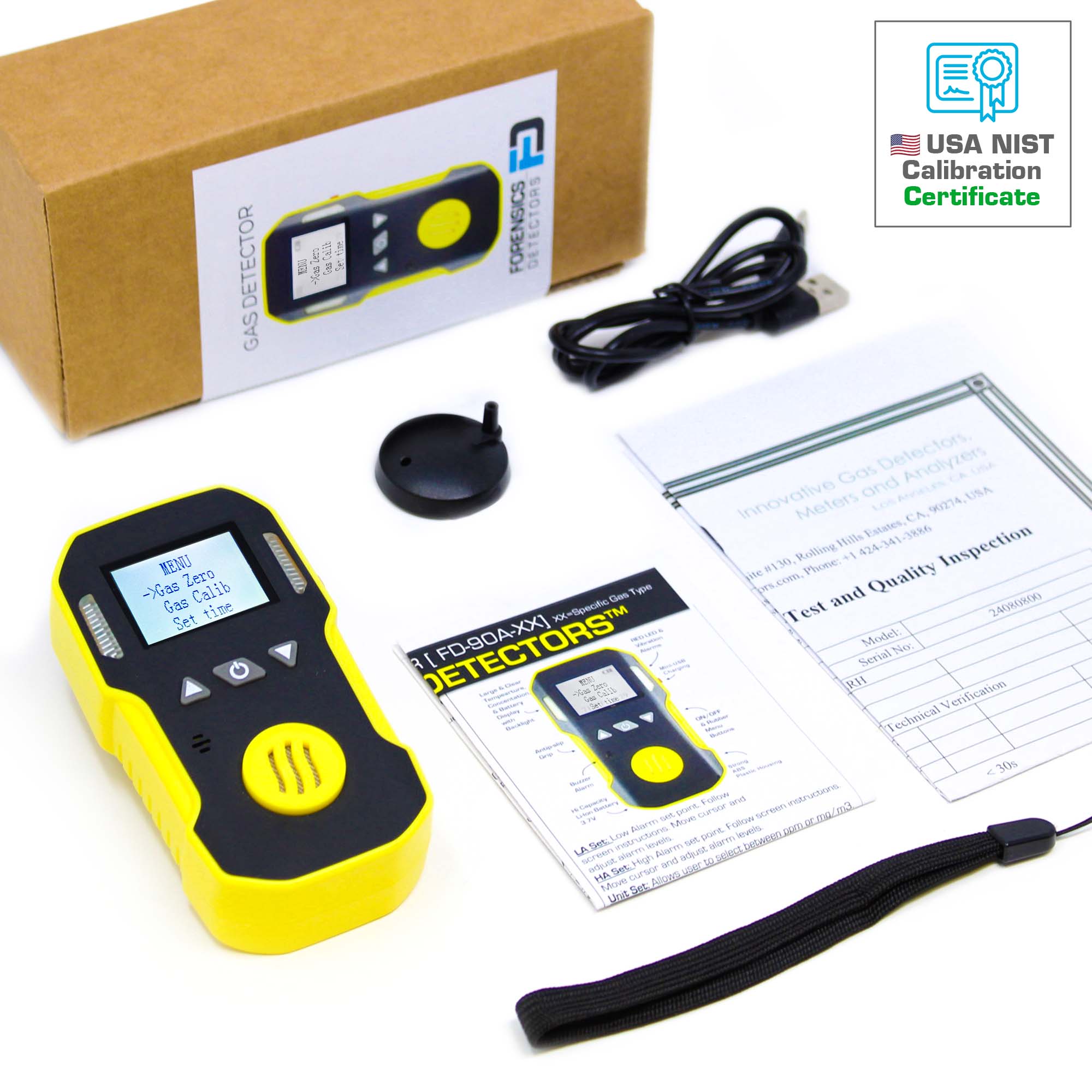

Included: Phosphine gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (PH3)
Calibration Gas Regulator (C10)
Tubing
Accessories (sold separately):

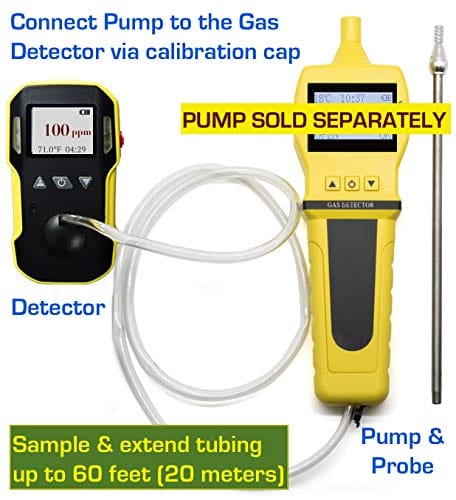

Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (PH3)
Specifications
Phosphine (PH3) Detection: 0 - 20 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 sec

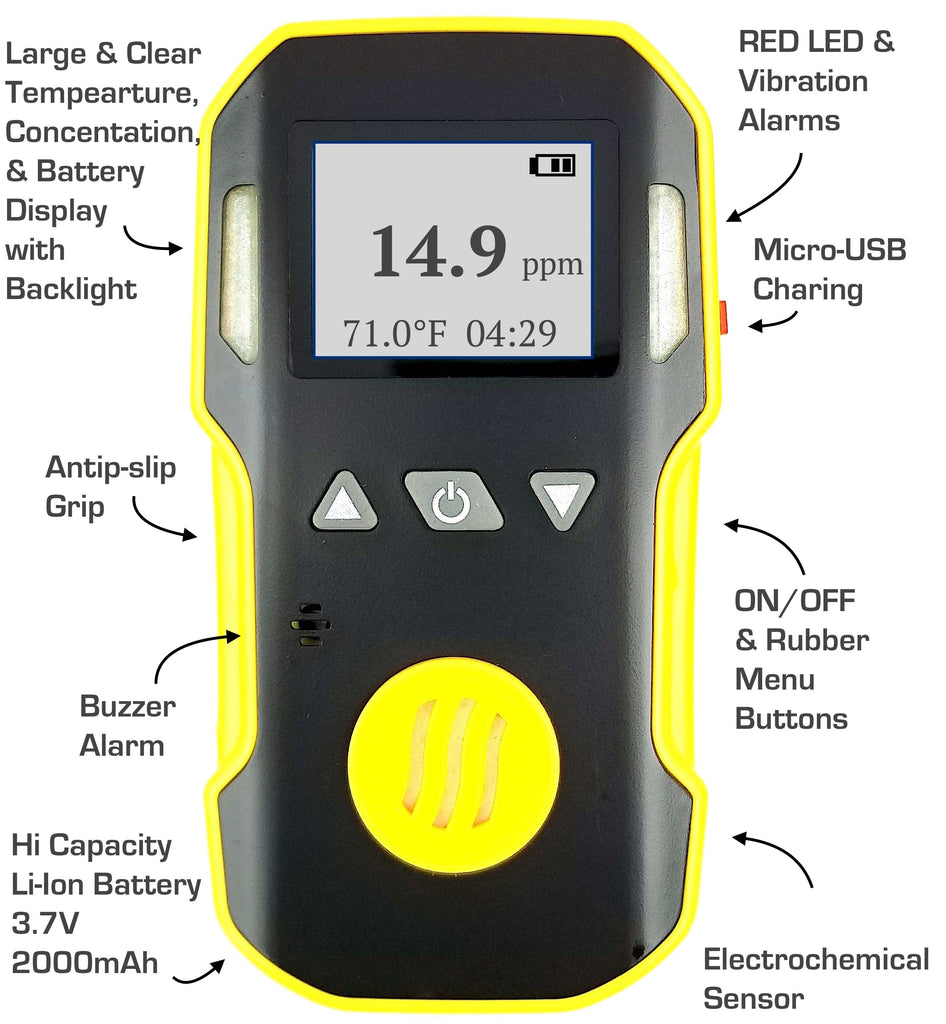

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH

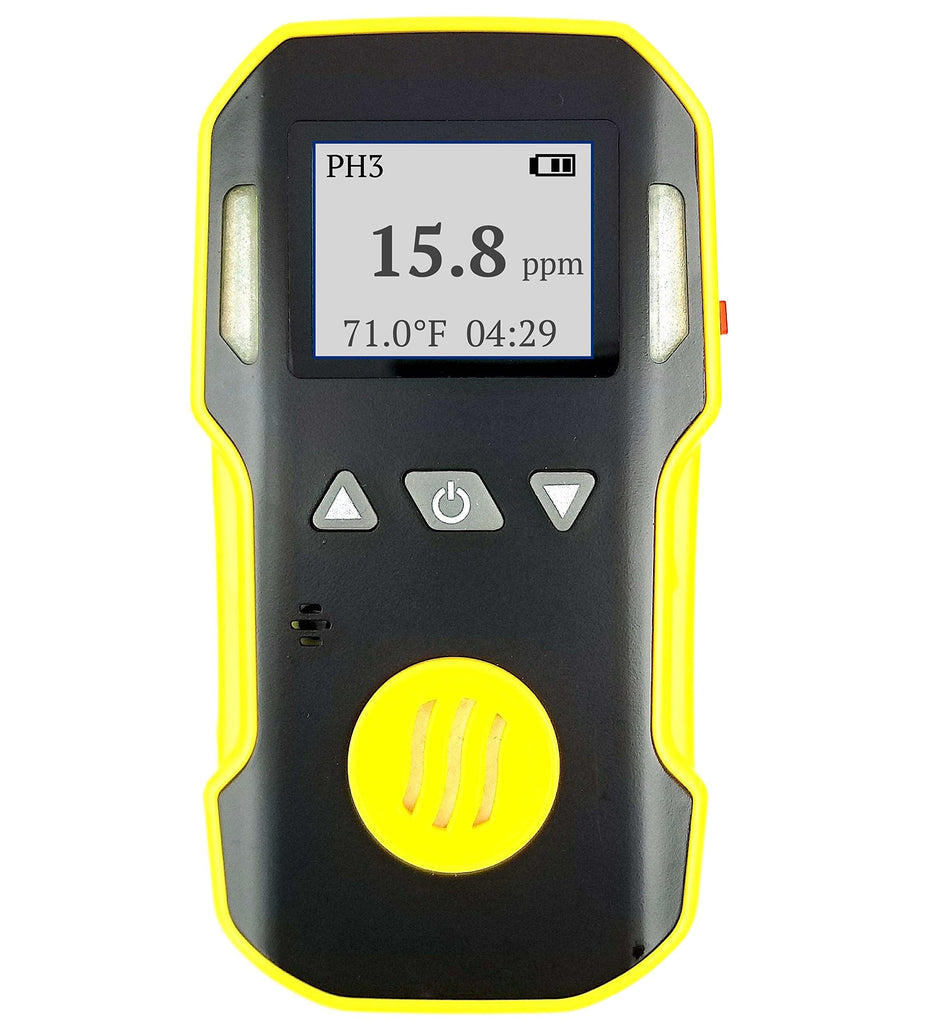

Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours
Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
