Brand: FORENSICS DETECTORS
Model: FD-600-EXHAUST-CO
User Manual: Click Here
Blog Article: Click Here
Features:

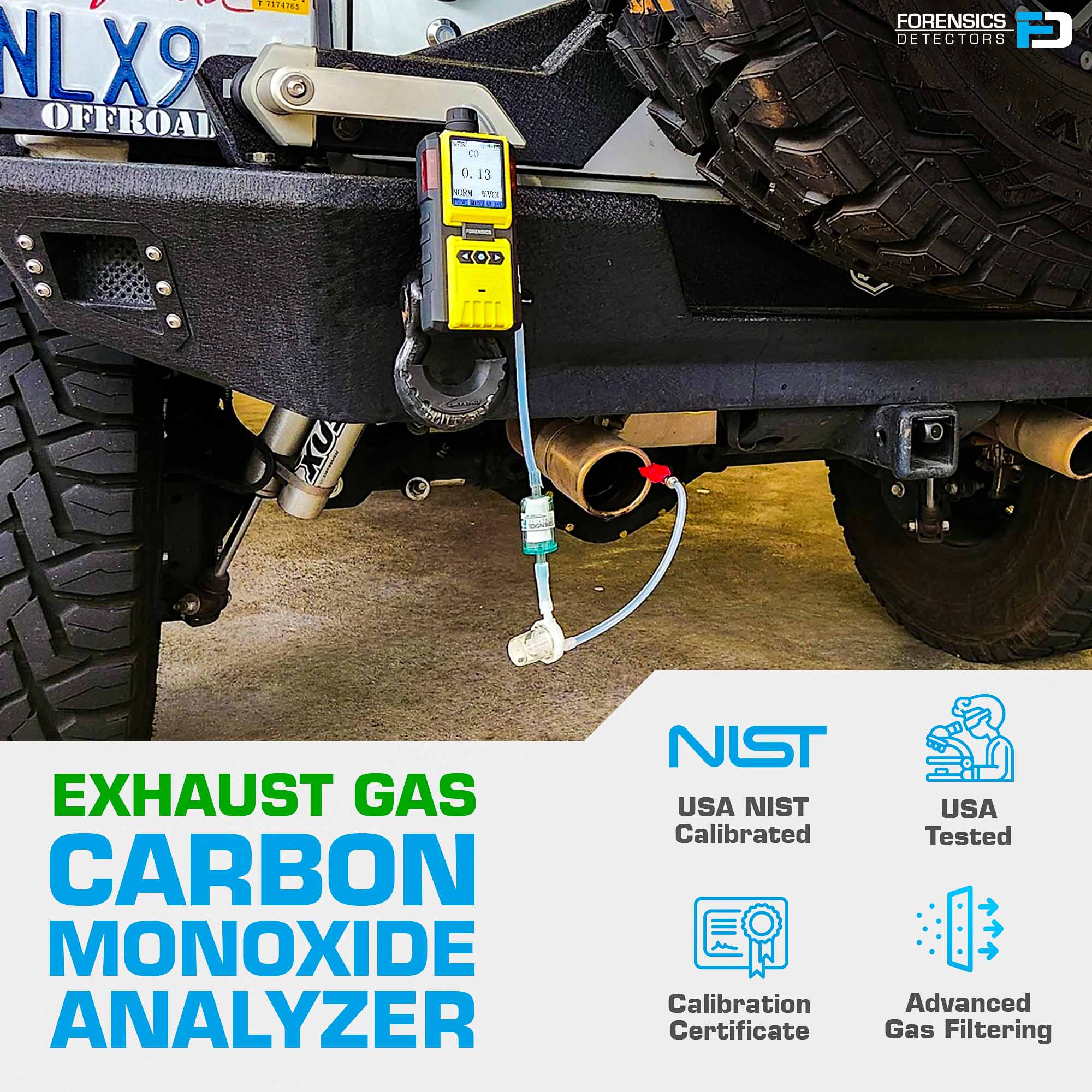

- ⚛️ USES: Monoxor Equivalent. For analyzing carbon monoxide levels from emissions of motorcycle, forklift, automotive, and small gas engines. Analyzer comes with a USA NIST calibration certificate.

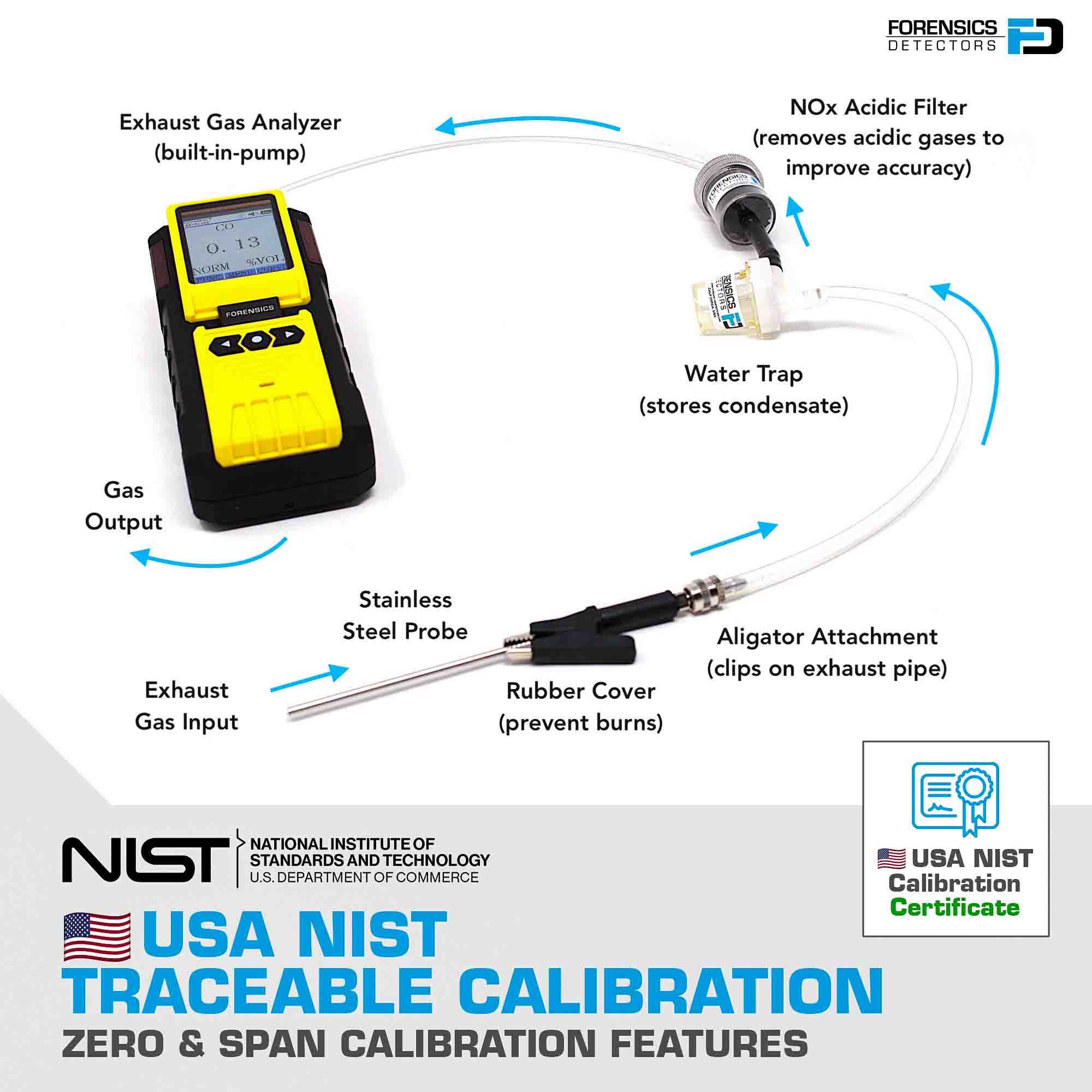

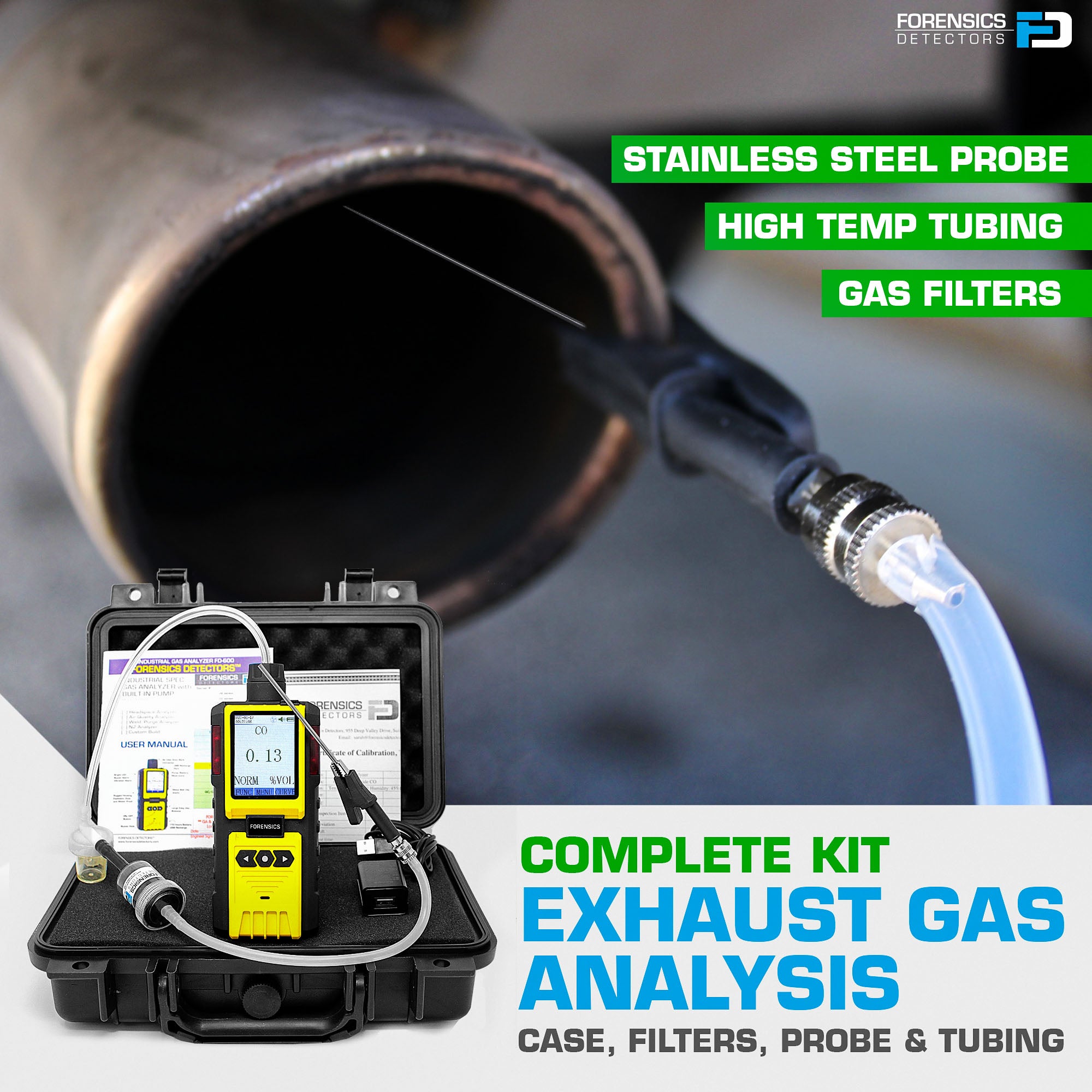

- 🌇 FEATURES: Includes waterproof hard case, water trap, particle filter, and NOx filter to reduce cross-sensitivity errors, stainless steel probe with an alligator clip for exhaust pipe easy mounting, and high-temperature silicone tubing.
- 🔬 SENSORS: High-range electrochemical sensor (0.00 to 2.00 %vol CO) with a built-in micro-pump (0.5 LPM) with a response time of less than 30 seconds.

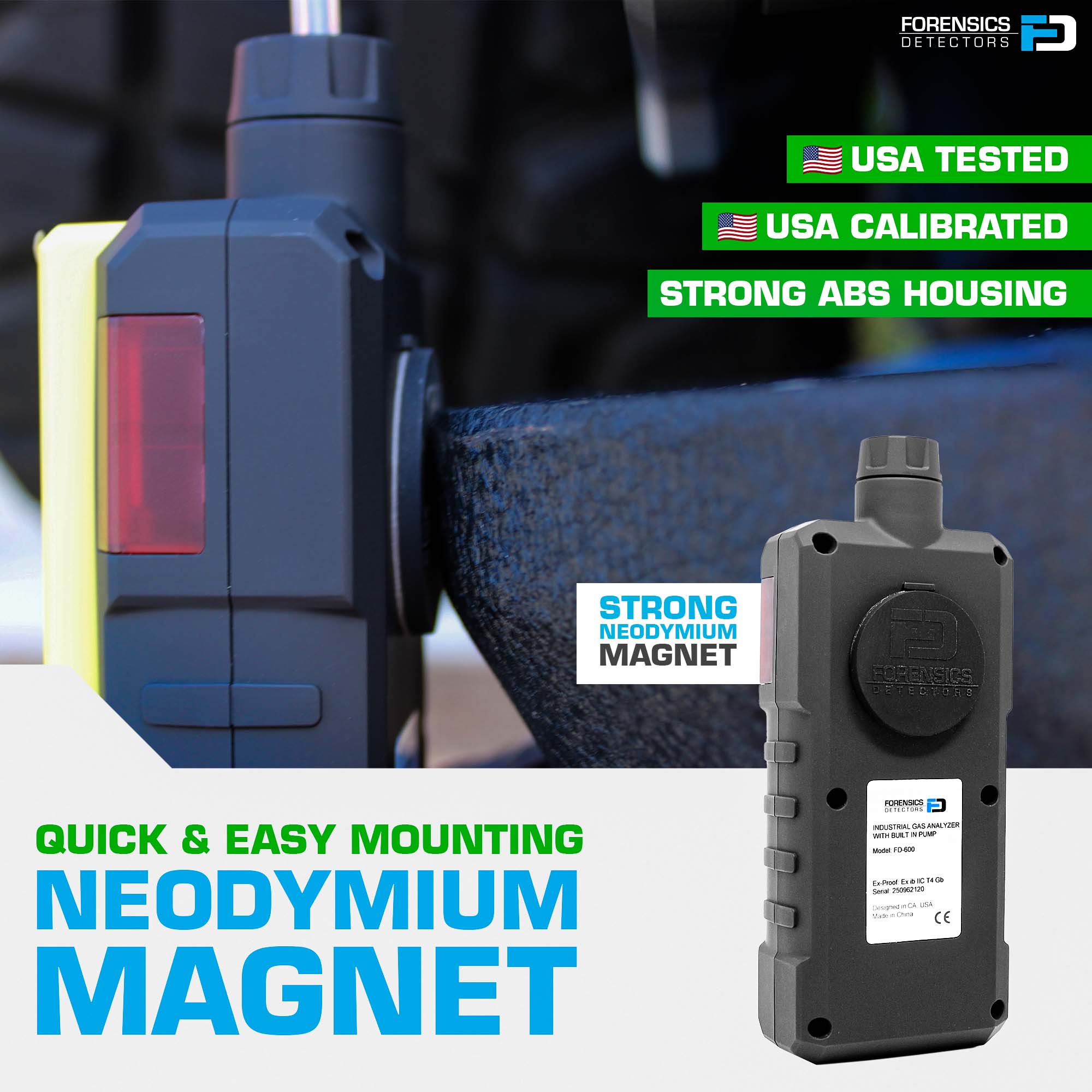

- 💪 STRONG: Robust design with ABS and anti-slip grip rubber. Comes with a back magnet for easy mounting on the vehicle panel to enable hands-free operation.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with NIST USA calibration certificate ** Product tested and calibrated in the USA **

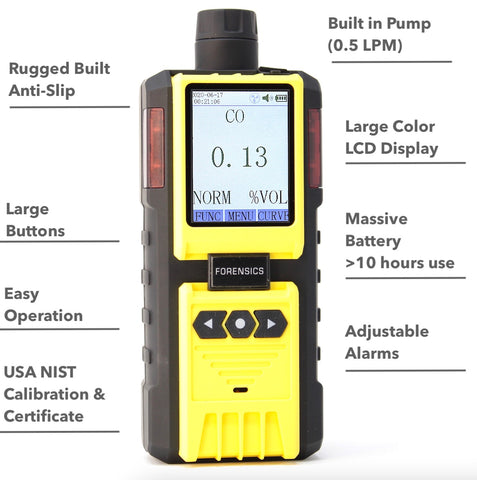

Details: Forensics Detectors presents a high-quality carbon monoxide analyzer for combustion engine exhaust gas with a built-in pump and high-quality gas sample probe. This is the equivalent of the discontinued Bacharach Monoxor. Made for all engine fuels, including gasoline, diesel, LPG, propane, butane, natural gas, and all high-performance alternative fuels. The unit has advanced features such as a 32-bit microprocessor, color screen, real-time graphing, and data logging functions. The display is massive and shows the carbon monoxide concentration in %vol concentration. If desired, it can be switched to read parts per million (ppm). Please note that this analyzer only detects carbon monoxide gas. It does not detect HC, O2, and CO2, nor does it calculate Lambda/AFR or combustion efficiency. In other words, this is the best and most accurate no-nonsense carbon monoxide exhaust gas analyzer on the market.

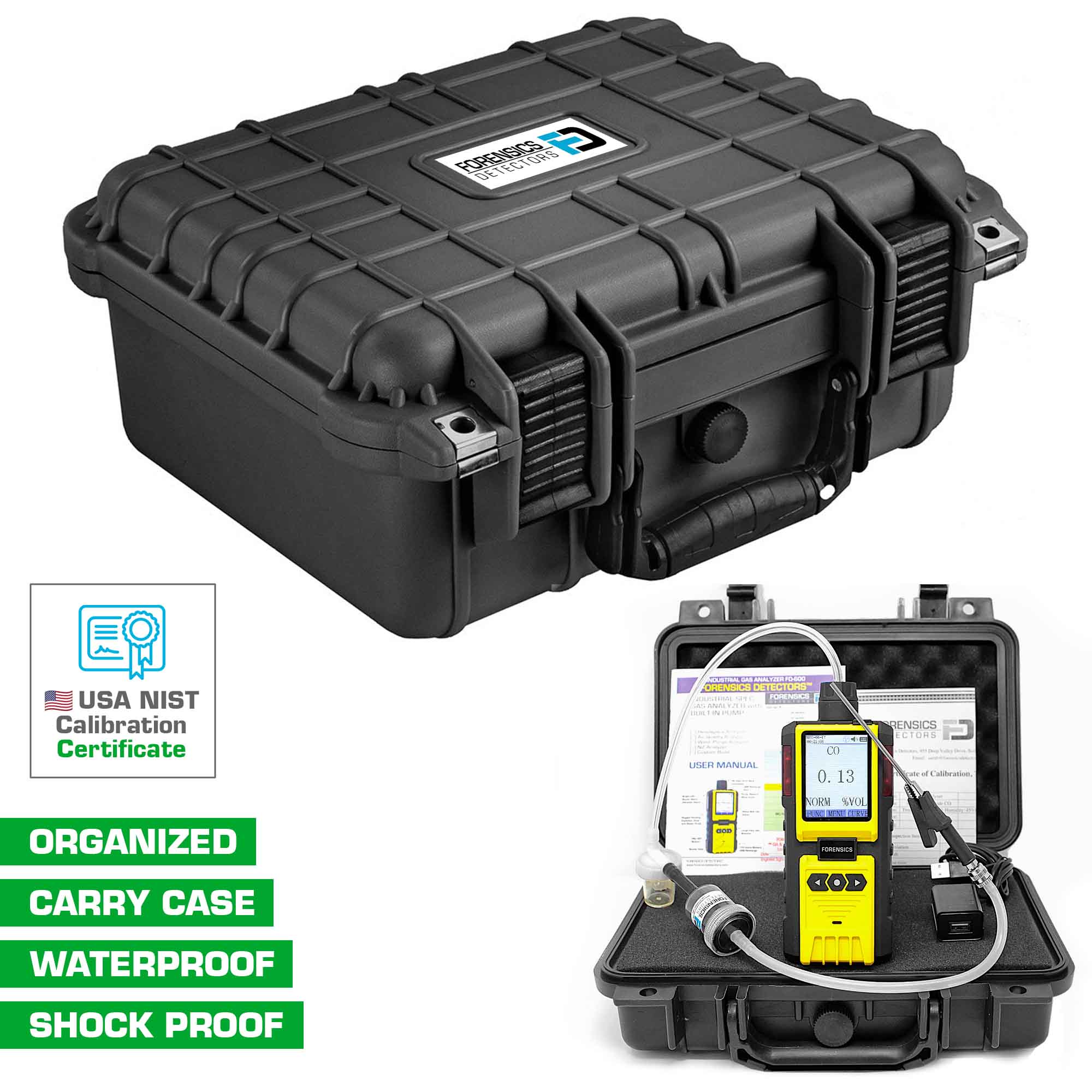

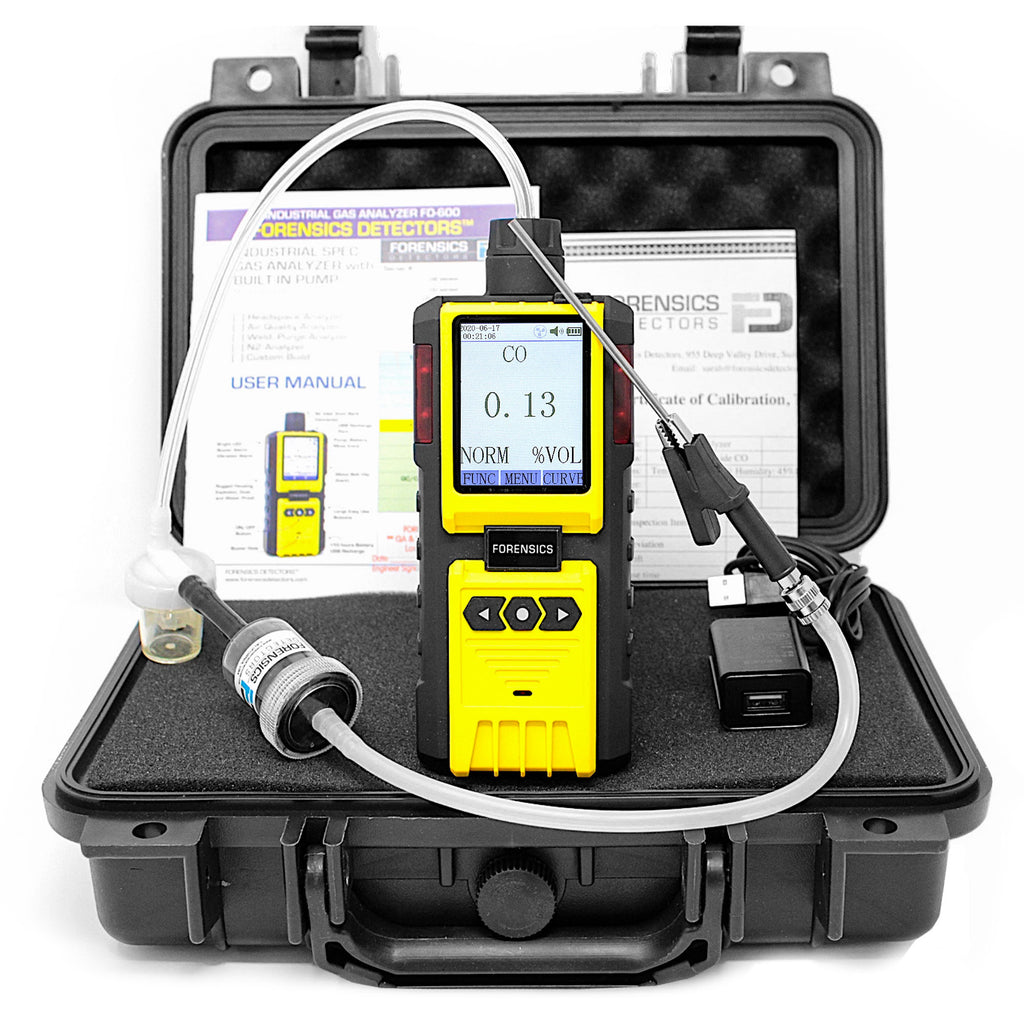

Included: a robust, waterproof ABS hard case, a model 600 analyzer with a high-range CO sensor, a niobium magnet for easy mounting, 6-inch stainless steel with an alligator probe, a hose assembly with 3 feet of high-temperature silicone tubing, a water trap, a NOx filter, a USB charging cable, a USB charger, a USA NIST traceable calibration certificate, and a simple English user manual.
Calibration Kit:
Calibration Gas (High CO Gas 5000ppm 0.5%)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (CO)
Tubing
Accessories and Parts:
Gas Sensor Replacement (CO) (email us)
Gas Detector Stand
Calibration Service:
Gas Detector Calibration Service (single)
Specifications
Sensors: Electrochemical (CO)
Carbon monoxide (CO) detection: 0 - 2.00%vol with 0.01%vol resolution (units can be switched to read ppm - conversion is as follows 1.00% = 10,000ppm)
Comes factory-calibrated to NIST USA traceable sources
Accuracy: ≤ ± 5% F.S.
Response time: ≤ 30 sec
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Power source: DC 3.7V Li-on battery, 2000 mAh
Gas sensor life: 2 - 3 years
Recommended calibration period: 12 months
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Explosion-proof grade: Ex ib IIB T4 Gb
Protection Grade: IP65
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charging time: 3 hours
Operating time: > 10 hours
Pump rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Case dimensions: 11.7 in x 8.3 in x 3.8 in (L x W x H)
Probe length: 6 in
