Brand: FORENSICS DETECTORS
Model: FD-90A-ALCOHOL
User Manual: Click Here
Blog Article: Click Here
Features:
- ⚛️ DETECT: This gas detector is sensitive to alcohol gases and vapors such as methanol, ethanol, and isopropanol. Range 0-100ppm.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.

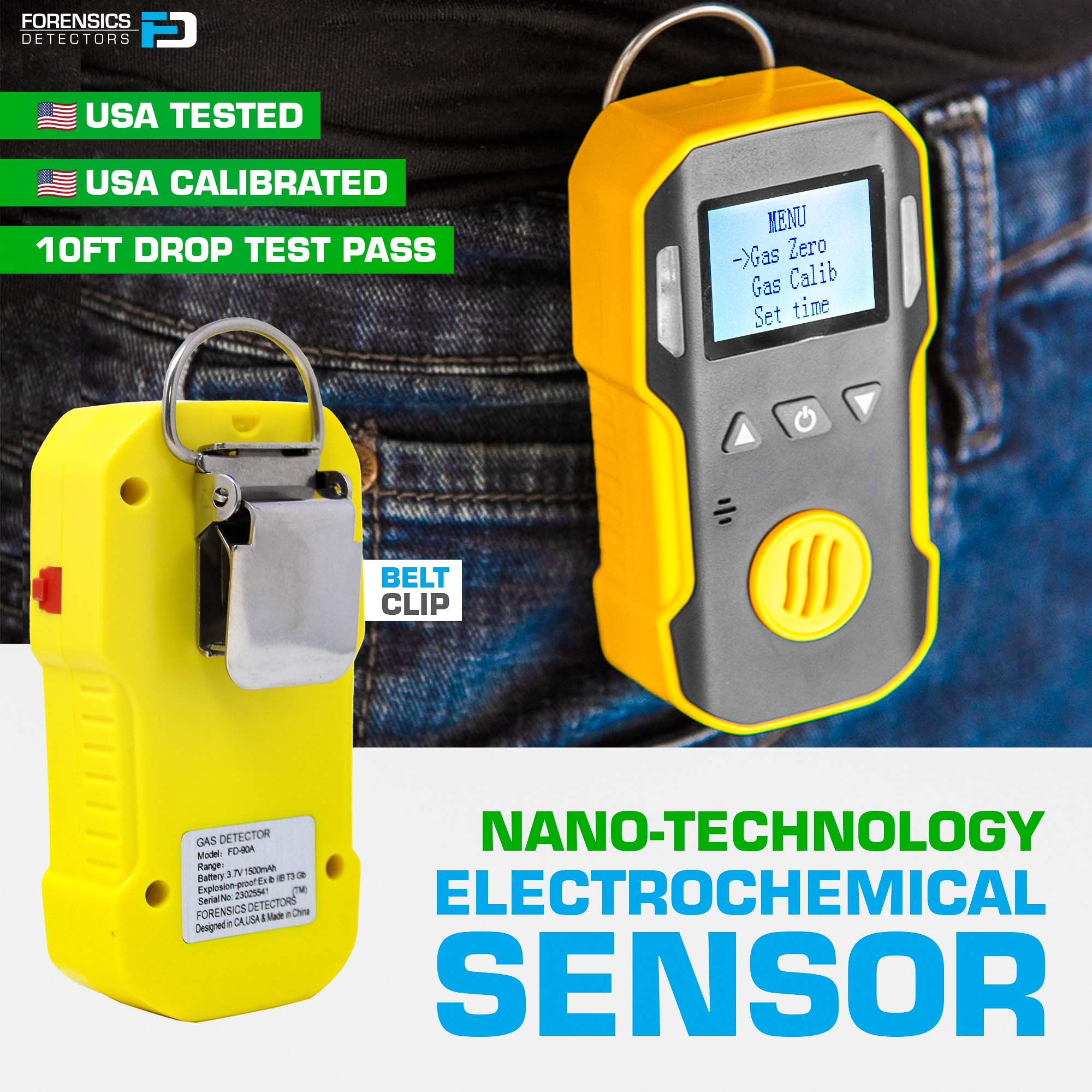

- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

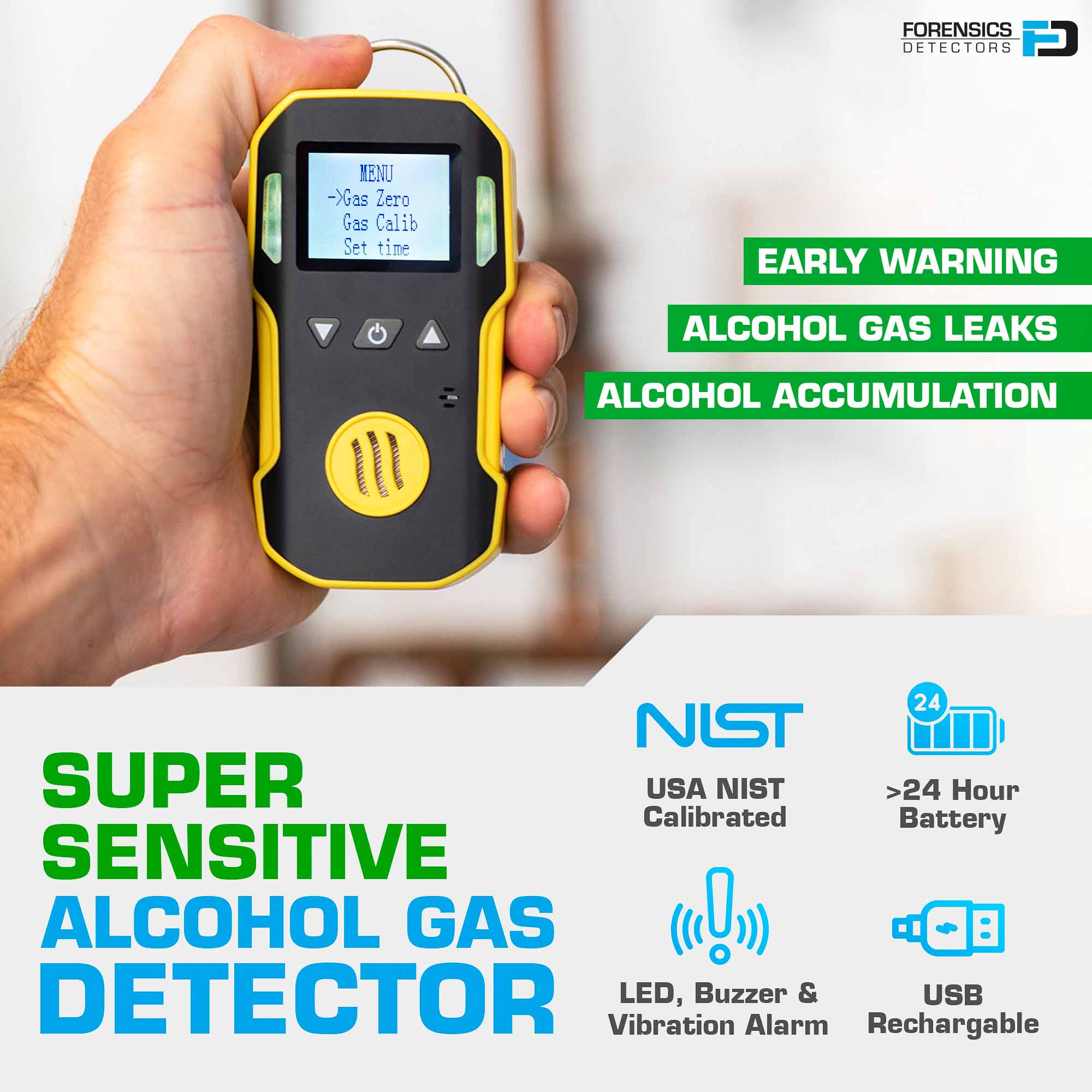

Details: This is a professional alcohol gas and vapor detector. This gas detector is sensitive to alcohol gases and vapors such as methanol, ethanol, and isopropanol. Ethanol, methanol, and Isopropyl go by multiple different names. Ethanol goes by multiple names such as ethyl alcohol, drinking alcohol, grain alcohol, or alcohol. Methanol can go by methyl alcohol and wood spirit. Different names for Isopropyl are isopropanol, 2-propanol, and IPA. Alcohol gas detection is important for protecting workers from the potential health and safety hazards associated with exposure to alcohol vapors, such as flammability and toxicity. This gas detector is perfect to track and monitor alcohol gas in processing, spot checking, indoor vapor cloud checking, laboratory, storage tank leaks, and personal safety. The unit comes factory-calibrated to NIST USA isobutylene gas. Advanced features such as temperature detection, alarm recording, alarm setting, backlight high-resolution LCD, calibration features, and others are included. This product is not a breathalyzer and is not designed to be used as a breathalyzer.
The OSHA limit for ethanol vapor exposure is 1000pm in an 8-hour work period. The limits for methanol and isopropyl are lower, with methanol vapors being at 200 ppm in an 8-hour work period and isopropyl vapors at 400 ppm in an 8-hour work period.

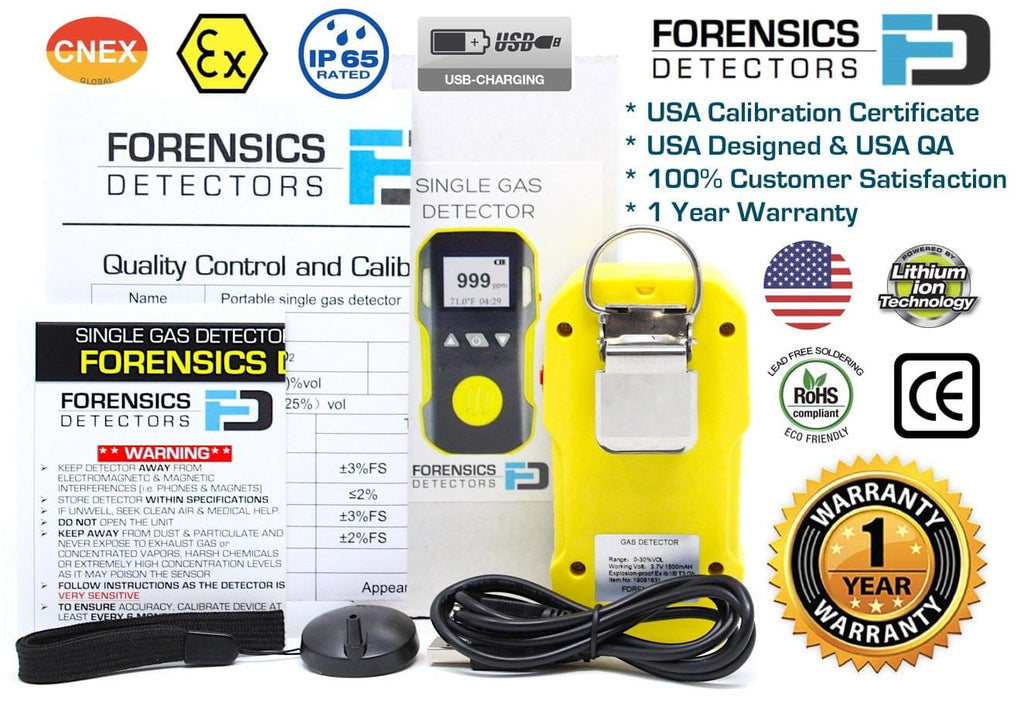

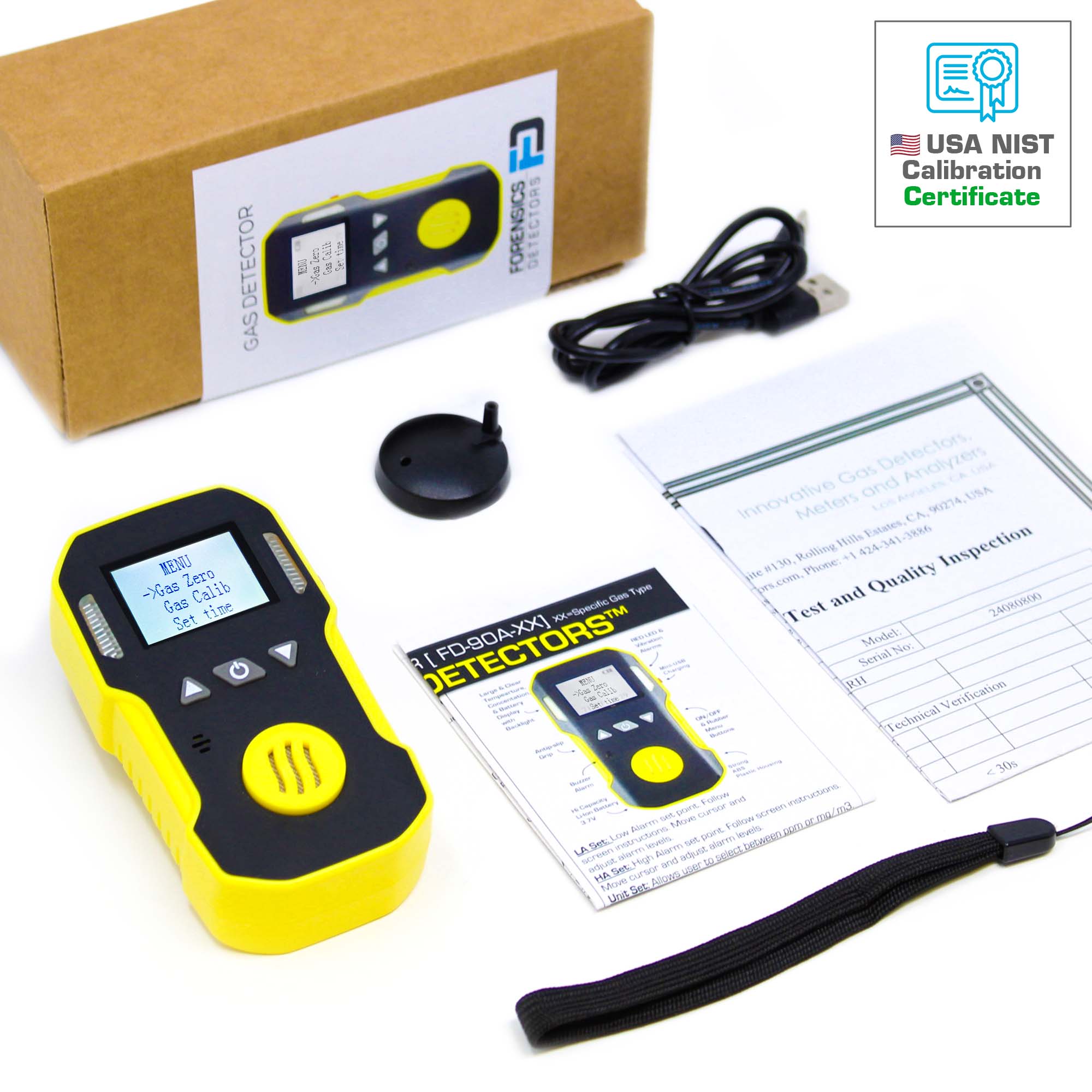

Included: Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.
Calibration Kit:
Calibration Gas (Isobutylene) (Surrogate Gas Isobutylene C4H8 50ppm: 60ppm Methanol CH4O is used for calibration.)
Tubing
Calibration Gas Regulator (C10)
Calibration Service:
Gas Detector Calibration Service
Accessories:
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (email us)
Specifications
Alcohol Gas and Vapor Detection: Sensitive to methanol (CH4O), ethanol (C2H6O), and isopropanol (C3H8O)
Detection Range: 0 -100 ppm
Detection Resolution: 1 ppm
Calibration Location: Los Angeles, California, USA

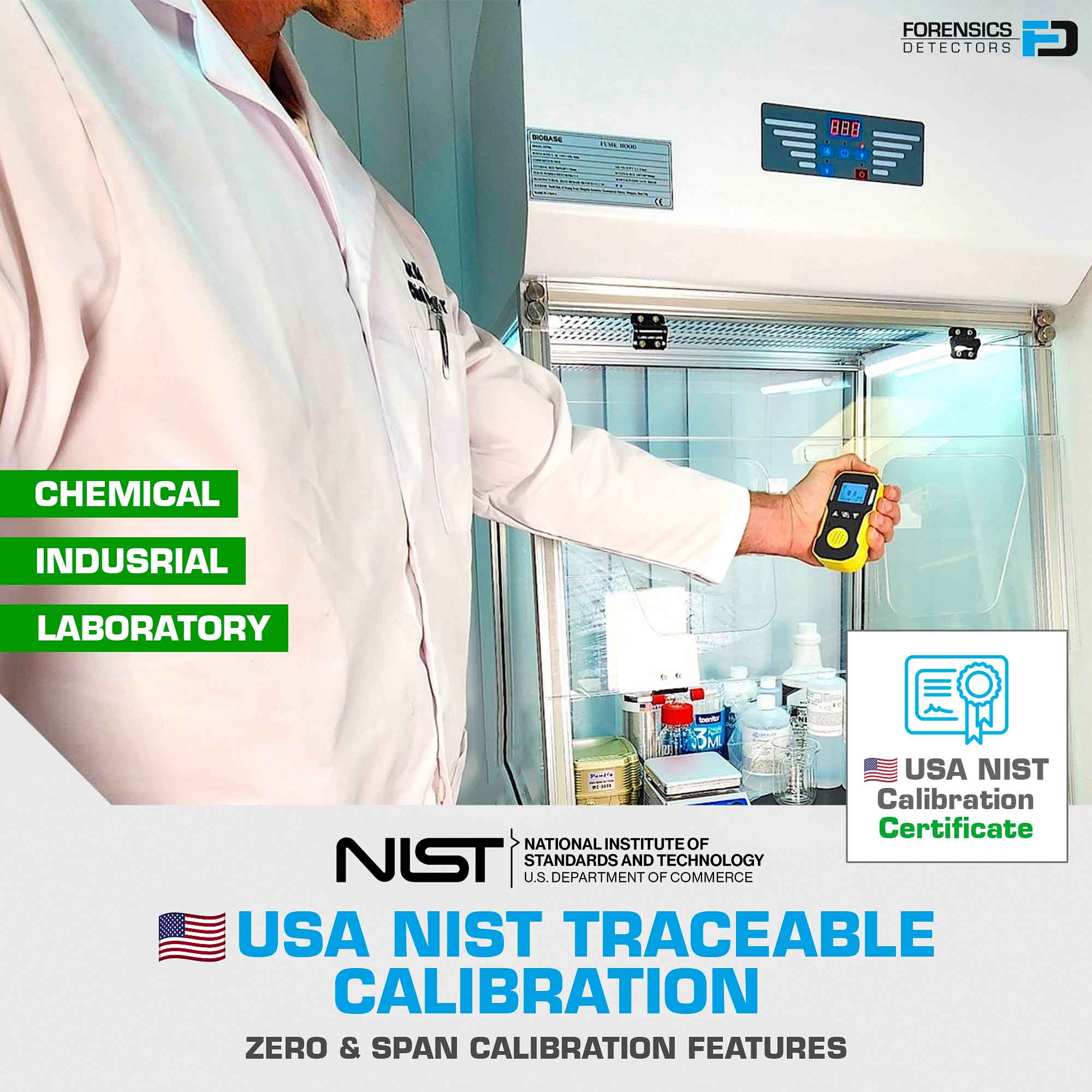

Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response Time: T < 30 sec

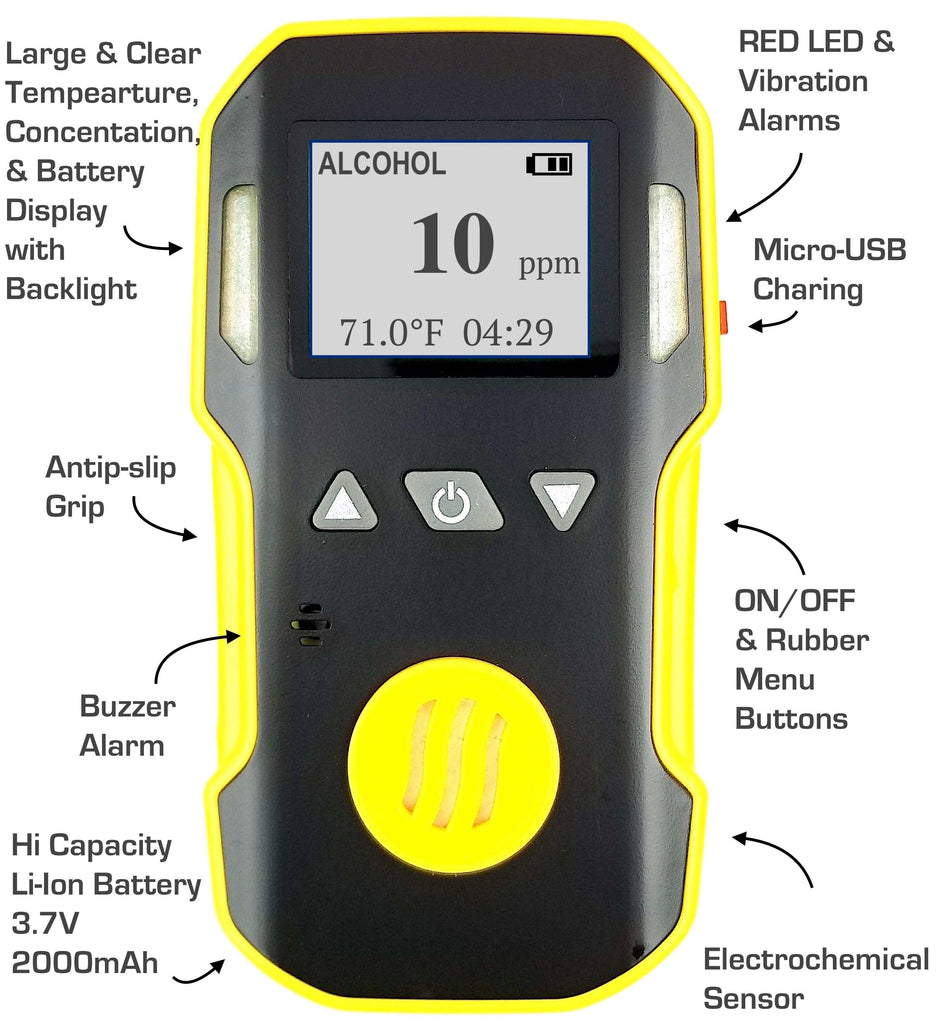

Indicators: LCD indicates the time, concentration, internal temperature, and battery level

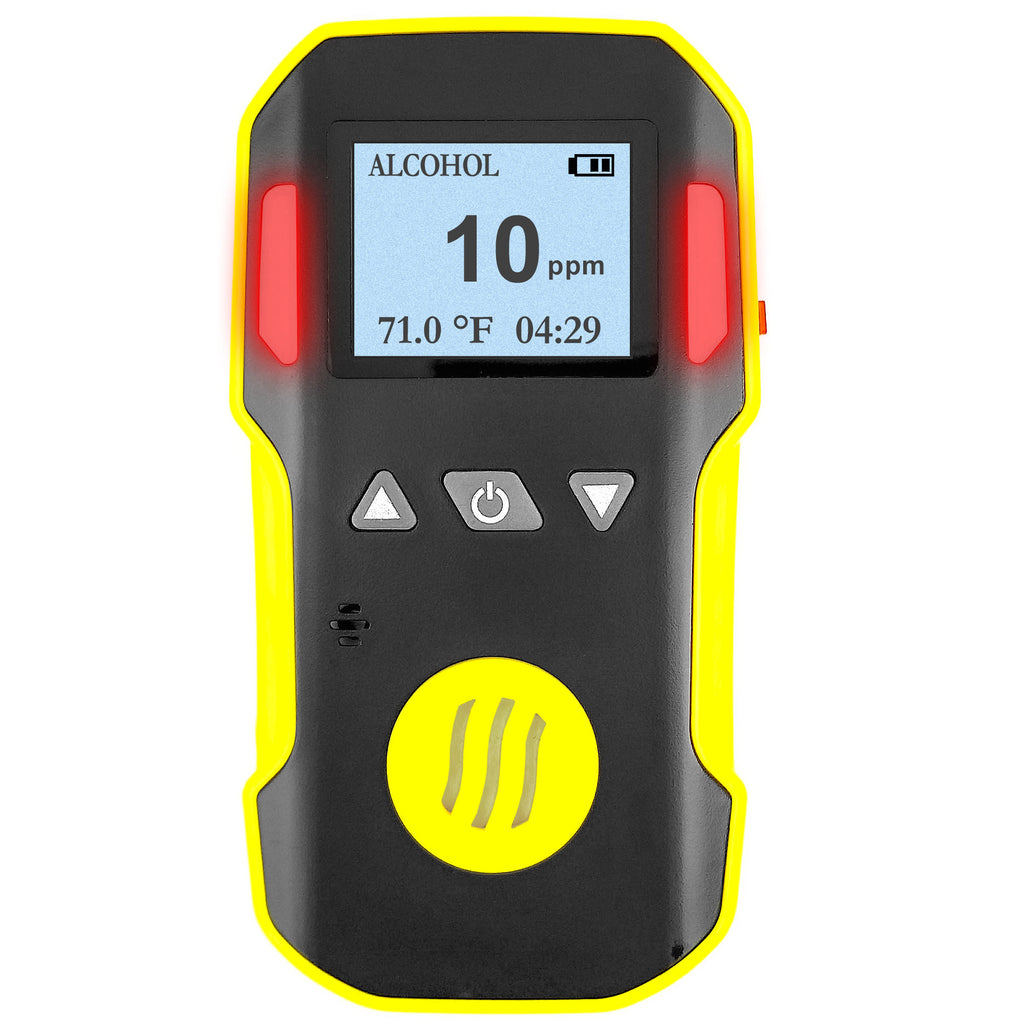

Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Protection Category: IP65
Explosion Rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
