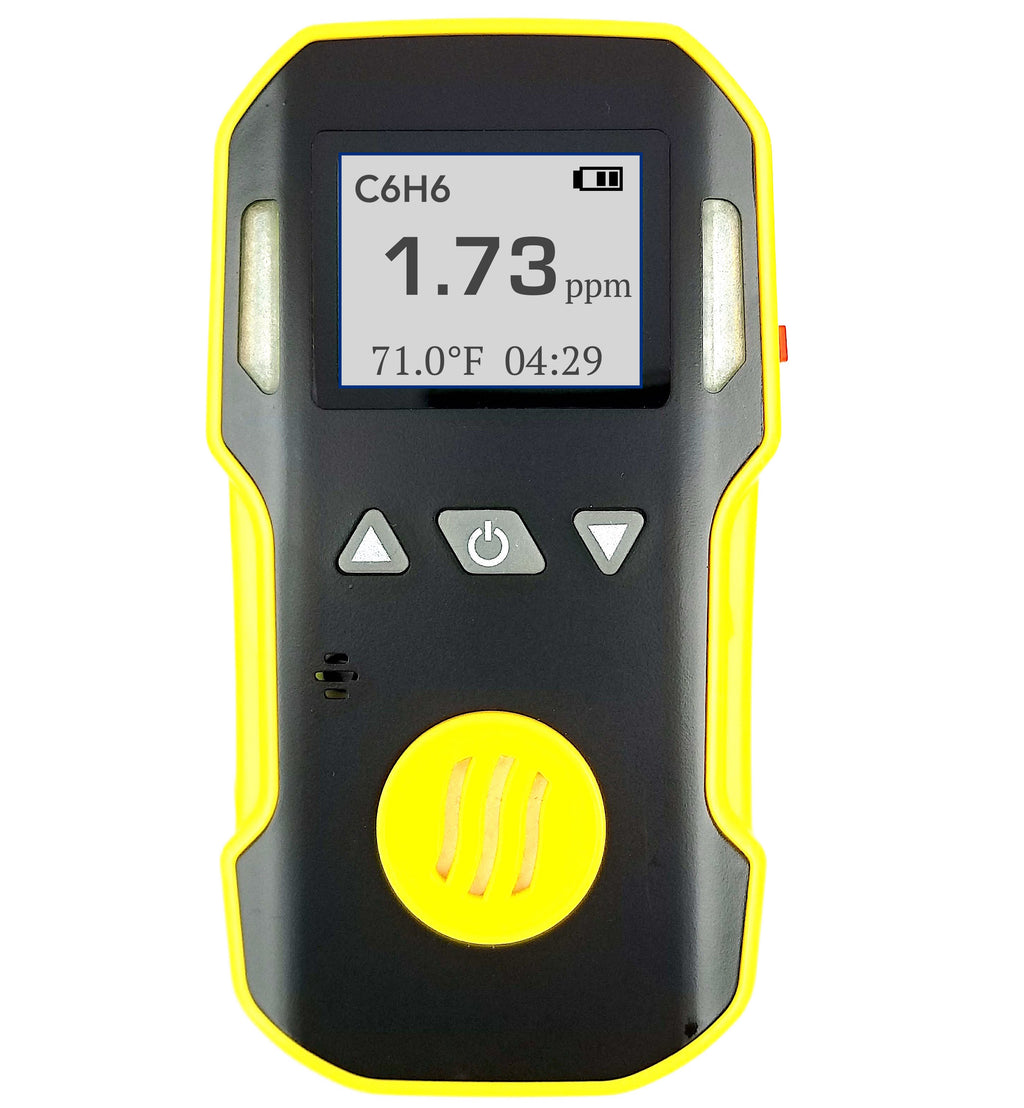

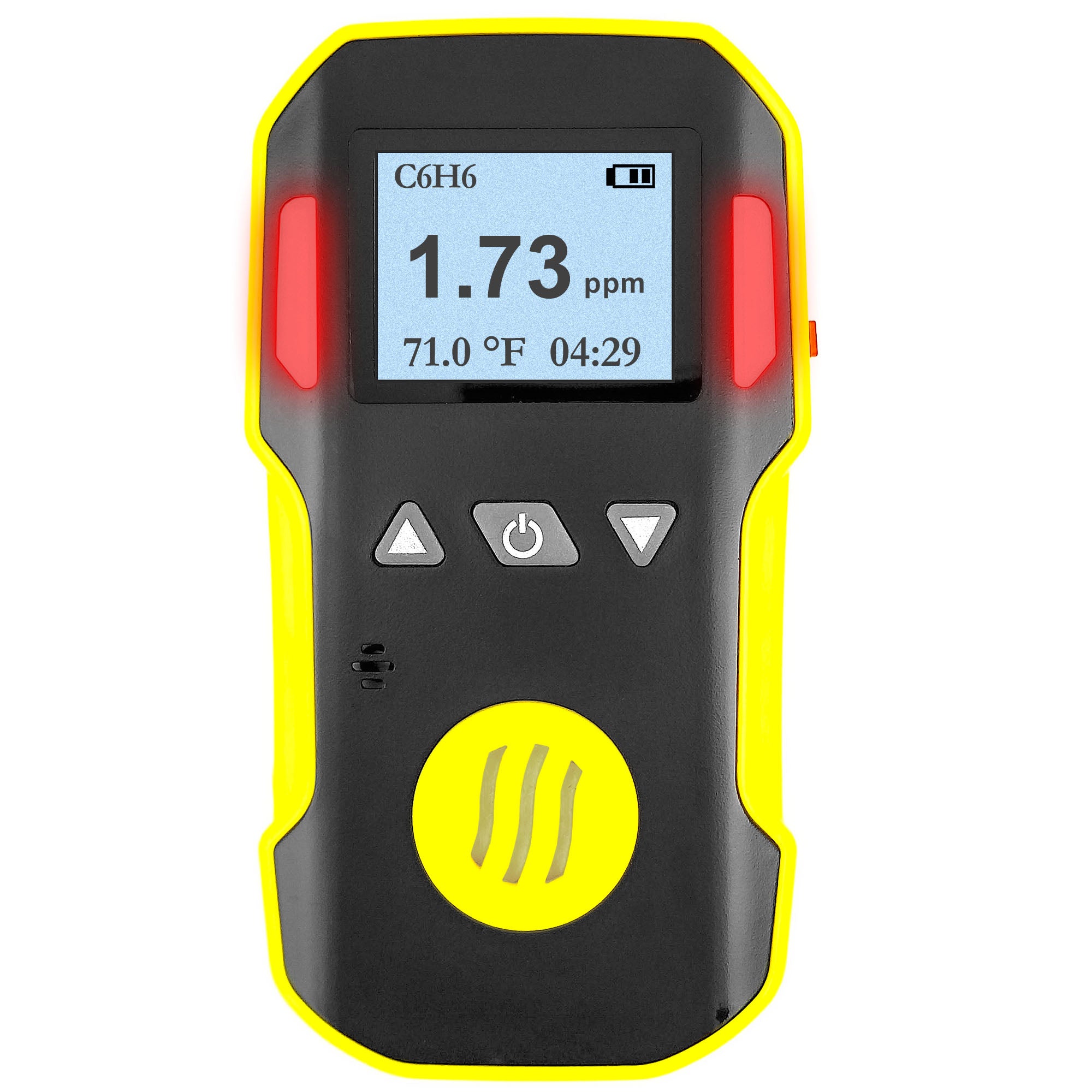

Benzene Gas Detector | USA NIST Calibration

  • Sale
  • $1,895.00
  • Regular price $2,995.00

Model: FD-90A-C6H6
User Manual: Click Here
Blog Article: Click Here


  • 🔋 ACCURACY: Made to detect benzene gas (C6H6) in air, 0 - 20 ppm with 0.01 ppm resolution. Comes FACTORY-CALIBRATED.
  • ⚛️ DETECT: Photoionization (PID) sensor with response time: T < 30 sec. Zero and span calibration options. Comes factory-calibrated.
  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached. Alarms come with digital time stamping and logging.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip. Rechargeable Li-ion battery 1500 mAh via micro-USB cable, comes with all accessories.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

Details: The Forensics Detectors Benzene gas detector is designed to detect the presence of benzene gas in the air and measure its concentration. Benzene gas detectors rely on PID spectroscopy to detect and quantify benzene gas in parts per million (ppm). When the level of benzene gas exceeds a predetermined limit, an alarm is triggered to alert workers of potential danger. Benzene is a hazardous chemical that can cause serious health problems and is highly flammable. It is widely used in industries such as plastics, synthetic fibers, rubber, and dyes. Benzene can also be present in gasoline and other petroleum-based products, posing a risk to workers who handle these substances.

Exposure to any level of benzene gas is hazardous to human health, and the risk increases with higher levels of exposure and longer durations. The Occupational Safety and Health Administration (OSHA) has set a permissible exposure limit (PEL) for benzene gas in the workplace at 1 part per million (ppm) over an 8-hour workday.

Included: Benzene Gas Detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (Isobutylene) (Surrogate Gas Isobutylene C4H8 10ppm: 7ppm Benzene C6H6 is used for calibration.)
Calibration Gas Regulator (C10)
Bump Gas (Isobutylene)

Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (C6H6) (email us)

Calibration Service:
Gas Detector Calibration Service


Benzene Gas (C6H6) with PID sensor: 0 - 20 ppm with 0.01 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: every 6 to 12 months
Gas Sensor Type: electrochemical gas sensor
Gas sensor life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response time: T < 30 sec

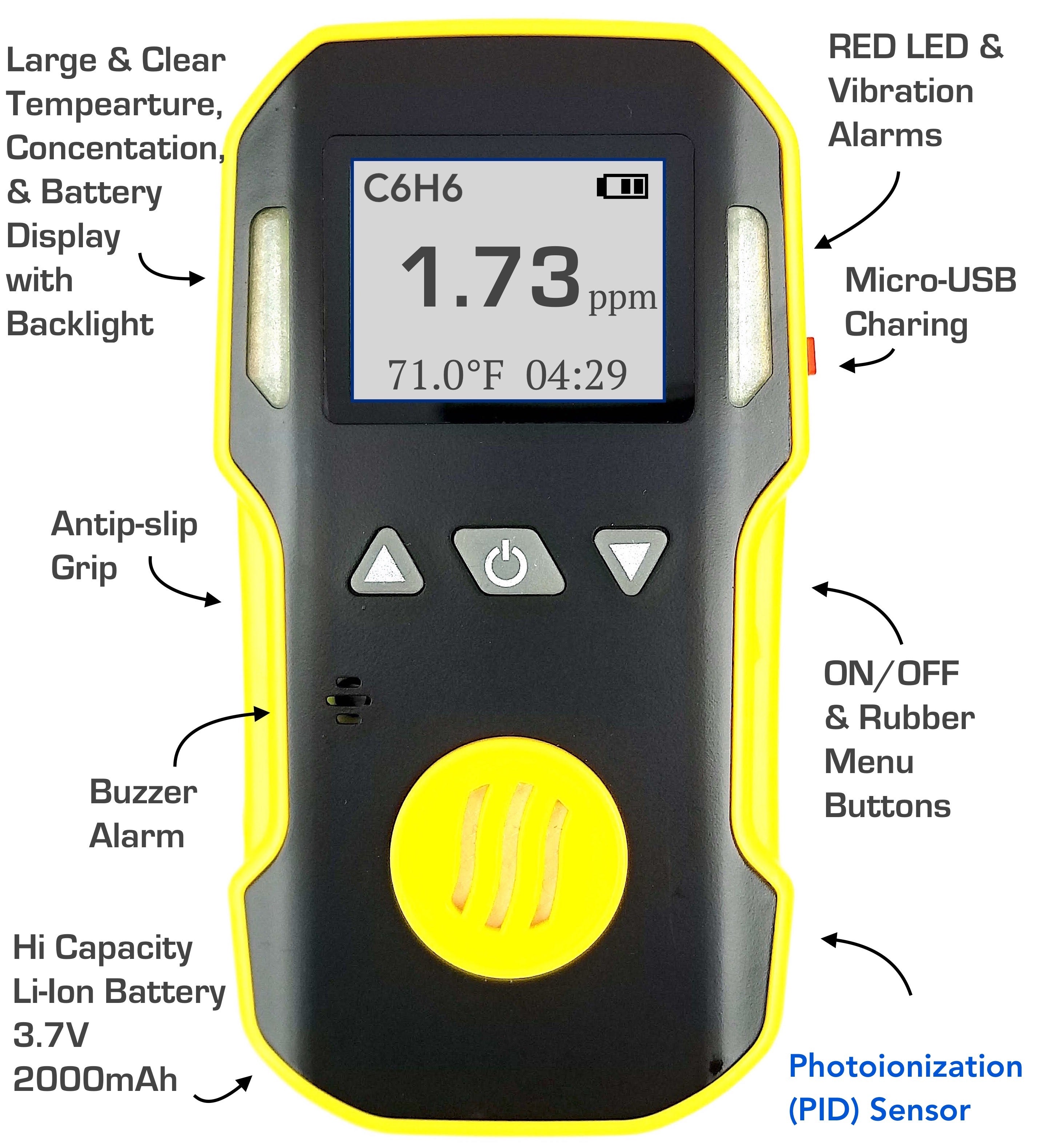

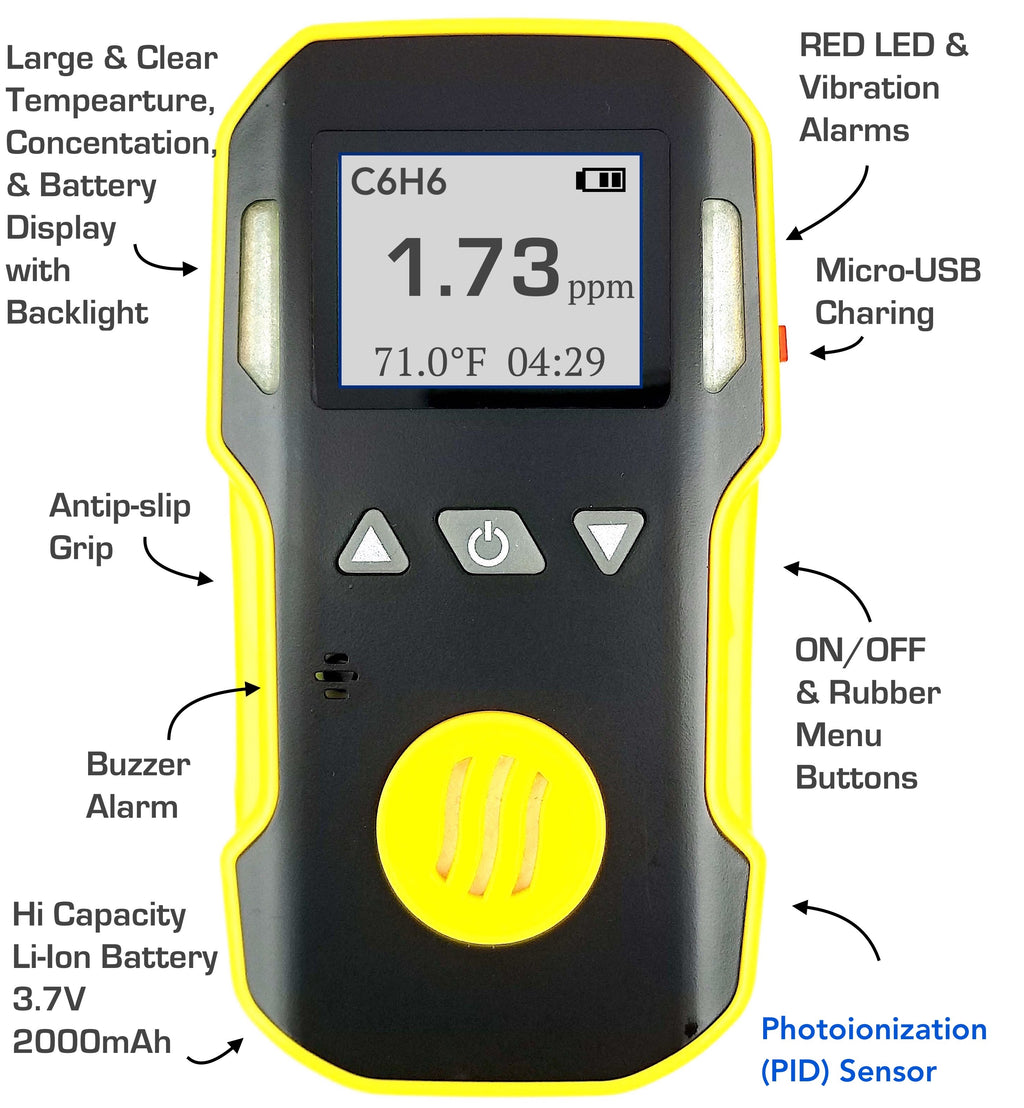

Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration Operating temperature: 14F - 122F
Operating humidity: < 95% RH non-condensing
Voltage: DC 3.7V Li-battery 1500 mAh
Working time: > 24 hours
Charging time: 3 hours
Sensor life: 2 - 3 years
Protection category: IP65
Explosion rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
