Brand: FORENSICS DETECTORS
Model: FD-600-HA-CO2
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
MAP Video Demo: Click Here

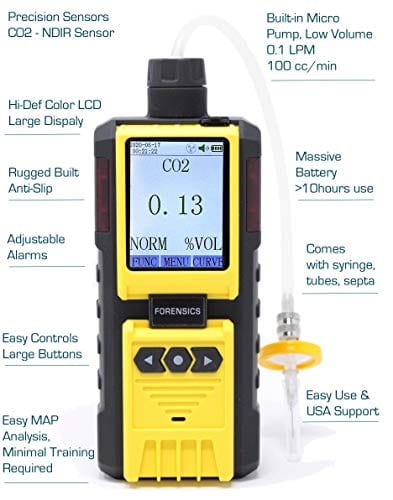

Features:
- 🎆 MAP ANALYSIS: CO2 (NDIR sensor) headspace analysis.
- 🌈 COLOR DISPLAY: Color screen and graph functions. Computer data logging.
- 📲 BATTERY: USB recharging for light handheld instrument operation. Arrives with syringes, filters, Luer lock connectors, and 100 septa.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

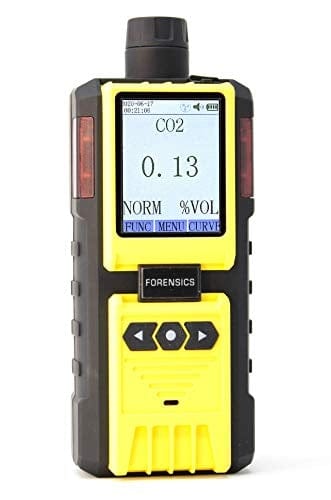

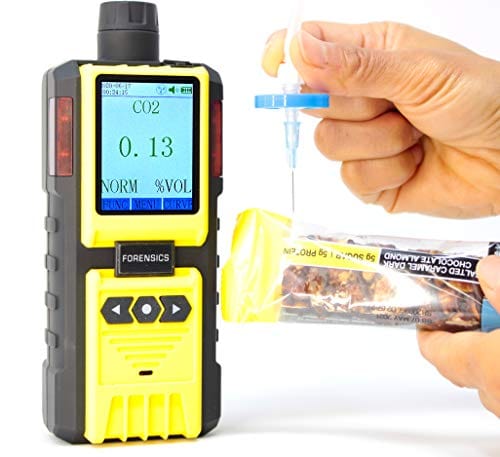

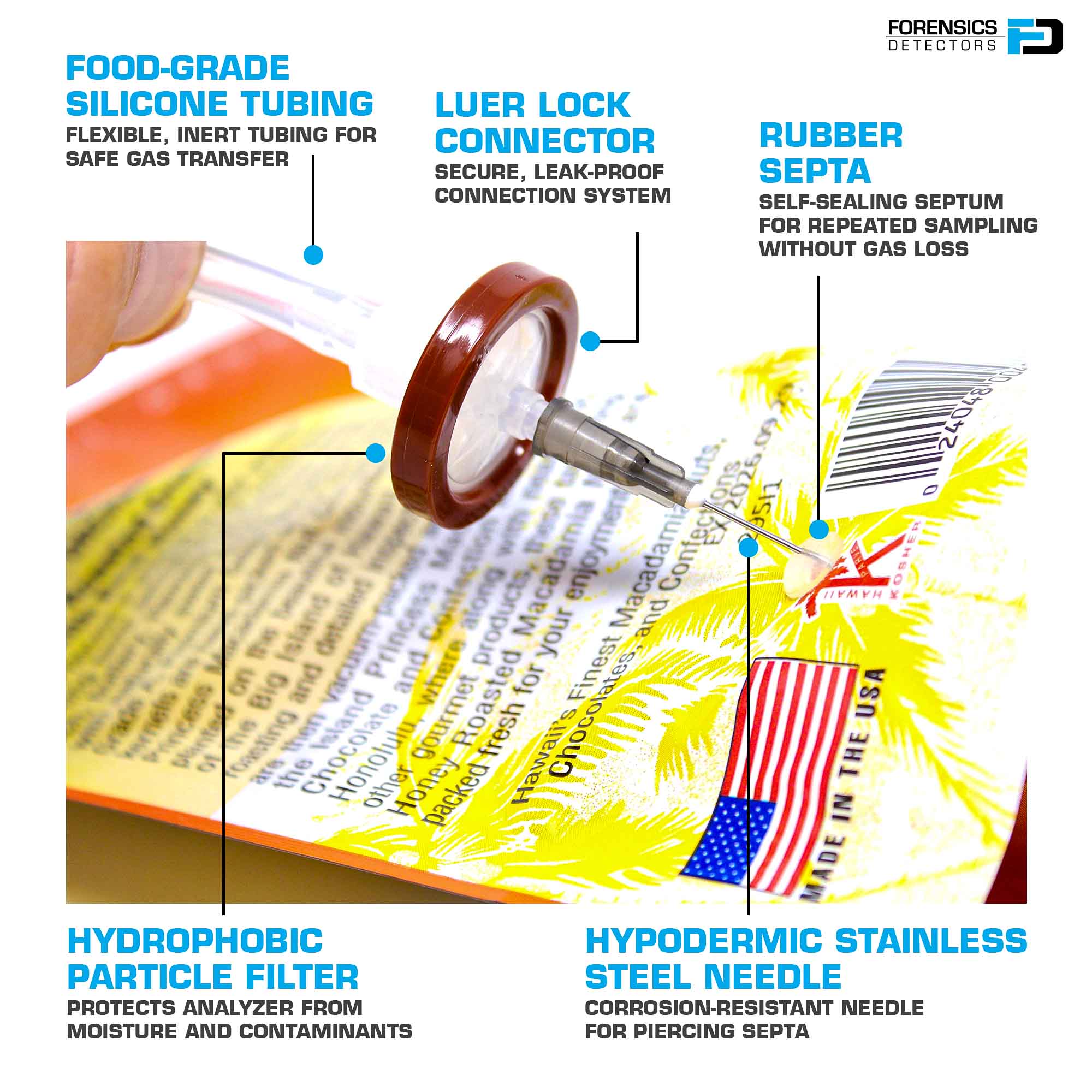

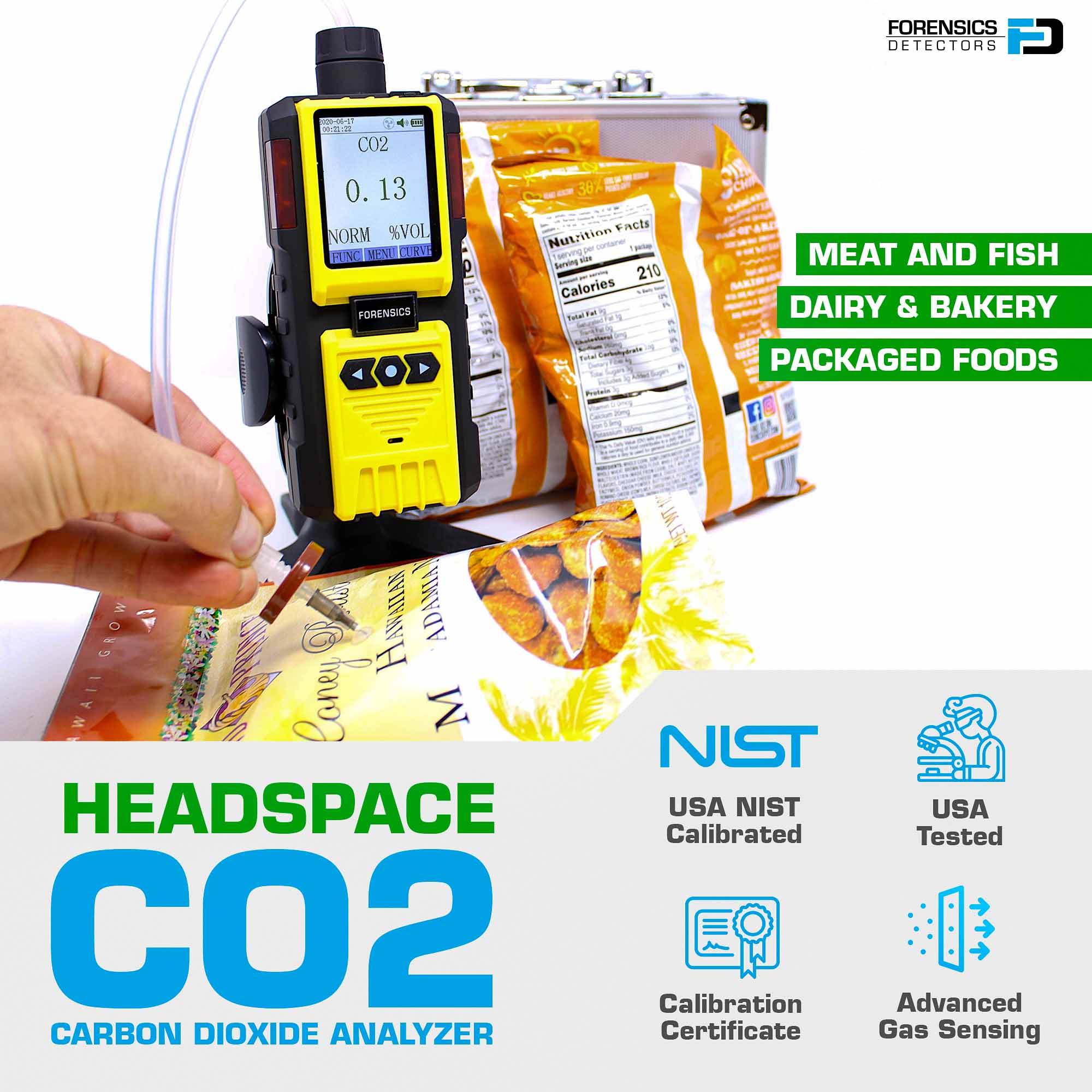

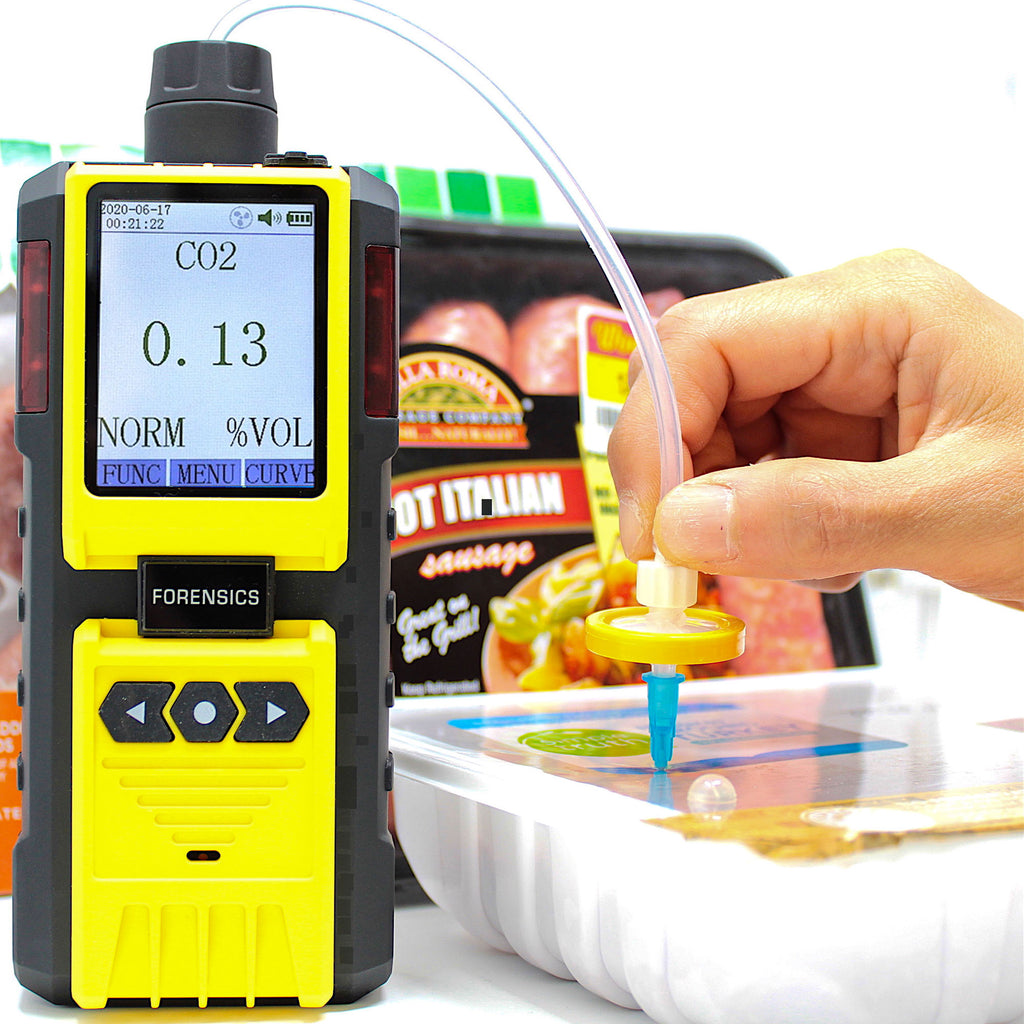

Details: Our carbon dioxide (CO2) headspace analyzer is a perfect solution to your packaging analysis problems. The headspace analyzer investigates your modified atmosphere packaged (MAP) products to measure carbon dioxide-modified levels. The FORENSICS CO2 analyzer is an excellent option with intuitive usage. Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. Simply insert the needle tip of the probe into the food pack through a septa seal pad. The septa device provides a tight seal and prevents air from leaking into the package through the puncture hole. With full user control, the built-in pump draws in the small or large quantity of sample air required for analysis. The pump can be turned off at any time to sample the right amount of air, as packaging headspace varies from product to product. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced NDIR CO2 sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. Typical testing takes less than 30 seconds.

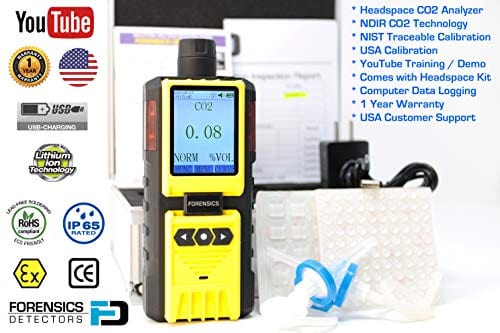

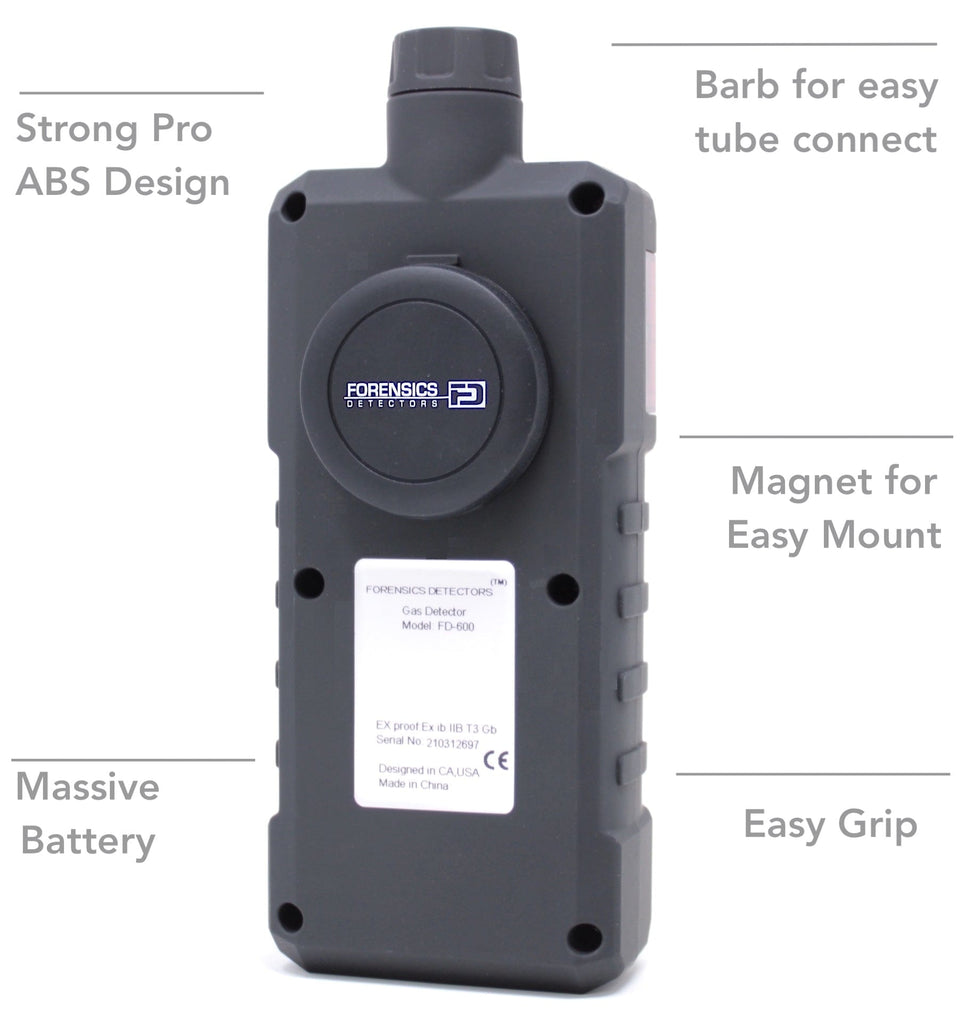

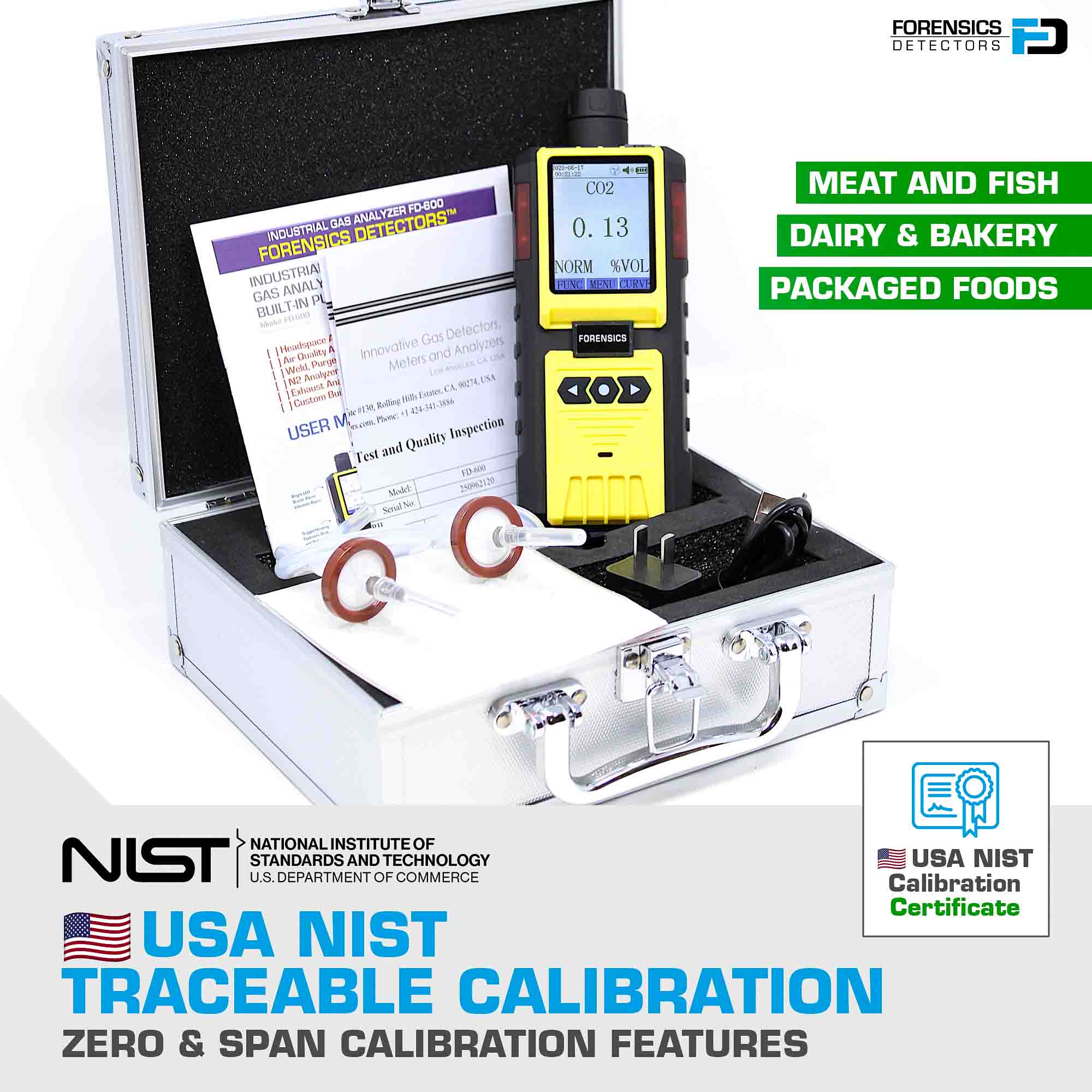

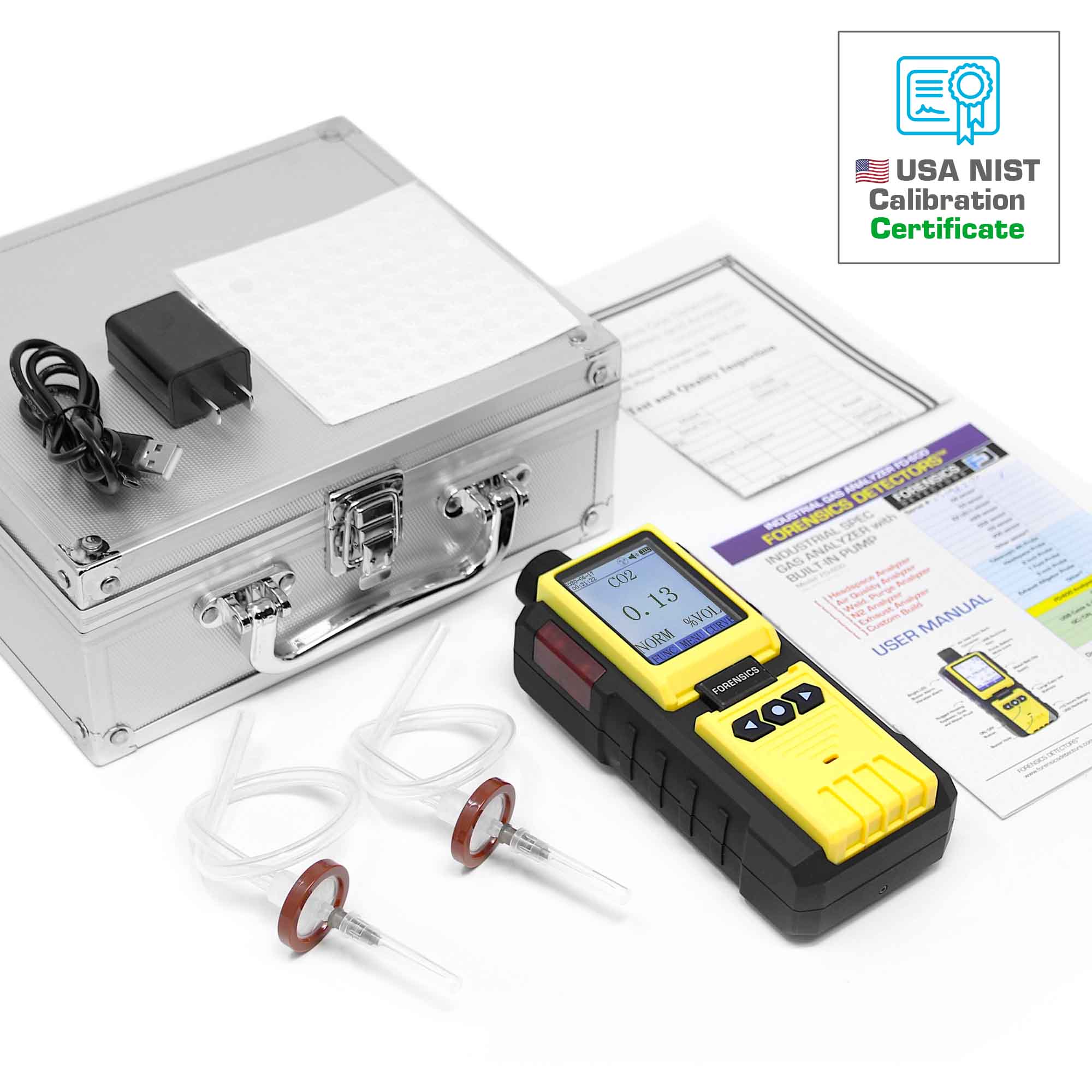

Included: Headspace CO2 analyzer and magnet base, user manual, certified calibration certificate, USB charging cable, charger, 2 x needles, 2 x filters, 100 x adhesive septa, and tubing with Luer lock connectors.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (DIY sold separately):
Calibration Gas (CO2 balanced in N2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (CO2 balanced in N2)
Accessories and Parts (sold separately):
Gas Detector Waterproof Case

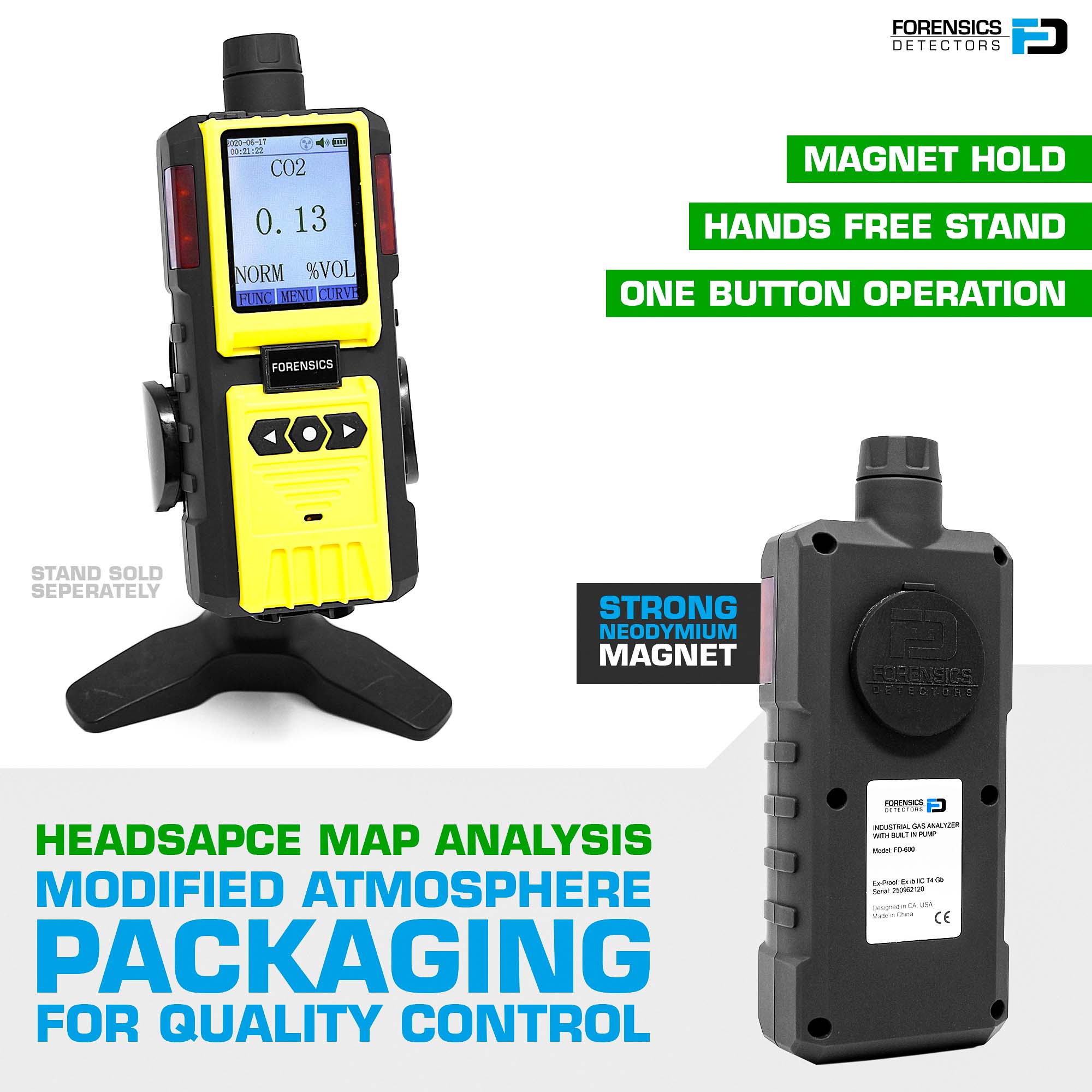

Gas Detector Stand
Headspace Kit, Needles, Filters, Tubing, Septa
Gas Sensor Replacement (CO2) (email us)
Specifications
Carbon Dioxide (CO2) Detection: 0 - 100% with 0.01% resolution
Gas Sensor Type: NDIR Gas Sensor
Gas Sensor Life: > 5 years
Sampling Type: Pumped (built-in sampling pump)
Recommended Calibration Period: 12 months
Datalogging: Yes (🛠️ Setup Guide)
Error: ≤ ± 3% F.S.
Response Time: <60 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Battery: DC3.7V Li-ion battery, 3200mAh
Explosion Rating: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Weight: 11 oz (314 g)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Charge Time: 4 hours
Operating Time: > 10 hours
Minimum Required Headspace Volume: 200ml
Pump Rate: 0.3 LPM - 0.5 LPM (300 - 500 cc/min)
Alarm: LED Alarm
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
