Brand: FORENSICS DETECTORS
Model: FD-90A-CO
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- ⚛️ ACCURATE: Industrial carbon monoxide (CO) gas detector, 0 - 1000 ppm with 1 ppm resolution.
- ⚛️ DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

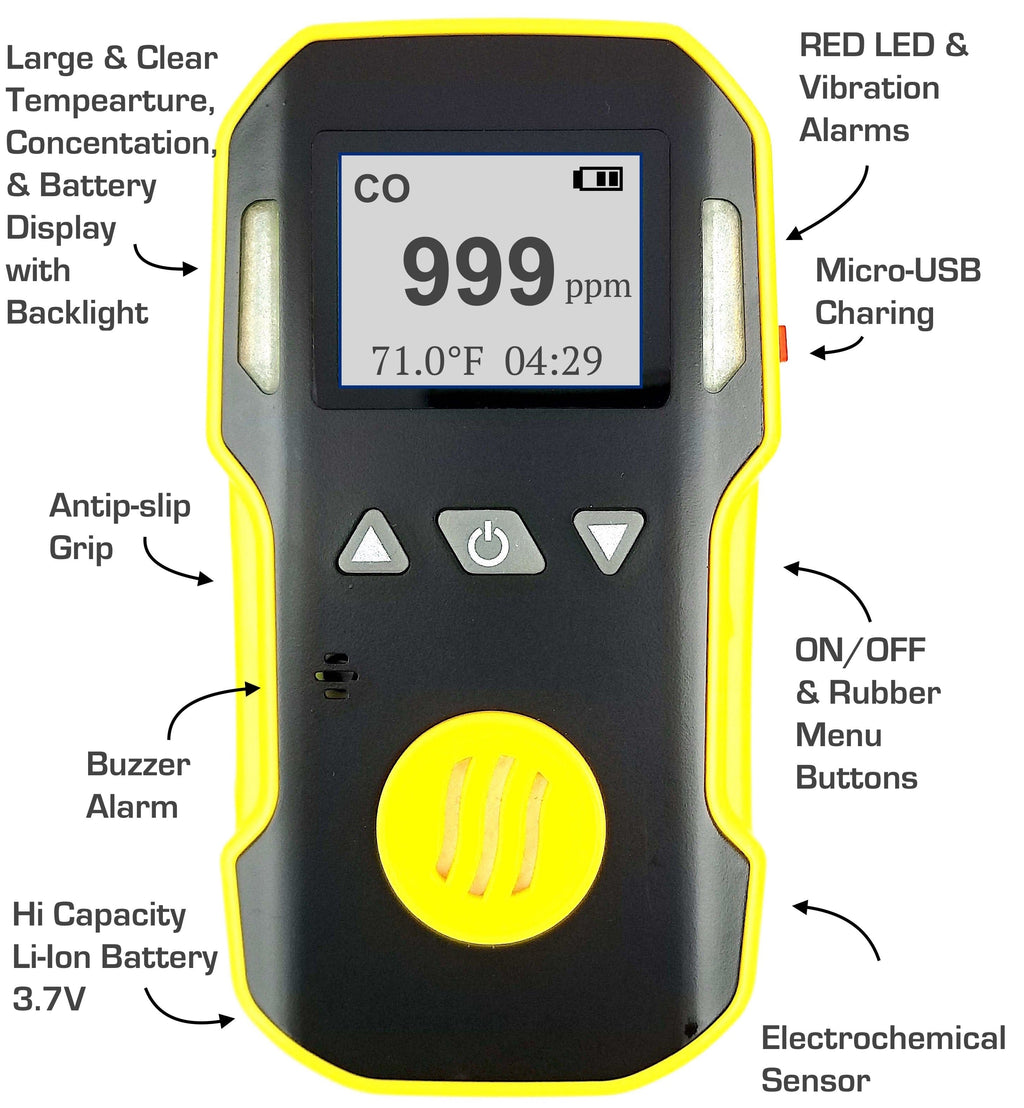

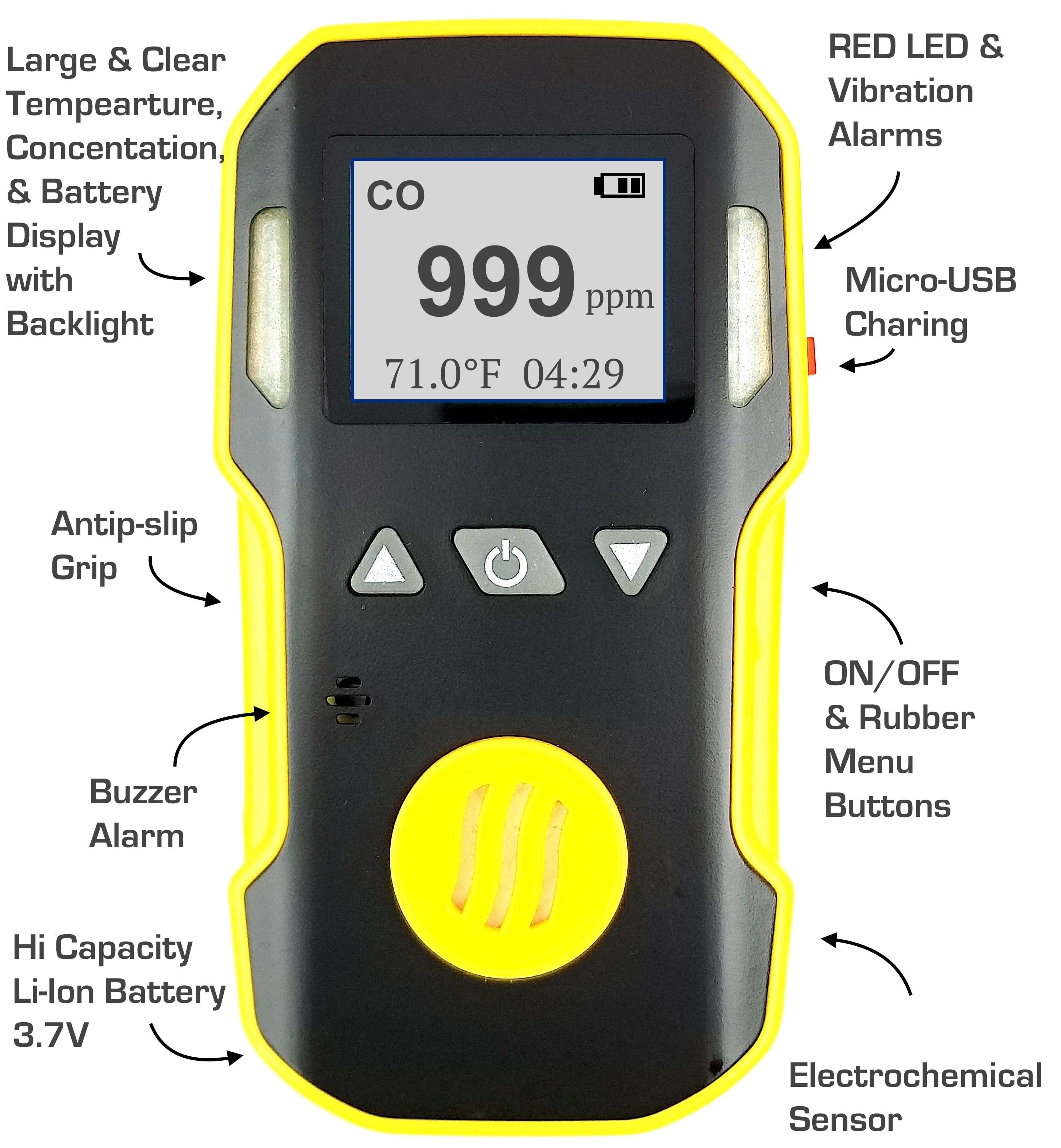

Details: Best in its class, the professional series CO detector by FORENSICS. High precision for accurate measurements and robust for fieldwork, inspections, occupational safety, industrial, and environmental applications. It comes factory-calibrated. Using electrochemical sensors, the detection range is 0 - 1000 ppm within 30 seconds. Comes with advanced features such as temperature detection, adjustable alarm settings, a backlight, a high-resolution LCD, and calibration.
Carbon monoxide (CO) is a toxic gas. OSHA emphasizes that carbon monoxide is a poisonous, colorless, odorless, and tasteless gas, making it very elusive. Although CO has no smell, it is often mixed with other gases that do have an odor (i.e., exhaust gas). When carbon monoxide is inhaled, your body replaces the oxygen in your red blood cells with carbon monoxide. This leads to asphyxiation, serious tissue damage, brain damage, and even death. An alternative is the FD-600-CO, which does have a built-in pump, making it the best candidate for point sampling and leak detection.

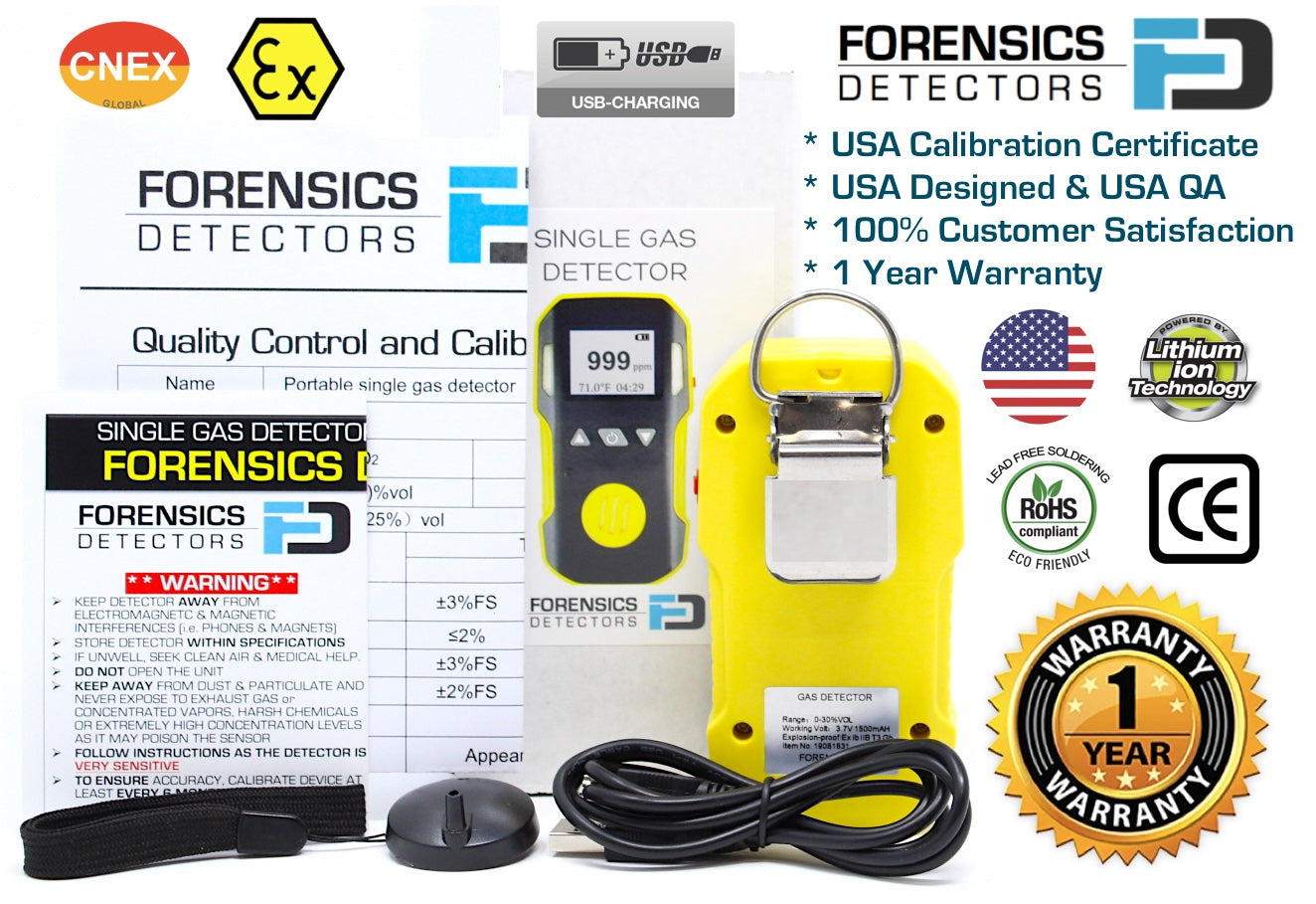

Included: CO gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (CO)
Calibration Gas Regulator (C10)
Tubing
Bump Gas (CO)
Accessories (sold separately):
Gas Detector Waterproof Case
Gas Detector Stand
Gas Detector Pouch

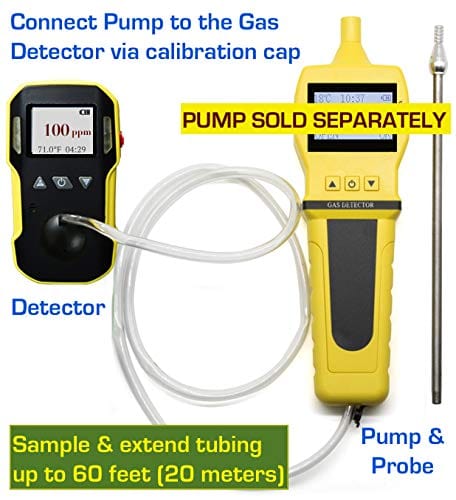

Pump and Probe
Gas Sensor Replacement (CO)
Specifications
Carbon Monoxide (CO) Detection: 0 - 1000 ppm with 1 ppm resolution
Recommended Calibration Period: 12 months
Sampling Type: Diffusive (no pump). Optional external pump available.
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Alarm: LED, Buzzer, and Vibration
Datalogging: No
Store / Operating Temp: 0°F - 122°F (-18°C to 50°C)
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Explosion Rating: ATEX certified Ex ib IIC T4 Gb (PDF)
Weight: 5 oz / 140 g
Dimensions: 4.3 x 2.3 x 1.7 inches (10.9 × 5.8 × 4.3 cm)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
