Brand: FORENSICS DETECTORS
Model: FD-60-CO2-PPM
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation

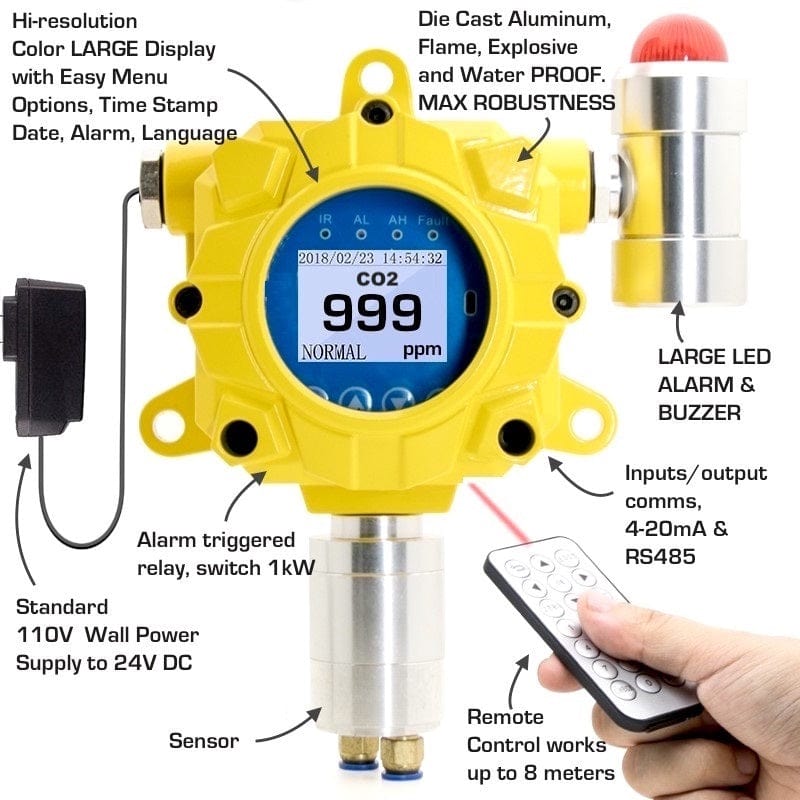

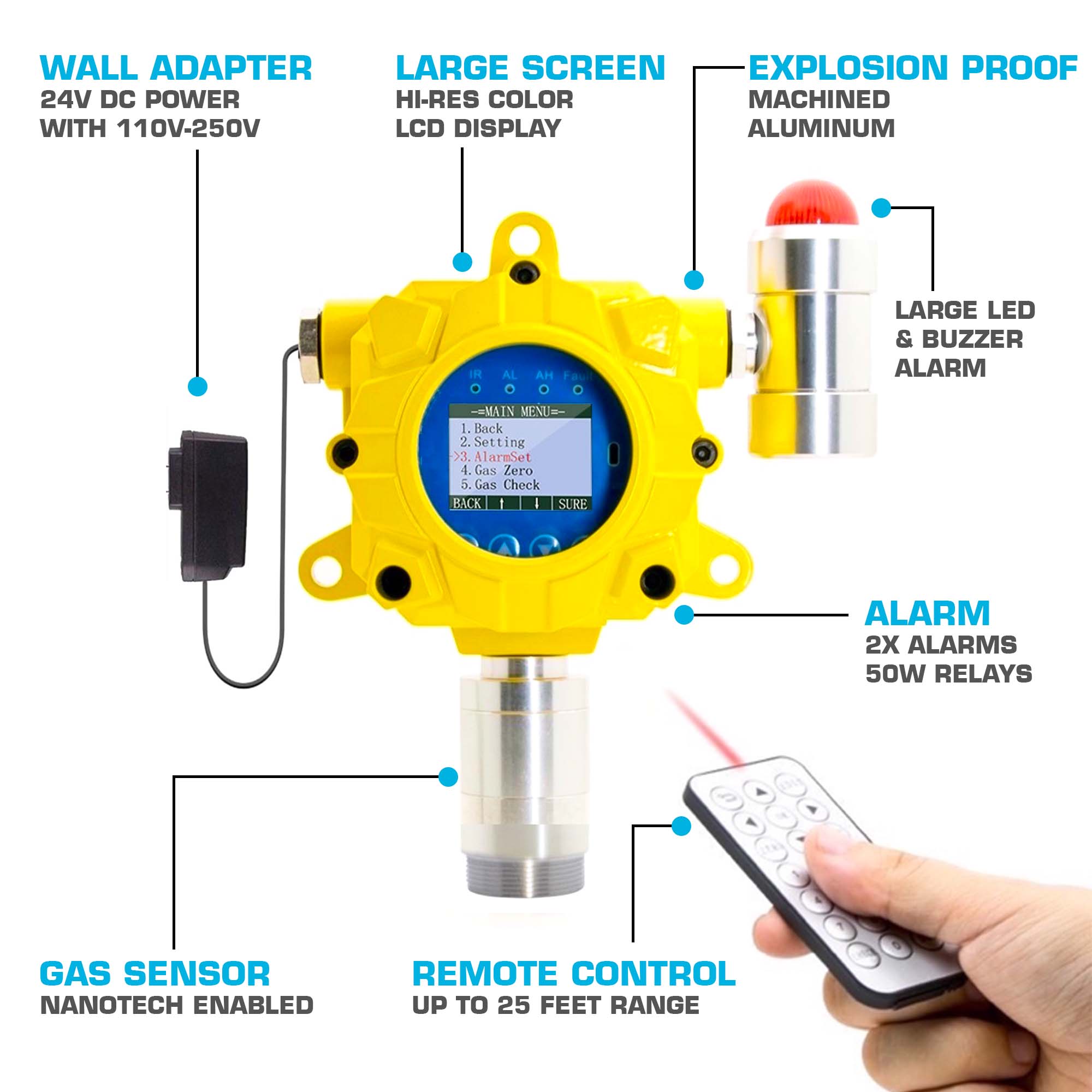

- 🚀 INDUSTRIAL: Heavy-duty fixed CO2 detector, range 0 - 5000ppm. Dual-path NDIR sensor. Comes FACTORY-CALIBRATED.
- 🌎 USE: Alarm output to 2 x relay alarm-triggered switches to control fans or ventilation units.
- 🎆 FEATURES: Large LED alarm and buzzer.
- 💪 ROBUST: Dust-proof, water-resistant, and flameproof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

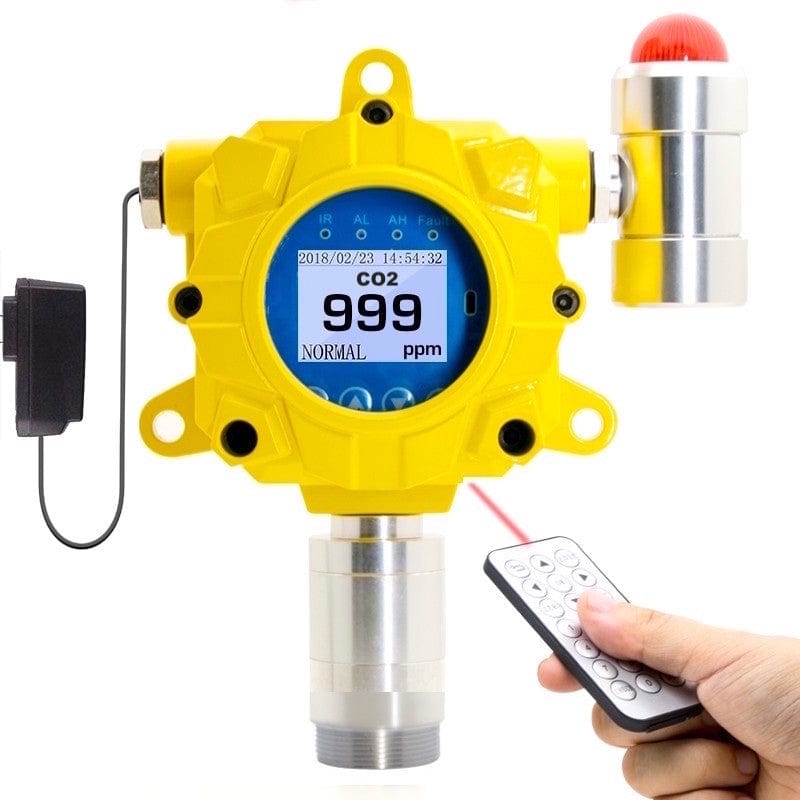

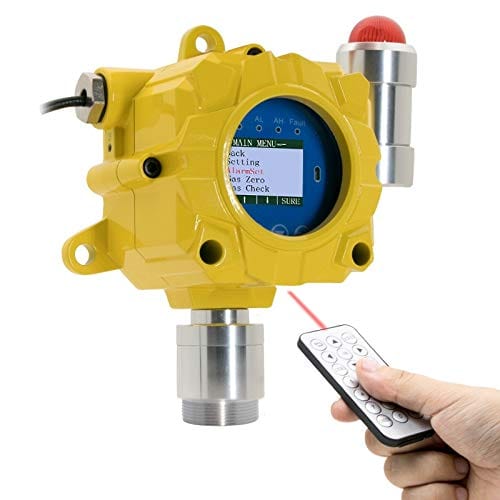

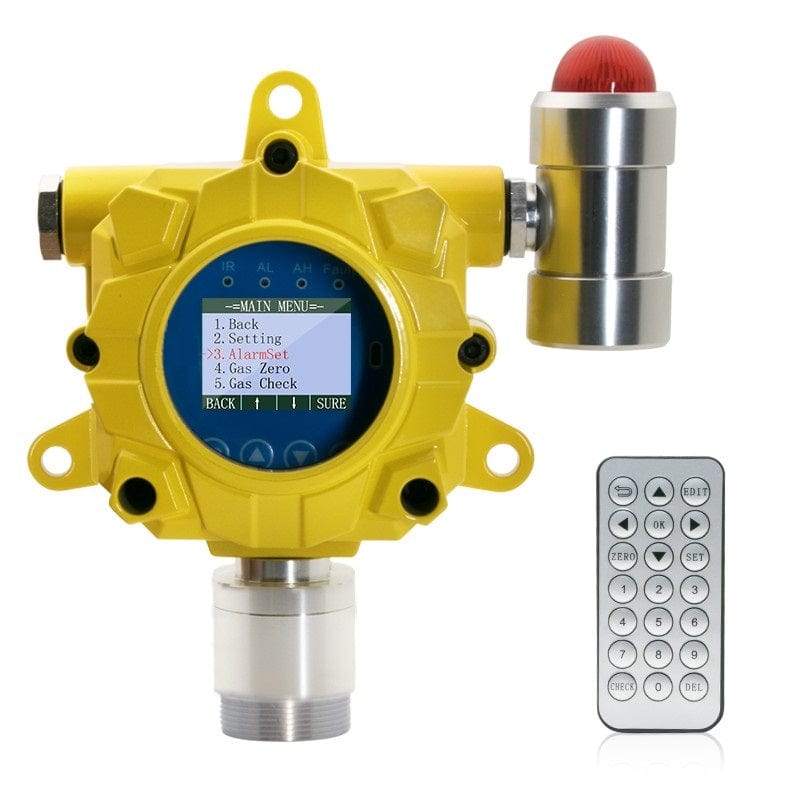

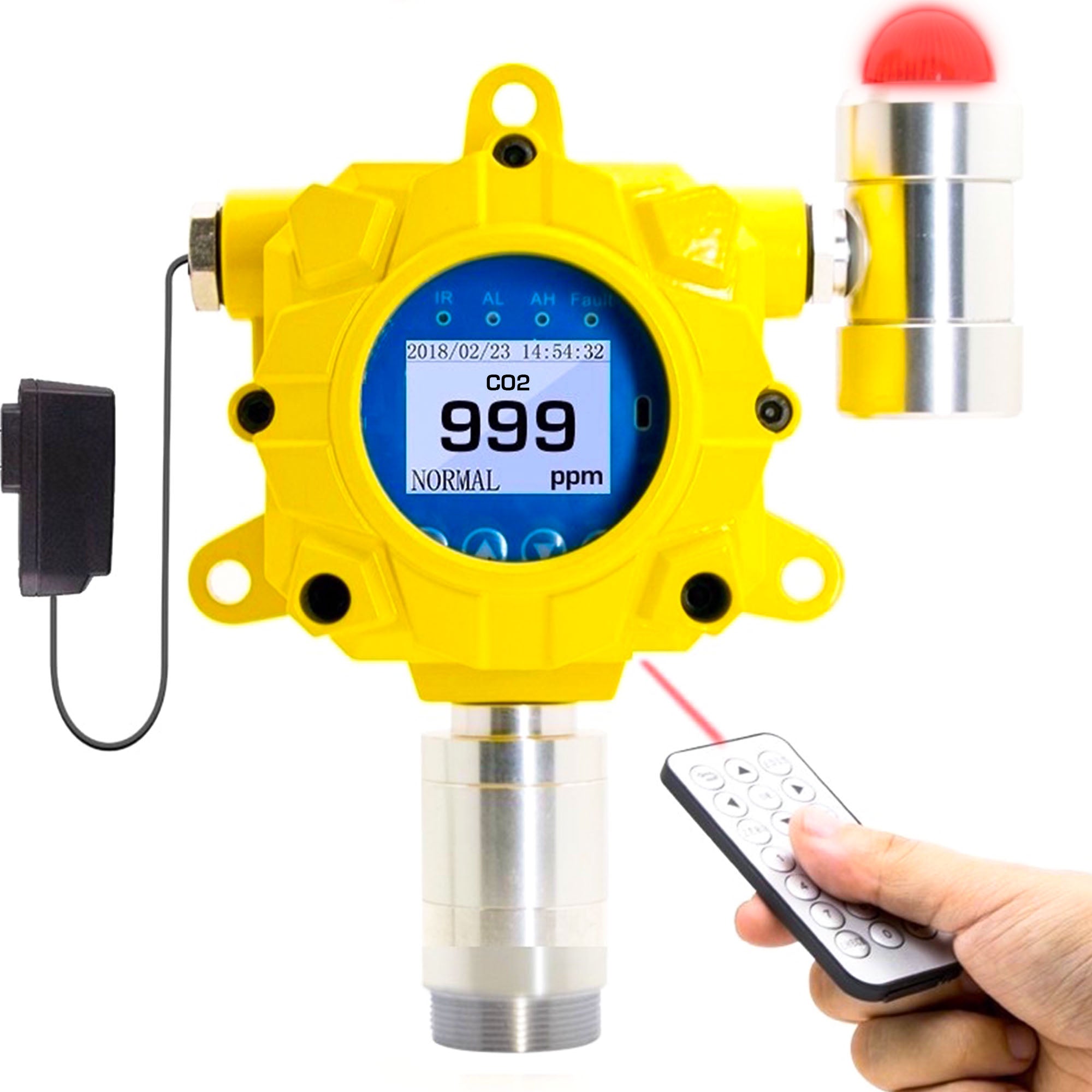

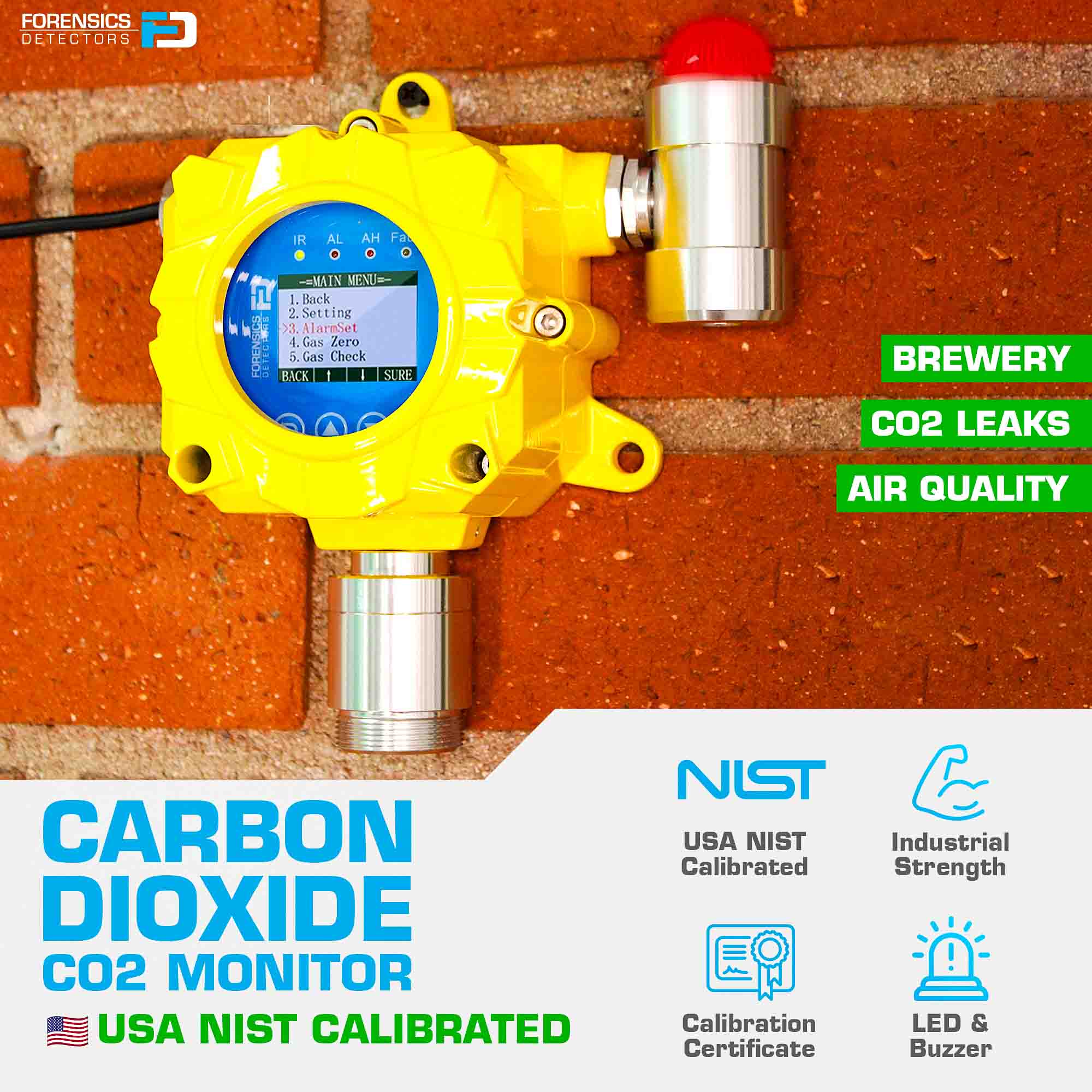

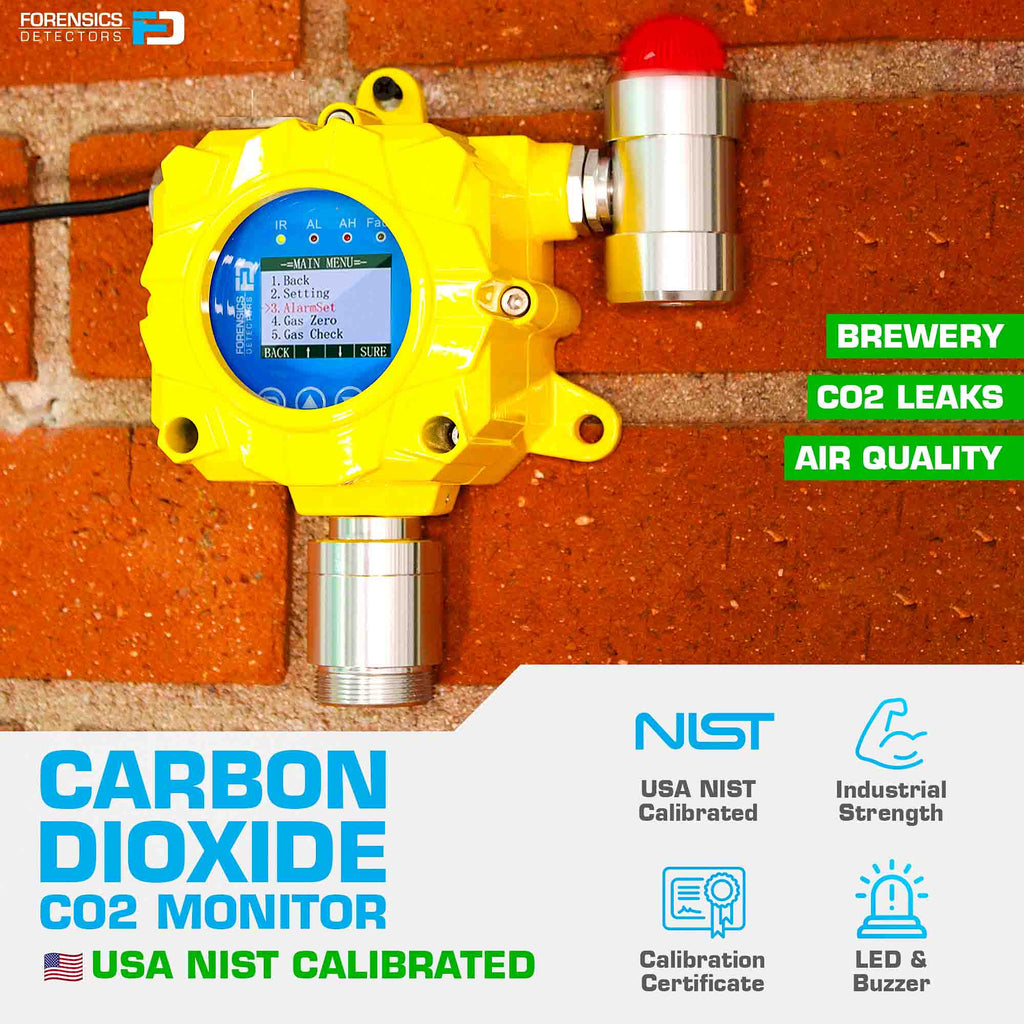

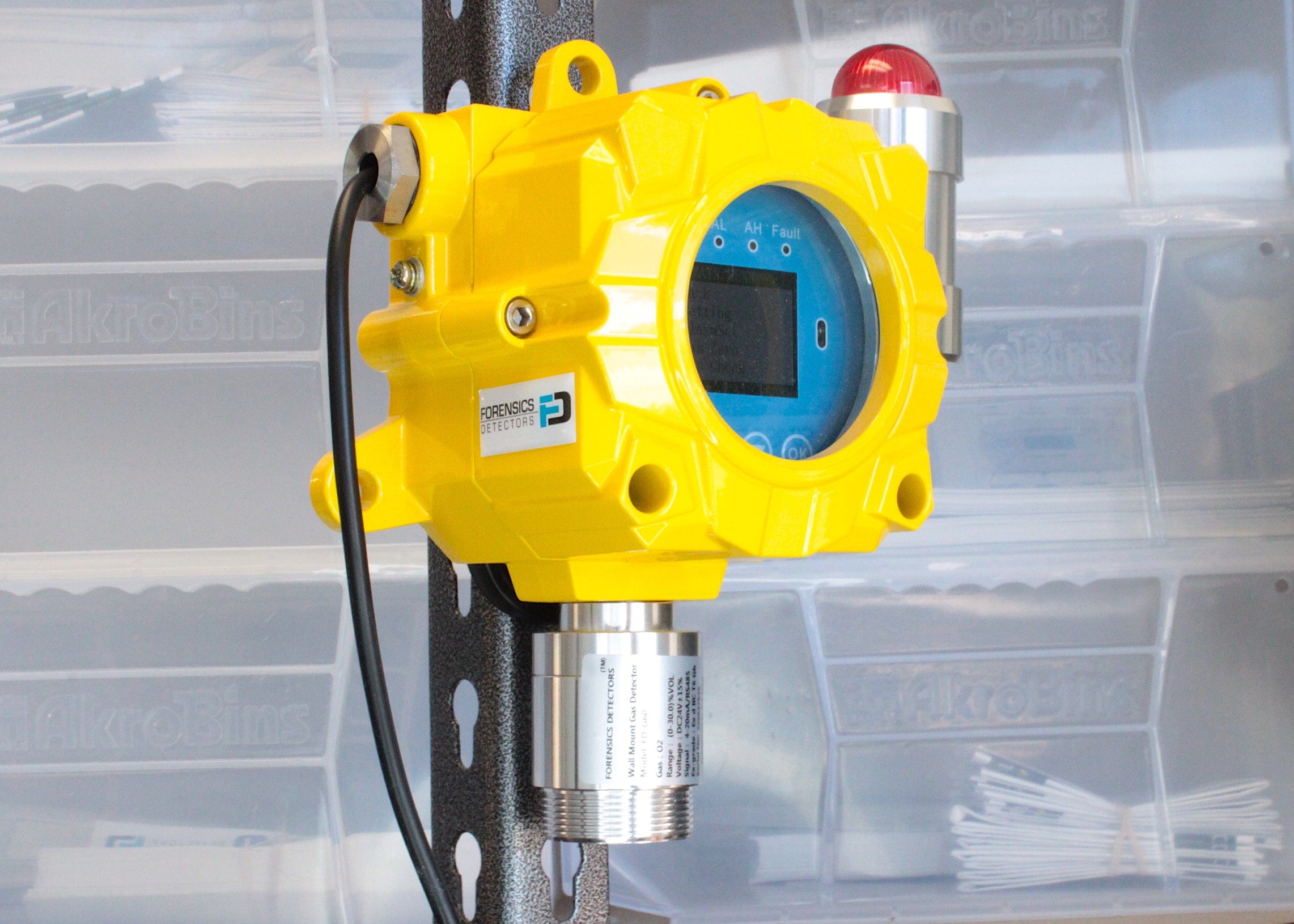

Details: This is our fixed CO2 monitor wall-mount gas monitor for occupational spaces, laboratories, garages, process rooms, combustion control rooms, refineries, gas stations, boiler rooms, confined spaces, and many others. Excellent for continuous monitoring and alarming. A robust unit that you mount on the wall and will alarm with LED and buzzer alarm format for immediate action to take place. Commonly purchased for cryogenics, confined space, nitrogen applications, industrial, factory, CO2 freezing, and many more.
For those that just require a more basic carbon dioxide meter without the advanced multigas detector function, we recommend our FD-90A-CO2. For those requiring a handheld carbon dioxide meter with a built-in pump, we recommend our FD-600-CO2.

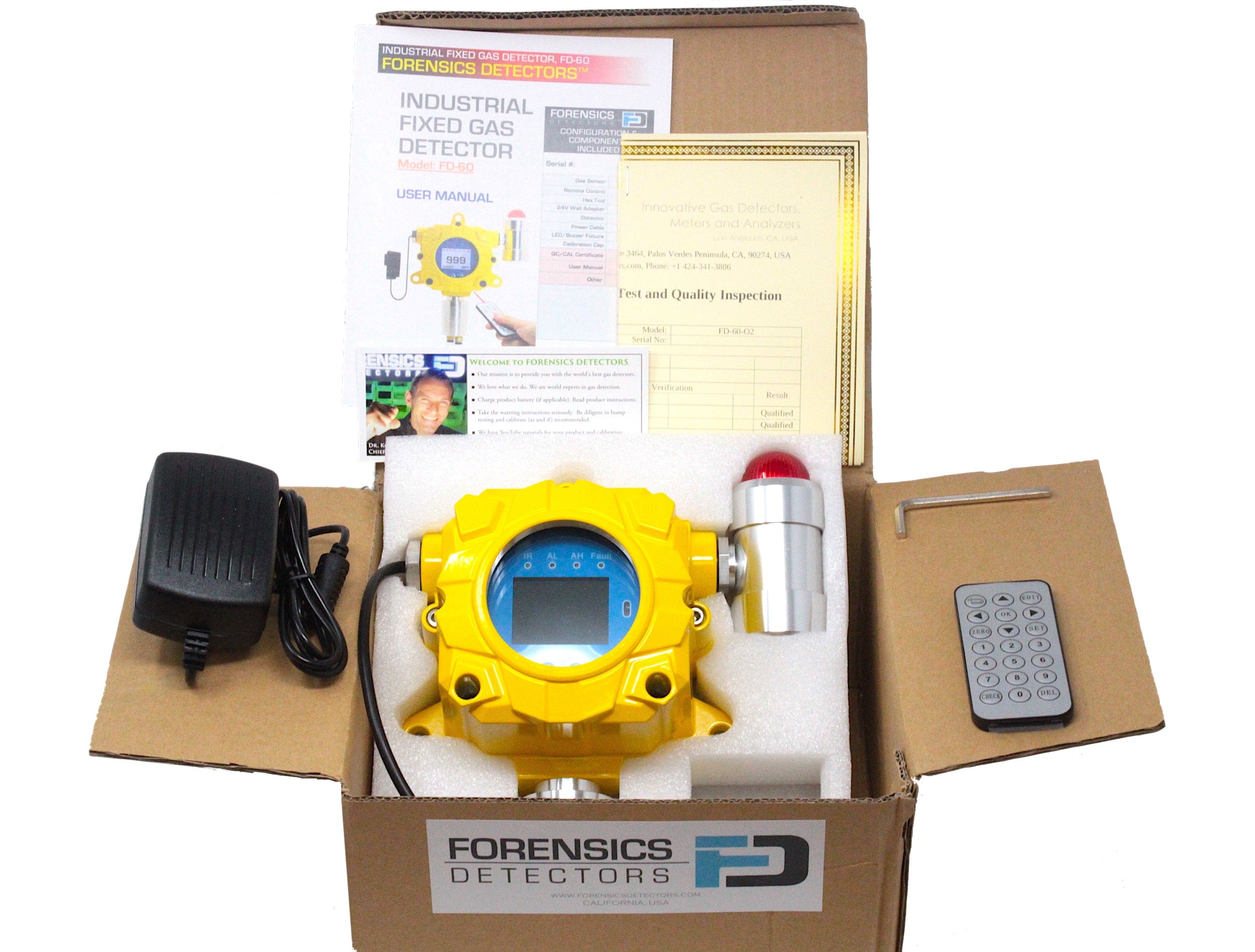

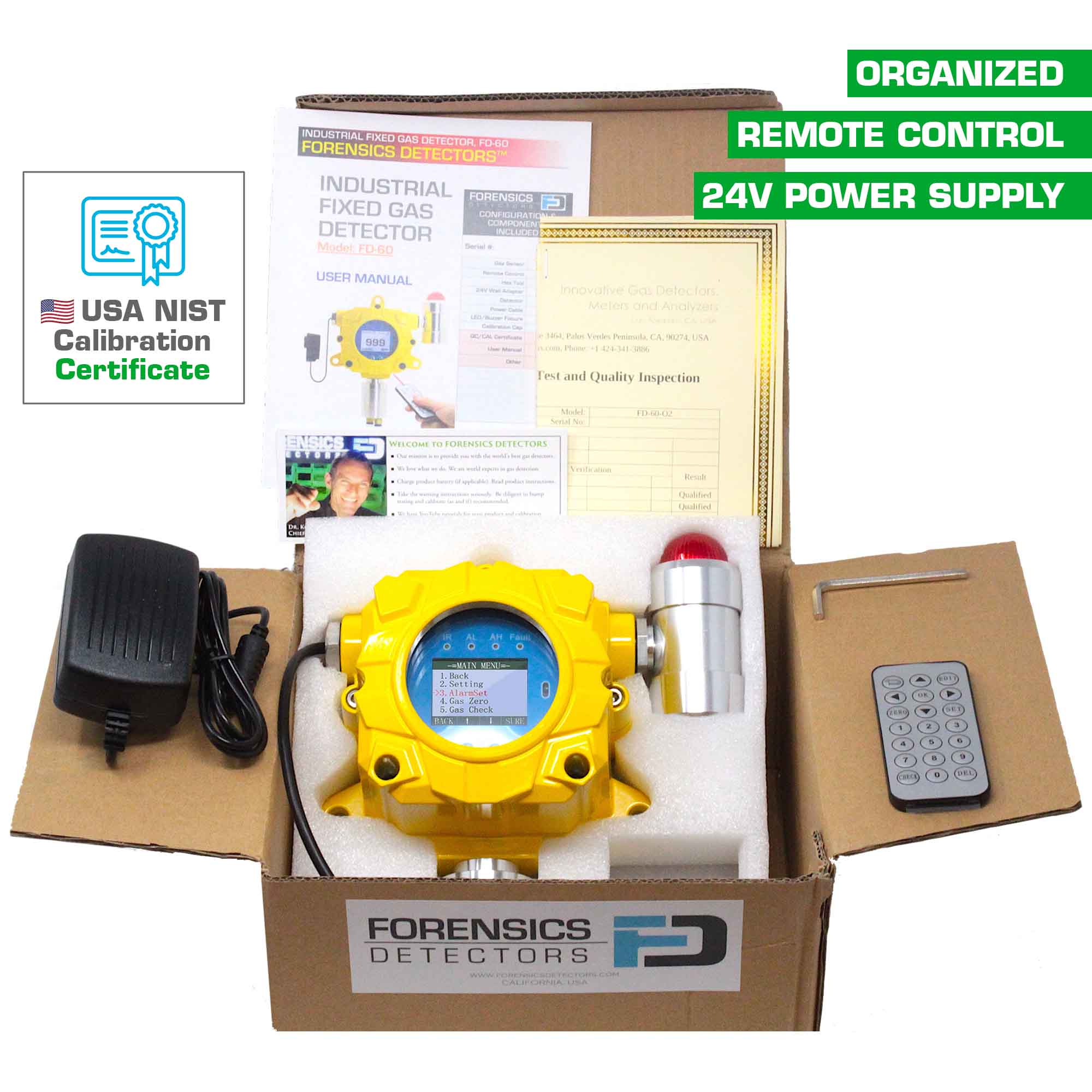

Included: Fixed gas detector, user manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug into a 110V outlet, and wiring. Arrives with a certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Cap
Calibration Gas (CO2)
Calibration Gas Regulator (C10)
Bump Gas (CO2)
Tubing
Accessories (sold separately):
Air Sampling Pump Kit
Alarm Extension Fixture
Gas Sensor Replacement (CO2) (email us)
Specifications
Carbon Dioxide (CO2) Detection: 0 - 5000 ppm with 1 ppm resolution
Gas Sensor Type: NDIR Gas Sensor
Gas Sensor Lifetime: 5 years
Sampling Method: Natural diffusion (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Digital Output Datalogging: RS485 MODBUS (🛠️ Setup Guide)
Analog Signal Output: 4 - 20 mA (▶️ Demo Video)
Error: ≤ ± 5% F.S.
Response Time: <60 seconds
Alarm: LED & Buzzer
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb (📋 PDF)
Protection Category: IP65
Power Supply: DC 24V ±15% (100–240V AC, 50/60 Hz)
Max Power Consumption: 20 W (LED ON and Buzzer ON)
Electrical Output: 2 x relay contacts, max power 50 W per relay

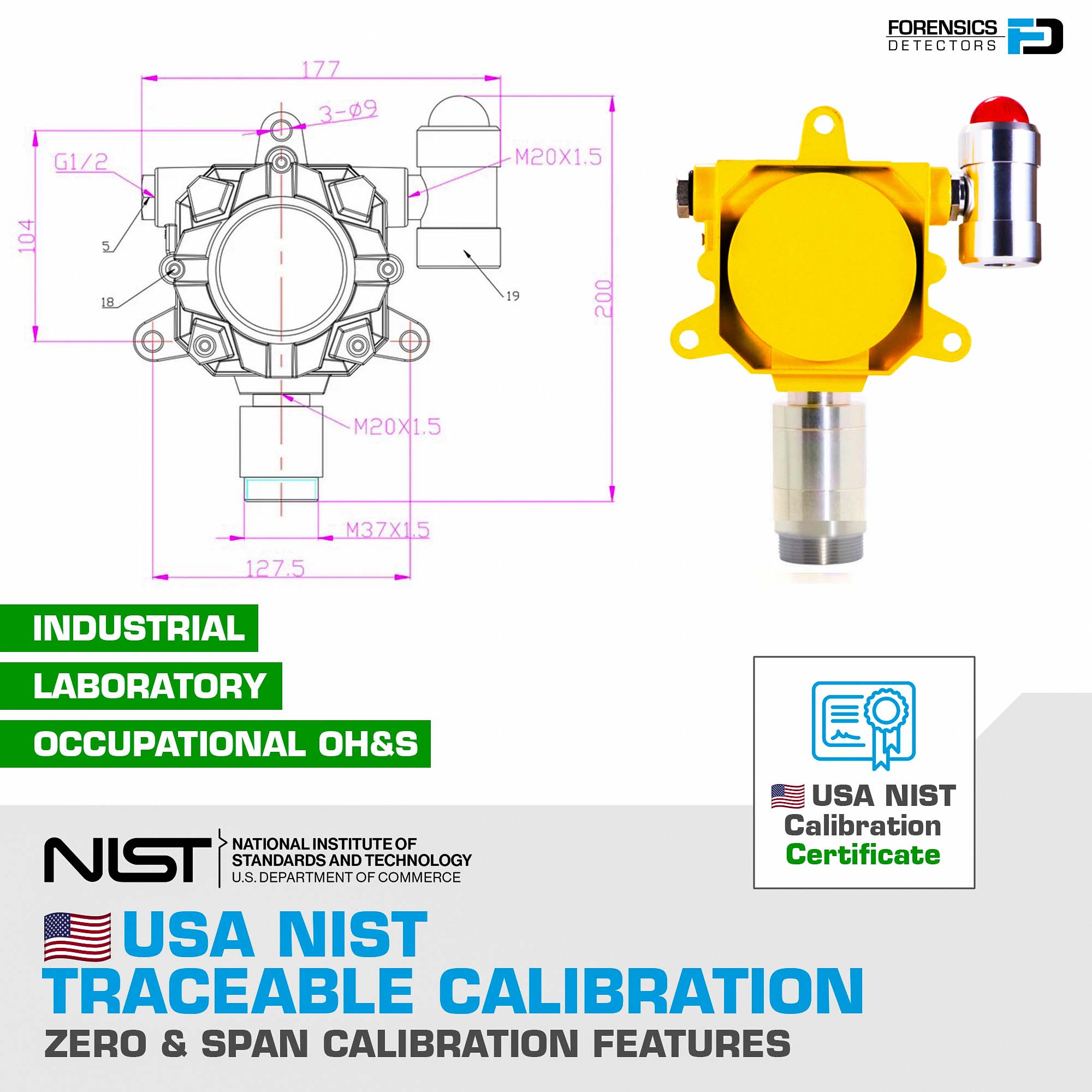

Dimensions: 7.9 × 7.1 × 3.5 inches (20 × 18 × 9 cm)
Weight: 3 lbs (1.4 kg)
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Housing Material: Die-cast aluminum alloy
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
