Brand: FORENSICS DETECTORS
Model: FD-90A-C2H4
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- 🔋ACCURACY: Made to detect ethylene gas (C2H4) in air, 0 - 100 ppm with 1 ppm resolution. Comes FACTORY-CALIBRATED.
- ⚛️ DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.

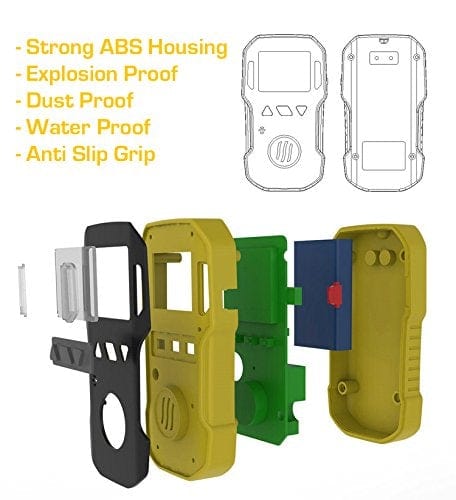

- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: The professional ethylene gas (C2H4) meter by FORENSICS. Ethylene gas detection is essential for the produce industry in order to ensure that the right amount of ethylene concentration is introduced for produce ripening. Different produce requires different concentrations and times for optimal ripening. Our C2H4 ethylene gas detector has high precision and a fast response time, and is calibrated to assure you of accuracy. An alternative is the FD-600-C2H4, which does have a built-in pump, making it the best candidate for point sampling and leak detection.
Included: Ethylene gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (C2H4)
Calibration Gas Regulator (C10)
Tubing
Bump Gas (sorry - not available; use calibration gas)
Accessories (sold separately):

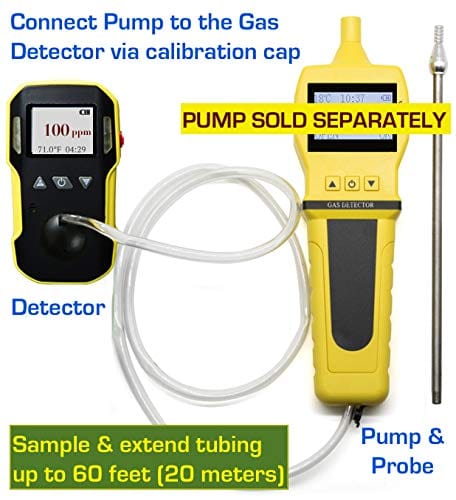

Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (C2H4) (email us)
Specifications
Ethylene (C2H4) Detection: 0 - 100 ppm with 1 ppm resolution
Recommended Calibration Period: 12 months
Sampling Type: Diffusive (no pump). Optional external pump available.
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec

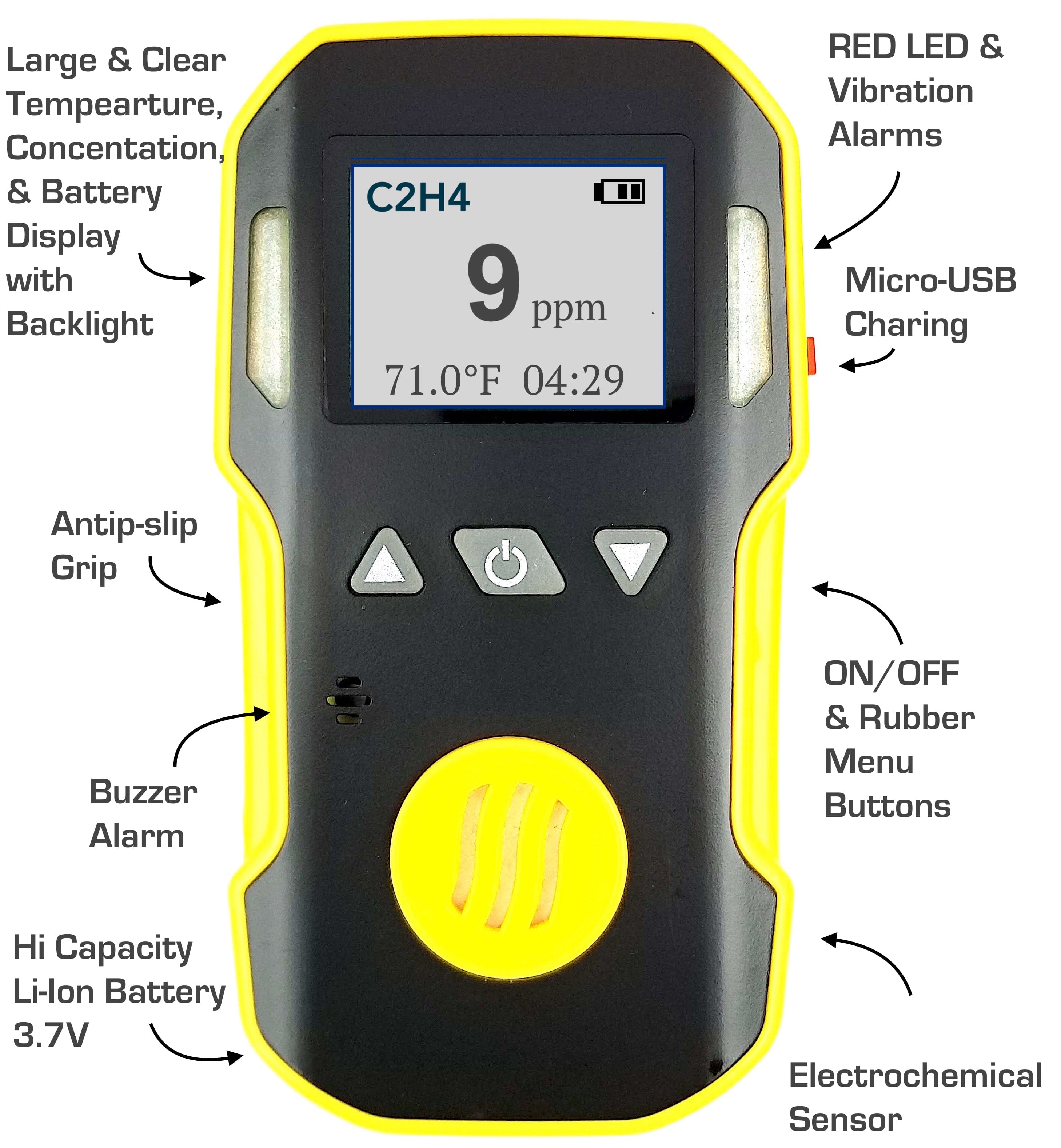

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Alarm: LED, Buzzer, and Vibration
Datalogging: No
Store / Operating Temp: 0°F - 122°F (-18°C to 50°C)
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 4 hours
Explosion Rating: ATEX certified Ex ia IIC T4 Ga (PDF)
Weight: 5 oz / 140 g
Dimensions: 4.3 x 2.3 x 1.7 inches (10.9 × 5.8 × 4.3 cm)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
