Brand: FORENSICS DETECTORS
Model: FD-90A-ETO
User Manual: Click Here
Blog Article: Click Here
Features:

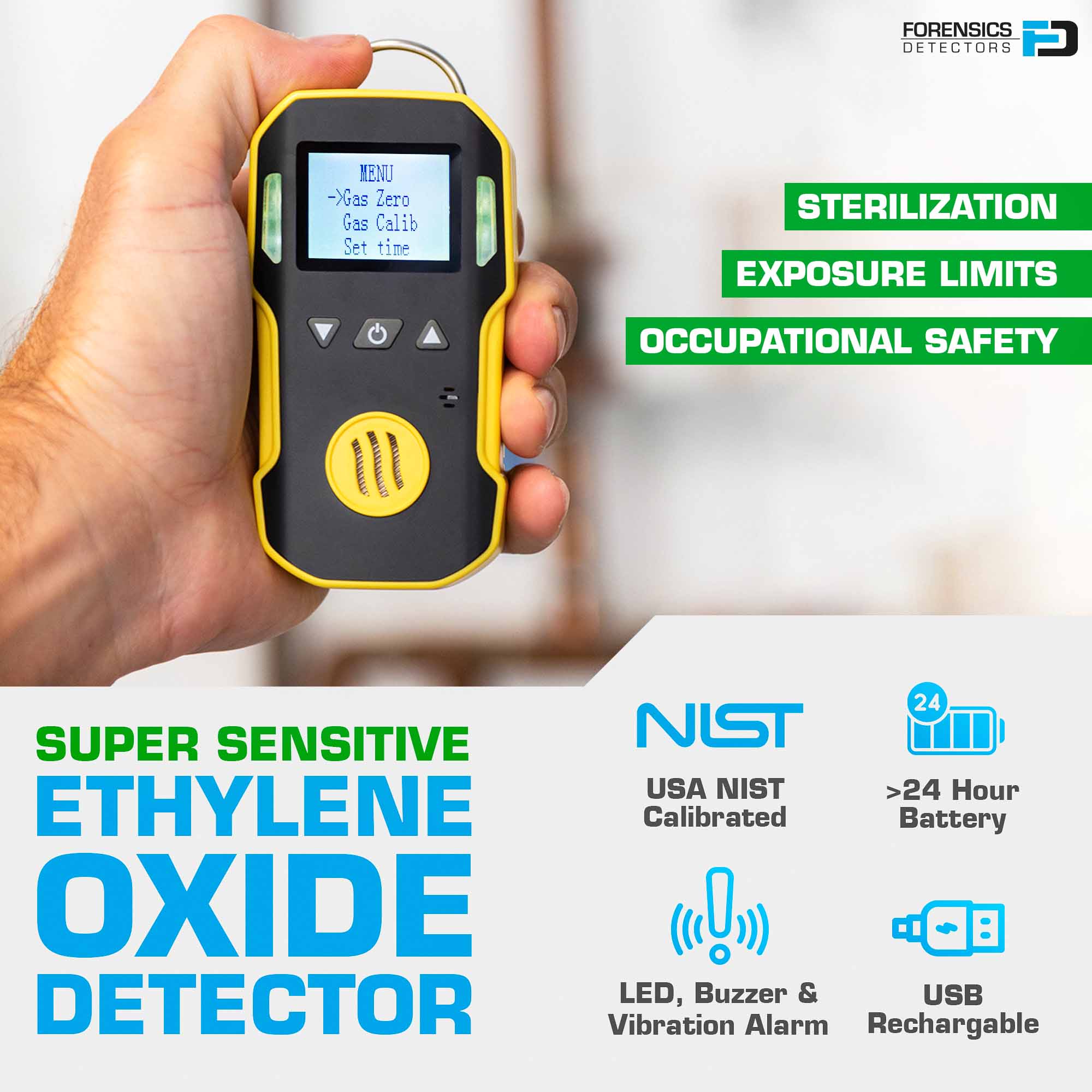

- 🔬 ACCURATE: Professional and accurate ethylene oxide (C2H4O) detector, 0 - 20 ppm with 0.1 ppm resolution. Comes FACTORY-CALIBRATED.
- ⚛️ DETECT: Electrochemical cell sensor with accuracy: ≤ ± 5% F.S. and response time: T < 30 sec. Zero and span calibration options. Comes factory- calibrated.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.

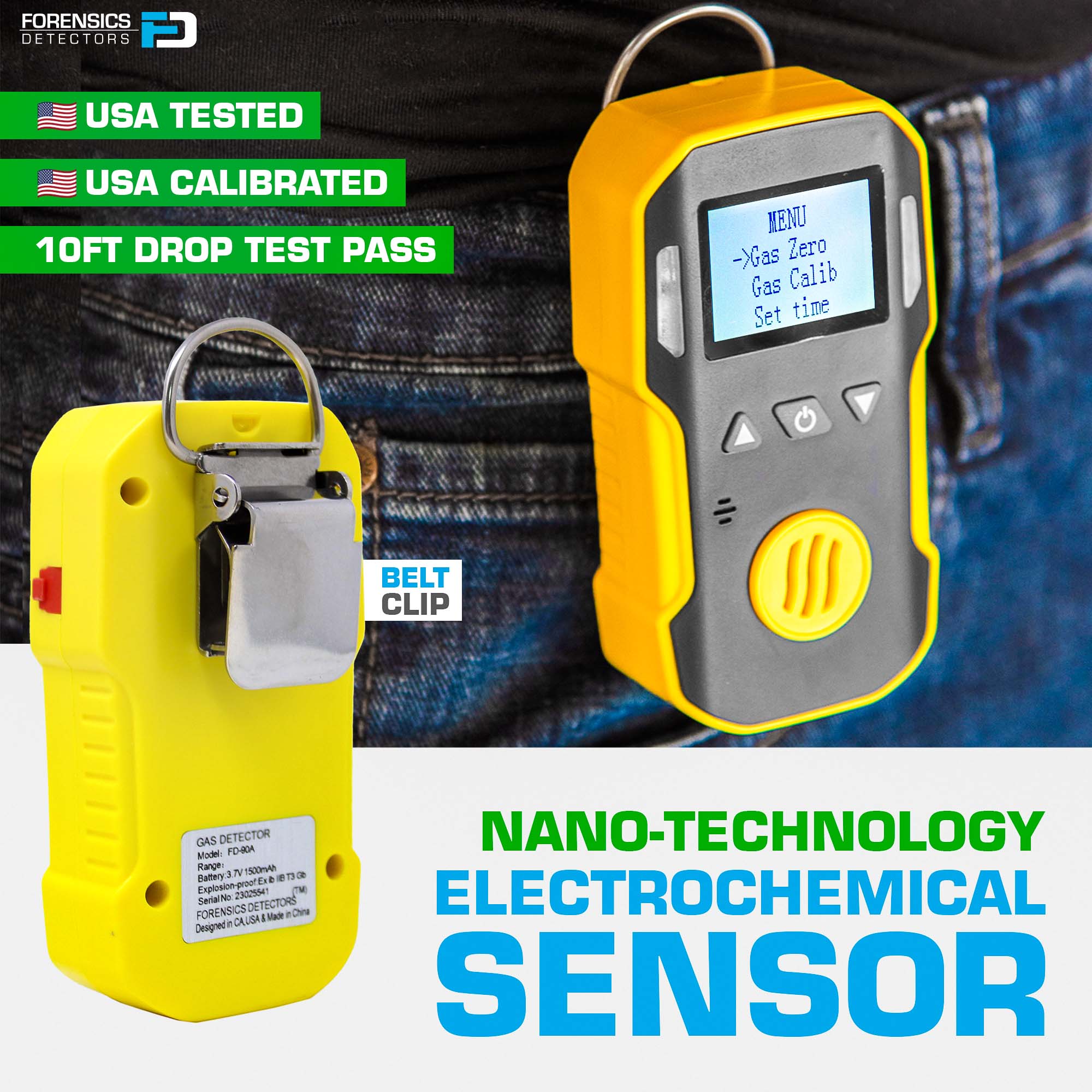

- 💪 STRONG: Shockproof, waterproof, dustproof, and explosion-proof with belt clip.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **
Details: The professional ethylene oxide (C2H4O) gas detector by FORENSICS is recognized as the best in its class with advanced features and functions. Ethylene oxide (ETO) is a colorless and flammable gas with a faintly sweet odor. ETO is one of the most important raw materials used in large-scale chemical production. As ethylene oxide gas is highly toxic, OSHA exposure limits are set to 1 ppm over 8 hours or 5 ppm over 15 minutes.
Ethylene oxide (EtO) is a colorless, flammable, and highly reactive gas widely used in various industries, including healthcare, food processing, and manufacturing. Due to its potential health risks and environmental concerns, detecting and monitoring EtO levels is crucial to ensure the safety of workers and the public. EtO gas detectors play a vital role in this process, offering several advantages and applications. Applications for detecting ethylene oxide gas include:
Sterilization monitoring: EtO is commonly used for sterilizing medical devices, pharmaceutical products, and other heat-sensitive materials. EtO gas detectors are employed to monitor the sterilization process and ensure that EtO levels remain within safe limits.
Workplace safety: In industries where EtO is used or produced, such as chemical plants and manufacturing facilities, EtO gas detectors help maintain a safe working environment by continuously monitoring the air quality and alerting personnel when EtO levels exceed permissible exposure limits.

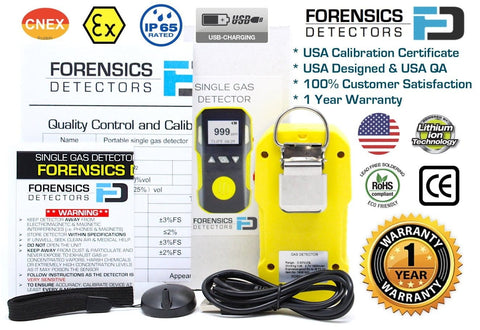

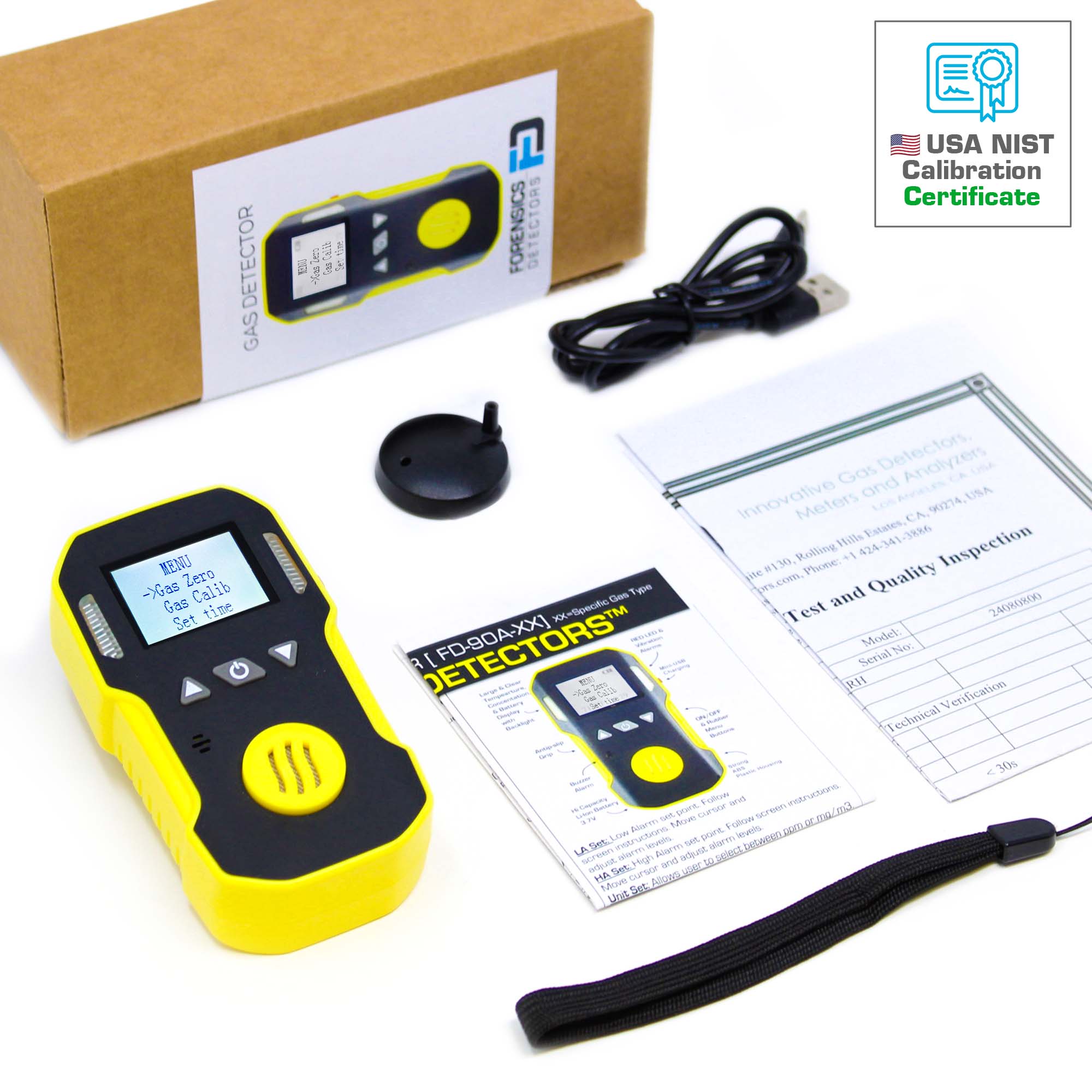

Included: ETO Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.
Calibration Kit (sold separately):
Calibration Gas (ETO)
Calibration Gas Regulator (C10)
Tubing
Other Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (ETO) (email us)
Calibration Service (sold separately):
Gas Detector Calibration Service
Specifications
Ethylene oxide (C2H4O) detection: 0 - 20 ppm with 0.1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: every 6 to 12 months
Gas Sensor Type: electrochemical gas sensor
Gas sensor life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response time: T < 30 sec

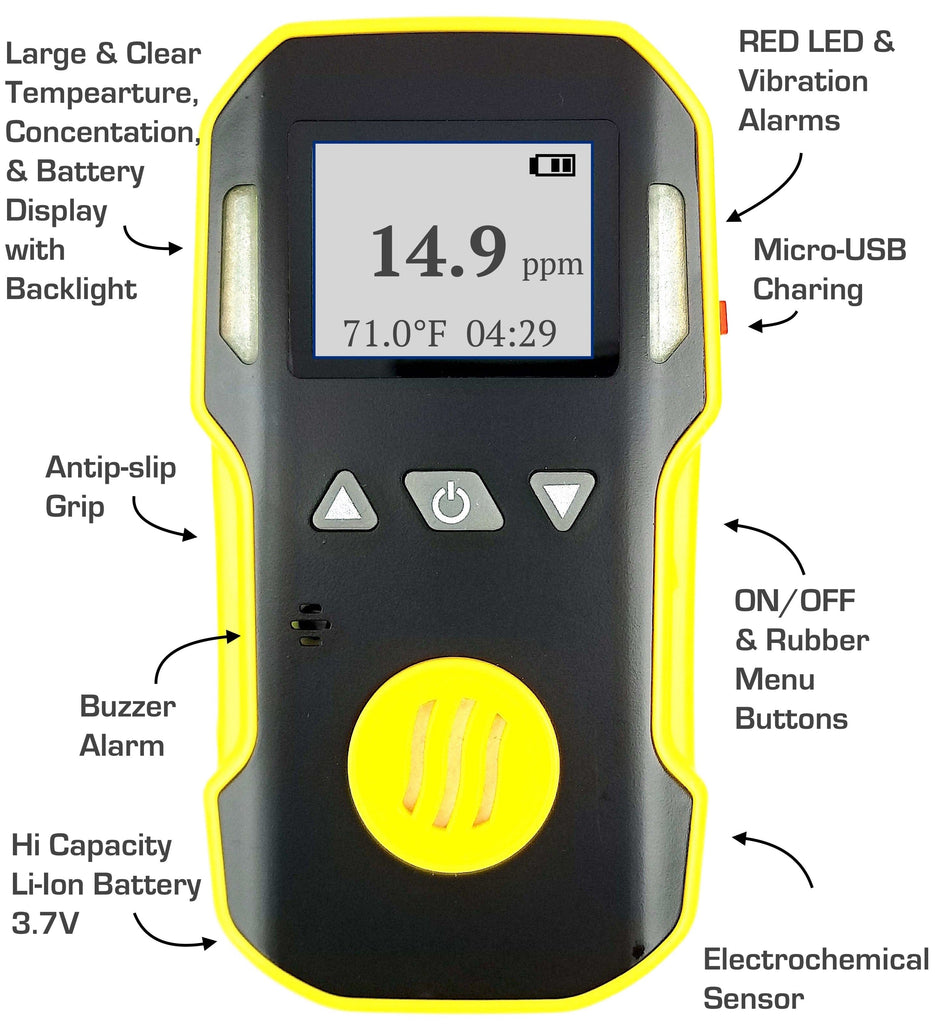

Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Operating temperature: 14F - 122F
Operating humidity: < 95% RH non-condensing
Voltage: DC 3.7V Li-battery 1500 mAh
Working time: > 24 hours
Charging time: 3 hours
Sensor life: 2 - 3 years
Protection category: IP65
Explosion rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
