Brand: FORENSICS DETECTORS
Model: FD-90E-RED
User Manual Detector: Click Here
Correcting %LEL Factors for Gases/Vapors: Click Here
Blog Article: Click Here
Features:
- ⚛️ ACCURATE: Sensor made in Japan, very sensitive with ppm (0 - 10,000 ppm) or umol/mol concentration display. Comes FACTORY-CALIBRATED. Turn ON and GO.
- 🔔 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.
- 🌈 COLOR: Large, color, LCD screen with temperature and humidity. Shockproof, water-resistant, dustproof, and explosion-proof.
- 🌋 USES: Designed for inspectors, utility workers, refinery workers, maintenance engineers, and technicians.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA ** 100% quality guaranteed **

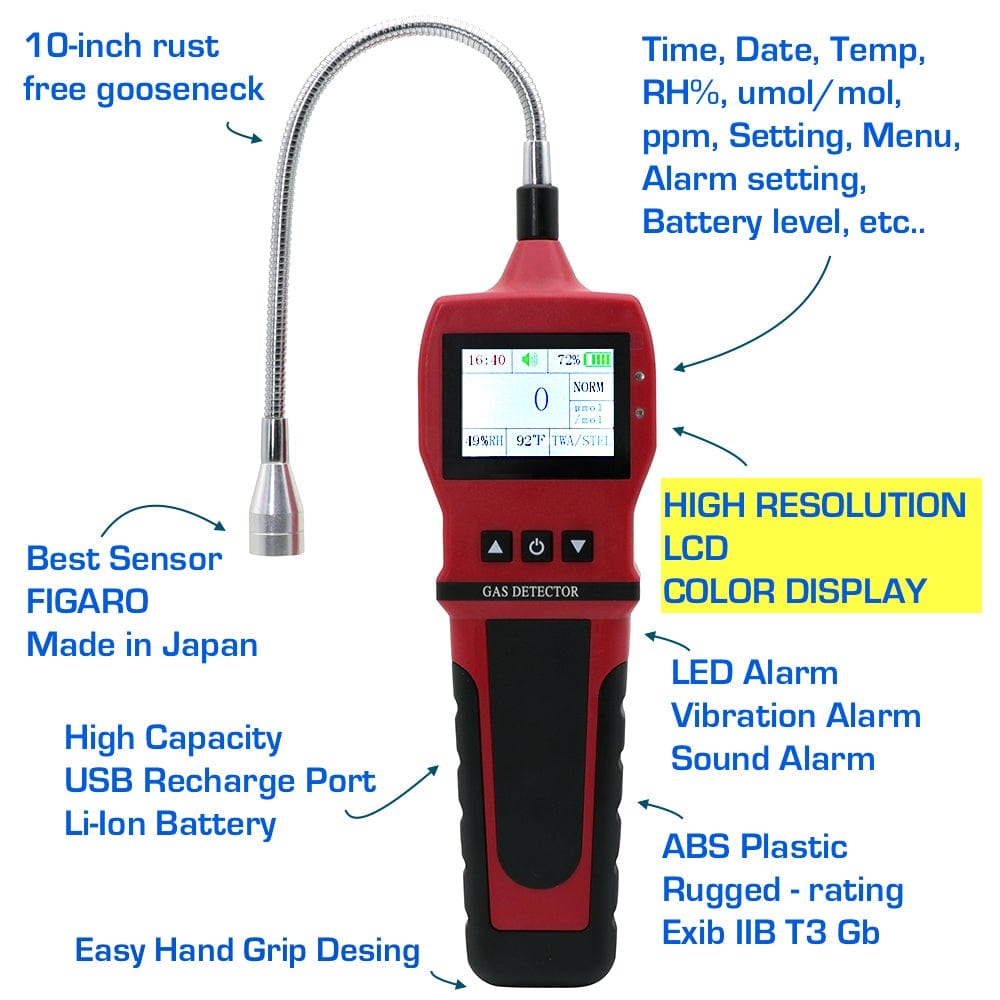

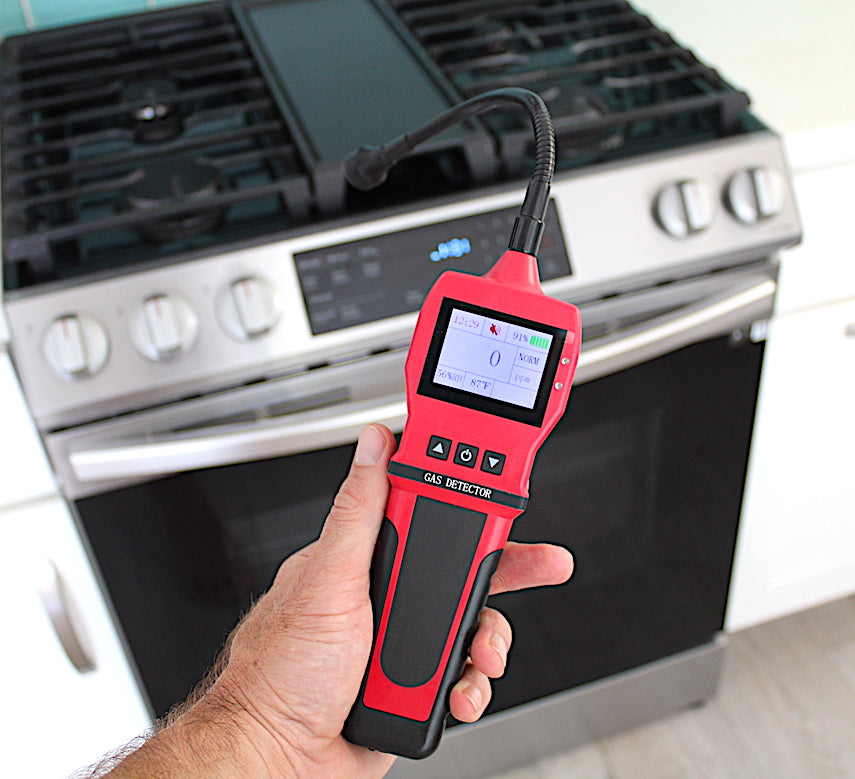

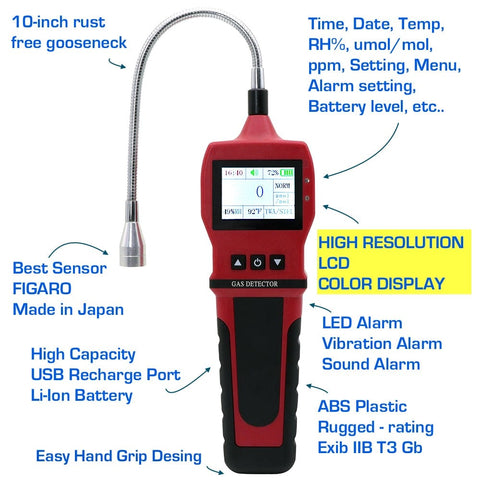

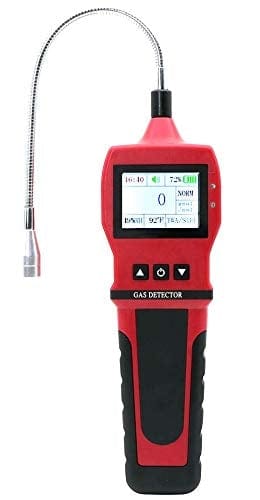

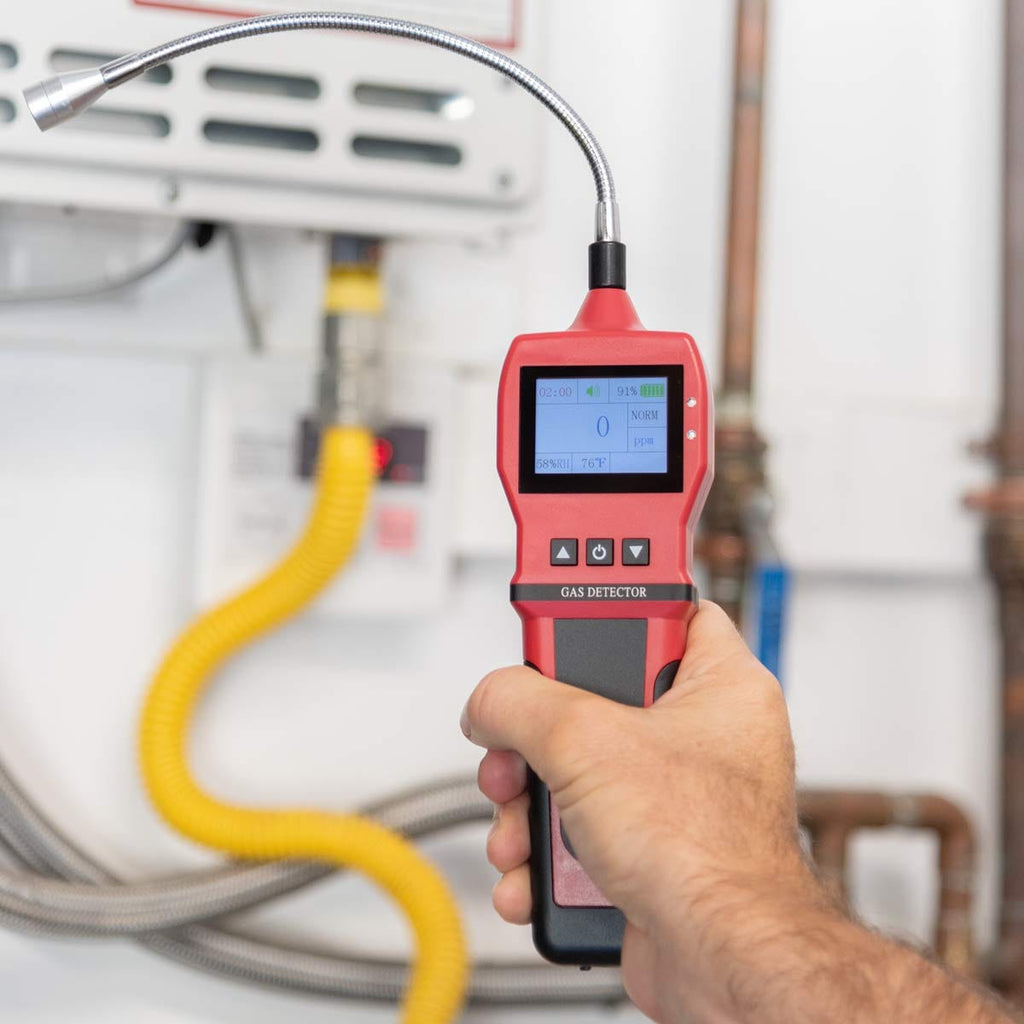

Details: A professional GAS LEAK DETECTOR by FORENSICS with advanced specifications, features, and functions constructed with a premium Japanese FIGARO gas sensor. This detector features an advanced microprocessor, a high-resolution LCD for a clear display, and advanced alarm functions with adjustable light, sound, and vibration. Applications include home or industrial use for inspectors, utility workers, refinery workers, maintenance engineers, technicians, and many others who wish to monitor combustible gas leakages. This detector is used in waterworks, underground storage tanks, oil rigs, tanks, and silos in the maritime industry.

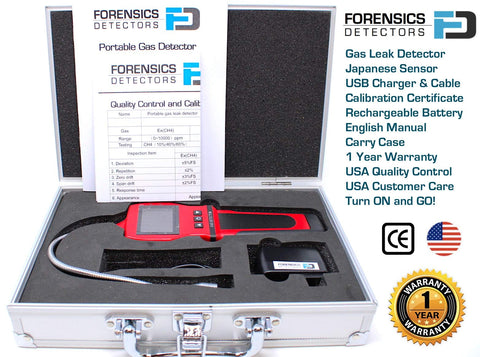

Included: Gas leak detector, aluminum case, English manual, USB charging cable, calibration certificate and USB charger.
Calibration Kit (sold separately):
Calibration Gas (EX)
Gas Regulator (C10)
Bump Gas (EX)
Tubing
Other Accessories (sold separately):
Gas Detector Hard Case
Gas Detector Stand
Gas Sensor Replacement (email us)
Calibration Service (sold separately):
Gas Detector Calibration Service
Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, ethanol, ethylene, oxide, gasoline, hexane, hydrogen, methane, naphtha, natural gas, paint thinners, propane, solvents, and hundreds of other combustible gases.
Specifications

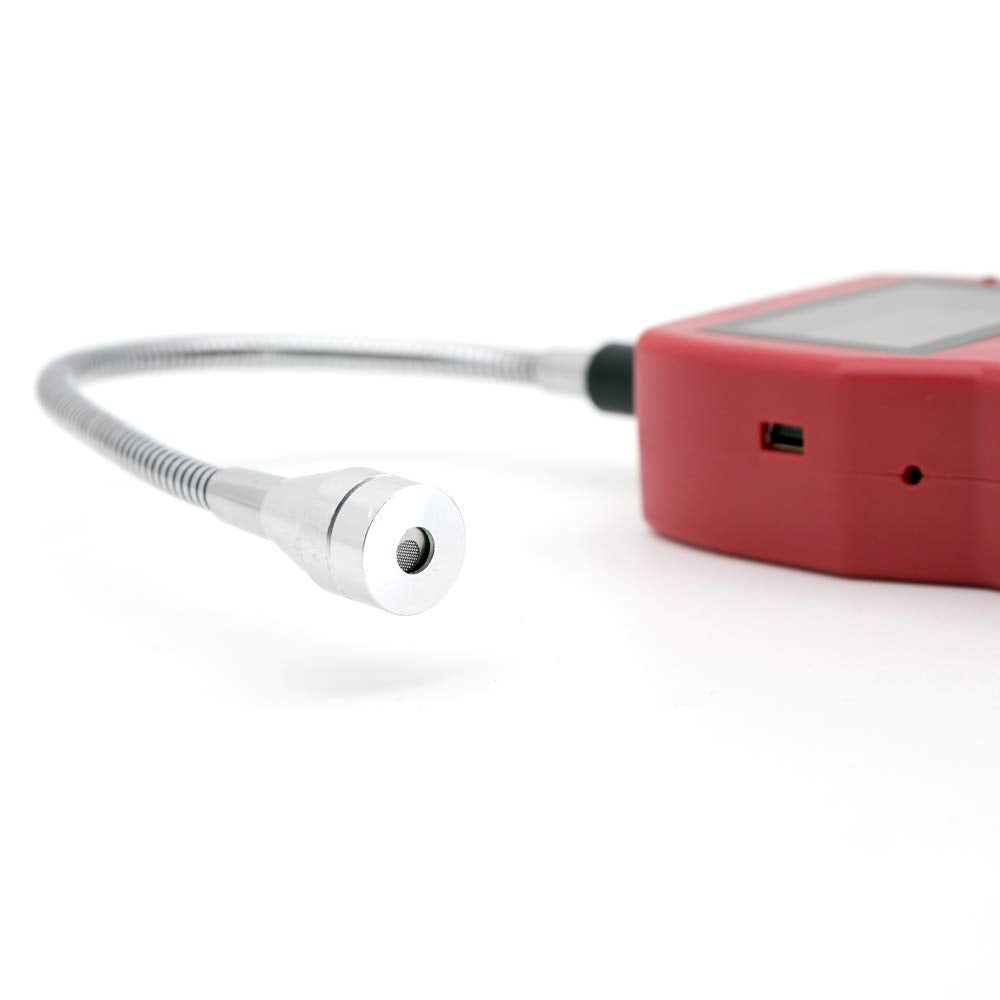

Sampling method: natural diffusion (no pump)
Combustible gas (LEL) detection: 0 - 10,000 ppm (methane) with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: every 6 to 12 months
Gas Sensor Type: electrochemical gas sensor
Gas sensor life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response time: T < 30 sec
Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Operating temperature: 14F - 122F
Operating humidity: < 95% RH non-condensing
Voltage: DC 3.7V Li-battery 1500 mAh
Working time: > 24 hours
Charging time: 3 hours
Sensor life: 2 - 3 years
Protection category: IP65
Explosion rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
