Brand: FORENSICS DETECTORS
Model: FD-90A-HCl
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- 🔬 ACCURATE: Professional hydrogen chloride (HCl) detector, 0 - 50 ppm with 0.1 ppm resolution. Comes FACTORY-CALIBRATED.
- ⚛️ DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

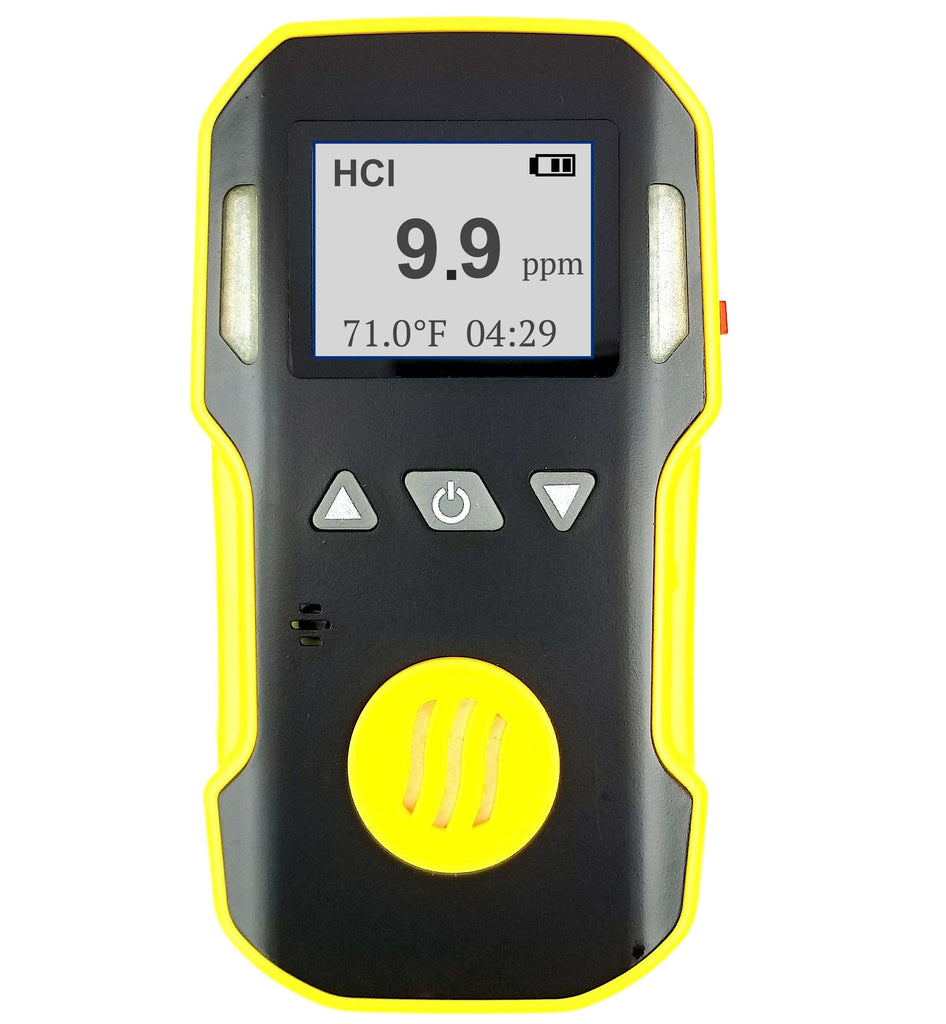

Details: The professional hydrogen chloride (HCl) gas detector by FORENSICS is the best in its class with many advanced features. Hydrogen chloride is a colorless or slightly yellow corrosive gas with a pungent odor. Although HCl is not considered a combustible gas, it may form combustible compounds in contact with alcohol and hydrogen cyanide or aluminum-titanium alloys. Dissolving hydrogen chloride in water will yield a corrosive acid. OSHA TWA is 5 ppm, and IDLH is 50 ppm. Comes factory-calibrated. Advanced features such as temperature detection, alarm recording, alarm setting, backlight, high-resolution LCD, calibration features, and others are included.

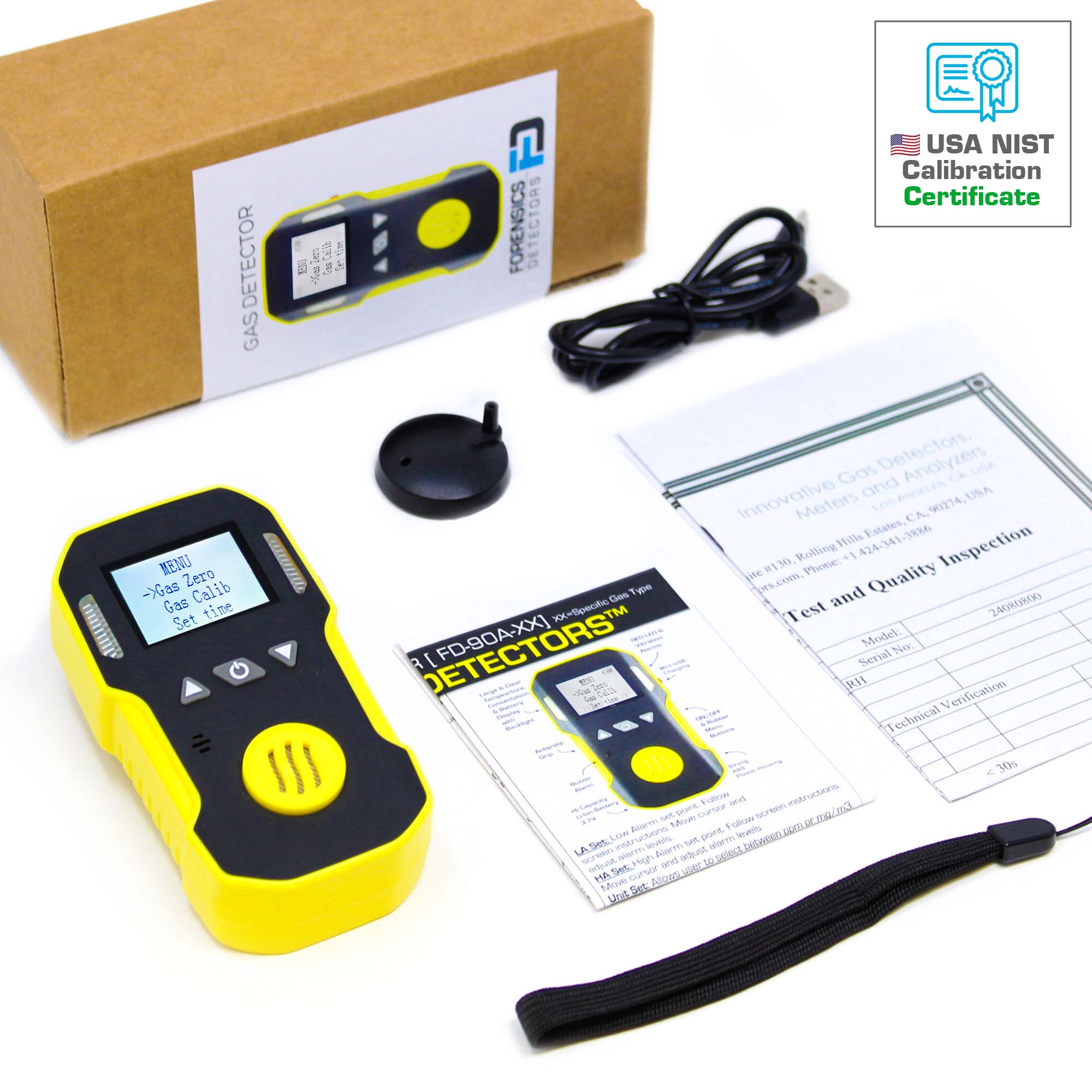

Included: Hydrogen Chloride gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (Surrogate Gas 10 ppm SO2: 25 ppm HCl is used for calibration)
Calibration Gas Regulator (C10)
Tubing
Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (HCl)
Specifications
Hydrogen Chloride (HCl) Detection: 0 - 50 ppm with 0.1 ppm resolution
Recommended Calibration Period: 12 months
Sampling Type: Diffusive (no pump). Optional external pump available.
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Alarm: LED, Buzzer, and Vibration
Datalogging: No
Store / Operating Temp: 0°F - 122°F (-18°C to 50°C
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 4 hours
Explosion Rating: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Weight: 5 oz / 140 g
Dimensions: 4.3 x 2.3 x 1.7 inches (10.9 × 5.8 × 4.3 cm)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
