Hydrogen Detector | USA NIST Calibration

  • Sale
  • $365.00
  • Regular price $995.00


Model: FD-90A-H2
User Manual: Click Here
Blog Article: Click Here


  • 🔋ACCURACY: Made to detect hydrogen (H2), 0 - 1000 ppm with 1 ppm resolution. Comes FACTORY-CALIBRATED.
  • ⚛️ DETECT: Electrochemical cell sensor with error ≤ ± 5% F.S. and response time: T < 30 sec. Zero and span calibration options. Comes factory-calibrated.
  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached. Alarms come with digital time stamping and logging.

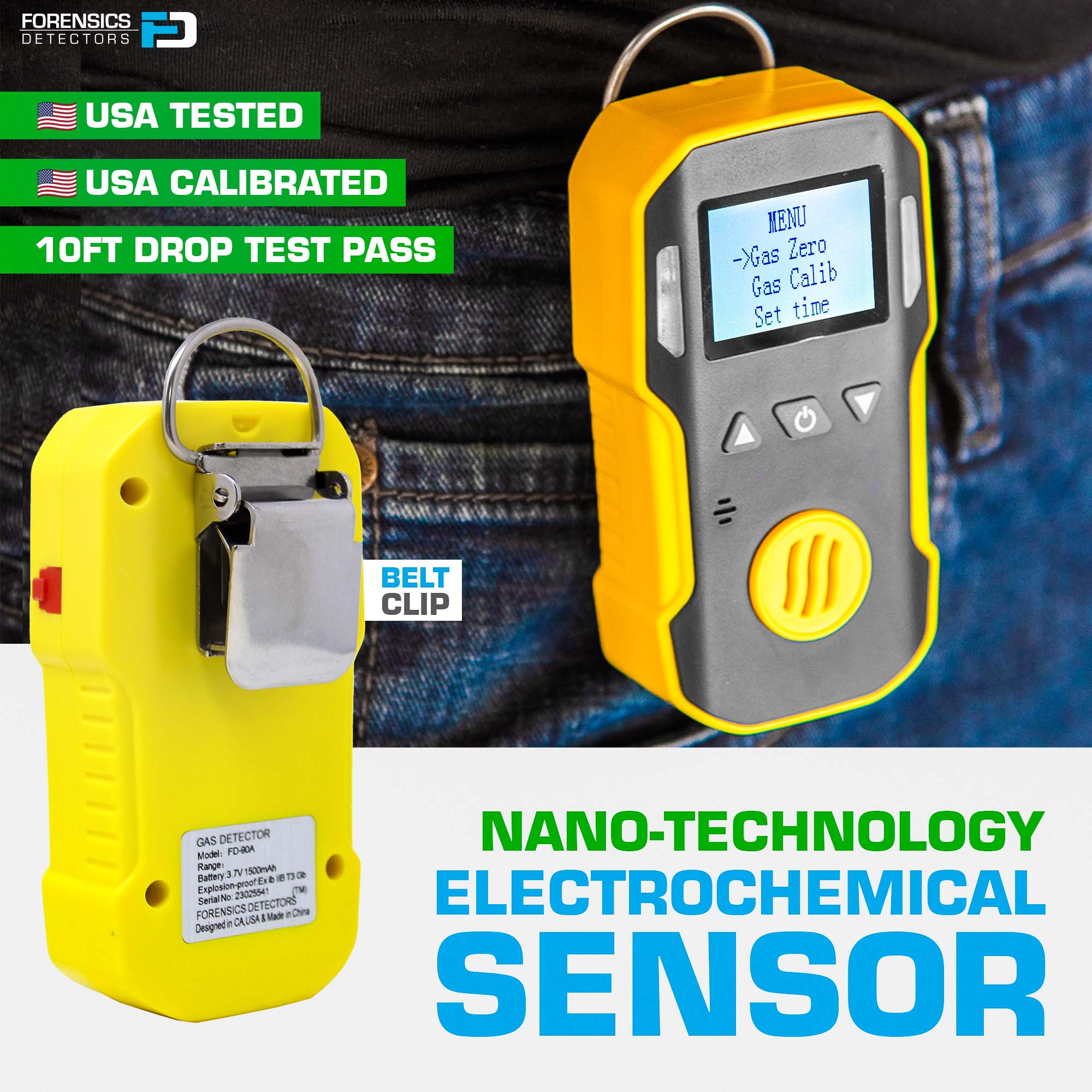

  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip. Rechargeable Li-ion battery 1500 mAh via micro-USB cable, comes with all accessories.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

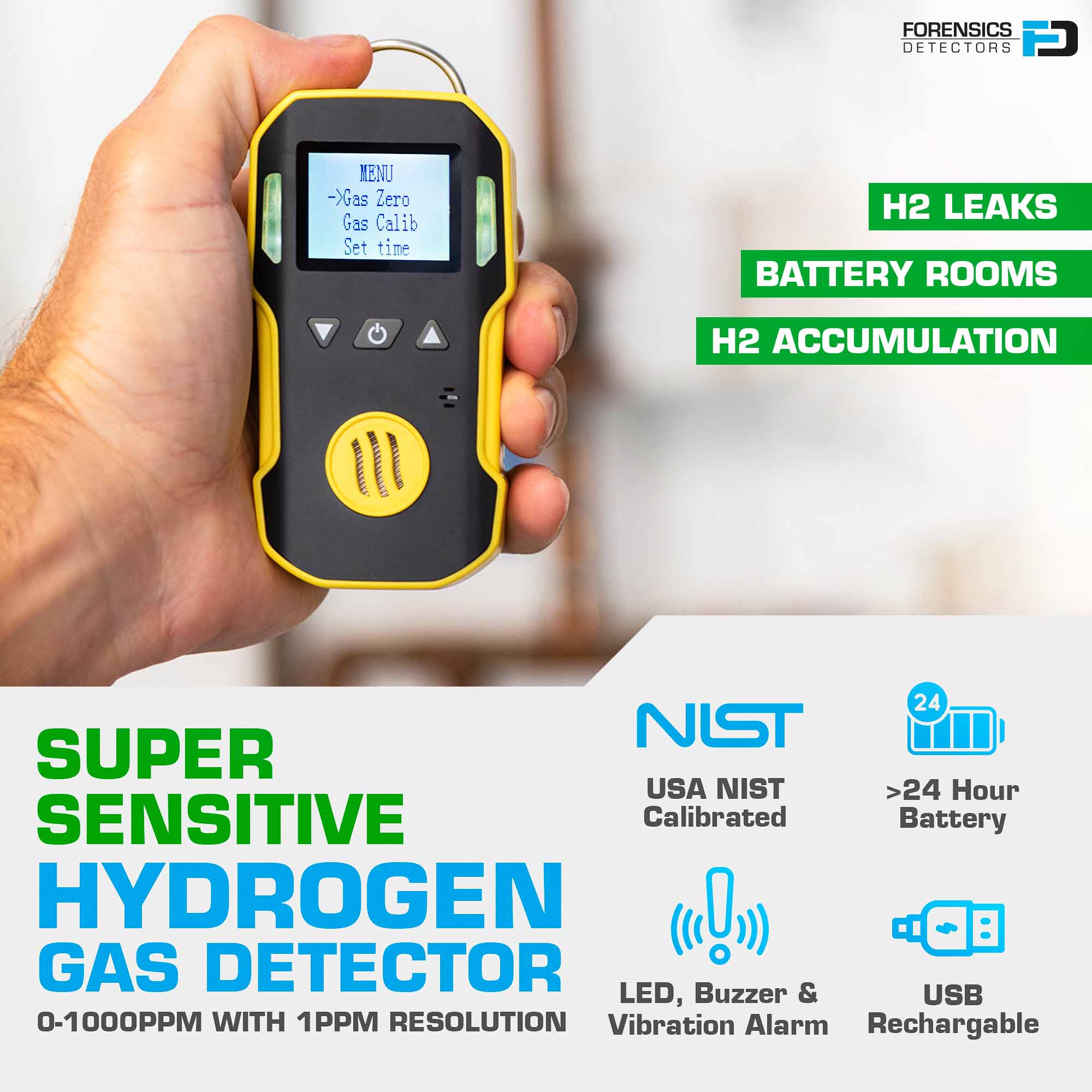

Details: The professional hydrogen (H2) gas meter by FORENSICS. Detecting hydrogen gas in vehicles, fuel cells, storage tanks, laboratory settings, or outgassing from batteries. H2 is a colorless, odorless, and tasteless gas which makes it very important to adopt detection instrumentation. It is the lightest gas and explosive in the air over 4%. When in contact with chlorine, oxygen, or other oxidizers, hydrogen is flammable and burns with a nearly invisible flame. Our H2 gas detector has high precision and provides robust measurements for fieldwork, inspections, occupational safety, industrial, and environmental applications. The instrument employs a high-quality electrochemical sensor.

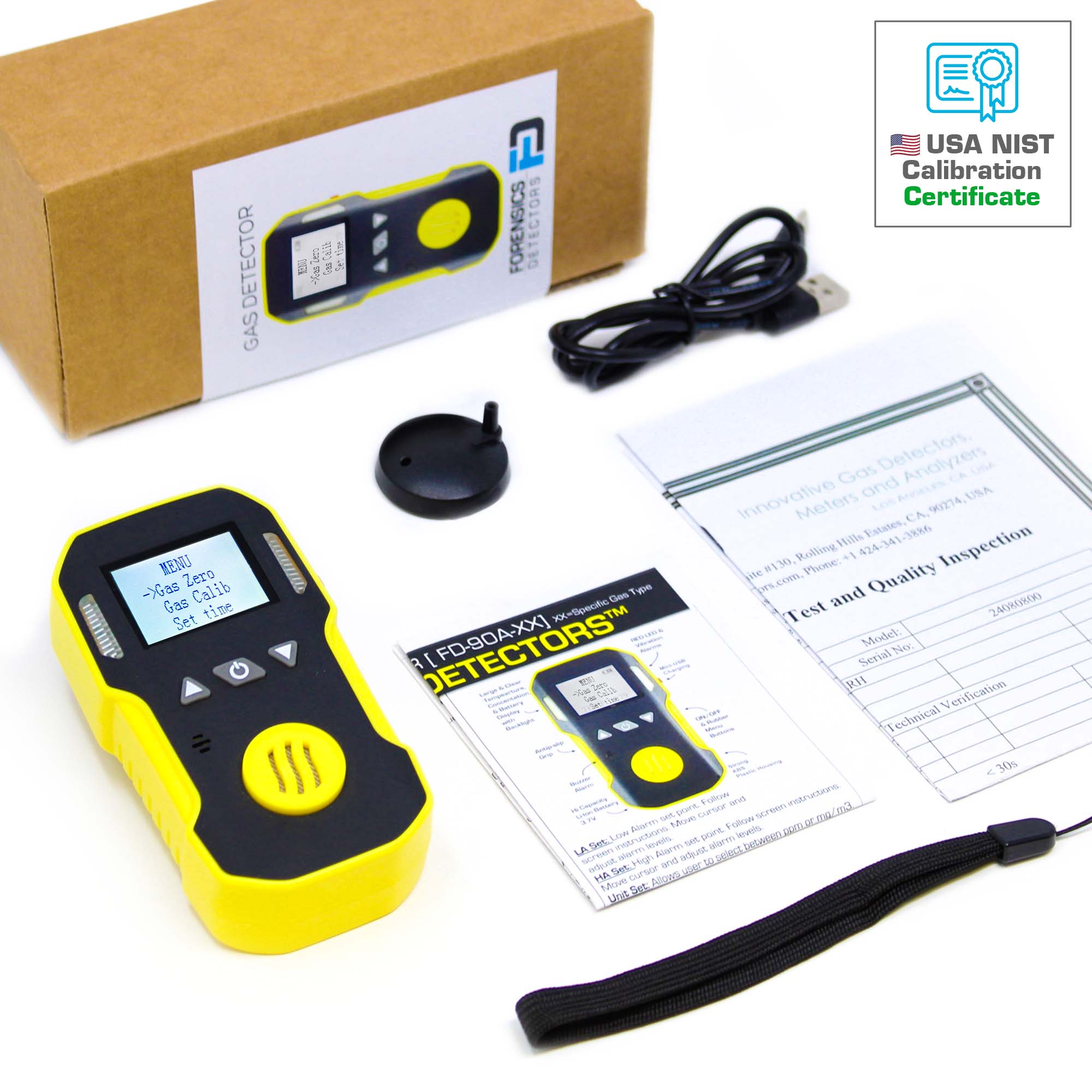

Included: Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (H2)
Calibration Gas Regulator (C10)
Bump Gas (H2)

Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (H2)

Calibration Service (sold separately):
Gas Detector Calibration Service


Hydrogen (H2) detection: 0 - 1000 ppm with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: every 6 to 12 months
Gas Sensor Type: electrochemical gas sensor
Gas sensor life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response time: T < 30 sec

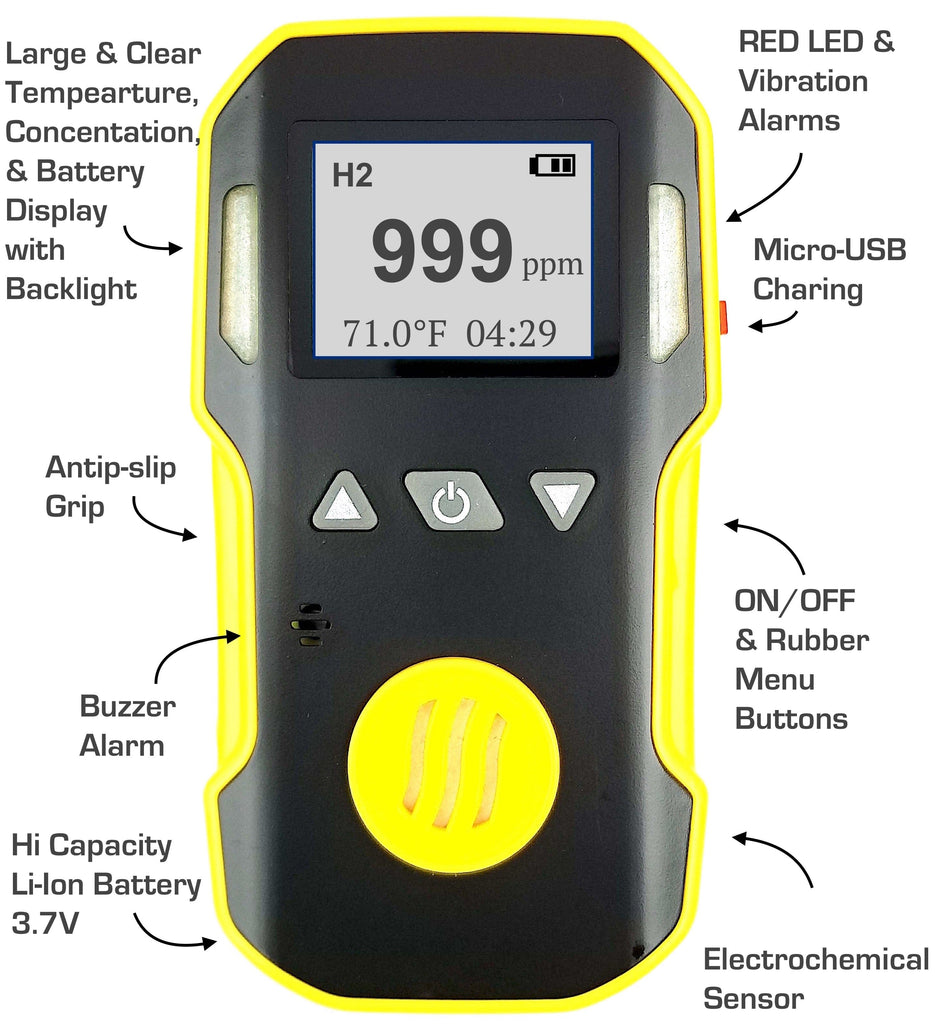

Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Operating temperature: 14F - 122F
Operating humidity: < 95% RH non-condensing
Voltage: DC 3.7V Li-battery 1500 mAh
Working time: > 24 hours
Charging time: 3 hours
Sensor life: 2 - 3 years
Protection category: IP65
Explosion rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
