Brand: FORENSICS DETECTORS
Model: FD-O2BOX
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide

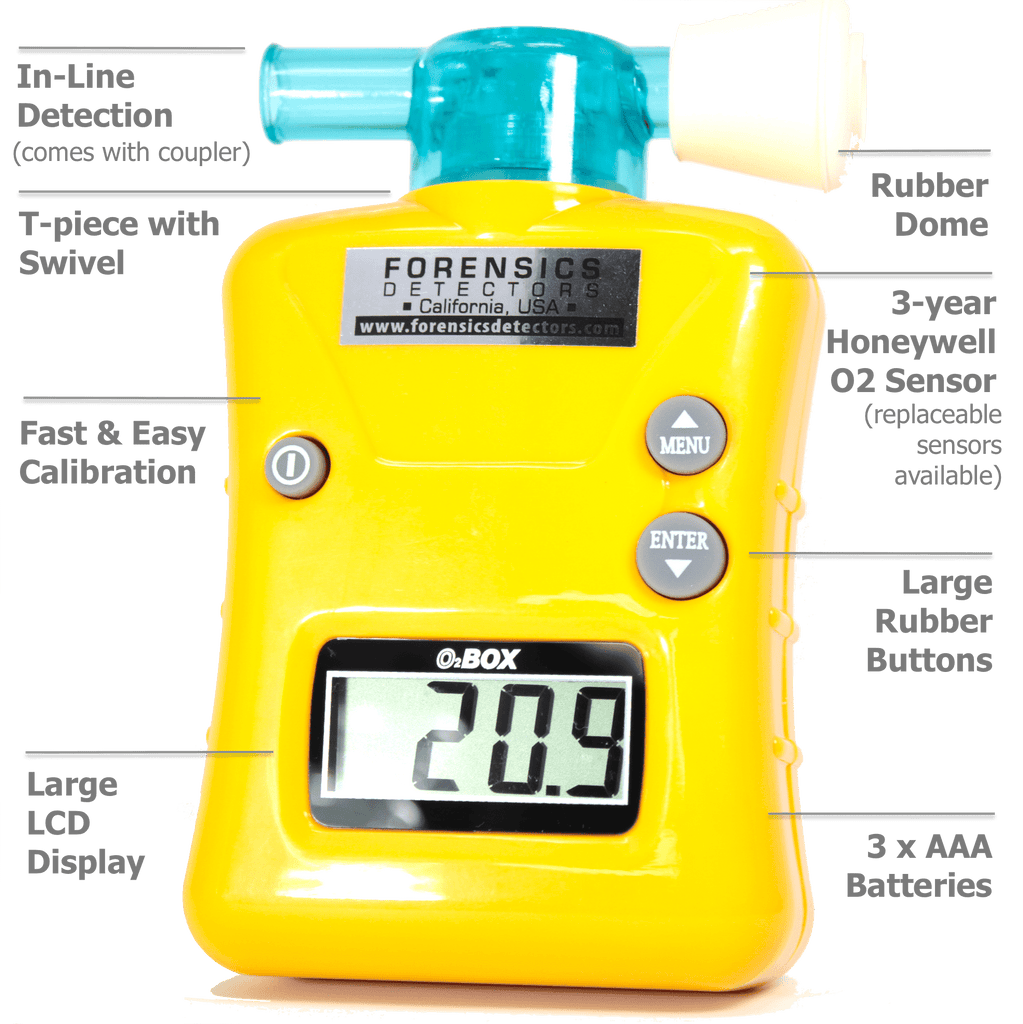

- 🔬 ACCURATE: Electrochemical oxygen sensor from Honeywell.
- 🌊 DETECT: Range 0 - 100% with 0.1% resolution. Honeywell 3-year sensor. Made in Germany.
- 🎆 DURABLE: Water-resistant case protects the analyzer, with a water-resistant user manual.
- 💪 STRONG: Constructed with a strong ABS plastic housing.
- 🕵️ TRUSTWORTHY: 1-year limited warranty.

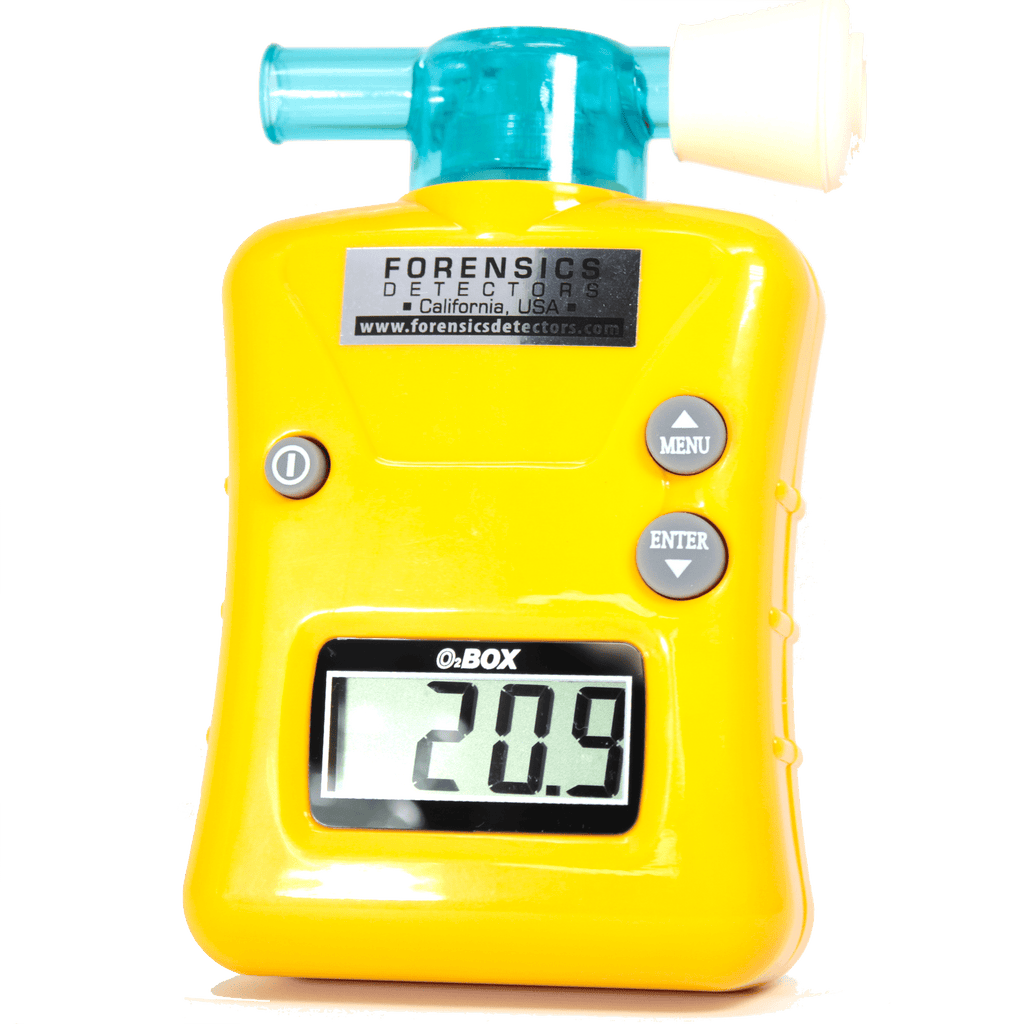

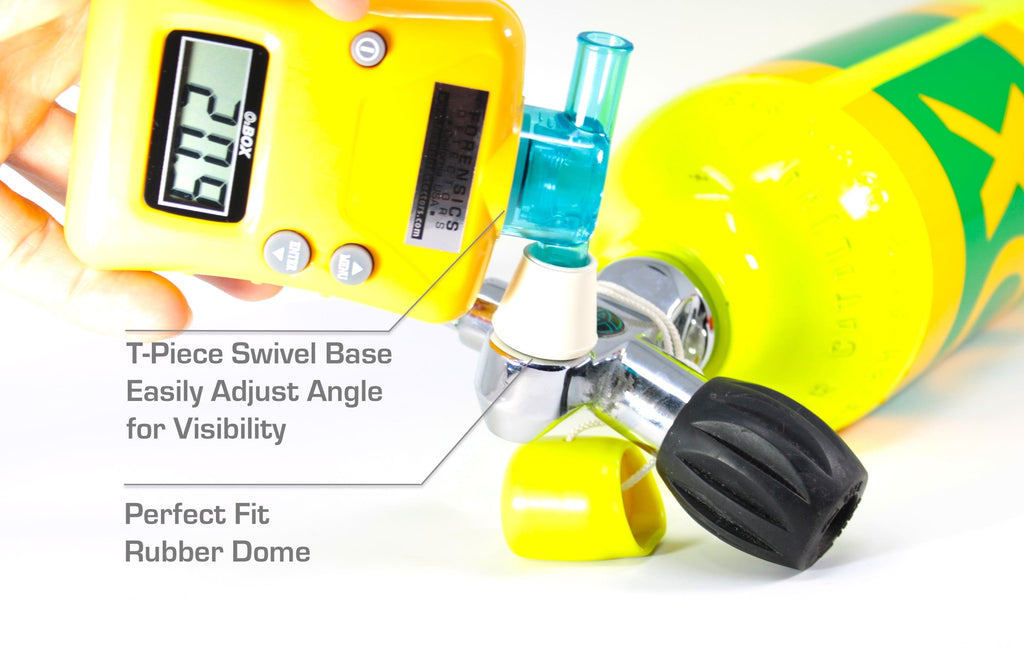

Details: This is our OXYGEN ANALYZER Model O2BOX, accurate and easy to use for scuba, nitrox, diving, and testing oxygen purity levels from various sources such as oxygen machines and generators. The oxygen analyzer detects 0-100% from various machines that create oxygen by blending air with nitrogen. The analyzer can be calibrated to air in less than 2 seconds with one-button calibration. In addition, the O2 sensor can be replaced by the user easily. An alternative is the FD-103-O2-HIGH with a full-range O2 sensor with a built-in pump.

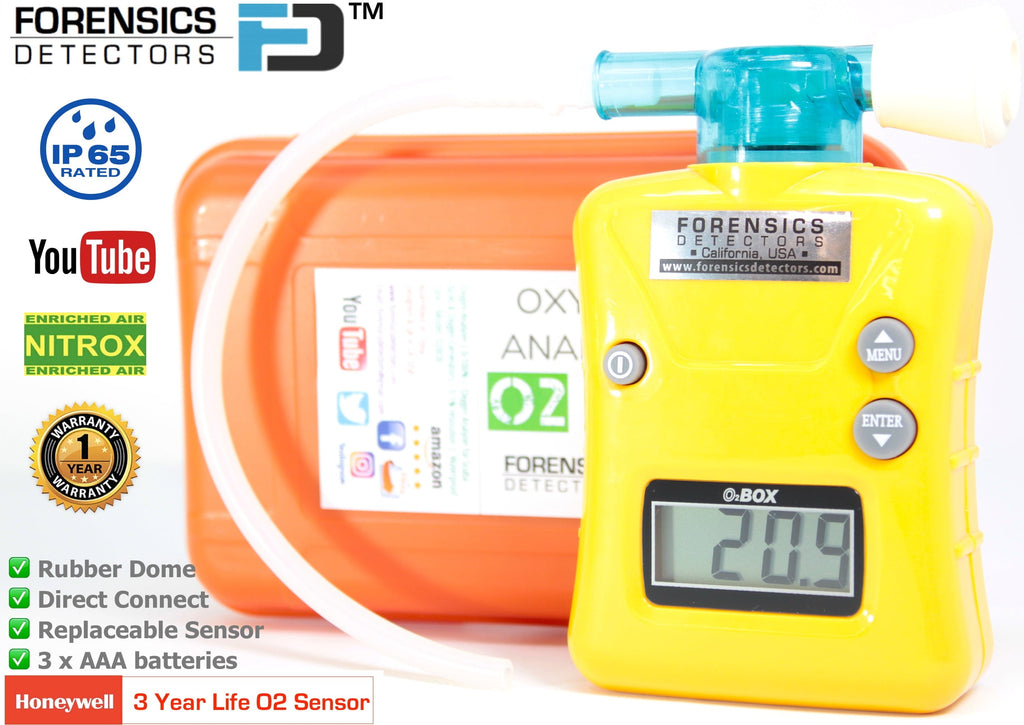

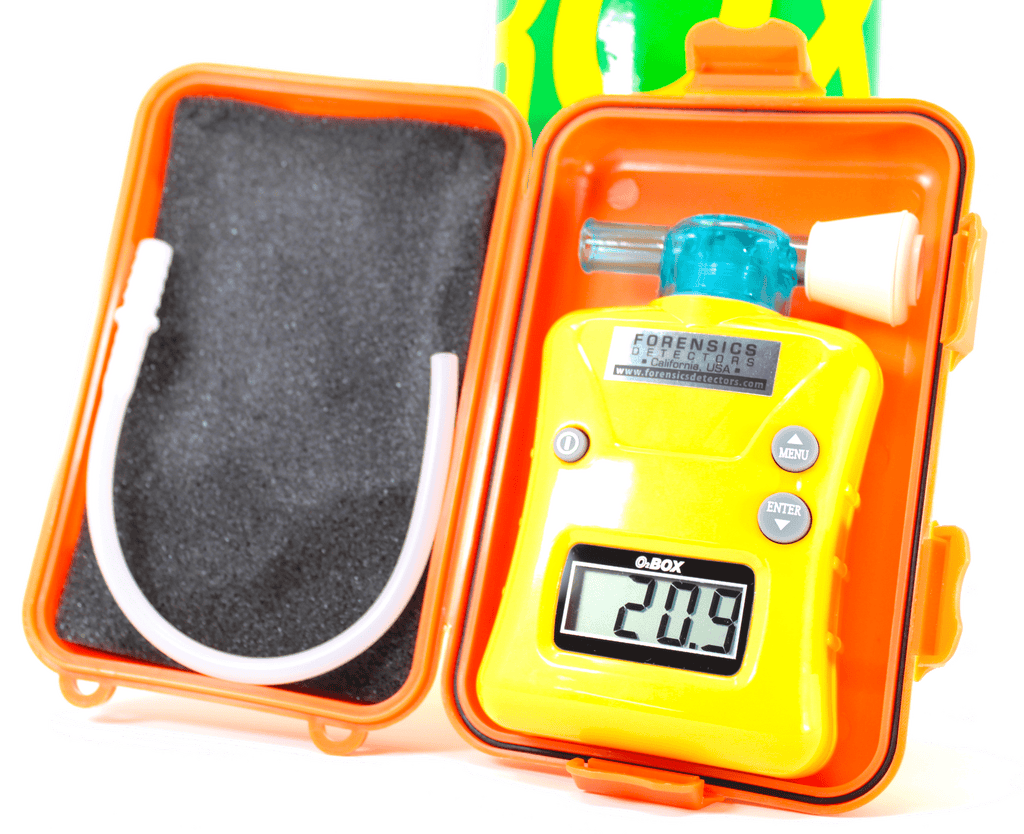

Included: Gas analyzer, waterproof user manual label attached to the case, water-resistant ABS carry case, coupler with 6 inches of silicone tubing for direct O2 generator connection, and 3 x AAA alkaline batteries installed.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Accessories (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Pouch
Gas Detector Stand
Specifications
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 3 years
Response Time: < 30 sec
Oxygen (O2) Range: 0% - 80% (Error < ± 2.0% of O2)
Oxygen (O2) Range: 80% - 99.9% (Error < ± 5.0 % of O2)
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Max Pressure: 2 ATM (2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
O2 Flow Required Testing: > 0.5 LPM
Store / Operating Temperature: 14 to 122°F (−10 to 50°C)
Store / Operating Humidity: < 95% RH
Display: Backlit monochrome LCD

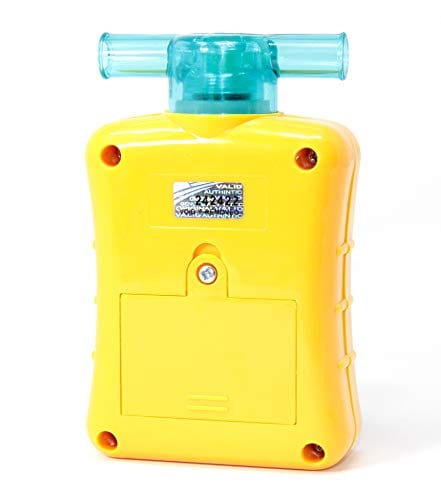

Power Source: 3 x AAA
Operating Time: > 24 hours
Explosion-Proof Grade: None (Ordinary Locations Only)
Dimensions: 4.8 × 3.1 × 1.6 inches (12.2 × 7.8 × 4.0 cm)
Weight: 6.2 oz / 175 g
Alarm: None
Housing Material: ABS Plastic
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
Disclaimer: This analyzer has yet to be issued an FDA 501 (K) notification.
