4 Gas Data Logger Monitor | USA NIST Calibration

Save 30%

Price:
Sale price$1,399.00 Regular price$1,999.00


Brand: FORENSICS DETECTORS
Model: FD-600M-4GAS
Data Logging: Click Here
User Manual: Click Here
Blog Article:
Click Here

Features:

  • 📊 GAS DATA LOGGER: Data logging functions with built-in TF Memory Card (512MB) able to store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec.
  • 🎆 DETECT: A top-quality 4 gas data logging analyzer with a built-in pump to detect Oxygen (O2), carbon monoxide (CO), hydrogen sulfide (H2S), and combustibles (LEL). Comes FACTORY-CALIBRATED.
  • 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
  • 📲 ALARMS: Adjustable low and high alarms.
  • 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof exceeding ATEX certified Ex ib IIC T4 Gb. IP65.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **



Details: Looking for a top-quality 4 gas data logger? This is it. It has the advanced features of a 4-gas monitor with graphing and data-logging functionality. The data logging function is built in which means the unit can run by itself and the data will be captured by its internal Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec. The internally logged data is then retrieved by connecting a Type C USB cable to a computer and viewing the logged *.CSV files, just like you would with an external USB drive. Very easy and simple, with no extra software required. The *.CSV file can then be imported into EXCEL to graph and manipulate as required.

If you want it to data log continuously with a long sample rate, then no problem. Just set the sample rate to a large value and plug the unit into cable power so it is always charging ON, and you are good to go for many days of sampling.

The 4-gas monitor has a built-in pump that allows for super quick sensor response and point or continuous sampling to confirm air quality, toxicity, and safety when entering confined spaces. A very robust unit for personal protection that is perfect for workplace, occupational safety, and research and development. Used in the industry by construction workers, utility workers, refinery workers, firefighters, maintenance engineers, inspectors, and those who spend time in sewers and waterworks, underground storage tanks, oil rigs, tanks, and silos, and often used in the maritime industry.

For those that do not require such an advanced 4 gas analyzer (without a built-in pump and no data logging), we recommend our 4 gas meter FD-4A.

Included: 4 Gas Data Logger Analyzer, English manual, USB charging cable, charger, analyzer case, 4ft telescopic stainless probe, tubing, and USA NIST calibration certificate.

Calibration Kit:
Calibration T-piece & Tubing
Calibration Gas (Multigas)
Calibration Gas Regulator (C10)
4 Gas Bump Gas

Other Accessories & Parts:
Gas Sensor Replacement (CO)
Gas Sensor Replacement (H2S)
Gas Sensor Replacement (O2)
Gas Detector Stand

Calibration Service:

Gas Detector Calibration Service (multigas)

Specifications

Combustible gas (LEL) detection: 0 - 100% with 1% resolution
Oxygen (O2): 0 - 30% with 0.1% resolution
Carbon monoxide (CO): 0 - 999 ppm with 1 ppm resolution
Hydrogen sulfide (H2S): 0 - 100 ppm with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Source
Gas Sensor Type: Electrochemical (CO, H2S, O2) & Catalytic (EX LEL)
Gas Sensor Life: 2 to 3 years
Error (worst case): <±5% F.S.
Response Time: <30 seconds
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Battery: DC3.7V Li-Ion battery 4000mAh
Charging Time: 4 hours
Operation Time: > 5 hours
Dimension/Weight: 9.09 x 3.43 x 2.36 inches, 800grams
Rating: ATEX certified Ex ib IIC T4 Gb. IP65.
Pump Noise: <60dB
Pump Flow Rate: 0.3 to 0.7 LPM
Inlet Air Barb: 3mm (1/8 inch) outer diameter barb
Charger Port: USB Type C (use at least 1A/5V charger)

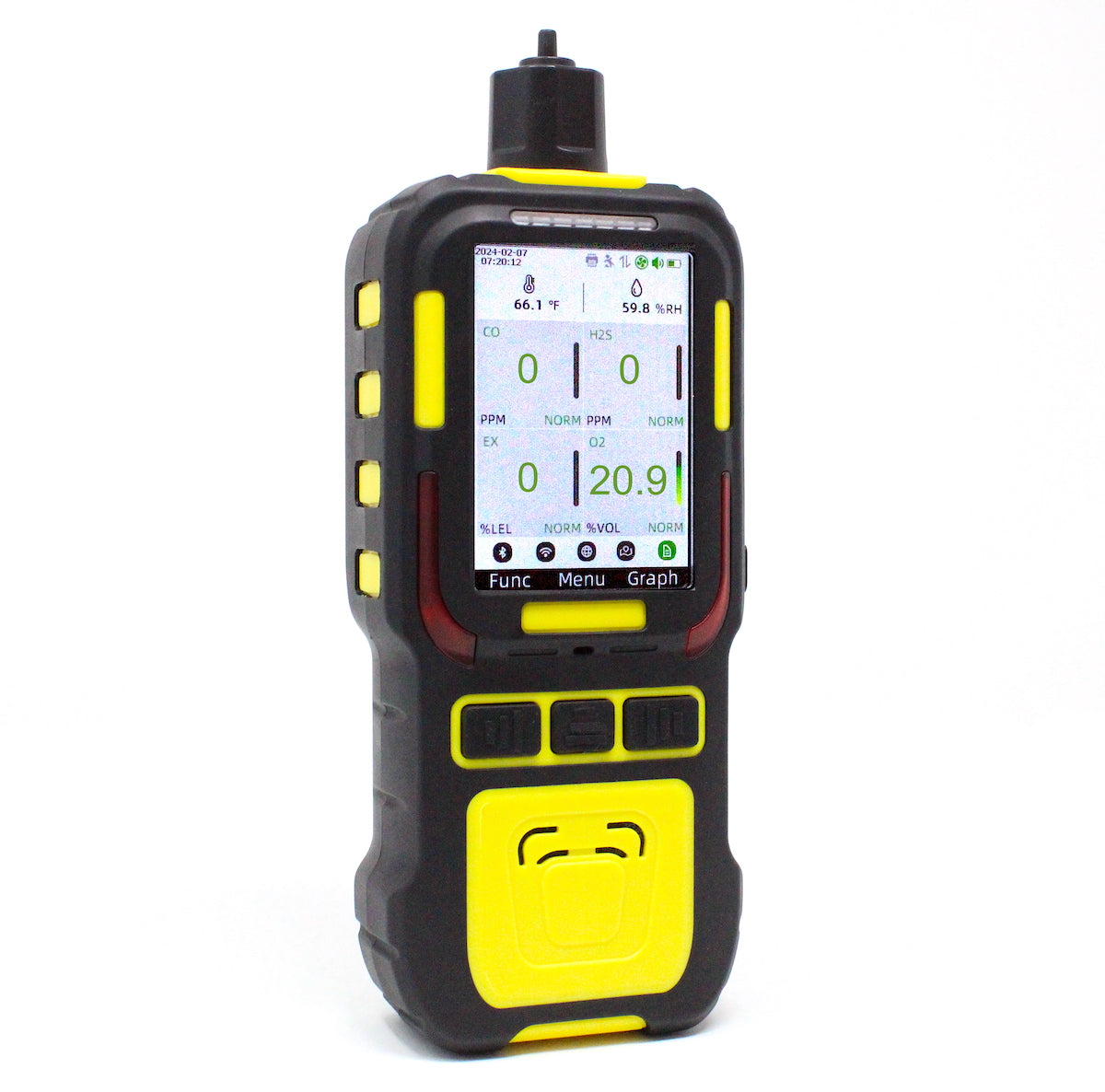

Display: 3.5-inch color HD display

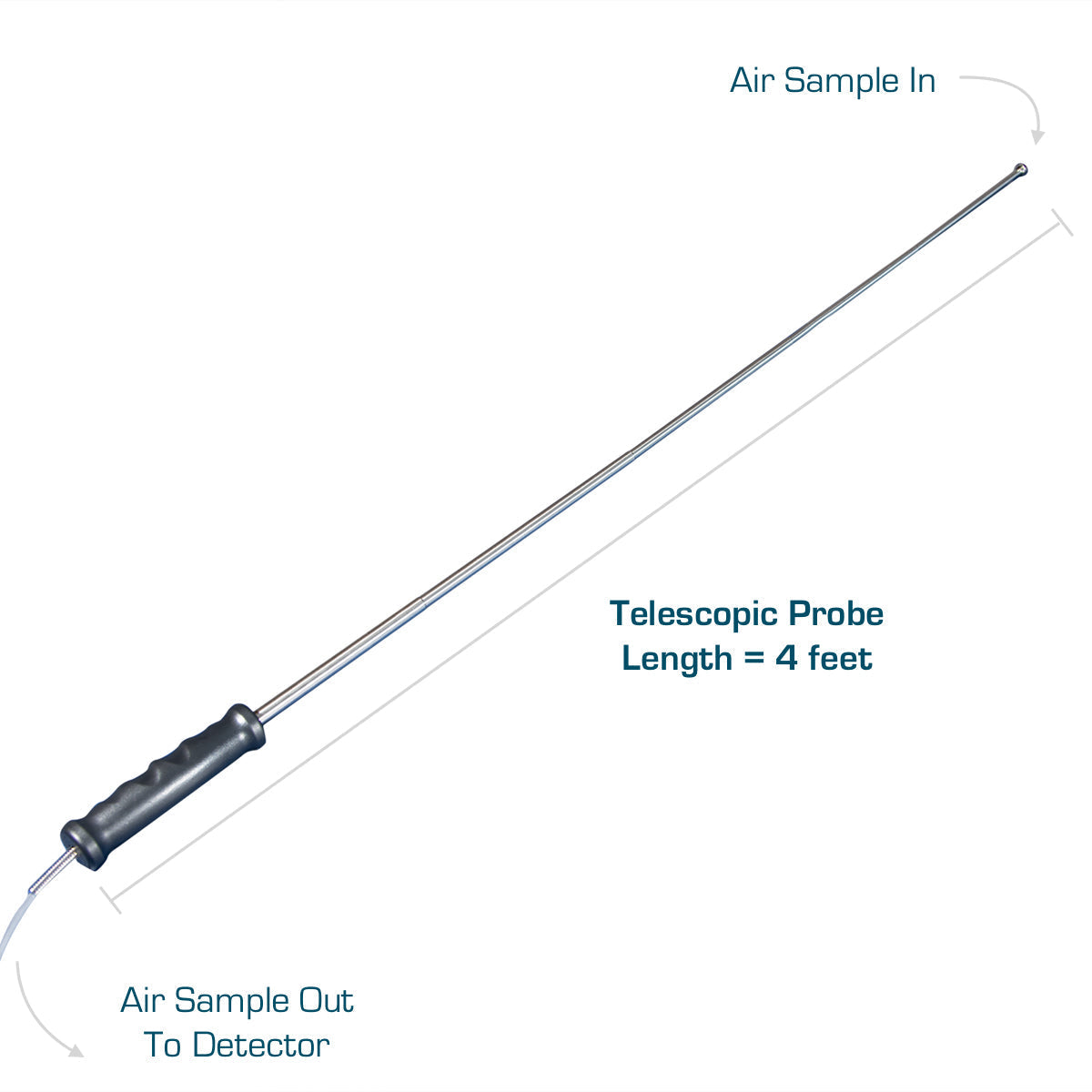

Probe Length: 4ft Telescopic Probe
Recommended Calibration Period: 12 months

Carry Case Weight: 3.1 lb with analyzer & accessories
Carry Case Dimensions: 9 x 7 x 5 inches
