Brand: FORENSICS DETECTORS
Model: FD-101-O2
User Manual (PDF): EN | DE | FR | ES | IT |
Unboxing: Vlog explanation
Gas Detector Manager: Video & PC Program (*.exe)
Features:
- 🔋 LONG LIFE: Massive 2-year battery life. Disposable Detector.
-
💪 TOUGH: Passes 10 ft drop test. Waterproof with Protection grade = IP67.
- ⚛️ DETECT: Oxygen range 0 - 30.0%vol with a O2 electrochemical sensor.
- 🎆 ALARMS: Buzzer, LED, & Vibration. OSHA TWA and STEL alarms.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Signed and dated calibration certificate included.
Details: Ensure safe oxygen levels with our industrial-strength portable oxygen detector. Featuring advanced electrochemical sensors, this rugged device measures 0-30.0% volume with precise 0.1% resolution, factory-calibrated and NIST-certified for reliable performance. Built for the toughest conditions: IP67 waterproof protection, survives 10-foot drops, and delivers an exceptional 2-year battery life in a convenient disposable design. Triple-alert system (buzzer, LED, vibration) provides immediate warnings with OSHA TWA and STEL compliance monitoring for confined spaces and oxygen-deficient environments. Soft-touch rubberized housing ensures comfortable handling during long shifts. Proudly tested and verified in the USA, backed by a 1-year limited warranty—professional safety, pocket-sized.

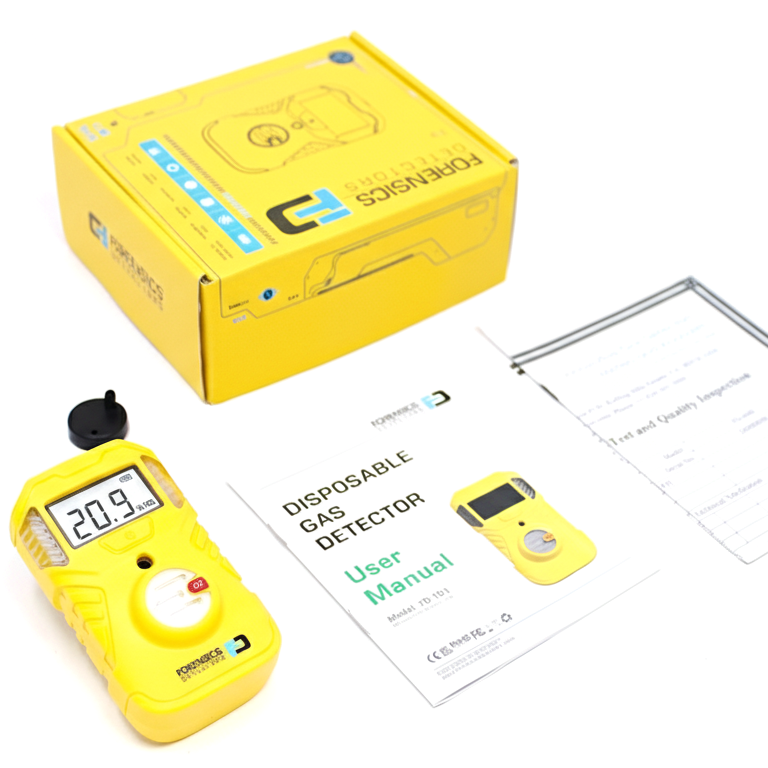

Included: Oxygen (O2) gas detector, user manual, calibration cap, and metal alligator belt clip. Arrives with a calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (DIY sold separately):
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Tubing
Accessories (sold separately):
Bump Gas (N2)
Gas Detector Waterproof Case
Gas Detector Pouch
Gas Sensor Replacement (none - unit is designed to be disposable)
Specifications
Oxygen (O2) Detection: 0 - 30.0%vol with 0.1% resolution
Recommended Calibration Period: 12 months
Sampling Type: Diffusive (no pump). Optional external pump available.
Datalogging: No
Response Time: < 30 sec
Error: <+/-5% F.S.
Display: Bright backlight with monochrome LCD
Operating Temperature: 32 to 122°F (0 to 50°C)
Humidity: < 95% RH non-condensing
Gas Sensor Type: Electrochemical Gas Sensor
Sensor Life: 24 months
Battery Life: 24 months
Operational Time: 24 months (with monthly countdown)
Battery Type: Sealed ER14335 lithium battery
Weight: 4 oz (110 g)
Dimensions: 3.6 × 2.1 × 1.3 inches (9.1 × 5.3 × 3.3 cm)
Alarm Indicators: buzzer 90dB @ 4inches | red LED | vibration
Alarm Setpoints: 19.5% for TWA | 23.5% for STEL | 19.5% for Low Instantaneous | 23.5% for High Instantaneous | Alarms are adjustable via PC Communication and Gas Detector Software Manager
Communication: Infra-Red to PC communication and software. Communication enables alarm setpoint adjustments and the download of alarm records.
Protection Category: IP67
Certification: CE
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
