Brand: FORENSICS DETECTORS
Model: FD-60-O3
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation

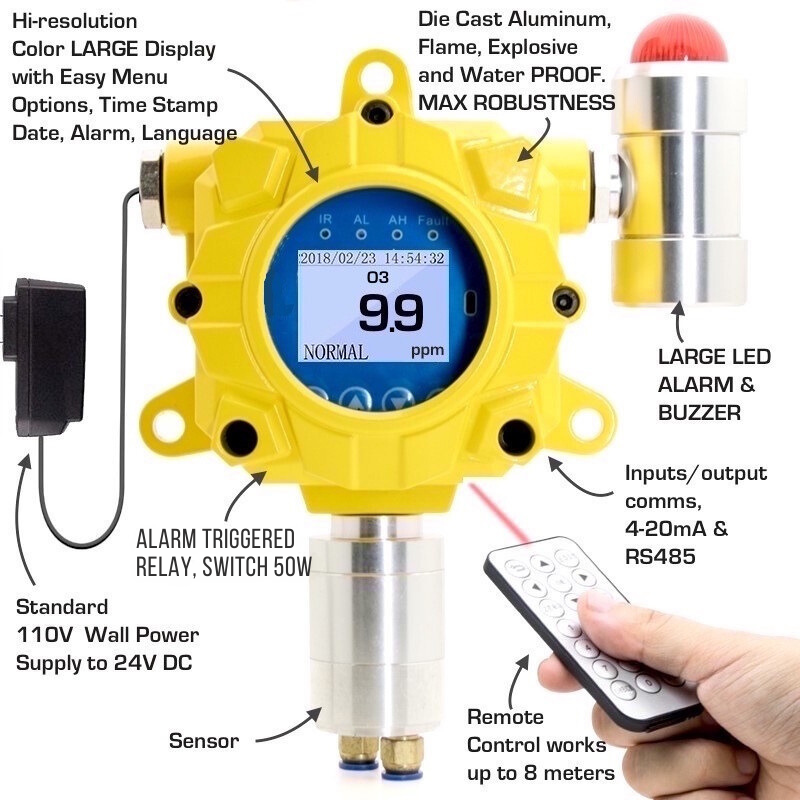

- 🚀 INDUSTRIAL: Heavy-duty fixed Ozone O3 detector, range 0 - 20ppm. Electrochemical sensor.
- 🌎 USE: Alarm output to 2 x relay alarm-triggered switches to control fans or ventilation units.
- 🎆 FEATURES: Large LED alarm and buzzer.
- 💪 ROBUST: Dust-proof, water-resistant, and flameproof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

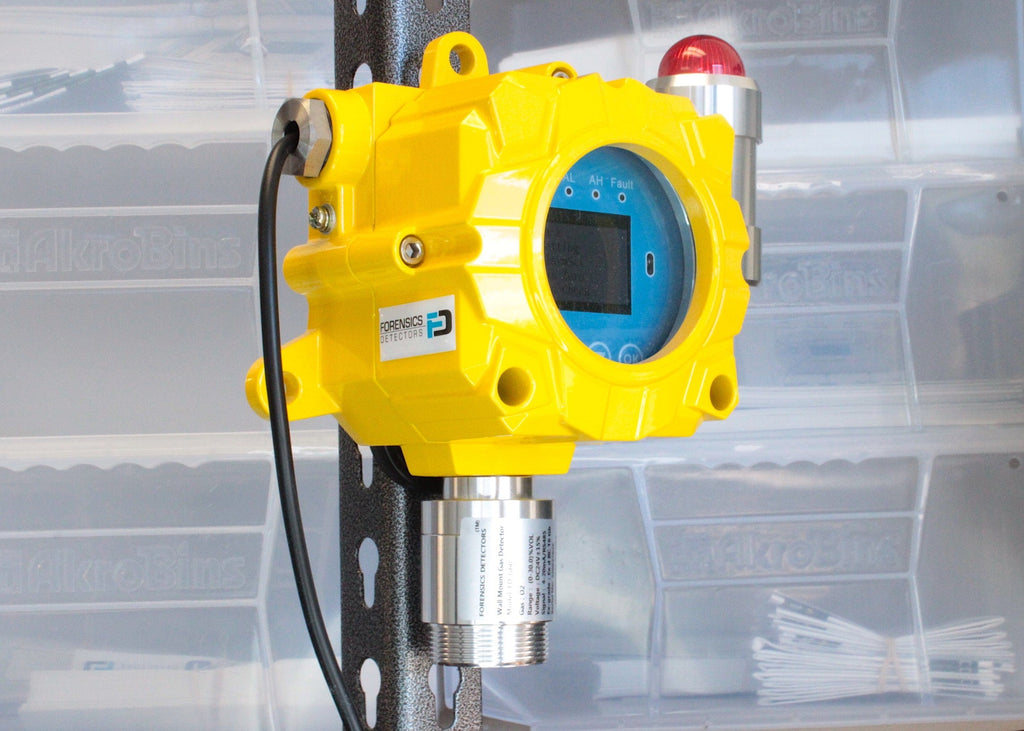

Details: Heavy-duty, industrial, fixed OZONE (O3) gas detector for continuous detection in low-level ozone applications. Range of 0 - 20 ppm with 0.1 ppm resolution to ensure accuracy at the lower levels for O3 exposure protection. Perfect for industrial situations where ozone is used, so the safety officer can prevent ozone exposure. In addition to warning/alarm functions, the detector can be used to switch ON/OFF electrical equipment up to 50 W by setting low and high alarms to trigger relays, perfect for strobe lights, FAN CONTROL, VENTILATION CONTROL, and other devices. We also offer handheld ozone detectors and ozone inspection analyzers with a probe. Please note that ozone is a unique gas and cannot be calibrated with a calibration gas bottle setup like most gases. Order your ozone calibration service, which must be performed in our laboratory with special calibrated equipment necessary to perform ozone gas detector calibration.

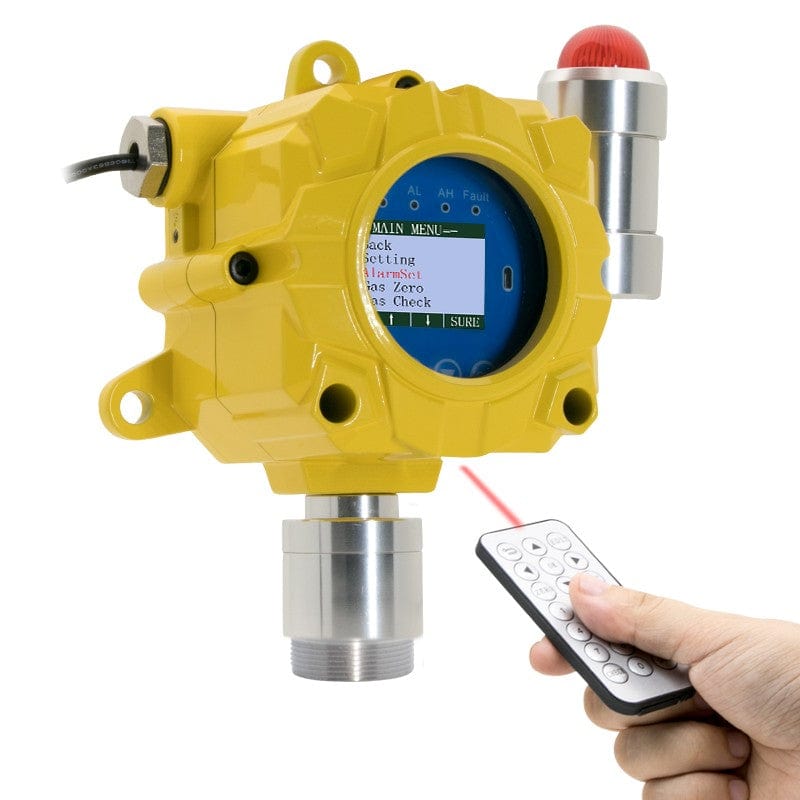

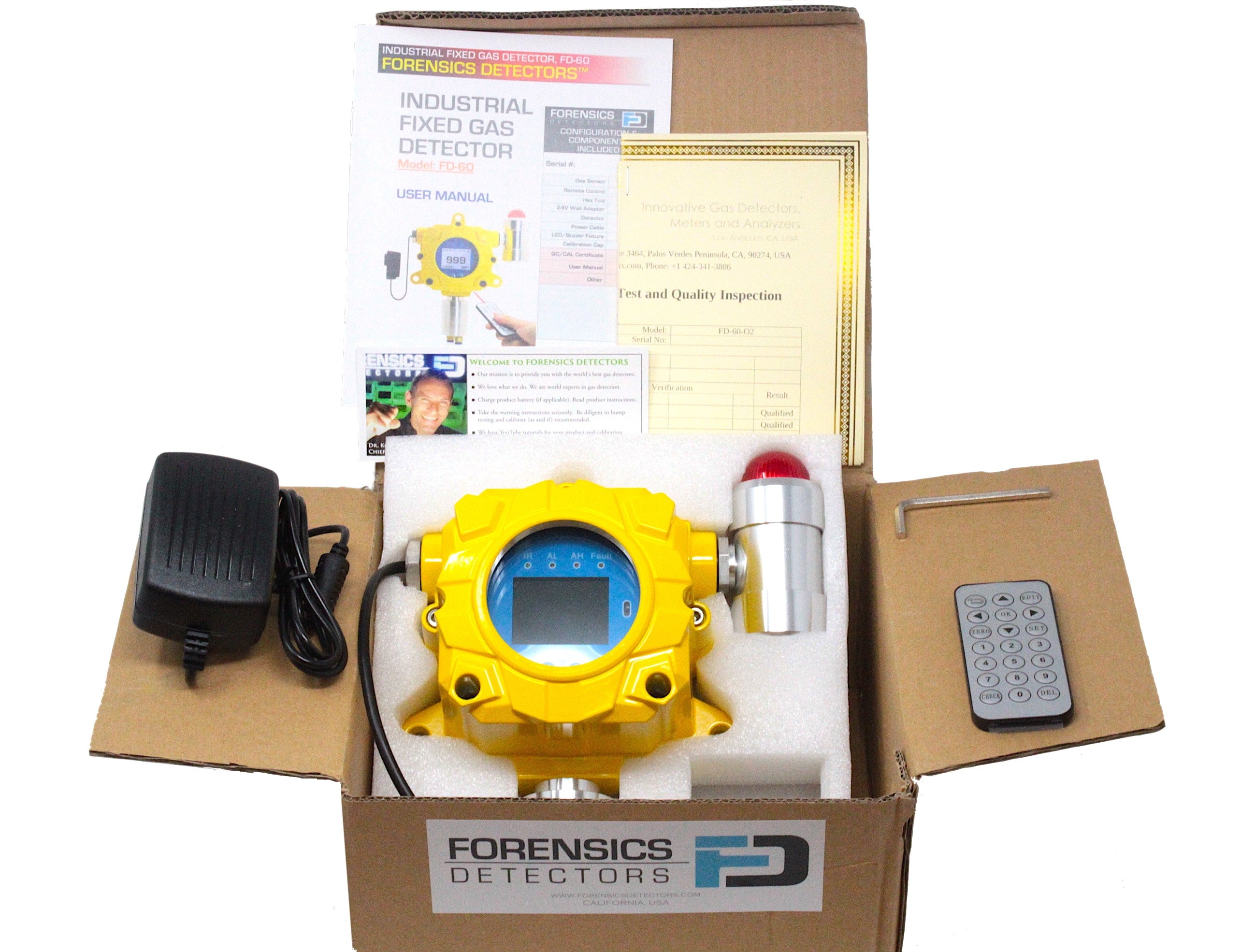

Included: Fixed gas detector, user manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug into a 110V outlet, and wiring. Arrives with a certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
Calibration Kit: (needed to calibrate yourself - sold separately):
No ozone calibration gas kits exist for ozone since ozone gas must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.
Accessories (sold separately):
Ozone Bump Tester
Ozone Replacement Sensor
Alarm Extension Fixture
Specifications
Ozone (O3) Detection: 0 - 20 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Lifetime: 2 - 3 years
Sampling Method: Natural diffusion (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Digital Output Datalogging: RS485 MODBUS (🛠️ Setup Guide)
Analog Signal Output: 4 - 20 mA (▶️ Demo Video)
Error: ≤ ± 5% F.S.
Response Time: <60 seconds
Alarm: LED & Buzzer
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb (📋 PDF)
Protection Category: IP65
Power Supply: DC 24V ±15% (100–240V AC, 50/60 Hz)
Max Power Consumption: 20 W (LED ON and Buzzer ON)
Electrical Output: 2 x relay contacts, max power 50 W per relay
Dimensions: 7.9 × 7.1 × 3.5 inches (20 × 18 × 9 cm)
Weight: 3 lbs (1.4 kg)
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Housing Material: Die-cast aluminum alloy
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
