Ozone Low-Level Monitor 0.01 ppm | Wall Mount

Save 35%

Price:
Sale price$1,295.00 Regular price$1,995.00

Brand: FORENSICS DETECTORS
Model: FD-60-O3-LOW
User Manual: Click Here
Blog Article: Click Here

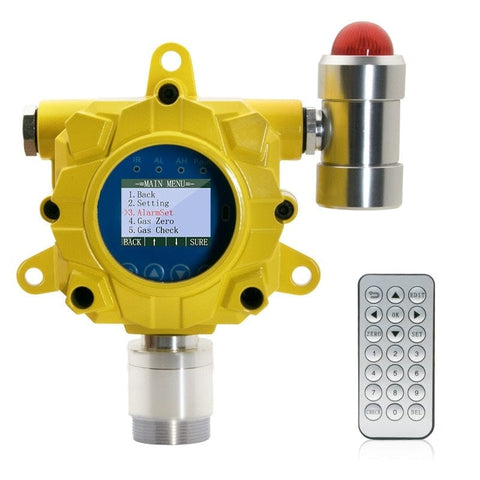

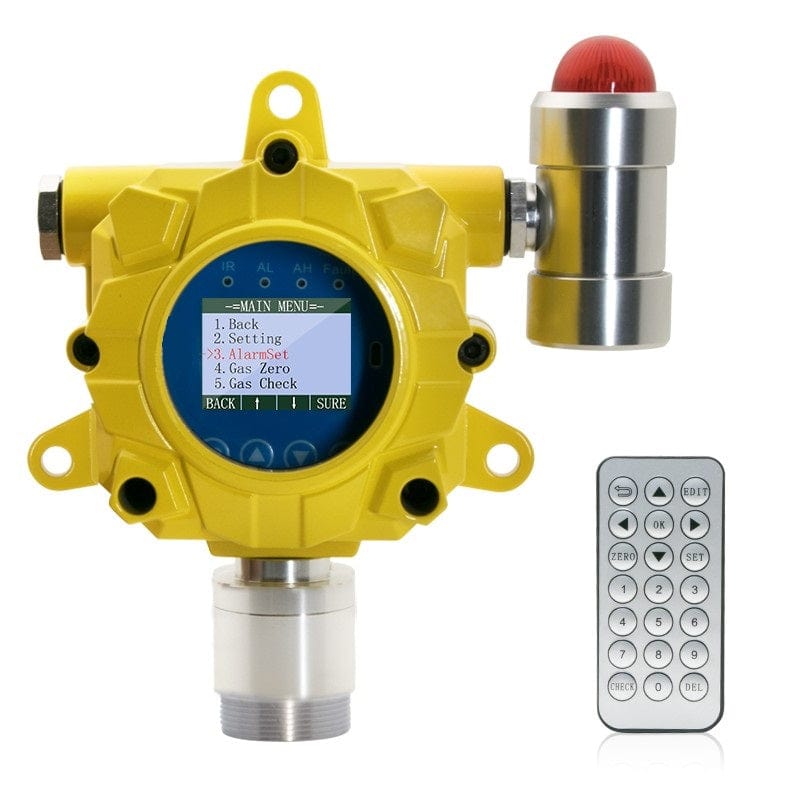

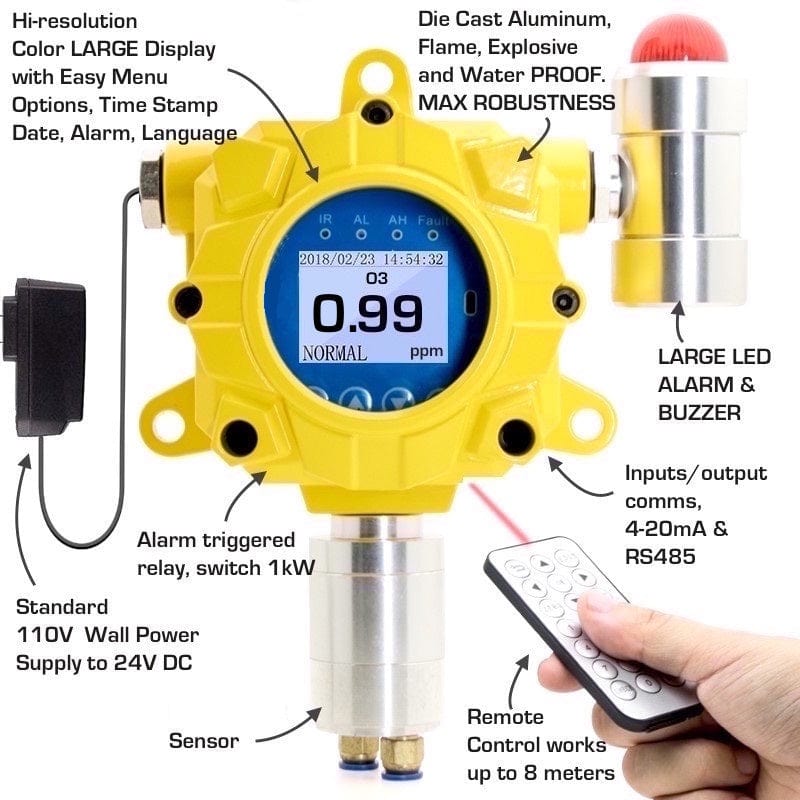

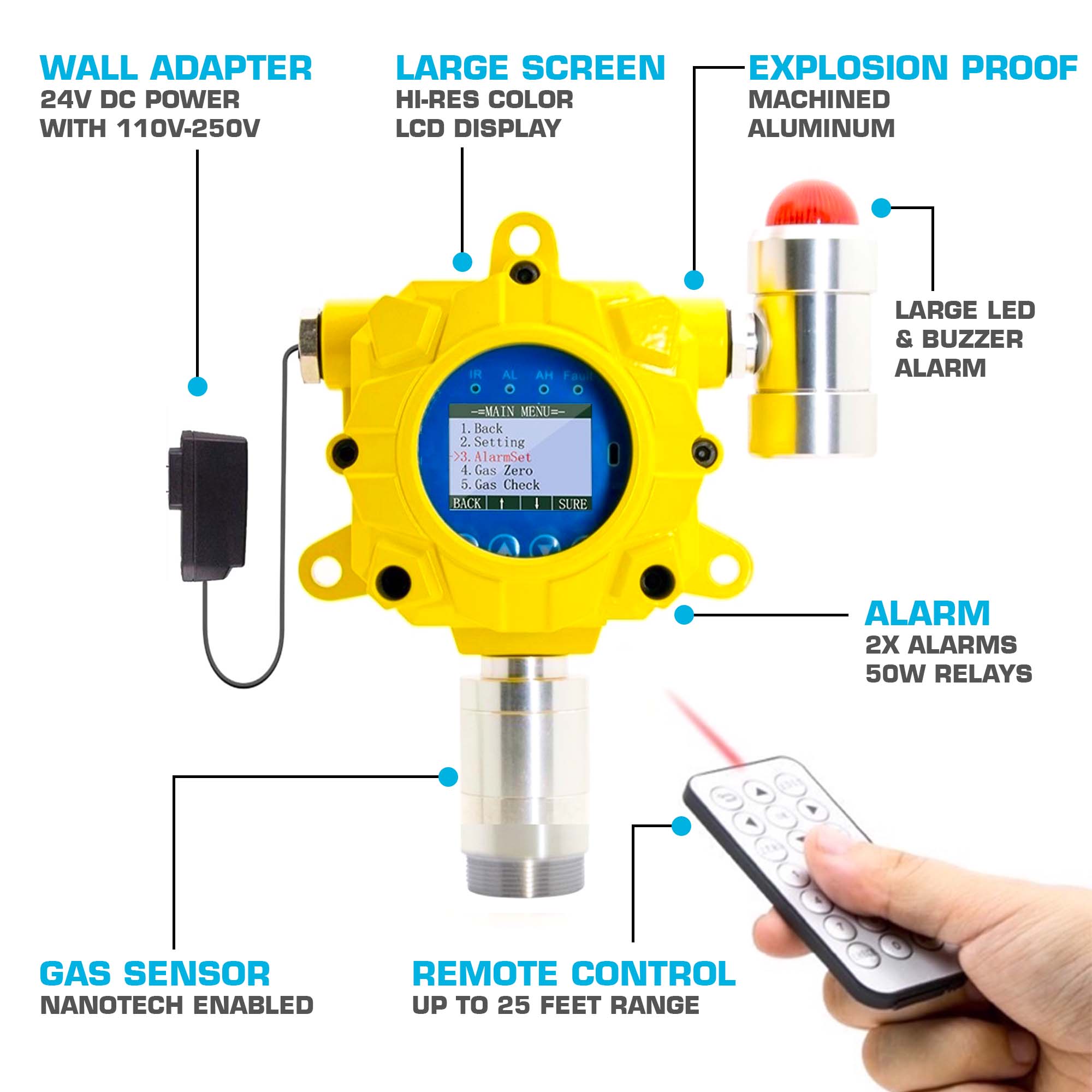

  • 🚀 INDUSTRIAL: Heavy-duty fixed O3 gas detector, range 0 - 5ppm. Electrochemical sensor. Comes FACTORY-CALIBRATED.

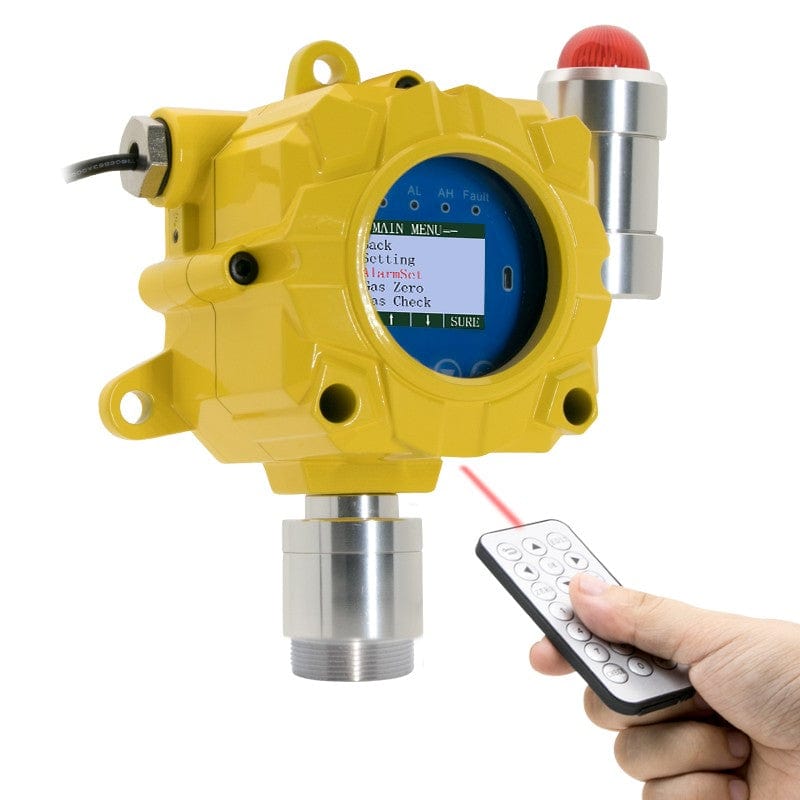

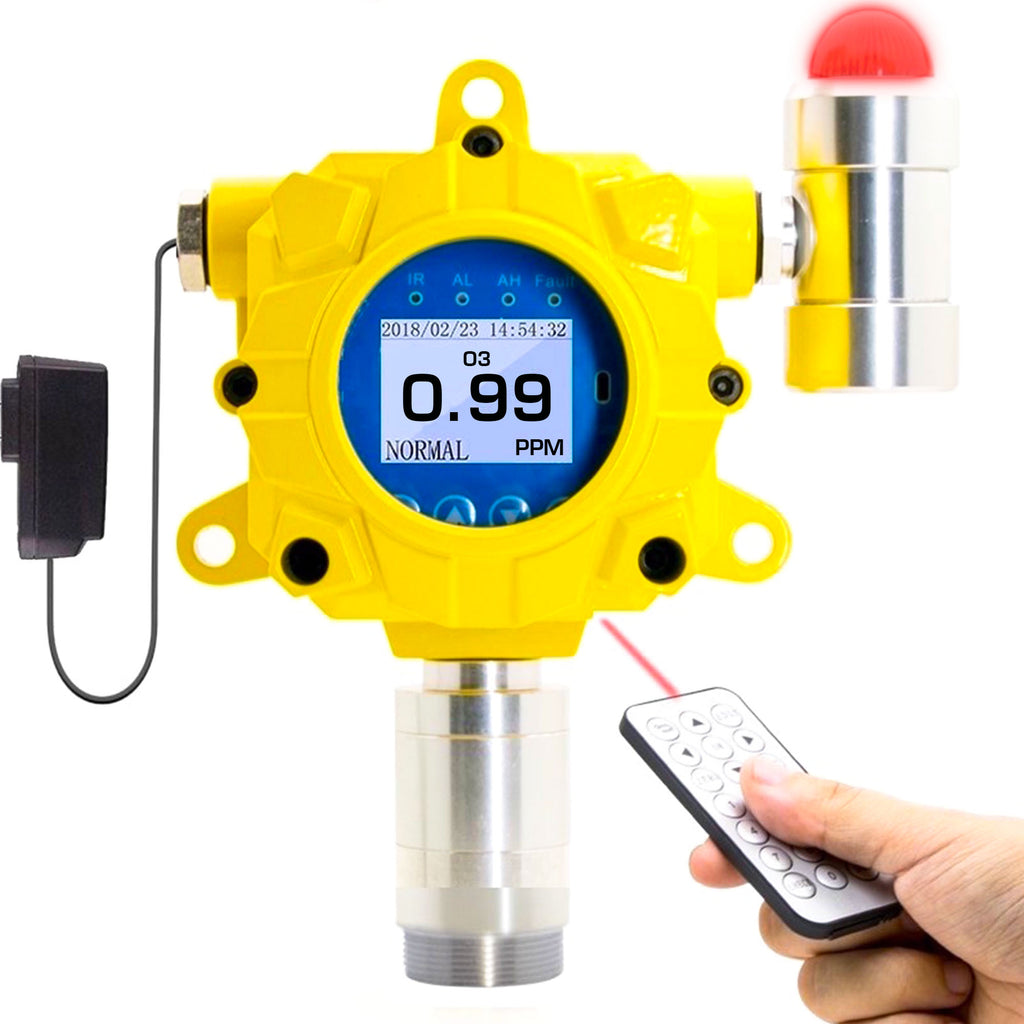

  • 🌎 USE: Remote control up to 8 meters. 2 x relay alarm triggered switches (50W each relay) to control fans, pumps, electrical items, garage doors, or additional alarms.
  • 🎆 FEATURES: Large LED alarm and buzzer. Adjustable audio and visual.  Remote control. RS485 MODBUS Output and Analog Output (4-20 mA) for remote sensing and data logging.
  • 💪 STRONG: Explosion, dust, water, and flameproof. Explosion-proof grade: Exd ⅡC T6 Gb with IP65 housing protection.
  • 🕵️ TRUST: ** 1-year limited warranty ** Arrives with gas calibration and  certificate ** Product tested and verified in the USA ** 100% quality guaranteed **

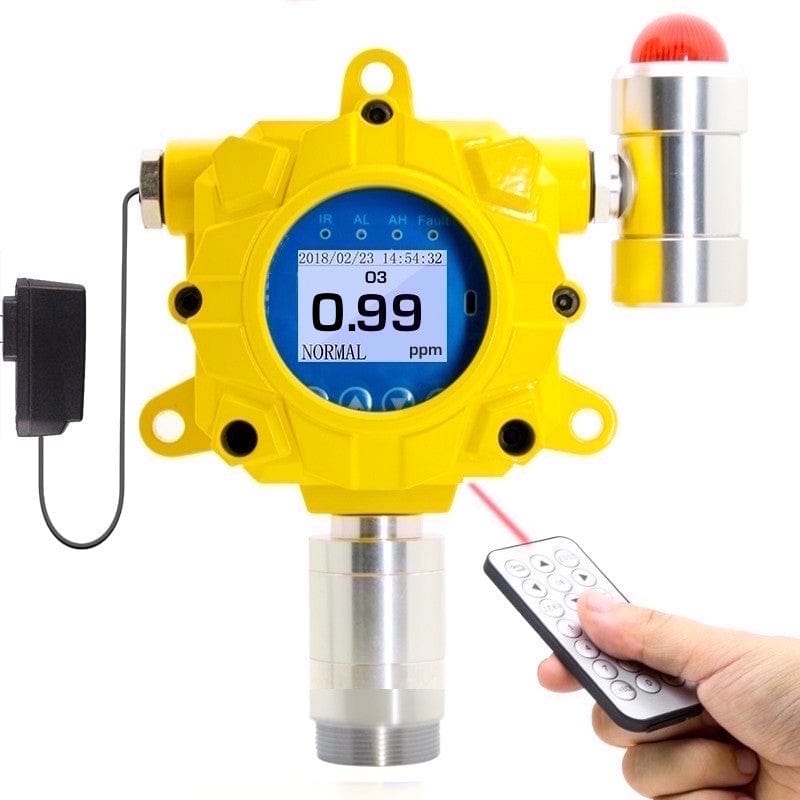

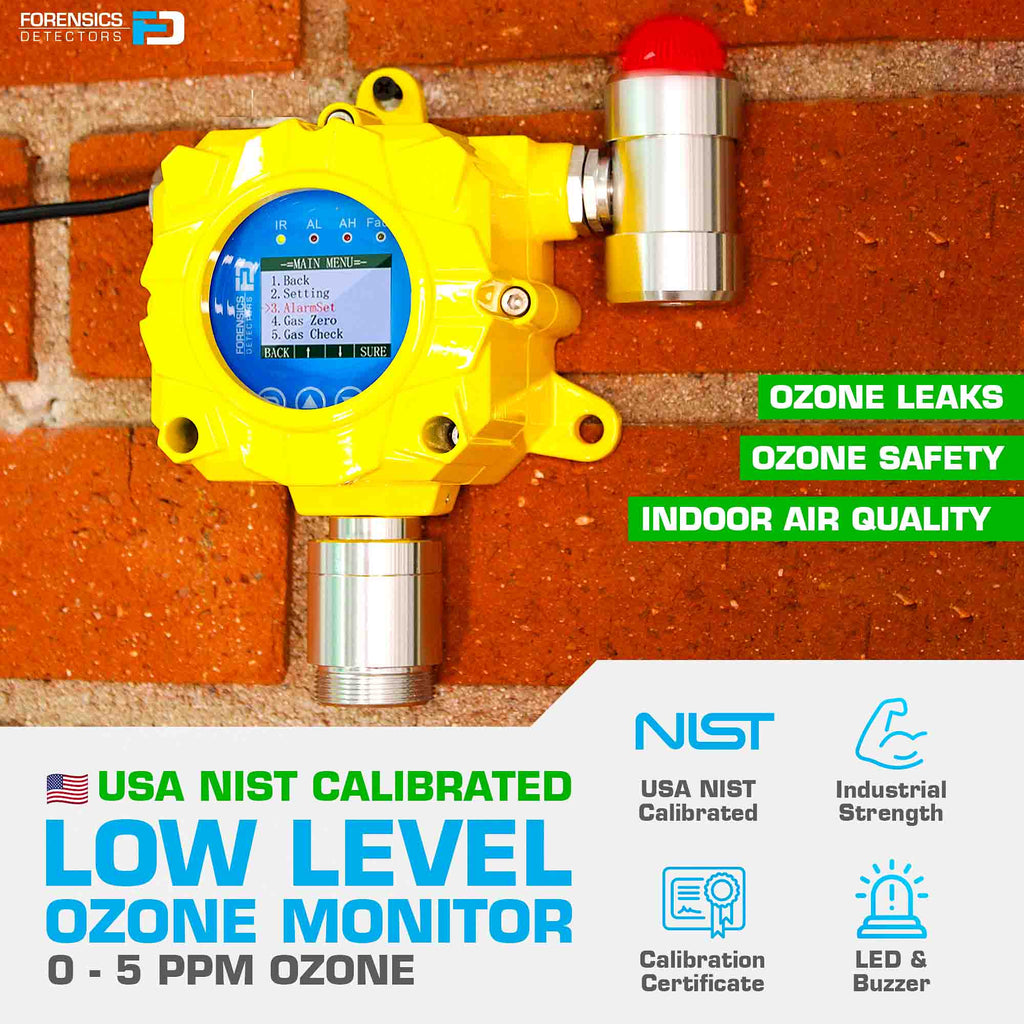

Details: Heavy-duty, industrial, fixed OZONE (O3) gas detector for continuous detection in low-level applications. Detection range 0 - 5 ppm with 0.01 ppm resolution to ensure accuracy at the lower levels for O3 exposure protection. Perfect for industrial situations where ozone is used so the safety officer can prevent ozone exposure. In addition to warning/alarm functions, the detector can be used to switch ON/OFF electrical equipment up to 50W each relay power by setting low and high alarms to trigger relays, perfect for strobe lights, FAN CONTROL, VENTILATION CONTROL, and other devices. We also offer handheld ozone detectors and ozone inspection analyzers with probe.  Please note that ozone is unique gas and cannot be calibrated with a calibration gas bottle setup like most gases. Order your ozone calibration service which must be performed in our laboratory with special NIST calibrated equipment necessary to perform ozone gas detector calibration.

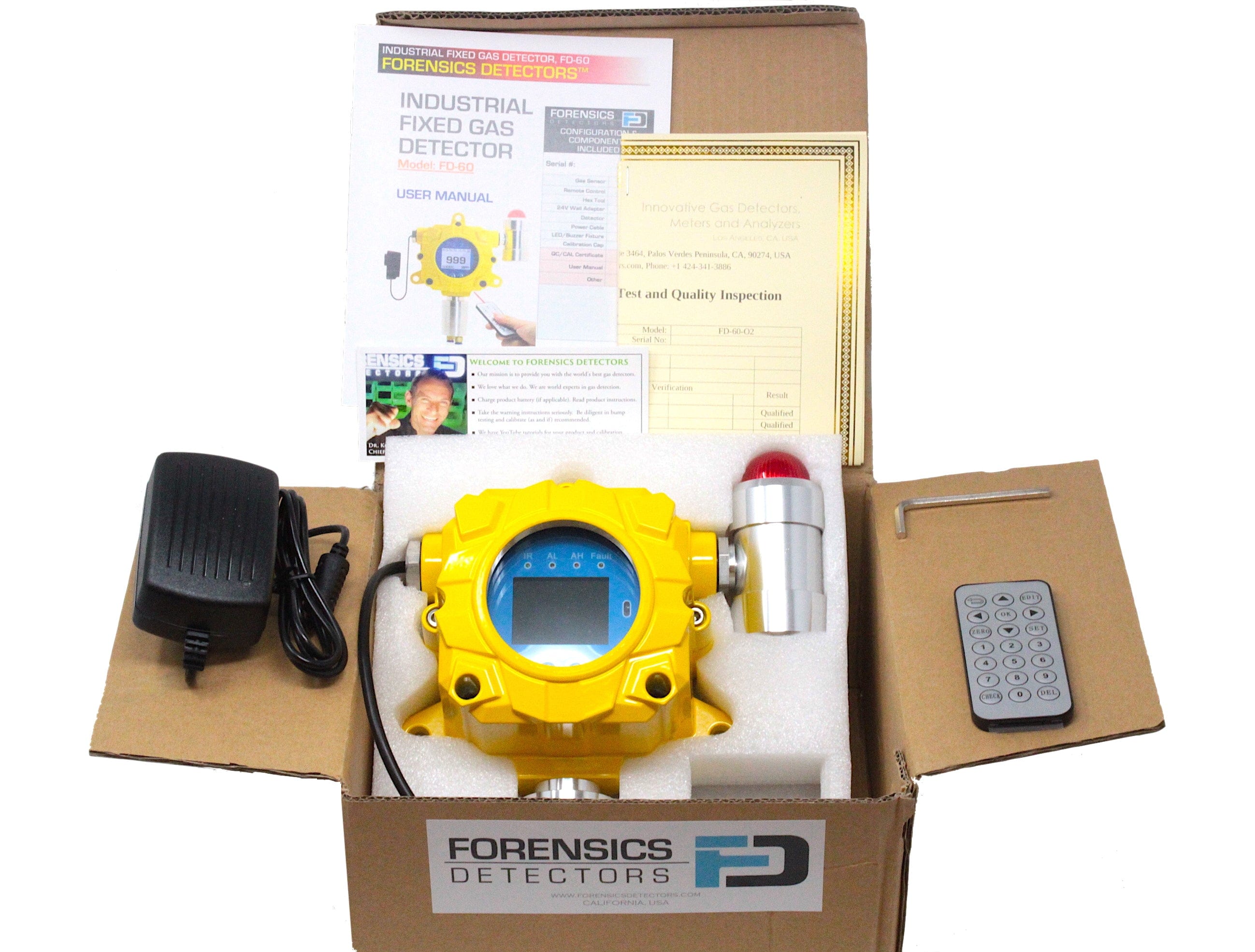

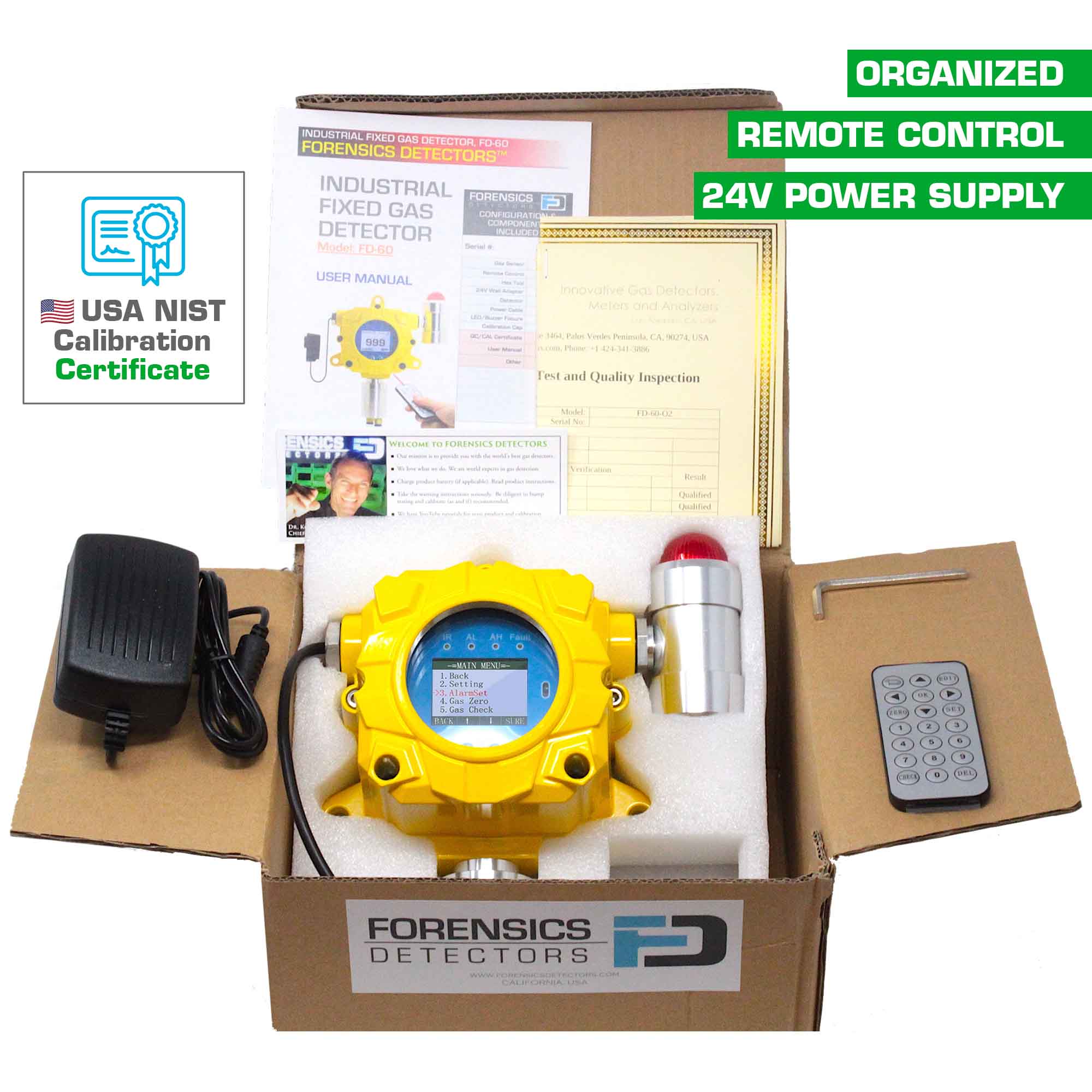

Included: Fixed gas detector, English manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring. Arrives with USA NIST calibration certificate.

Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas (NIST traceable calibrated) must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.

Other Accessories (sold separately):
Ozone Bump Tester
Alarm Extension Fixture

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Ozone (O3) Detection: 0 - 5 ppm with 0.01 ppm resolution
Accuracy: < +/- 5% F.S.
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb
Protection Category: IP65
Response Time: <60 seconds
Power Supply: DC 24V ± 15%
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Electrical Output: 2 x relay contact output, max power 50W each relay
Communication: 4 - 20 mA and RS485
Gas Sensor TypeElectrochemical Gas Sensor
Gas Sensor Life: 2-3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months

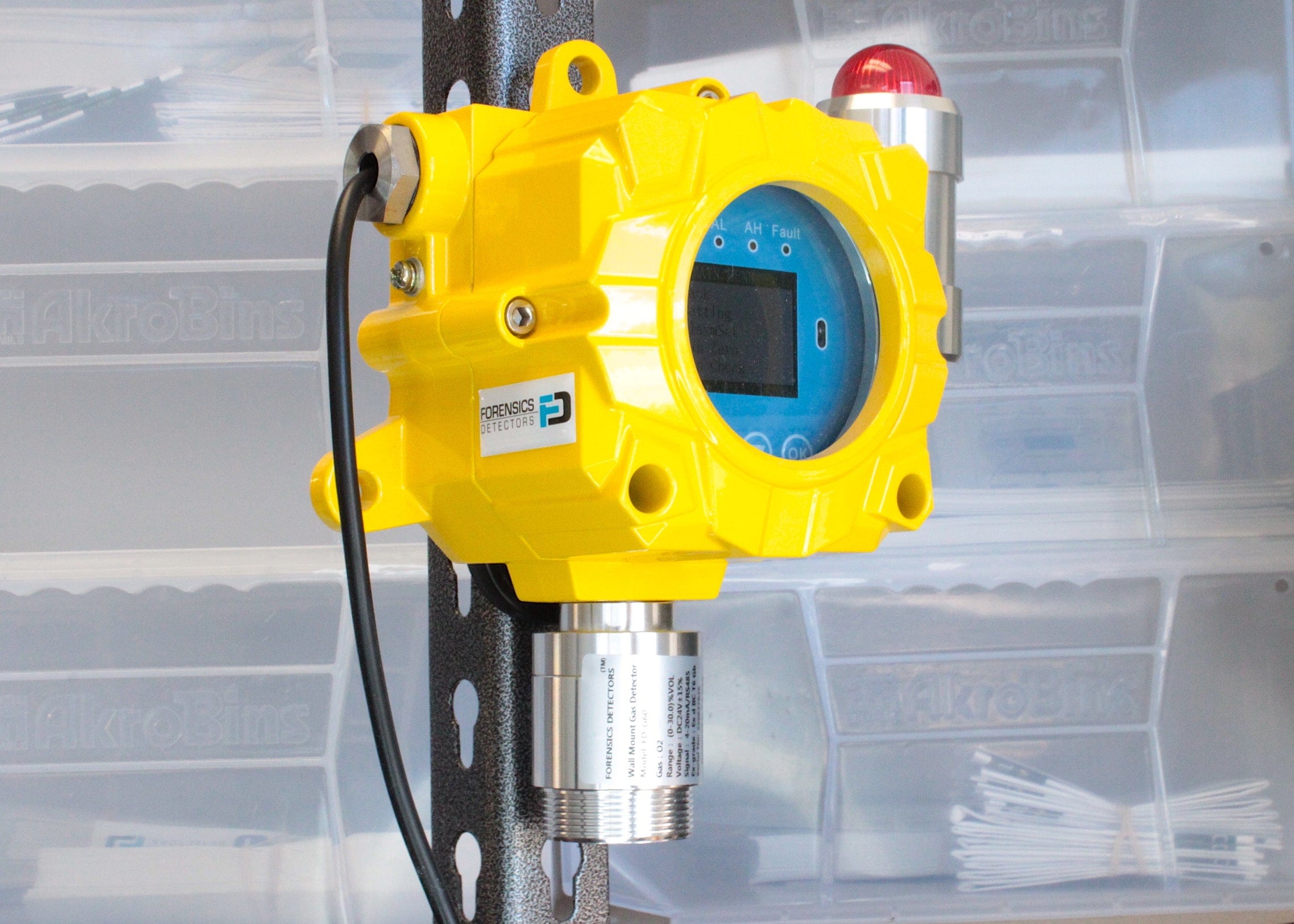

Recommended Installation Method: Wall-mounted
Shell Material: Aluminum

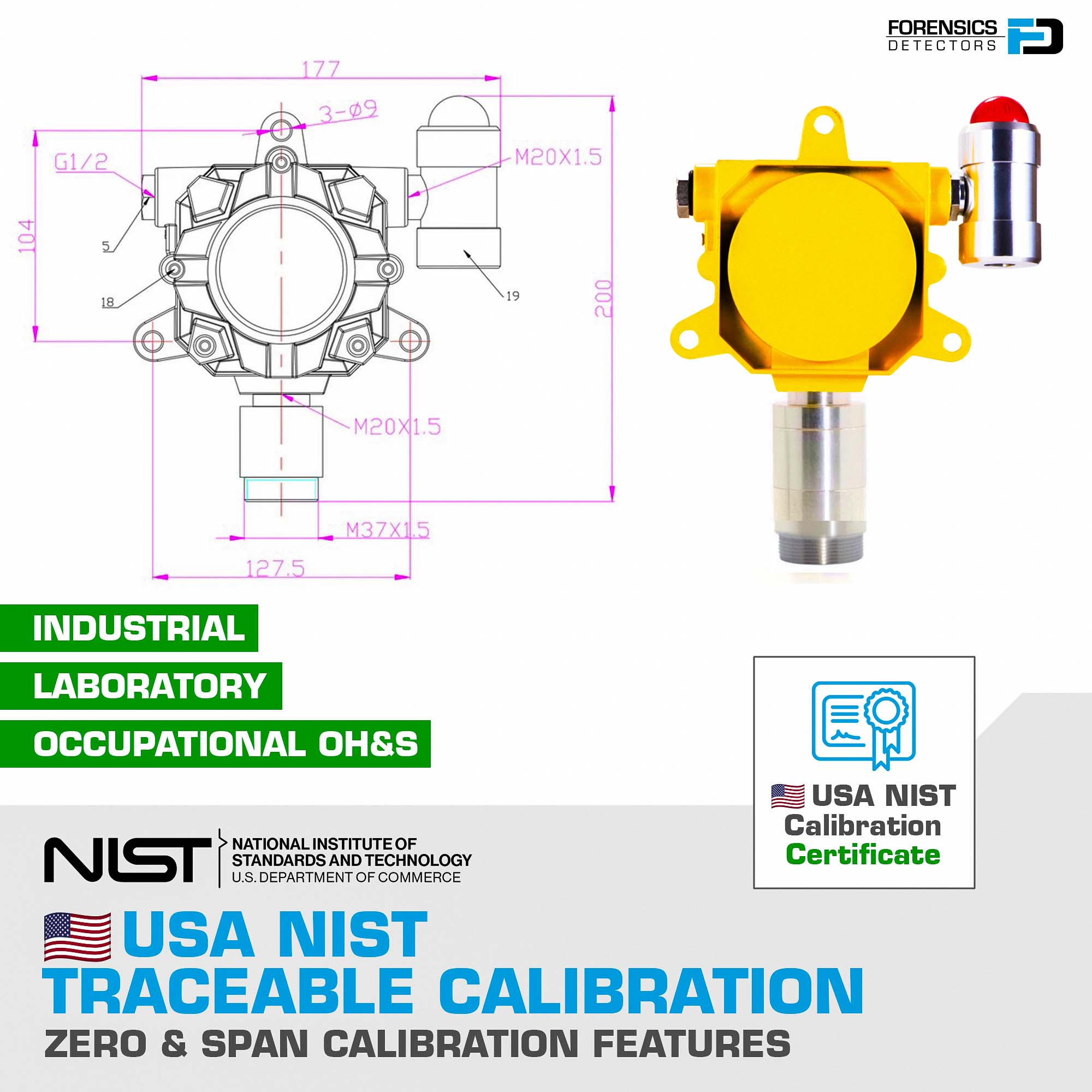

Dimensions: 200 mm x 180 mm x 90 mm (L x W x H)
Weight: 3 lbs
Threads: G1/2 male proof hose pipe thread size M20 x 1.5 mm
