Brand: FORENSICS DETECTORS
Model: FD-101-CO
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Gas Detector Manager: Video & PC Program (*.exe)
Features:
- 🔋 LONG LIFE: Massive 2-year battery life. Disposable Detector.
💪 TOUGH: Passes a 10 ft drop test. Waterproof with Protection grade = IP67.
- ⚛️ DETECT: CO meter, 0 - 1000 ppm with an electrochemical sensor.
- 🎆 ALARMS: Buzzer, LED, and Vibration. OSHA TWA and STEL alarms.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Signed and dated calibration certificate included.
Details: Stay protected with our rugged, industrial-strength carbon monoxide detector. Built for demanding environments, this pocket-sized powerhouse features electrochemical sensors measuring 0-1000 ppm with precise 1 ppm resolution, factory-calibrated and certified for accuracy you can trust. Engineered to endure: IP67 waterproof rating, survives 10-foot drops, and boasts an impressive 2-year battery life in a disposable design. Triple-alert system (buzzer, LED, vibration) provides instant warnings plus OSHA TWA and STEL compliance monitoring. Soft-touch rubberized housing ensures comfortable carry during extended use.

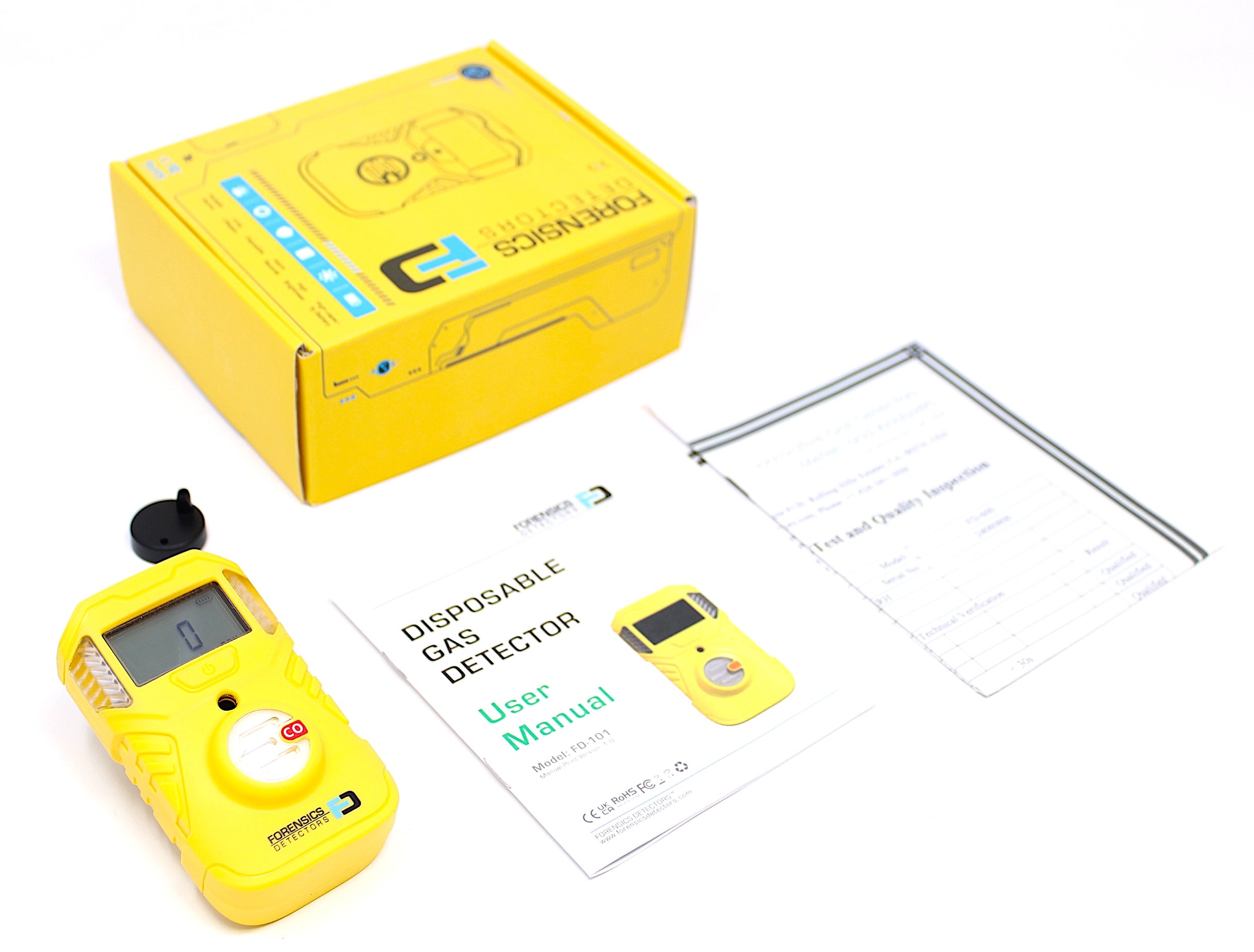

Included: Carbon monoxide gas detector, user manual, calibration cap, and metal alligator belt clip. Arrives with calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (DIY sold separately):
Calibration Gas (CO)
Calibration Gas Regulator (C10)
Tubing
Bump Gas (CO)
Accessories (sold separately):
Gas Detector Waterproof Case
Gas Detector Pouch
Gas Sensor Replacement (none - unit is designed to be disposable)
Specifications
Carbon Monoxide (CO) Detection: 0 - 1000 ppm with 1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 24 months
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: <+/-5% F.S.
Response Time: < 30 sec
Store / Operating Temp: 32 to 122°F (0 to 50°C)
Store / Operating Humidity: < 95% RH non-condensing
Display: Bright backlight with monochrome LCD
Battery Type: Sealed ER14335 lithium battery
Battery Life: 24 months
Operational Time: 24 months (with monthly countdown)
Explosion-Proof Grade: ATEX certified Ex II 2G Ex ib IIC T4 Gb (📋 PDF)
Protection Category: IP67
Weight: 4 oz (110 g)
Dimensions: 3.6 × 2.1 × 1.3 inches (9.1 × 5.3 × 3.3 cm)
Alarm Indicators: Buzzer 90dB | LED | Vibration
Alarm Setpoints: 25ppm for TWA | 30ppm for STEL | 50ppm for Low Instantaneous | 150 ppm for High Instantaneous | All alarms are adjustable via PC Communication and Gas Detector Software Manager
Communication: Infra-Red to PC communication and software. Communication enables alarm setpoint adjustments and the download of alarm records. Gas Detector Manager with Video & PC Program (*.exe)
Housing Material: ABS and rubber
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
