Brand: FORENSICS DETECTORS
Model: FD-600-CO2-O2-INC
User Manual: Click Here
Data Logging: Click Here
Blog Article: Click Here
Features:
- 🎆 INCUBATOR TESTING: CO2 (NDIR sensor) and O2 (electrochemical sensor) incubator analyzer. Comes FACTORY-CALIBRATED. Turn ON and GO.
- 🌈 COLOR: Color screen and graph functions allow for intuitive operation.
- 📲 DATA LOGGING: USB recharging and real-time computer data acquisition.
- 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-proof, and explosion-proof.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with USA NIST calibration certificates ** Product tested and verified in the USA **

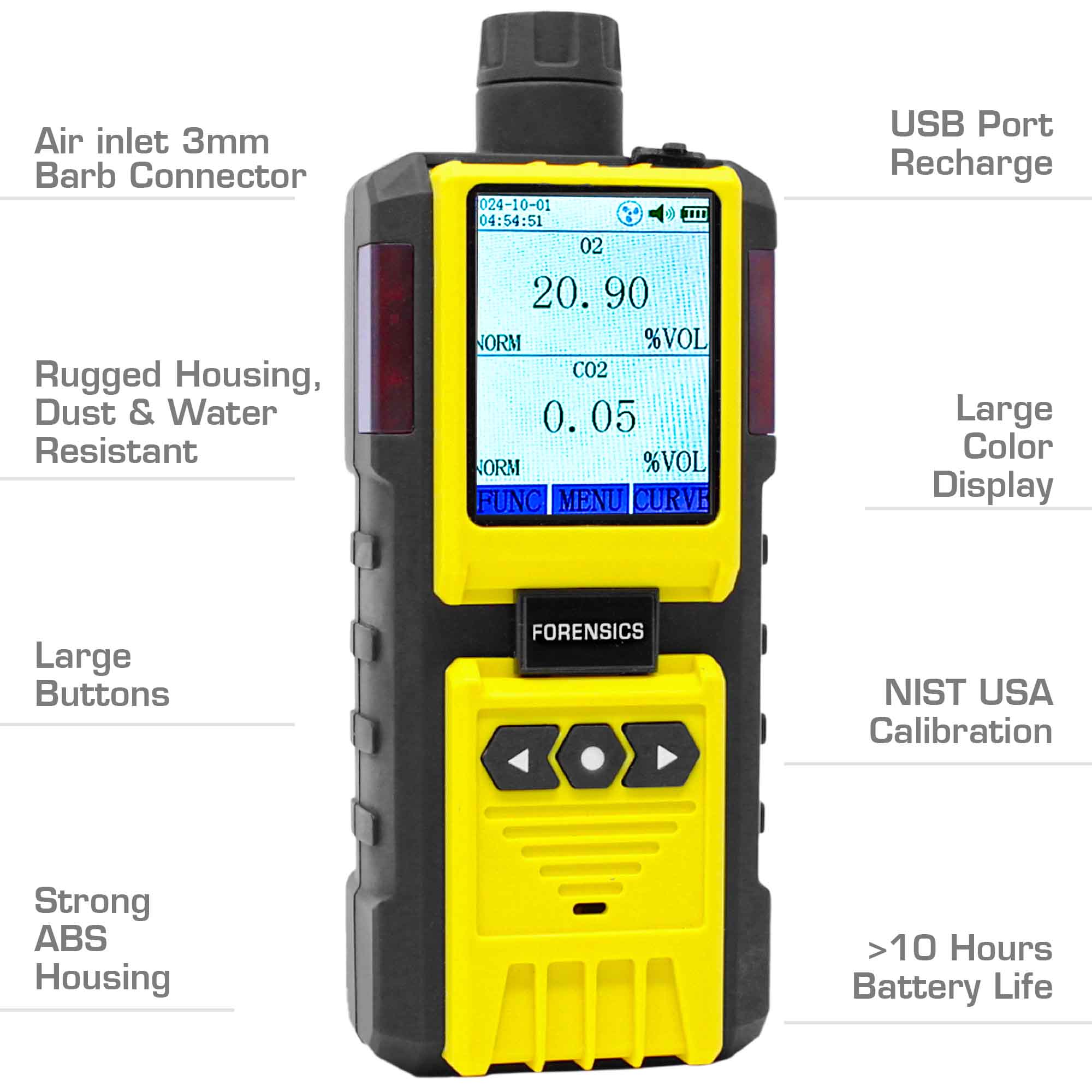

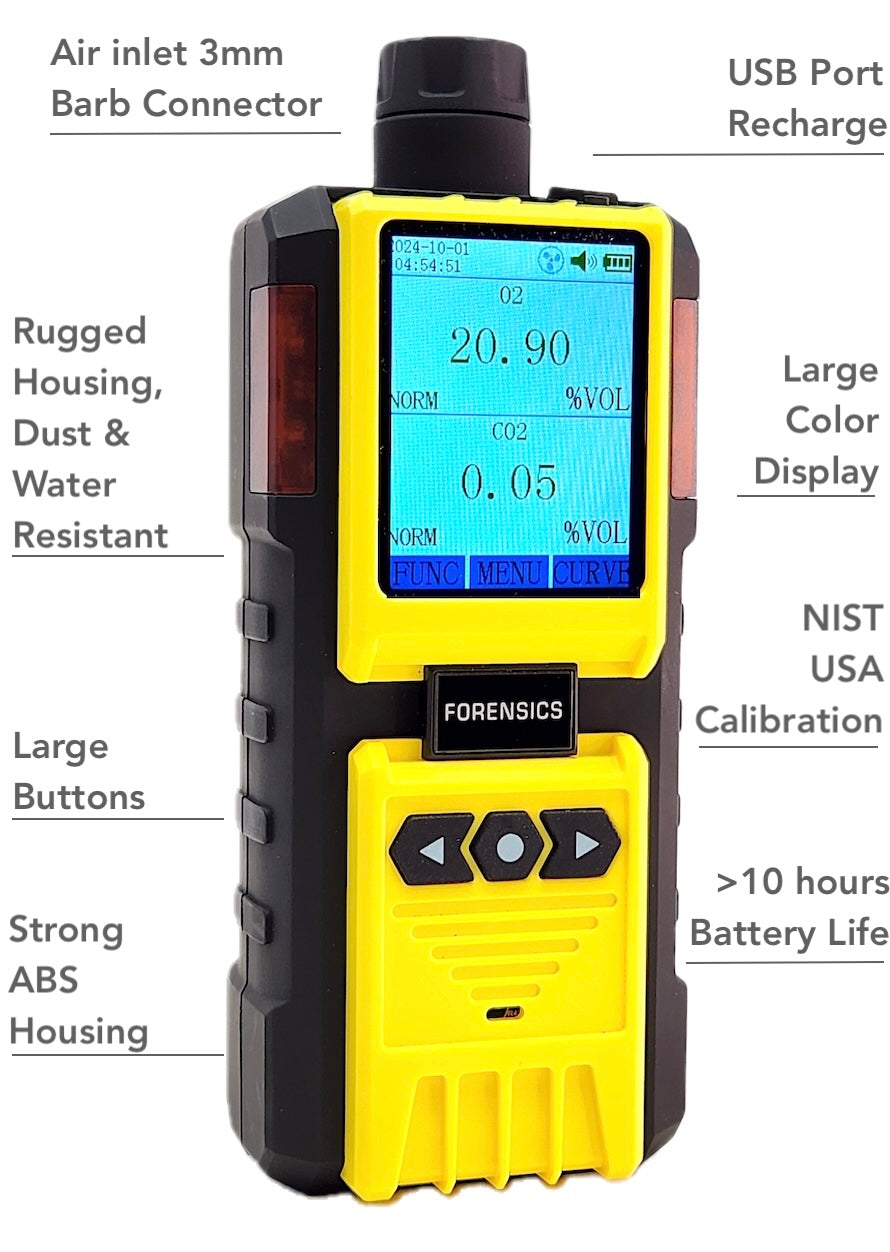

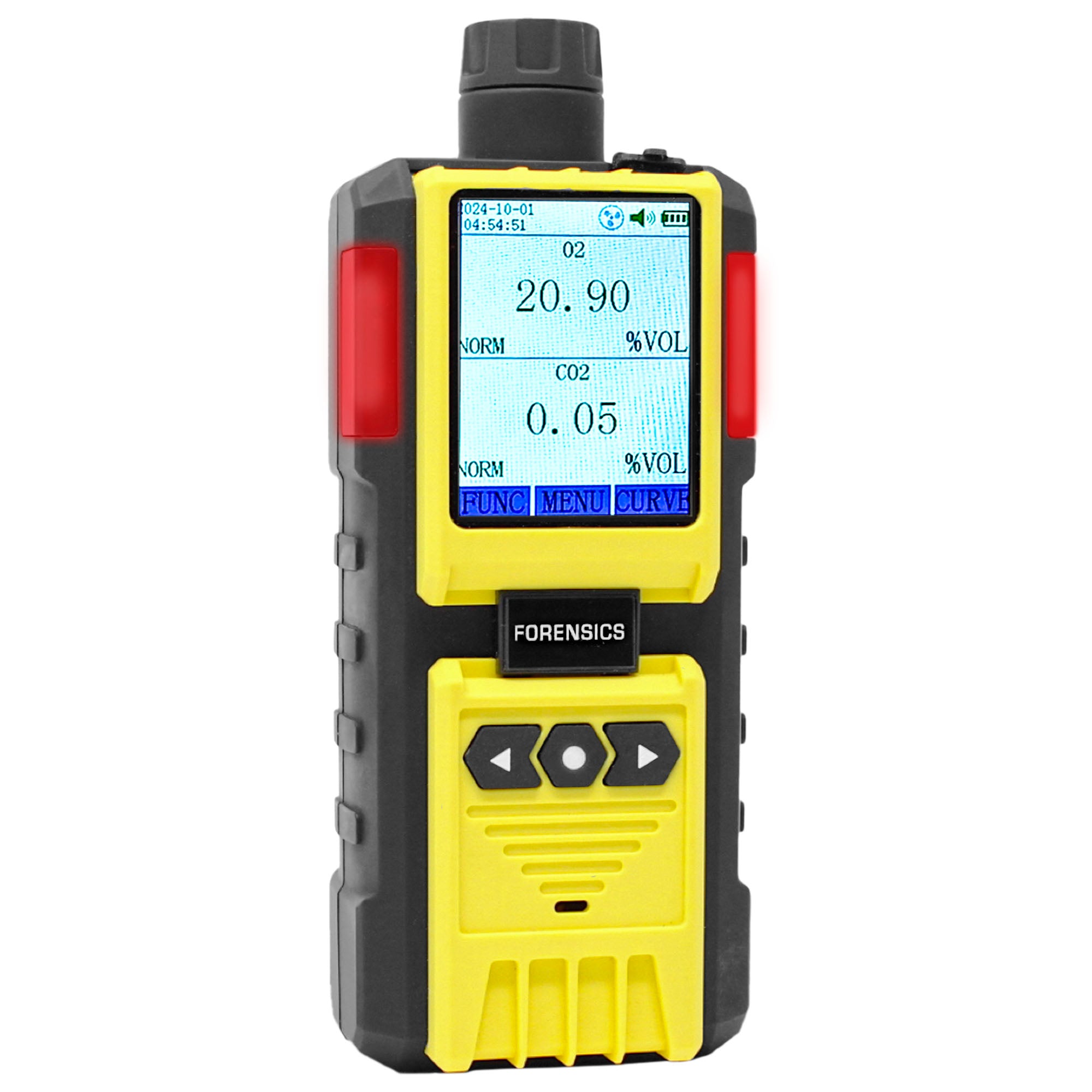

Details: Our CO2 and O2 analyzer is the perfect solution to an easy-to-use incubator analyzer. This unit will verify the O2 and CO2 levels in your incubator to make sure your incubator is operating to specifications. Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. Insert the tube into your incubator sample port and the other end into the analyzer. Within 60 seconds, you will be able to determine the levels of O2 and CO2 in your incubator. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced electrochemical oxygen sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control.

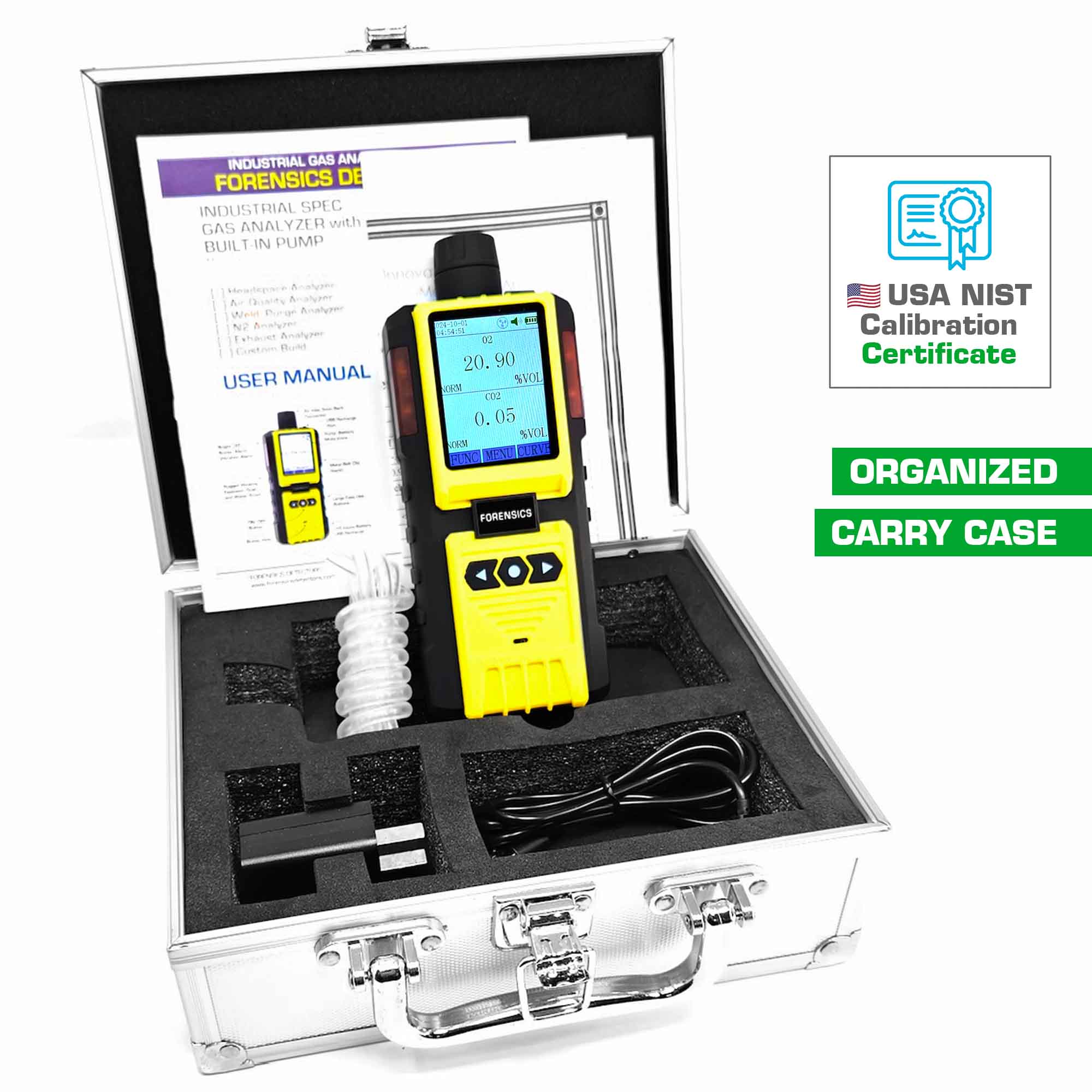

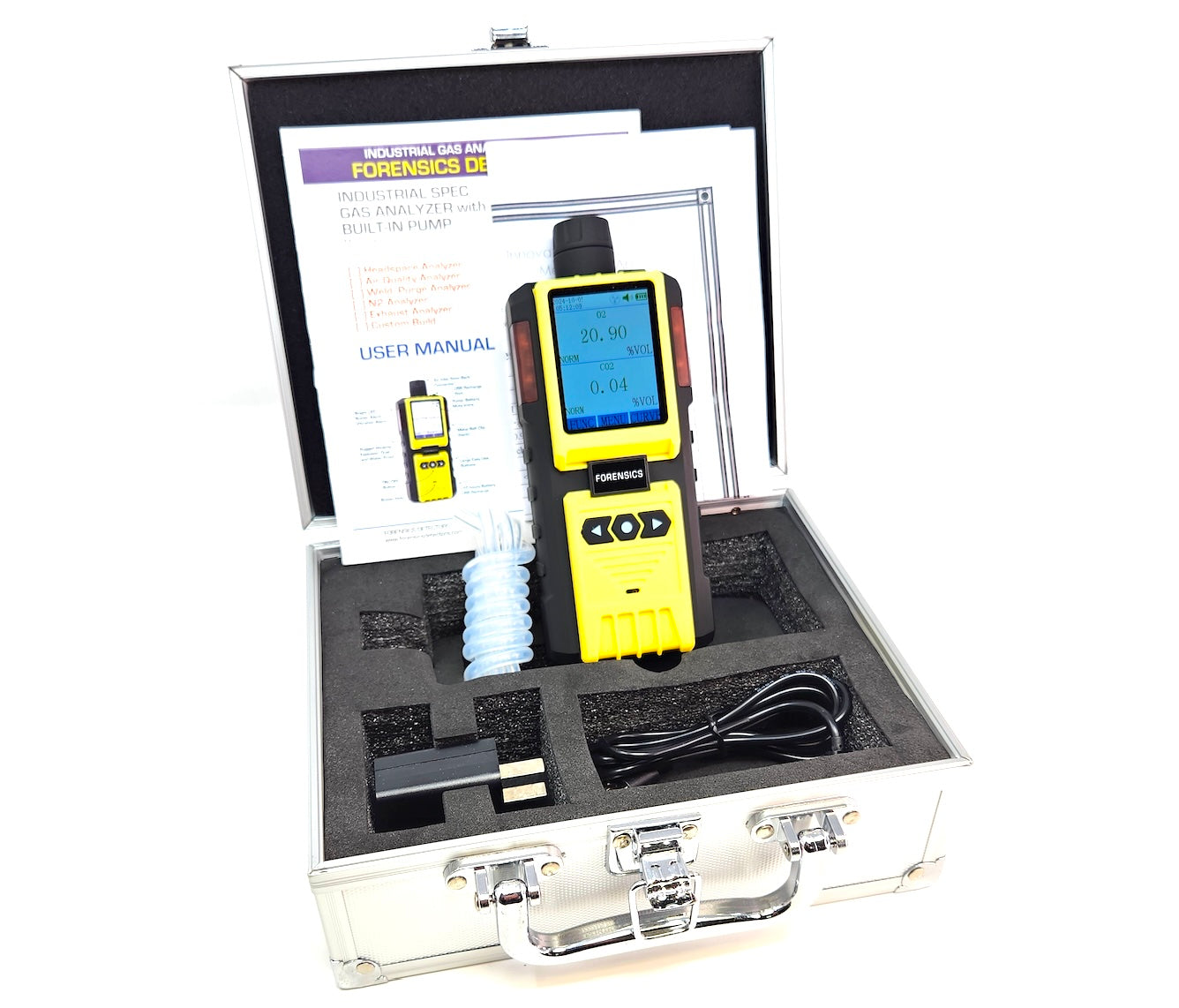

Included: O2/CO2 analyzer and magnet back, English user manual, USA NIST calibration certificate, USB charging cable, Tube and Barb Coupler, charger, and tubing.
Calibration Kit (sold separately):
Calibration T-piece & Tubing
Calibration Gas (CO2 balanced in N2)
Calibration Gas Regulator (C10)
Bump Gas (CO2 balanced in N2)
Accessories and Parts (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Waterproof Case
Gas Detector Stand
Moisture Filter (when testing >50RH%)
Calibration Service (sold separately):
Gas Detector Calibration Service (multigas)
Specifications
Oxygen (O2) detection: 0 - 30% with 0.01% resolution (electrochemical sensor cell)
Carbon dioxide (CO2) detection: 0 - 10% with 0.01% resolution (NDIR sensor)
Error: ≤ ± 3% F.S.
Response time: ≤ 60 sec
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas sensor life: 2 - 3 years (O2 sensor), > 5 years (CO2 sensor)
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST traceable reference gas
Recommended Calibration Period: 12 months
Explosion-proof grade: Ex ib IIB T4 Gb
Protection Grade: IP65
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge time: 4 hours
Operating time: > 10 hours
Pump rate: 0.1 LPM - 0.3 LPM (100 - 300 cc/min)
