Headspace Analyzer | CO, O2, CO2

  • Sale
  • $1,495.00
  • Regular price $2,990.00

Data Logging: Click Here
User Manual:
Click Here
Blog Article: Click Here


  • 🎆 MAP USES: Packaged products such as Meat, poultry, and fish. USA NIST traceable calibrated in Los Angeles, CA, USA.
  • 🌈 COLOR DISPLAY: Graph functions. Computer data logging.
  • 📲 BATTERY: USB recharge for light, handheld instrument. Arrives with syringes, filters, Luer lock connectors, and 100 septa.
  • 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-proof, and explosion-proof exceeding Exib IIB T4 Gb.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

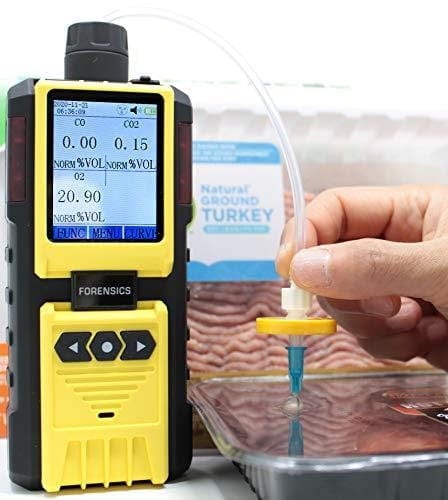

Details: This analyzer detects the three most common MAP gases, which are O2, CO2, and CO. It is the most affordable and easy-to-use headspace analyzer that does not break the bank with intuitive usage. Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. Simply insert the needle tip of the probe into the food pack through a septa seal pad. The septa device provides a tight seal and prevents air from leaking into the package through the puncture hole. With full user control, the built-in pump draws in the small or large quantity of sample air required for analysis. The pump can be turned off at any time to sample the right amount of air, as packaging headspace varies from product to product. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced electrochemical high-range CO sensor, an electrochemical O2 sensor, and an advanced NDIR CO2 cell. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. Typical testing takes less than 30 seconds.

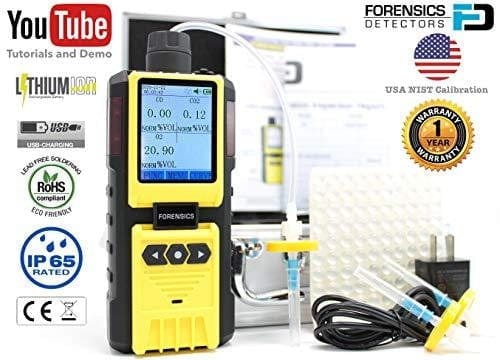

Included: CO/CO2/O2 MAP. headspace analyzer and magnet back, English user manual, USA NIST calibration certificate, USB charging cable, charger, 2 x needles, 2 x filters, 100 x adhesive septum, and tubing with Luer lock connectors.

Calibration Kit (sold separately):
Calibration T-piece & Tubing
Calibration Gas (High CO Gas 5000ppm 0.5%)
Calibration Gas (CO2 balanced in N2)
Calibration Gas Regulator (C10)
Bump Gas (CO2)
Bump Gas (CO)

Accessories and Parts (sold separately):
Gas Detector Waterproof Case
Gas Detector Stand
Headspace Kit, Needles, Filters, Tubing, Septa
Gas Sensor Replacement (O2)
Gas Sensor Replacement (CO2) (email us)
Gas Sensor Replacement (CO) (email us)

Calibration Service (sold separately):
Gas Detector Calibration Service (multigas)


Carbon monoxide (CO) detection: 0 - 1% with 0.01% resolution (100 ppm), Error ≤ ± 5% F.S.
Oxygen (O2) detection: 0 - 30% with 0.01% resolution, Error: ≤ ± 3% F.S.
Carbon dioxide (CO2) detection: 0 - 100% with 0.01% resolution, Error: ≤ ± 3% F.S.
Response time: ≤ 20 sec
Operational temperature: 14F - 122F, < 95% RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas sensor life: 2 - 3 years
Recommended calibration period: 6-12 months
Explosion-proof grade: Ex ib IIB T4 Gb
Protection Grade: IP65
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge time: 3 hours
Operating time: > 10 hours
Pump rate: 0.1 LPM - 0.3 LPM (100 - 300 cc/min)
