Brand: FORENSICS DETECTORS
Model: FD-103-O2-HIGH
User Manual: Click Here
Blog Article: Click Here
Features:
- 🎆 DETECT: Full range 0-100% O2 purity check for O2 machines or tanks.
- 🔋 LIFE: 9V lithium battery, and 2-3 year sensor life.
- ⚛️ TEST: Dome compatible with tank Yoke or DIN valves.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

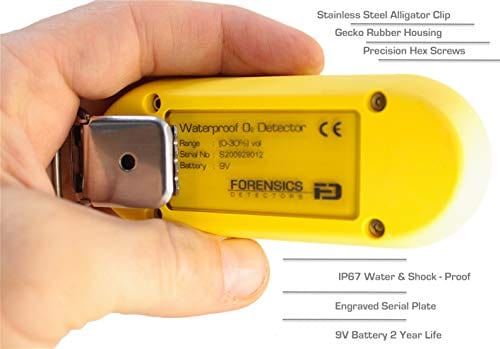

Details: A robust oxygen analyzer built to test full-range 0-100% O2 purity for O2 machines or compressed tanks. Comes with a dome fitting that is compatible with Yoke/DIN valves. IP67-rated waterproof and shockproof (20ft drop) makes it a robust unit for outdoor use. Comes with an installed 9V lithium battery, 2-3 year sensor lifespan, calibration/QA certificates, and 1-year warranty. USA-tested and verified. Professional reliability meets rugged durability—the trusted choice for oxygen monitoring in demanding environments.

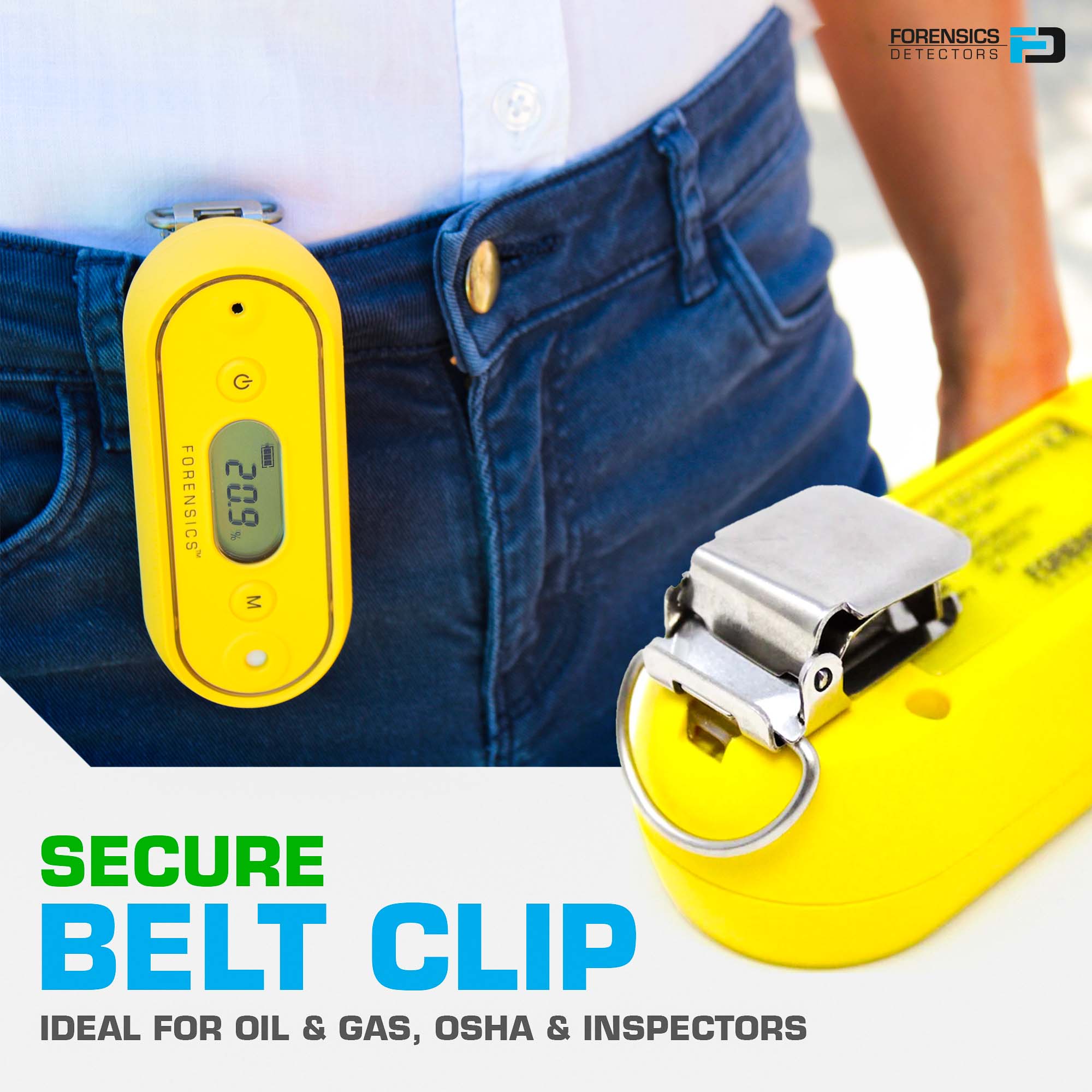

Included: Oxygen analyzer, English manual, rubber dome, calibration cap, and a metal alligator belt clip. Arrives with NIST USA calibration certificate.
Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)
Calibration Kit Items (DIY sold separately):
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Bump Gas (N2)
Tubing
Other Accessories (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Pump and Probe
Specifications
Oxygen (O2) Detection: 0 - 100% with 0.1% resolution
Response Time: 60 sec
Error: Better than +/- 5% full scale
Display: Bright backlight, high contrast LCD
Operating Temperature: 0 - 130F
Operating Humidity: < 95% RH non-condensing
Gas Sensor Type: Electrochemical Gas Sensor
Sensor Life: 2-3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Weight: about 5.3 oz(including battery)
Dimensions: 110 mm × 45 mm × 31 mm
Protection Category: IP67
Certification: CE
