Brand: FORENSICS DETECTORS
Model: FD-60-VOC
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation

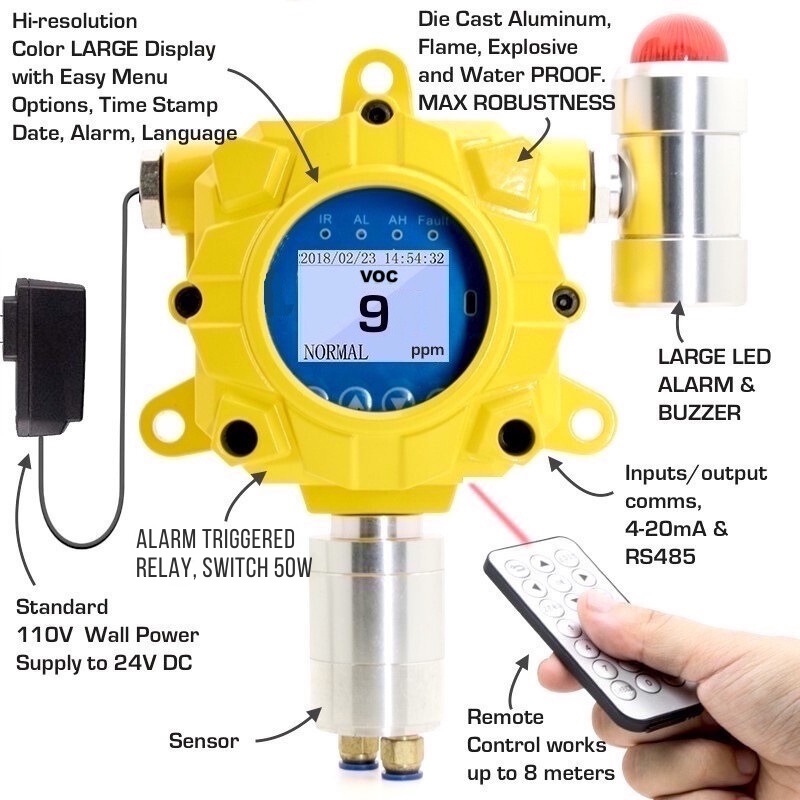

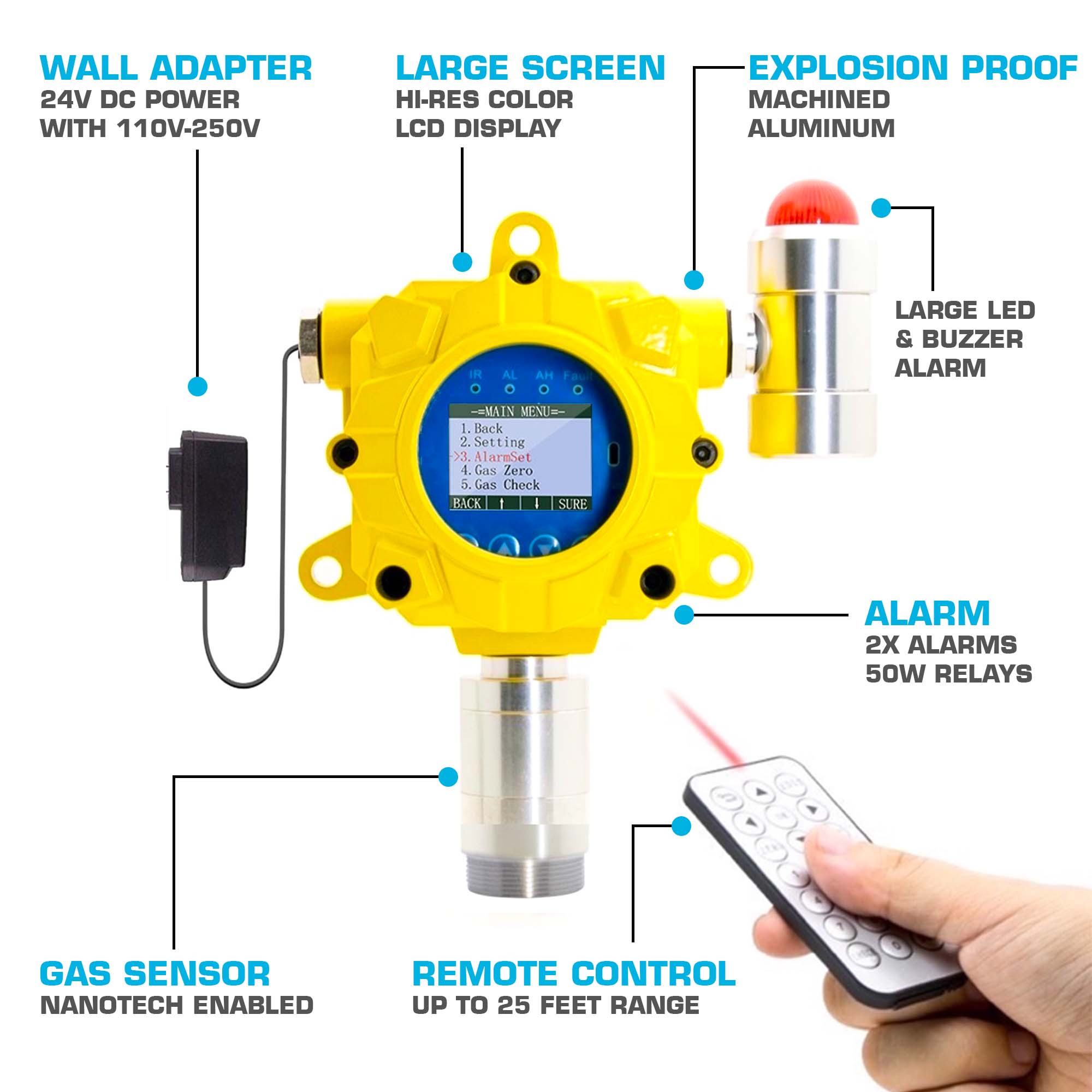

Features:
- 🚀 INDUSTRIAL: Heavy-duty fixed VOC gas detector, range 0 - 100ppm. Electrochemical sensor. Comes FACTORY-CALIBRATED.
- 🌎 USE: Alarm output to 2 x relay alarm-triggered switches to control fans or ventilation units.
- 🎆 FEATURES: Large LED alarm and buzzer.
- 💪 ROBUST: Dust-proof, water-resistant, and flameproof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

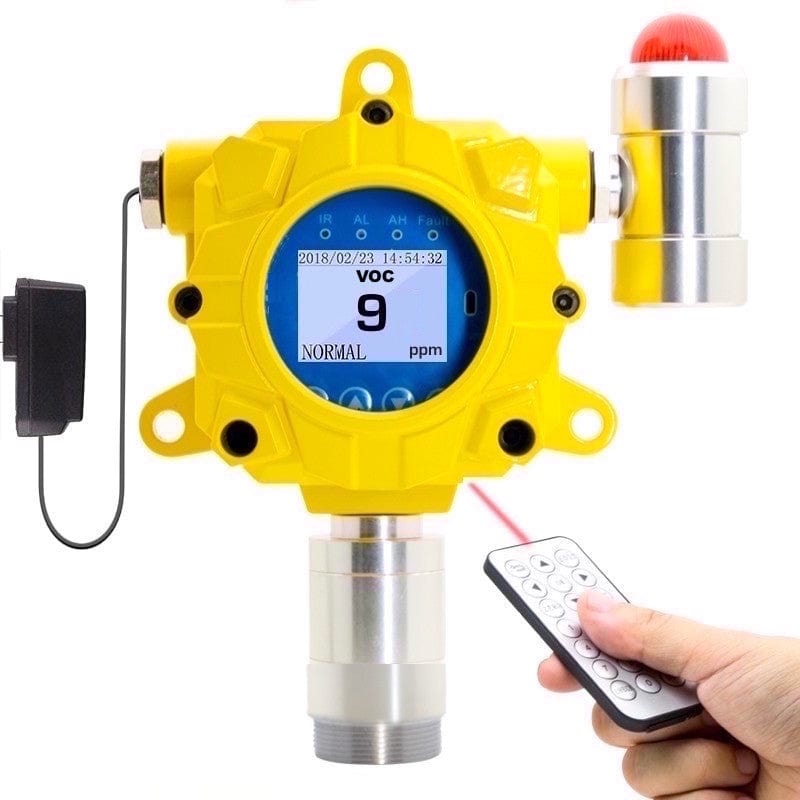

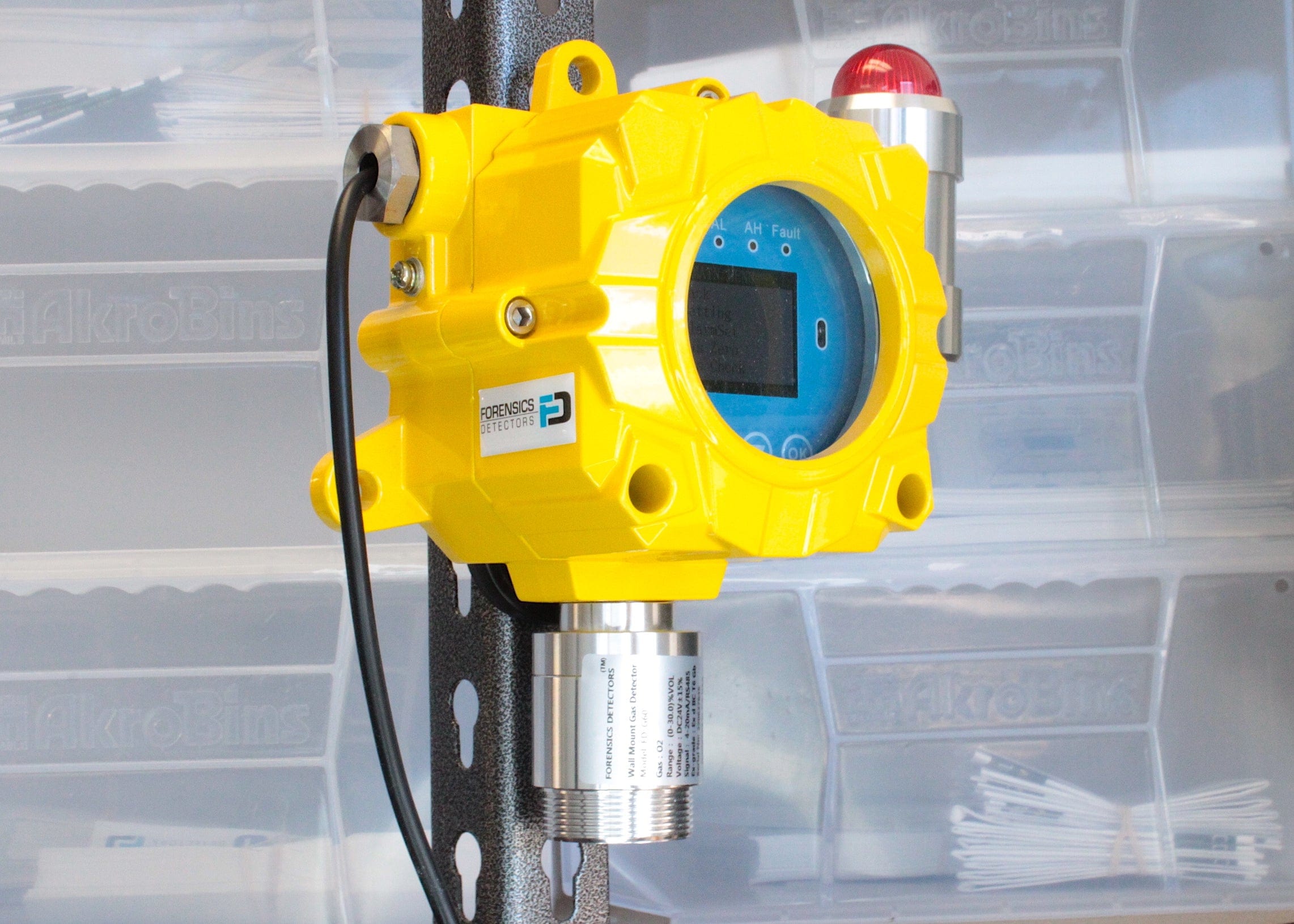

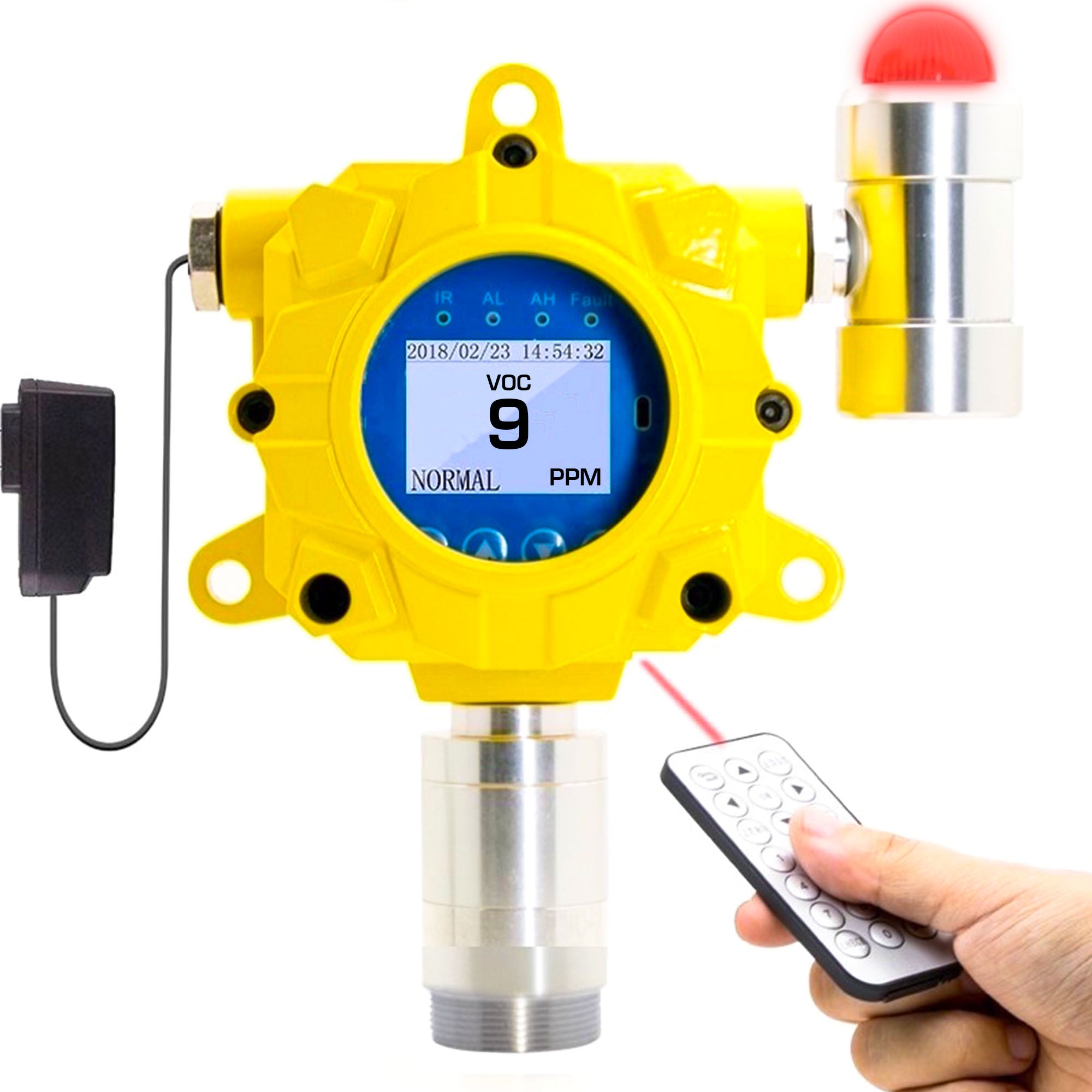

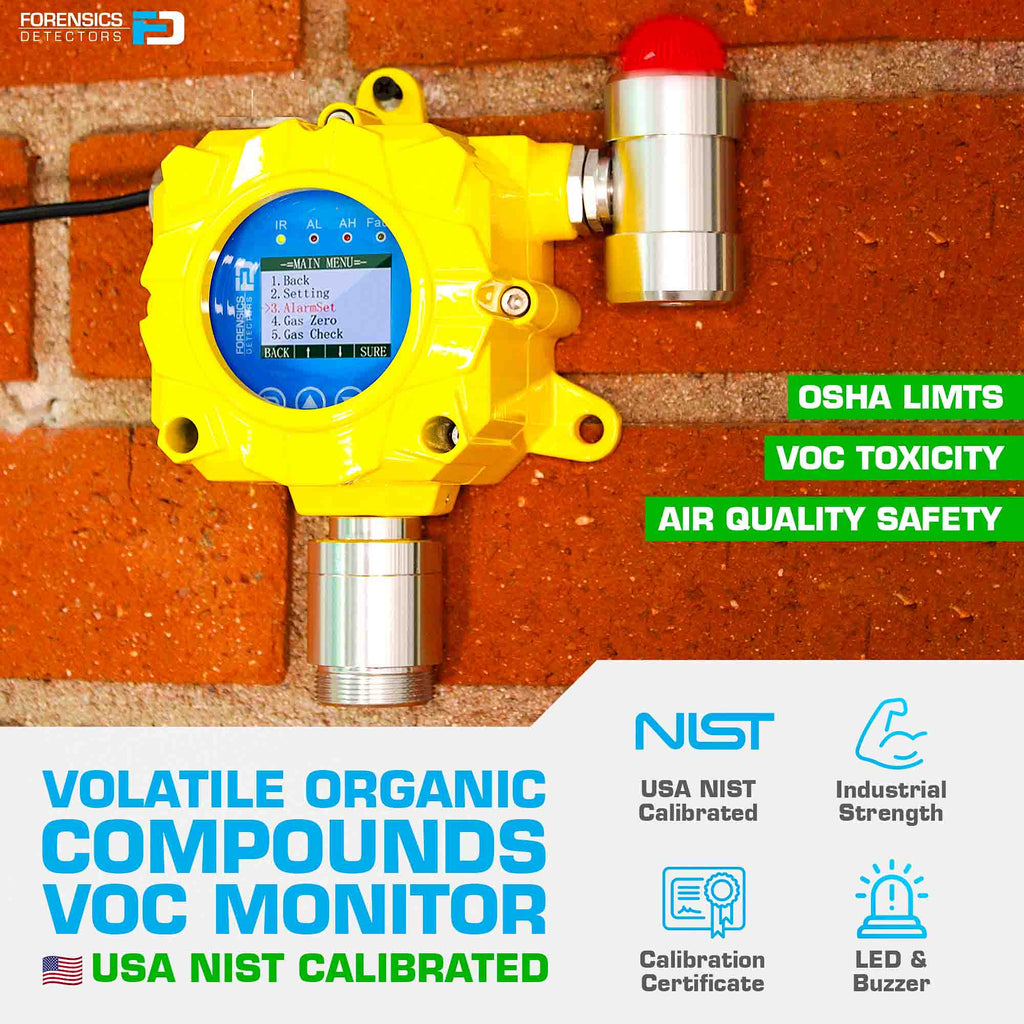

Details: This is the Forensics Detectors heavy-duty, wall-mounted Volatile Organic Vapors (VOC) gas detector for continuous indoor monitoring. The fixed detector can switch on/off electrical equipment up to 50W each relay power by setting low and high alarms to trigger relays, perfect for fan control, ventilation control, and other devices. High precision for accurate monitoring within an indoor space, industrial, small business, manufacturing, cleanrooms, research and development, VOC exposure control, and occupational safety applications. Equipped with a VOC electrochemical sensor and comes factory-calibrated.
Volatile organic compounds are released from a number of common household products such as paints and refrigerants. They can cause many negative health effects in humans and are known air pollutants-- particularly for indoor air, but they do have a known effect on outdoor air as well. Volatile organic compounds, VOCs, are chemical compounds that are known to possess certain properties, including high vapor pressure and low water solubility. Most VOCs are produced by humans as gases and are used as industrial solvents. Specific ways they are produced include the manufacturing of paints, pharmaceuticals, and refrigerants.
For those that just require a more basic VOC meter without the advanced multigas detector function, we recommend our FD-90A-VOC. For those requiring a handheld VOC meter with a built-in pump, we recommend our FD-600-VOC.
An example list of VOCs the analyzer detects is here.

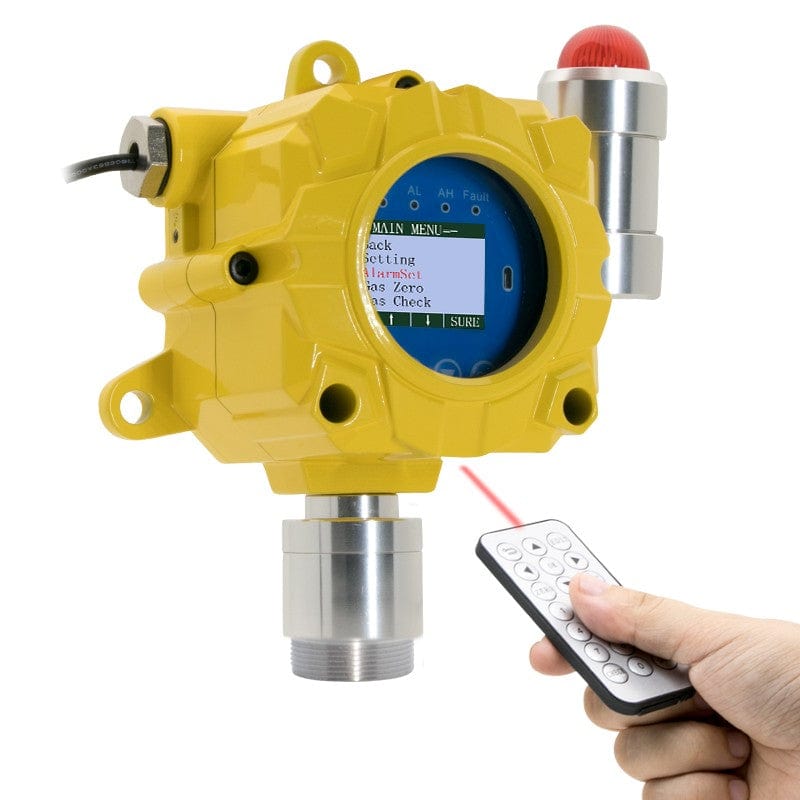

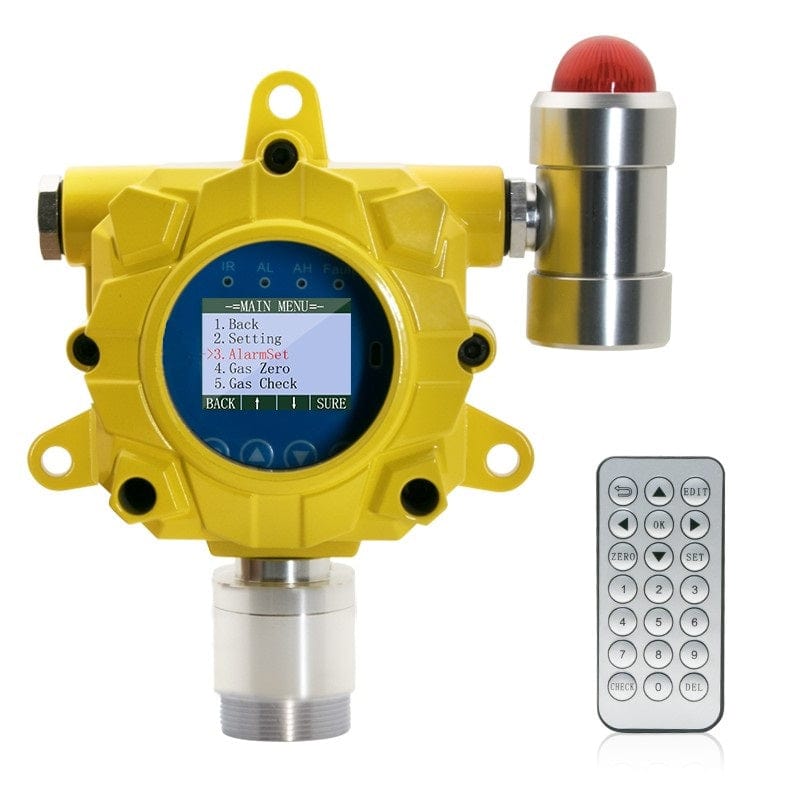

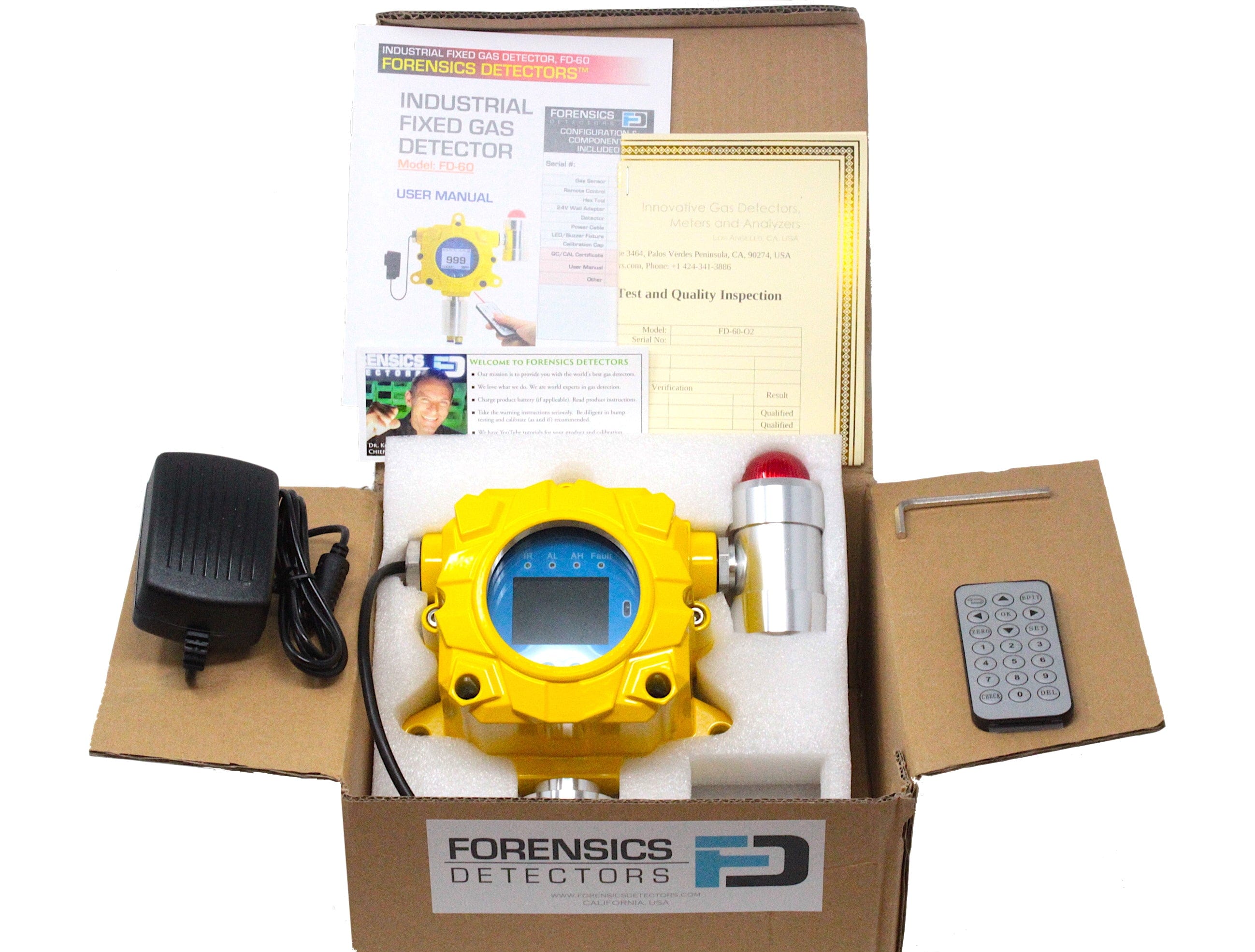

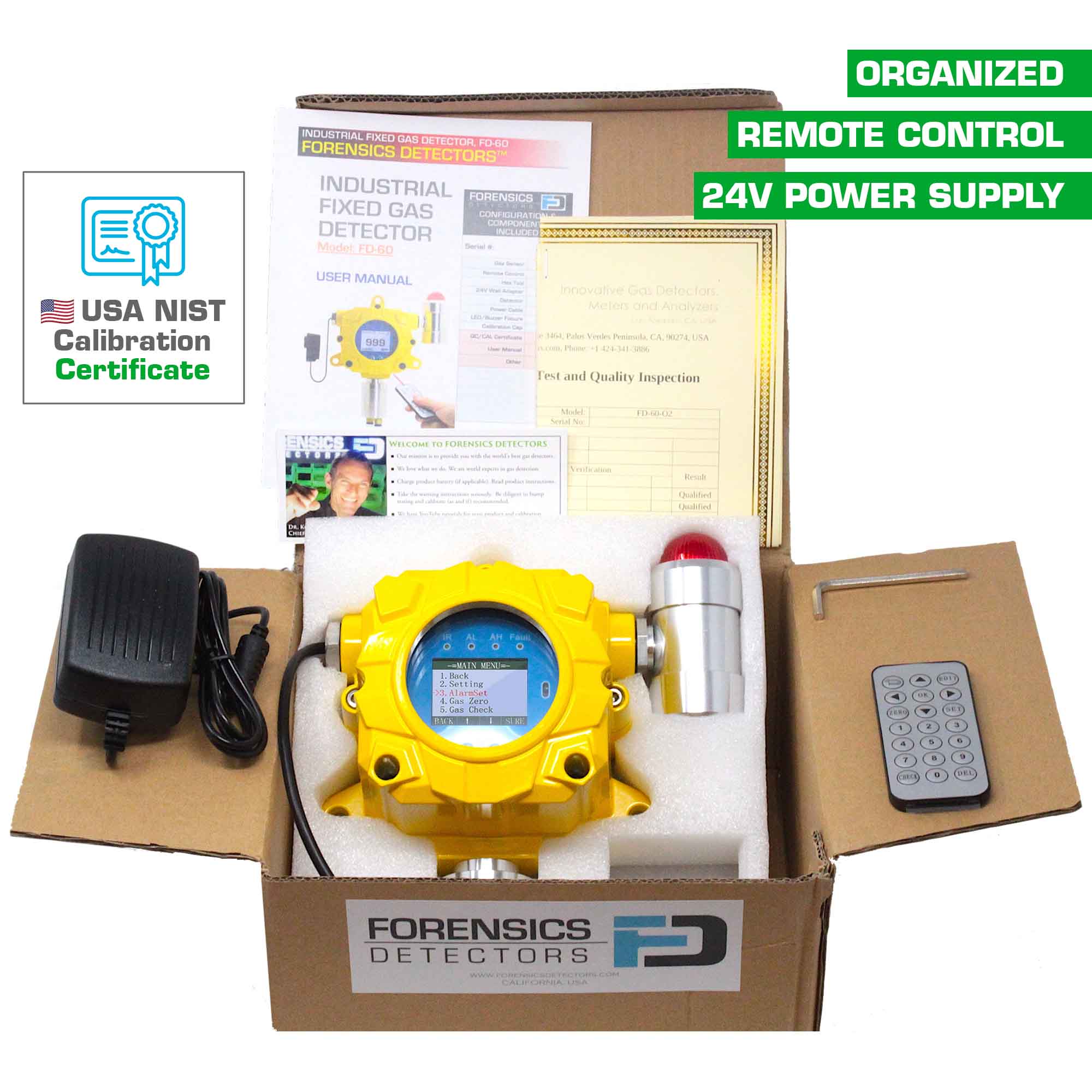

Included: Comes with the fixed gas detector, user manual, remote control with battery, hex key to remove the cover, 24V power adapter to plug into a 110V outlet, and wiring. Arrives with a certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (VOC)
Calibration Gas Regulator (C10)
Calibration Cap
Bump Gas (VOC)
Tubing
Accessories (sold separately):
Air Sampling Pump Kit
Alarm Extension Fixture
Gas Sensor Replacement (VOC) (email us)
Specifications
VOC Detection: 0 - 100 ppm, 1 ppm resolution
Gas Sensor: Electrochemical Sensor (Made in Germany 🇩🇪)
Gas Sensor Lifetime: 2 - 3 years
Sampling Method: Natural diffusion (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Digital Output Datalogging: RS485 MODBUS (🛠️ Setup Guide)
Analog Signal Output: 4 - 20 mA (▶️ Demo Video)
Error: ≤ ± 5% F.S.
Response Time: <60 seconds
Alarm: LED & Buzzer
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb (📋 PDF)
Protection Category: IP65
Power Supply: DC 24V ±15% (100–240V AC, 50/60 Hz)
Max Power Consumption: 20 W (LED ON and Buzzer ON)
Electrical Output: 2 x relay contacts, max power 50 W per relay

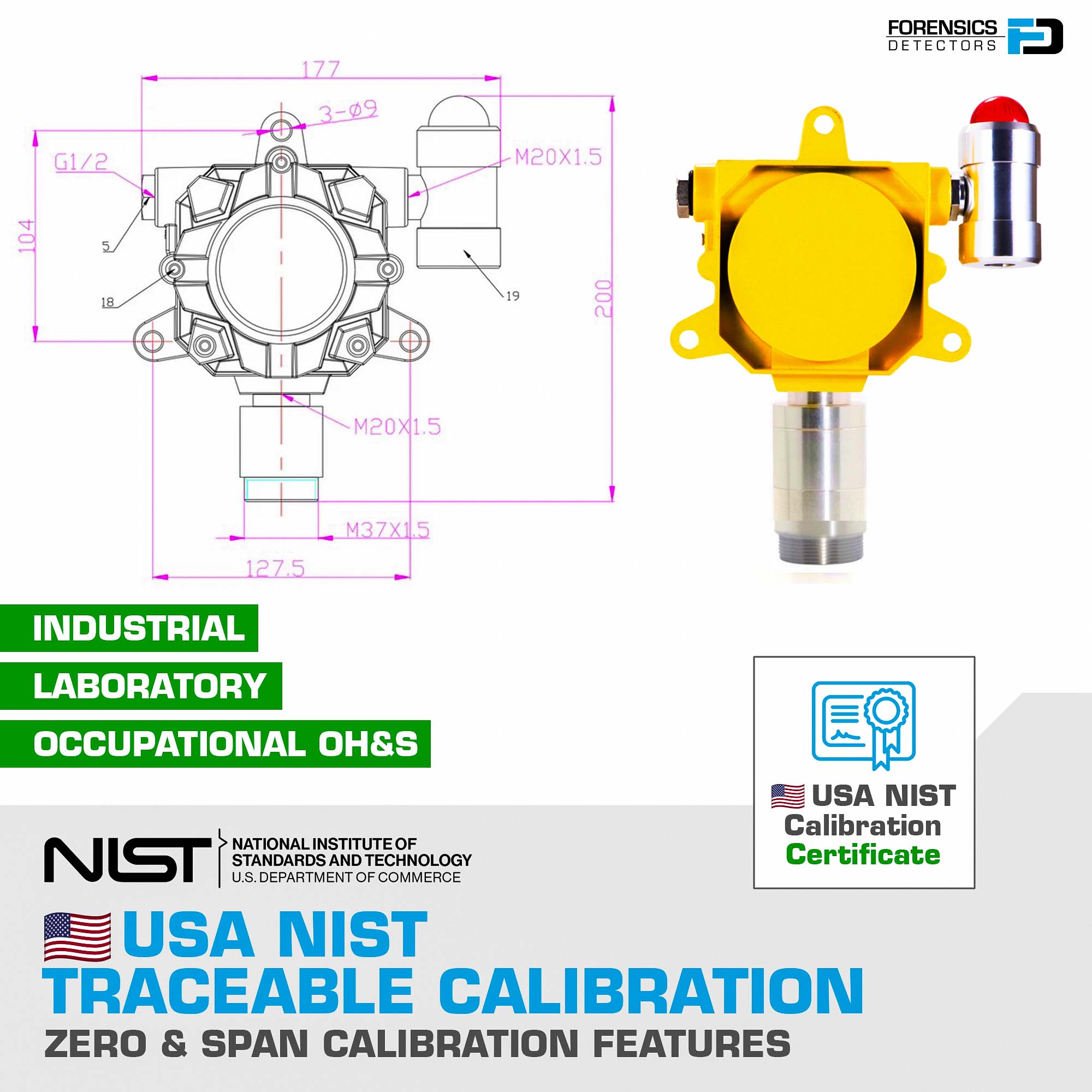

Dimensions: 7.9 × 7.1 × 3.5 inches (20 × 18 × 9 cm)
Weight: 3 lbs (1.4 kg)
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Housing Material: Die-cast aluminum alloy
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
