Brand: FORENSICS DETECTORS
Model: FD-600-VOC
Data Logging: Click Here
User Manual: Click Here
Blog Article: Click Here

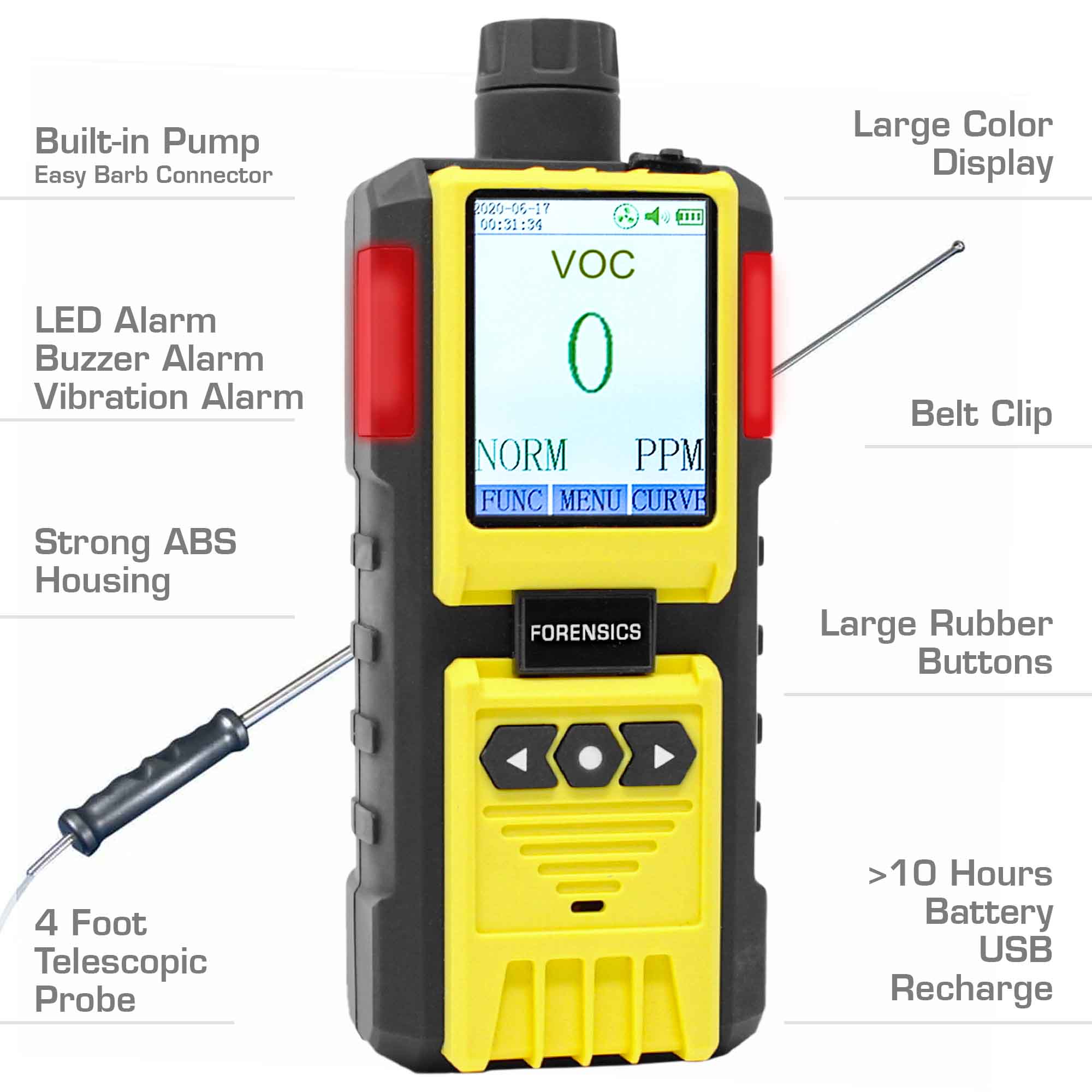

Features:
- 🎆 DETECT: Volatile Organic Compounds (VOC) measuring 0 -100 ppm with 1 ppm resolution with a built-in pump for super fast detection. Comes USA NIST traceable calibrated from Los Angeles, CA.

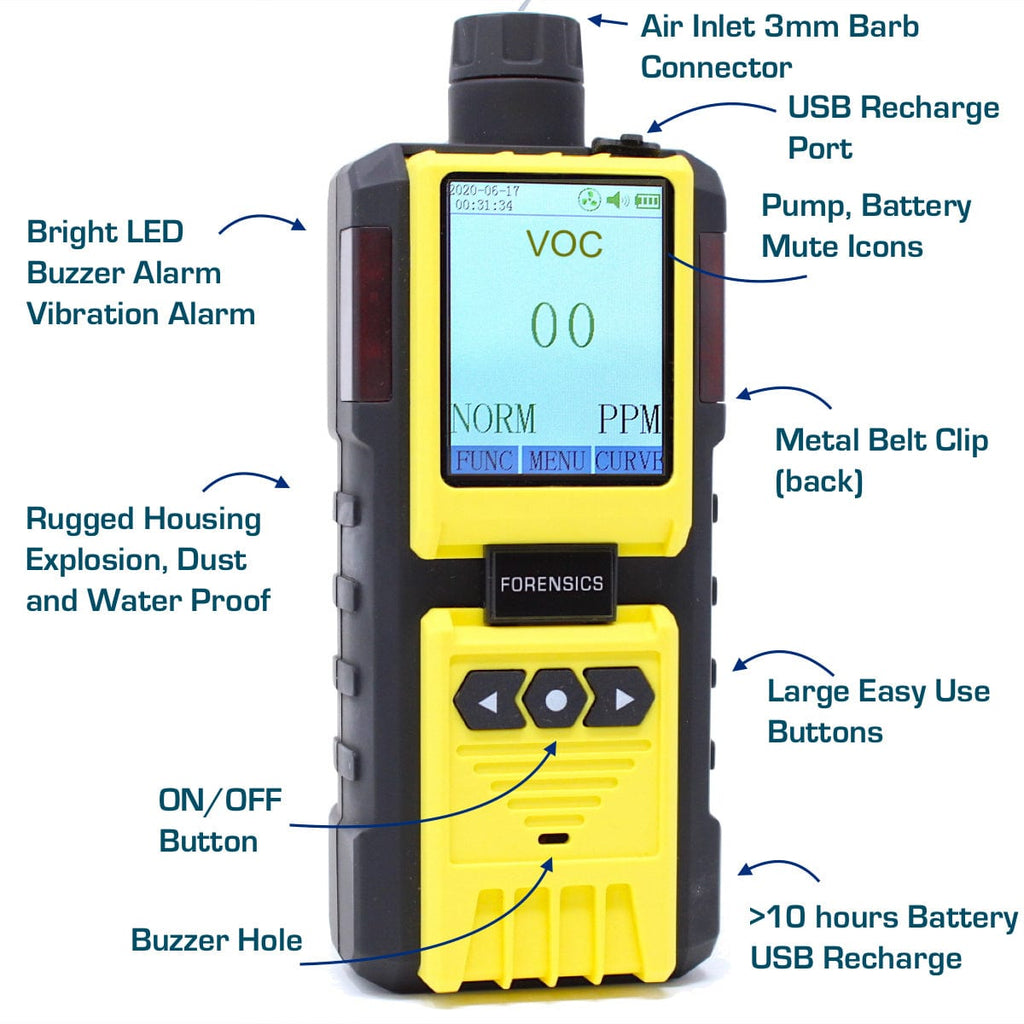

- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation. USB computer data logging included.
- 📲 ALARMS: The detector records alarm events with date and time stamps.
- 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof exceeding Exib IIB T4 Gb.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **
Details: The most professional Total Volatile Organic Compounds Analyzer by FORENSICS DETECTORS. Equipped with a VOC electrochemical sensor and comes factory-calibrated. The detection range of VOC gas is 0 - 100ppm within 30 seconds at an accuracy of +/- 5% full-scale and calibrated using NIST traceable isobutylene (CH2) gas. Comes factory NIST calibrated from Los Angeles, CA. The detector has a DC3.7V Li-battery 1500mAh that allows for over 24 hours of continuous use. Includes advanced features such as temperature detection, alarm recording, alarm setting, backlight high-resolution LCD, calibration features, and others.

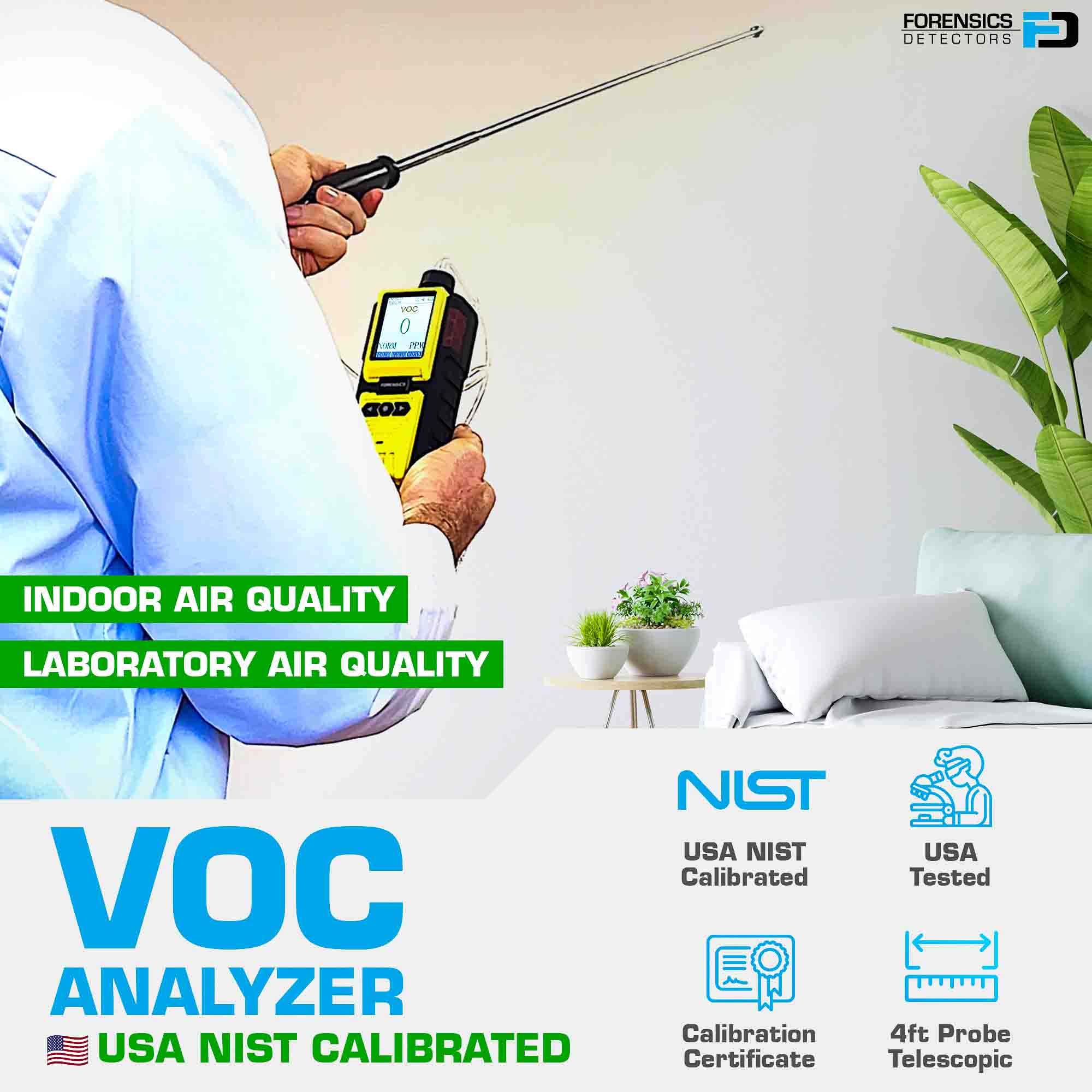

Volatile organic compounds are a common indoor pollutant. They are released from common household products such as paints, furniture, carpet, and plastics. They can cause many negative health effects such as headaches, fatigue, and nausea. VOCs are problematic gas pollutants in indoor air, car, bus, home, and office/work settings. VOC gas detectors are used to monitor the presence of VOCs and provide a quantitative measure of VOCs in ppm.

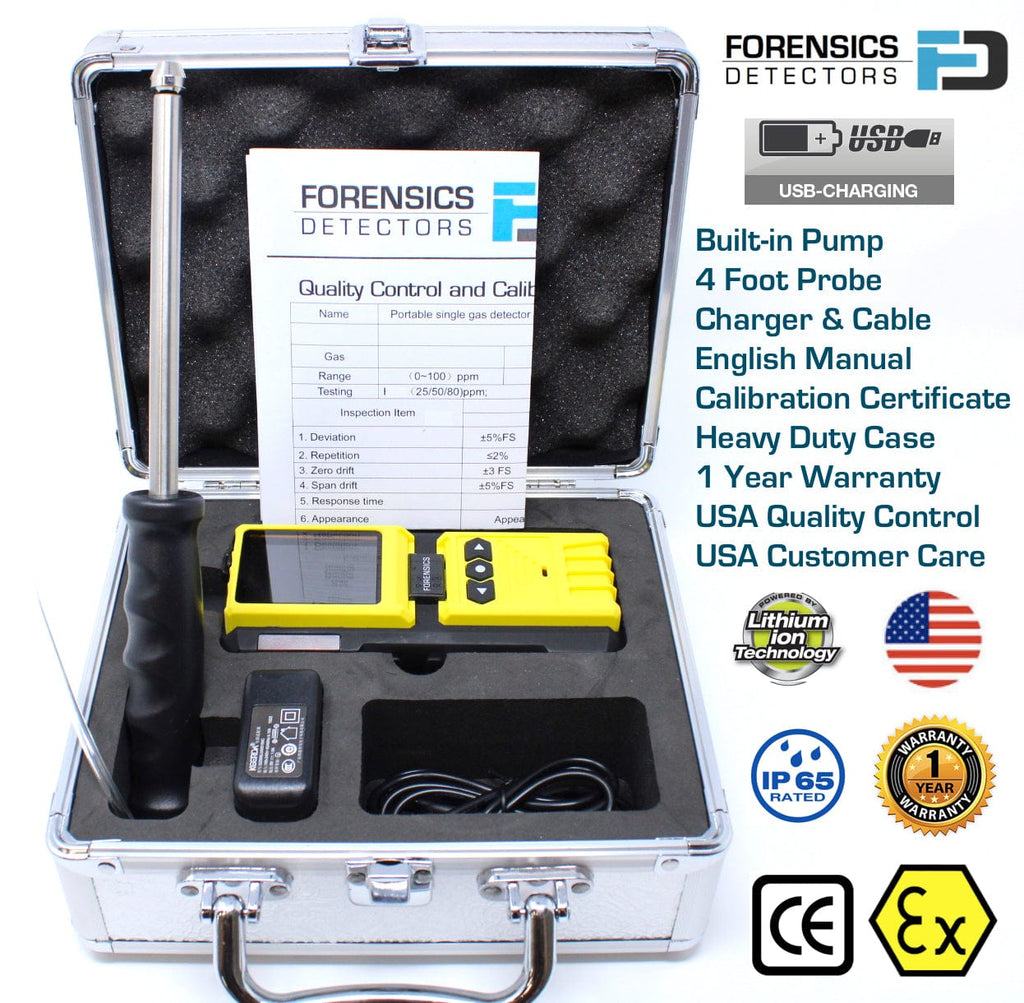

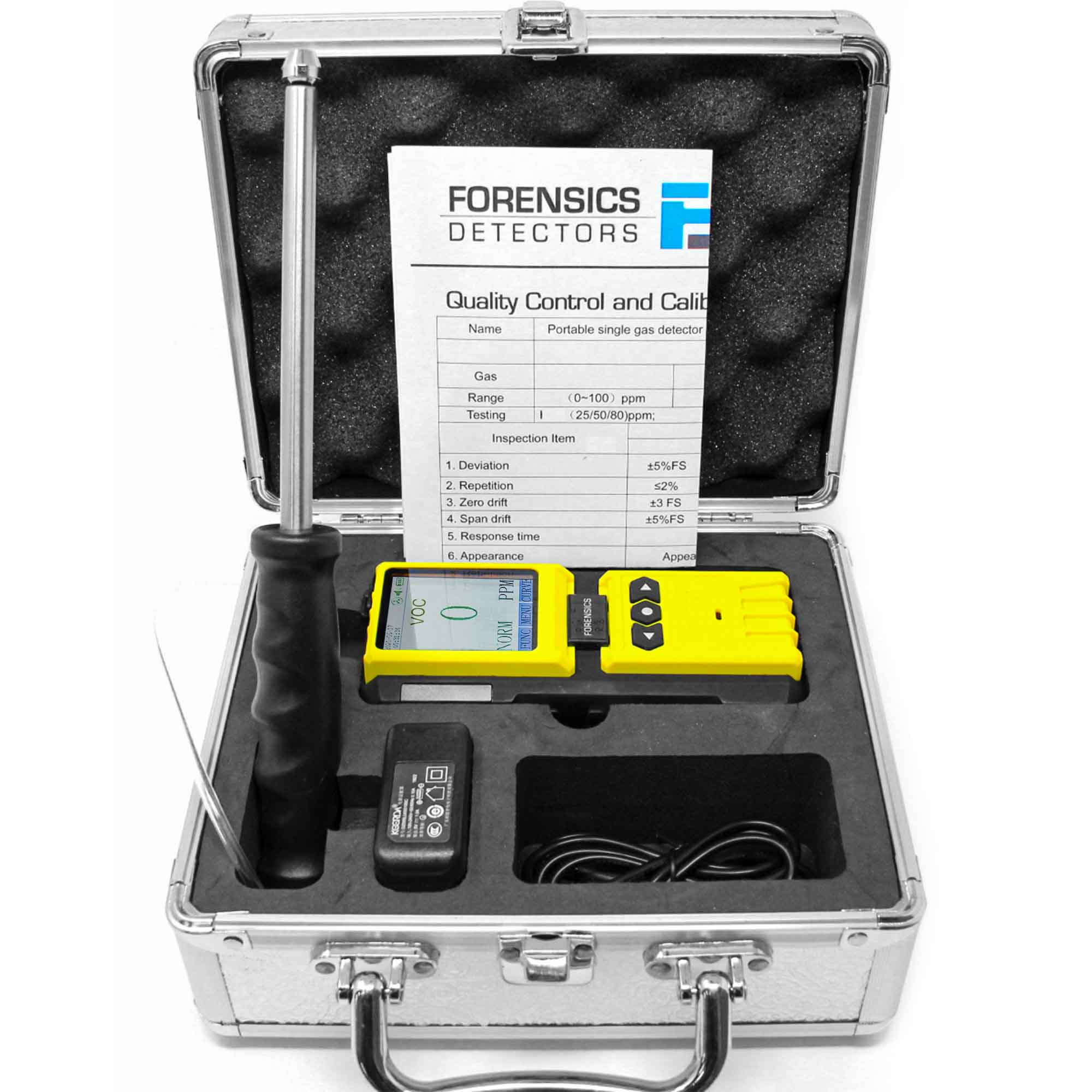

Included: VOC analyzer, English manual, USB charging cable, charger, analyzer case, stainless probe, tubing, and USA NIST calibration certificate.
Calibration Kit (Sold Separately):
Calibration Gas (VOC)
Calibration T-piece & Tubing
Calibration Gas Regulator (C10)
Bump Gas (VOC)
Accessories (sold separately):
Gas Detector Waterproof Hard Case
Gas Detector Stand
Gas Sensor Replacement (VOC) (email us)
Calibration Service (sold separately):
Gas Detector Calibration Service
Specifications
Volatile Organic Compounds (VOC) detection: 0 - 100 ppm with 1 ppm resolution

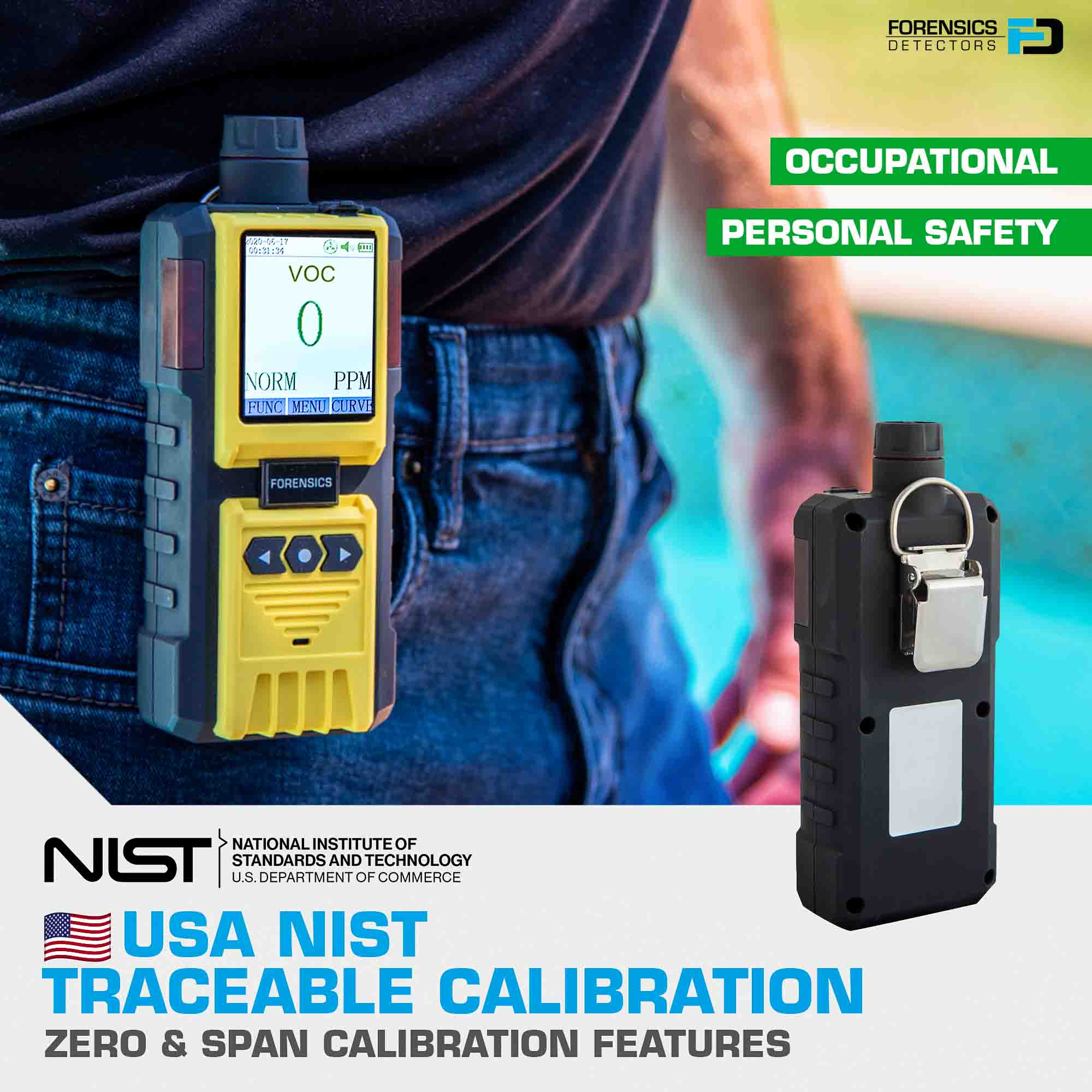

Comes factory calibrated to Isobutylene (NIST USA Traceable Sources)
Accuracy: ≤ ± 5% F.S.
Response time: ≤ 20 sec
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas sensor life: 2 - 3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended calibration period: 12 months
Explosion-proof grade: Ex ib IIB T4 Gb
Protection grade: IP65
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge time: 4 hours
Operating time: > 10 hours
