Ammonia Detector Wall Mount with USA NIST Calibration

Brand: FORENSICS DETECTORS
Model: FD-60-NH3
User Manual: Click Here
Blog Article: Click Here

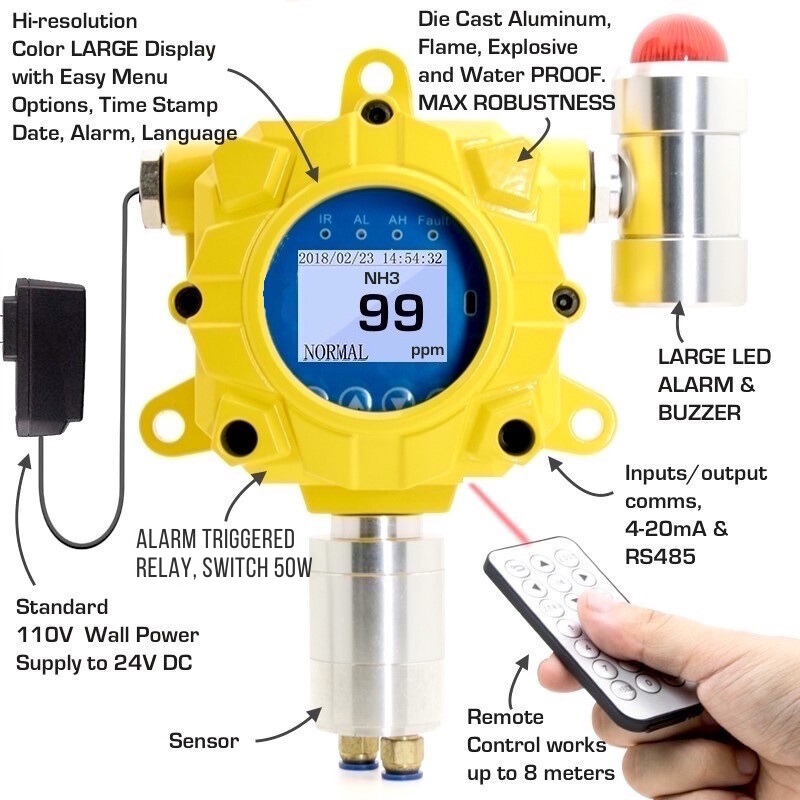

• 🚀 INDUSTRIAL: Heavy-duty fixed NH3 gas detector, range 0 - 100ppm. Electrochemical sensor and comes FACTORY-CALIBRATED.
• 🌎 USE: Remote control up to 8 meters. 2 x relay alarm triggered switches (50W each relay) to control fans, pumps, electrical items, garage doors, or additional alarms.
• 🎆 FEATURES: Large LED alarm and buzzer. Adjustable audio and visual.  Remote control. RS485 MODBUS Output and Analog Output (4-20 mA) for remote sensing and data logging.
• 💪 STRONG: Explosion, dust, water, and flameproof. Explosion-proof grade: Exd ⅡC T6 Gb with IP65 housing protection.
• 🕵️ TRUST: ** 1-year limited warranty ** Arrives with gas calibration and  certificate ** Product tested and verified in the USA ** 100% quality guaranteed **

Details: Heavy-duty, fixed ammonia gas detector for continuous detection to ensure wellness and safety for clean air inhalation. NH3 gas is used in farm fertilizers, commercial refrigeration, water purification, treatment facilities, chemical plants, and high-technology manufacturing. Perfect ammonia wall monitor to detect any ammonia gas leaks or ammonia gas accumulation in an indoor environment. These units are also often purchased by farms to ensure low ammonia levels for healthy animal and livestock living conditions. The detector can be triggered to turn ON/OFF electrical equipment up to 50W power by setting low and high alarms. These thresholds trigger 2 x 50W each relay, perfect for fan control, ventilation control, and other devices. Remote control up to 8 meters, analog output (4 - 20 mA), relay alarm triggered switches (50W each relay) to control fans, pumps, or additional alarms. The alarm includes digital time stamping and logging of 1,000 data points. If an ammonia handheld unit is required for continuous personal protection or spot checking we recommend our portable ammonia detector.

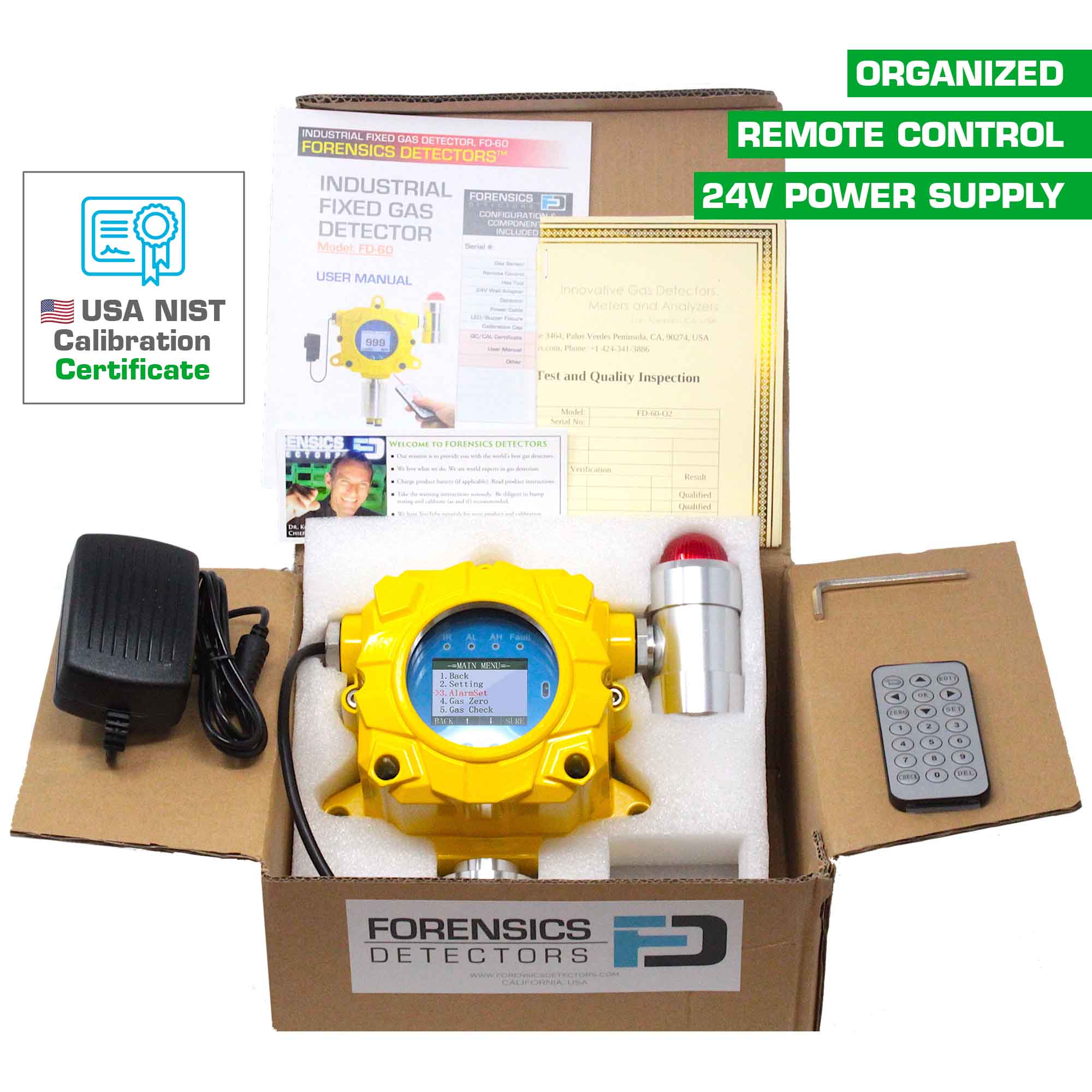

Included: Comes with the fixed gas detector, English manual, remote control with battery, hex key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring. Arrives with a USA NIST calibration certificate.

Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)

Calibration Kit (DIY sold separately):
Tubing
Calibration Gas (NH3)
Calibration Gas Regulator (C10)
Calibration Cap

Other Accessories (sold separately):
Gas Sensor Replacement (NH3)
Gas Detector Waterproof Case
Air Sampling Pump Kit
Alarm Extension Fixture

Specifications

NH3 Detection: 0 - 100 ppm, 1 ppm resolution
Error: < +/- 5% F.S
Gas Sensor Type: Electrochemical Gas Sensor
Sensor Lifetime: 2 - 3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb
Alarm: LED, Buzzer
Protection Category: IP66
Response Time: <60 seconds
Power Supply: DC 24V ±15%
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Electrical Output: 2 x relay contact output, max power 50W each relay
Communication: 4 - 20 mA and RS485

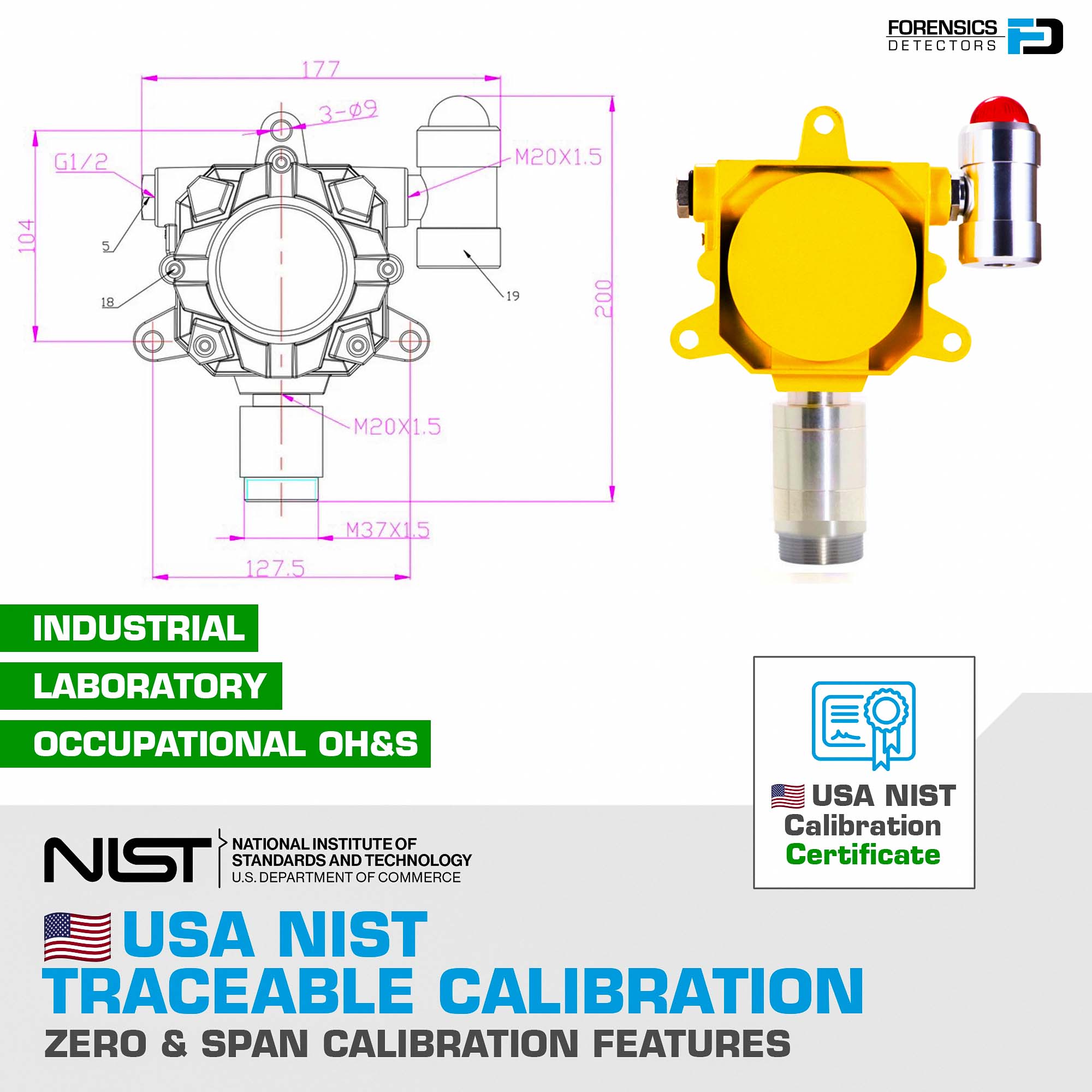

Dimensions: 200 mm x 180 mm x 90 mm (LxWxH)
Weight: 3 lbs
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
