Brand: FORENSICS DETECTORS
Model: FD-90A-CO2
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- ⚛️ DETECT: Single-gas detector for carbon dioxide, 0 - 100% with 0.1% resolution.
- 🔋ACCURACY: Dual-beam NDIR sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

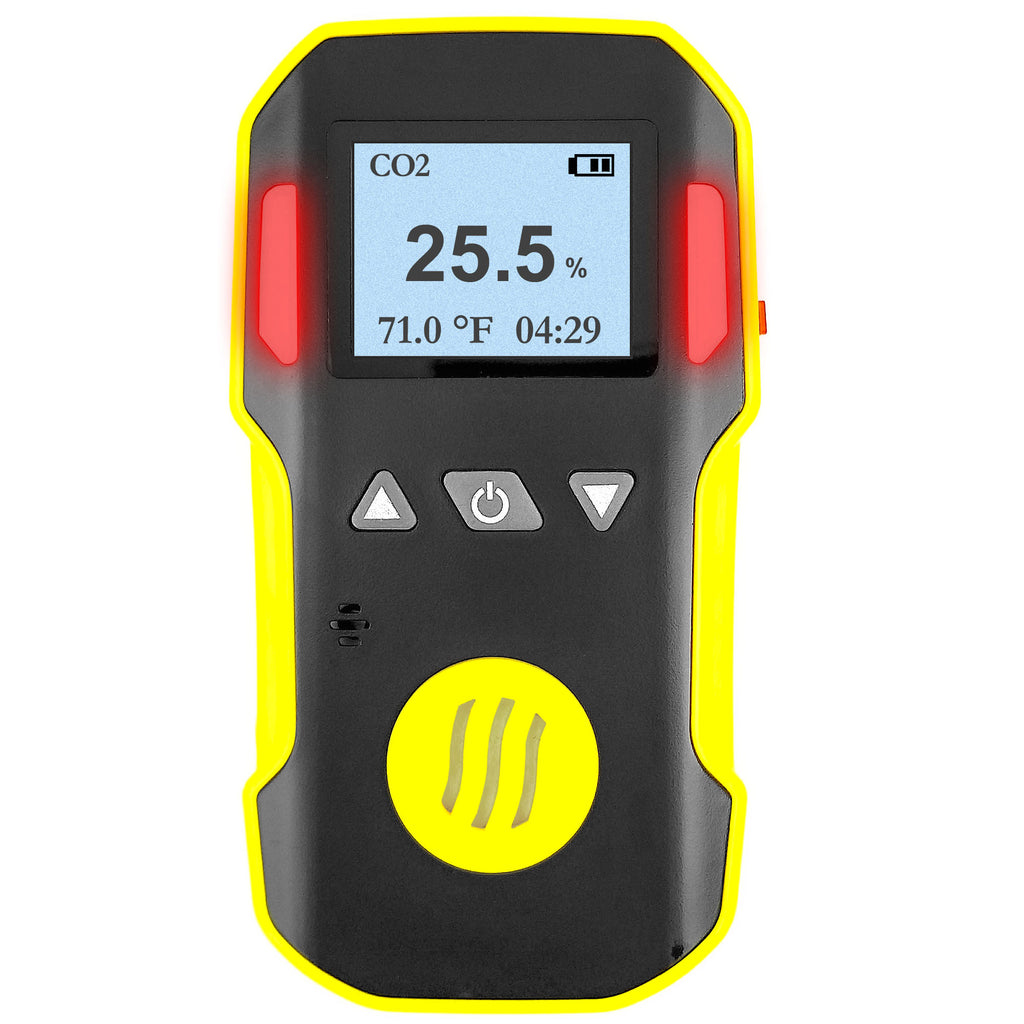

Details: Our professional carbon dioxide (CO2) detector by FORENSICS is the best in its class with advanced features. Constructed for professional industrial technicians who are looking to detect CO2 beyond basic ambient measurements. Perfect for CO2 measurement in tanks, storage rooms, fermentation processes, beer, and industrial processes. For those seeking a lower range, we recommend our 0-10% CO2 Analyzer. For those requiring ppm-level monitoring for indoor air quality, we have our 0-5000ppm CO2 Analyzer.

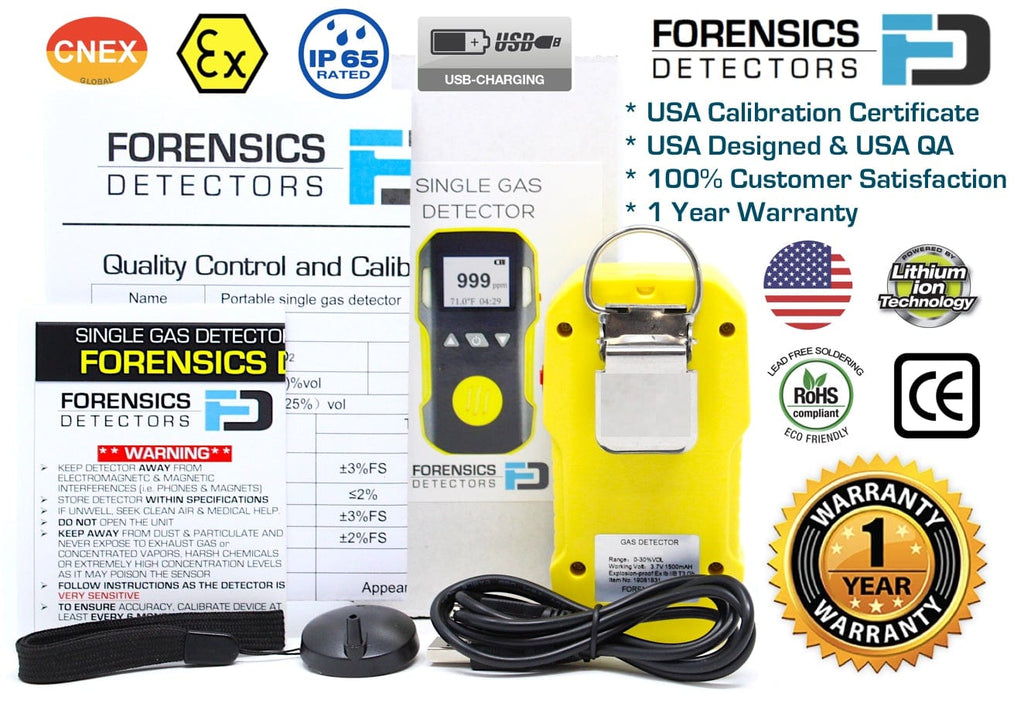

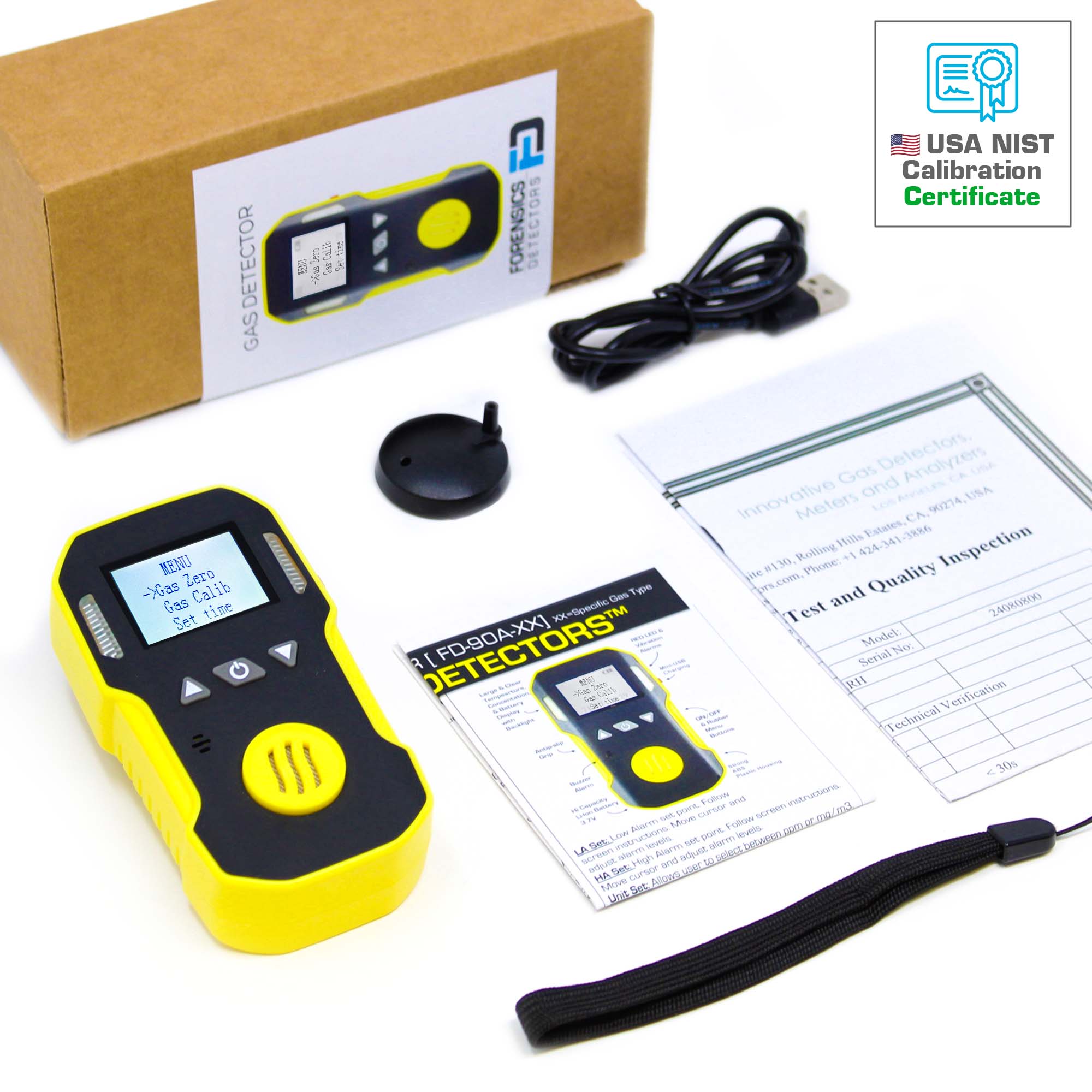

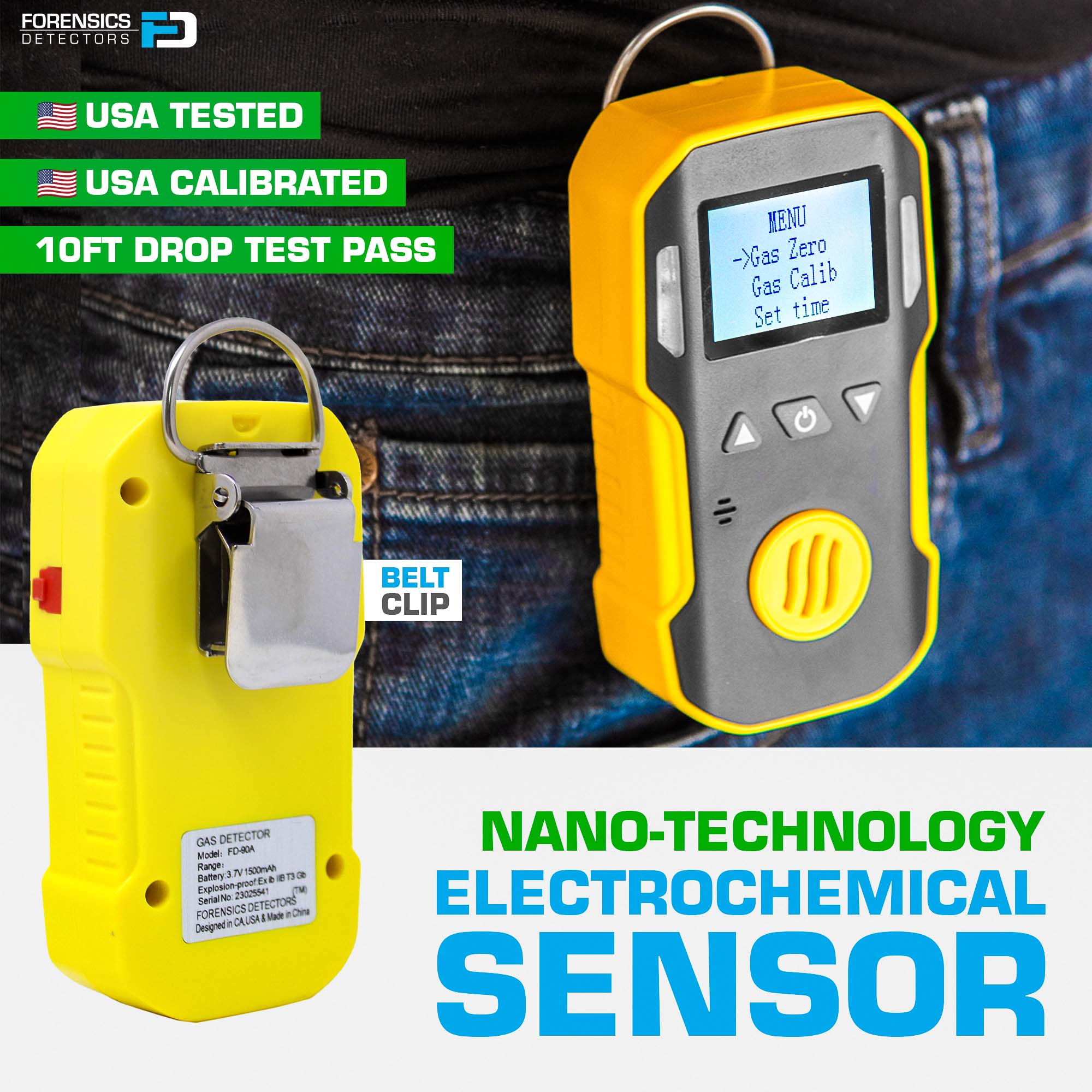

Included: CO2 gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (DIY sold separately):
Calibration Gas (CO2)
Calibration Gas Regulator (C10)
Tubing
Bump Gas (CO2)
Other Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Specifications
Carbon Dioxide (CO2) Detection: 0 - 100% with 0.1% resolution
Recommended Calibration Period: 12 months
Sampling Type: Diffusive (no pump). Optional external pump available.
Gas Sensor Type: NDIR Gas Sensor
Gas Sensor Life: > 5 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec

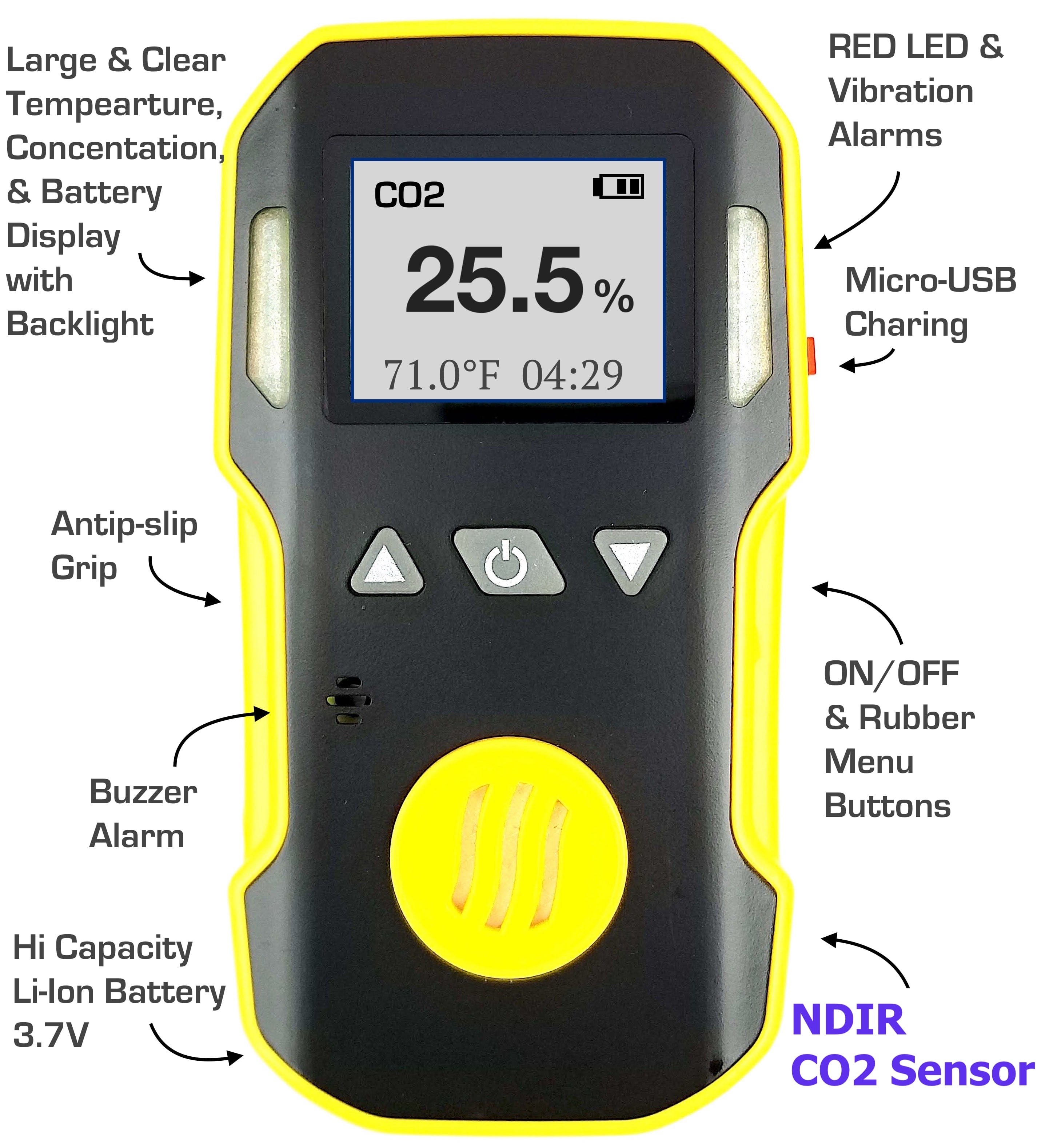

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Alarm: LED, Buzzer, and Vibration
Datalogging: No
Store / Operating Temp: 0°F - 122°F (-18°C to 50°C
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 4 hours
Explosion Rating: ATEX certified Ex ib IIC T4 Gb (PDF)
Weight: 5 oz / 140 g
Dimensions: 4.3 x 2.3 x 1.7 inches (10.9 × 5.8 × 4.3 cm)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
