Brand: FORENSICS DETECTORS
Model: FD-60-EX
User Manual: Click Here
Correcting %LEL Factors for Gases/Vapors: Click Here
Blog Article: Click Here

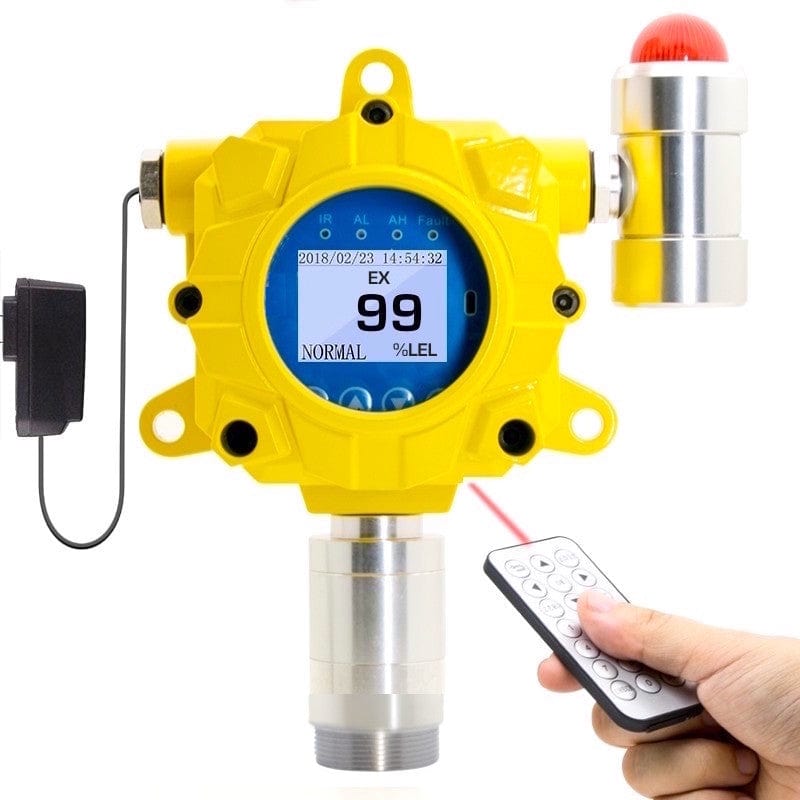

- 🚀 INDUSTRIAL: Heavy-duty fixed gas detector. Combustibles gases detection range from 0 - 100% LEL.

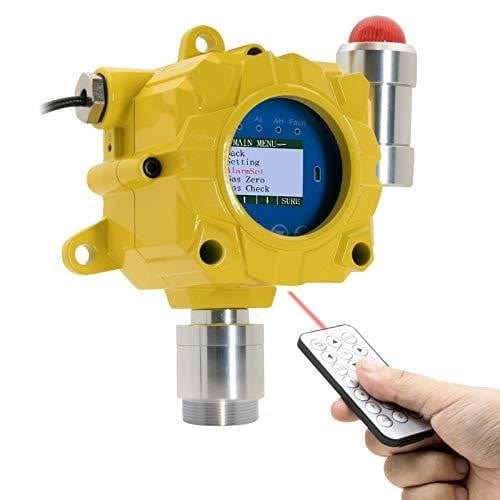

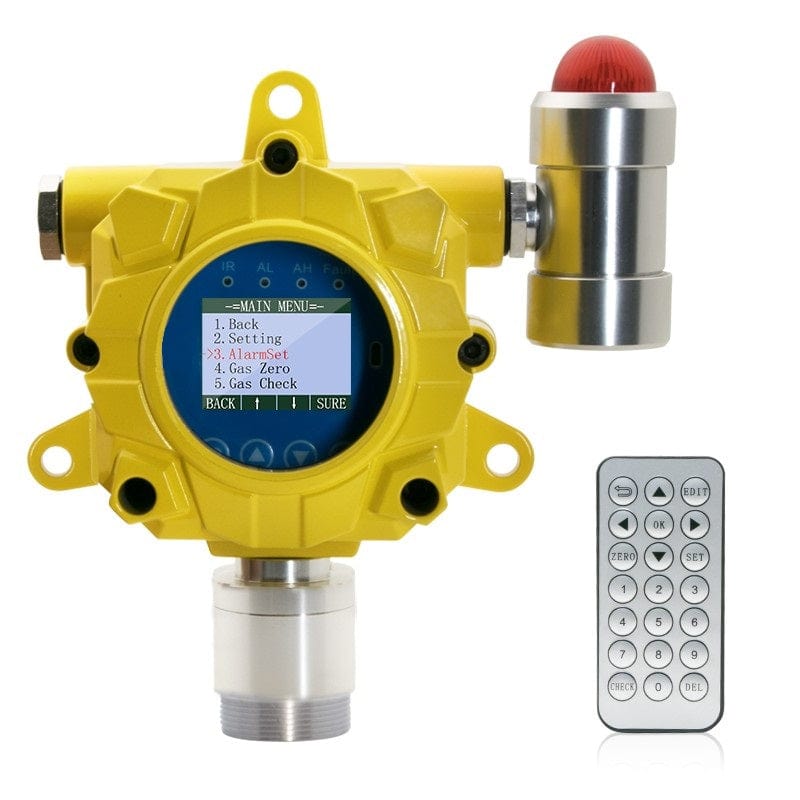

- 🌎 USE: Remote control up to 8 meters. 2 x relay alarm triggered switches (50W each relay) to control fans, pumps, electrical items, garage doors, or additional alarms.

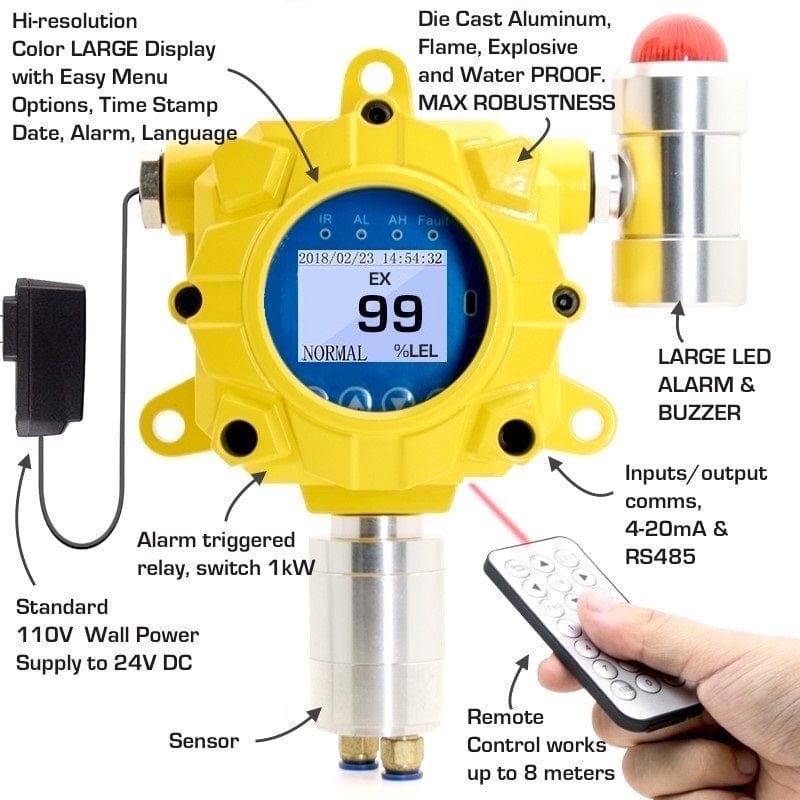

- 🎆 FEATURES: Large LED alarm and buzzer. Adjustable audio and visual. Remote control. RS485 MODBUS Output and Analog Output (4-20 mA) for remote sensing and data logging.
- 💪 STRONG: Explosion, dust, water, and flameproof. Explosion-proof grade: Exd ⅡC T6 Gb with IP65 housing protection.
- 🕵️ TRUST: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: Heavy-duty, fixed COMBUSTIBLES LEL EX gas detector for occupational spaces, garages, process rooms, factories, combustion control rooms, refineries, gas stations, boiler rooms, and many indoor spaces.
Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, diesel vapors, ethanol, ethylene, oxide, gasoline vapors, hexane, isopropanol methane, naphtha, natural gas, paint thinners, propane, flammable solvents, and hundreds of other combustible gases.

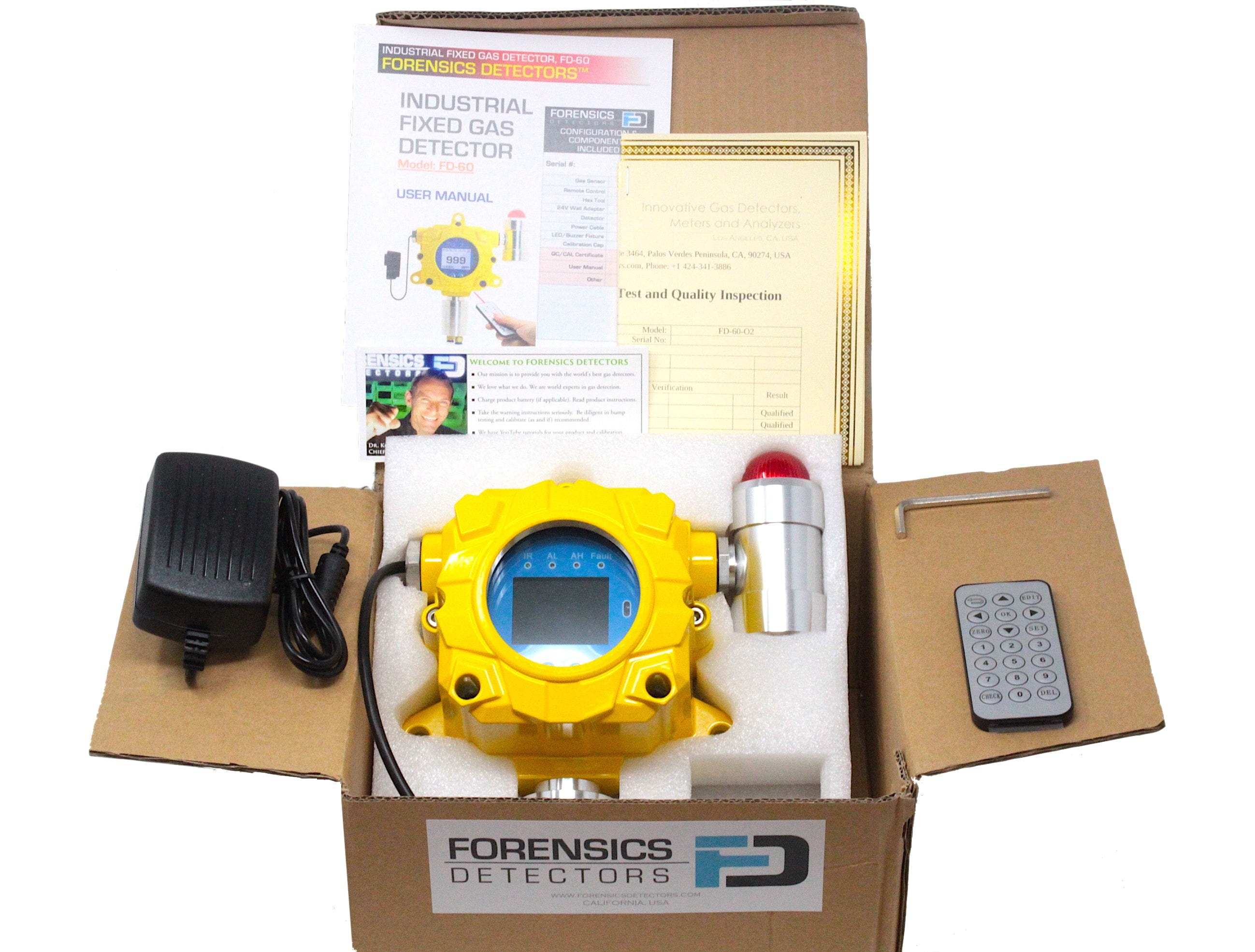

Included: Fixed gas detector, user manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring. Arrives with a certified calibration certificate.
Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)
Calibration Kit (sold separately):
Calibration Gas (EX)
Calibration Gas Regulator (C10)
Calibration Cap
Tubing
Other Accessories (sold separately):
Air Sampling Pump Kit
Alarm Extension Fixture
Specifications
Combustibles %LEL EX Detection Range: 0 - 100% LEL with 1% resolution
Error: < +/- 5% F.S.
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb
Protection Category: IP66
Response Time: <60 seconds
Power Supply: DC 24V ± 15%
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Electrical Output: 2 x relay contact output, max power 50W each relay
Communication: 4 - 20 mA and RS485
Alarm: LED, Buzzer

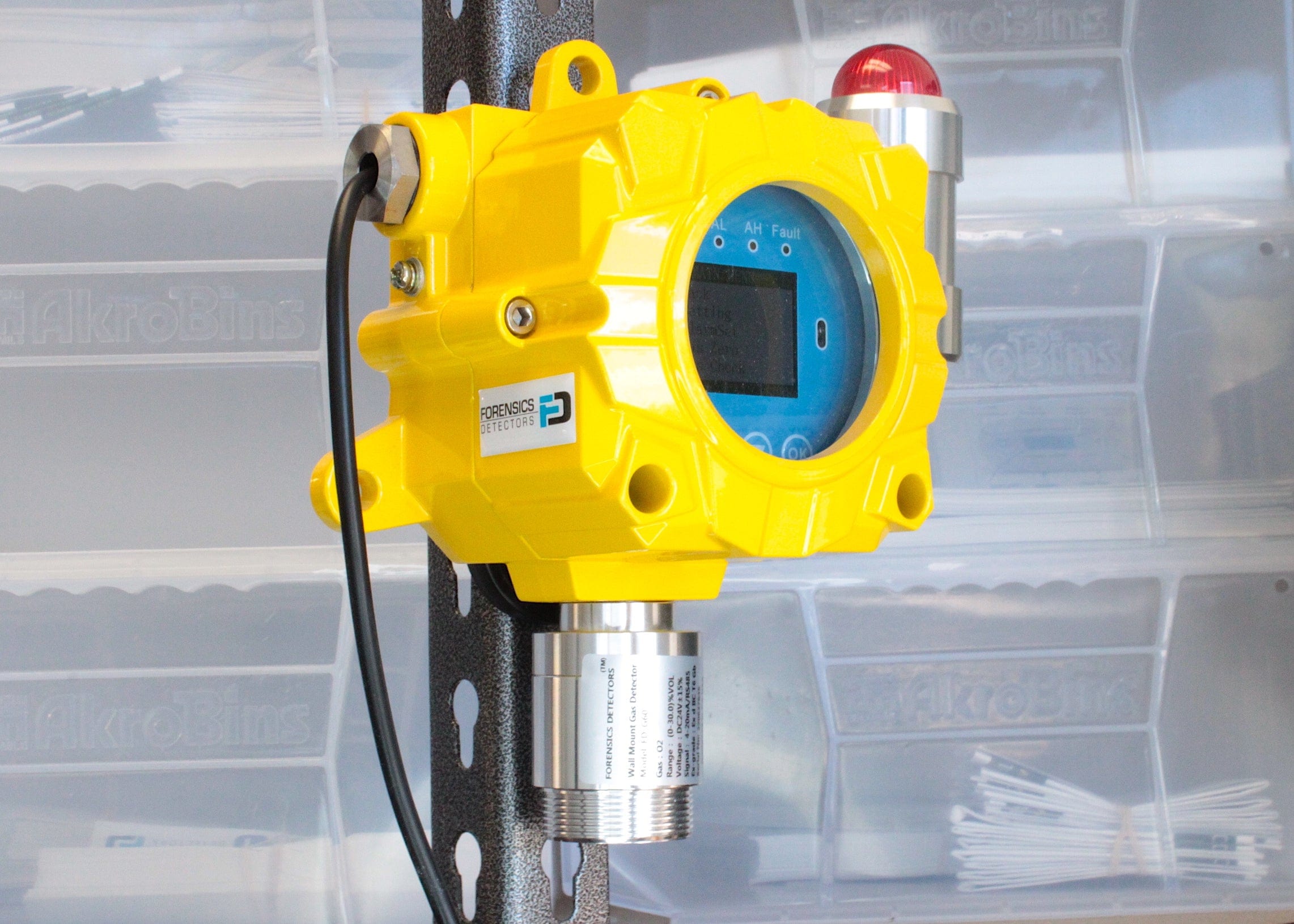

Recommended Installation Method: wall-mounted
Shell Material: aluminum
Dimensions: 200 mm x 180 mm x 90mm(L x W x H)
Weight: 3 lbs
Threads: G1/2 male proof hose pipe thread size M20 x 1.5 mm
Gas Sensor Type: Catalytic Bead Gas Sensor
Sensor Life: 2 - 3 years
Recommended Calibration Period: 12 months
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
