Brand: FORENSICS DETECTORS
Model: FD-600-H2
Data Logging: Click Here
User Manual: Click Here
Blog Article: Click Here
Features:
- 🎆 DETECT: Hydrogen Gas Leak Detector measuring 0 -1000 ppm with 1 ppm resolution with built-in pump for super fast detection. Comes USA NIST traceable calibrated from Los Angeles, CA.
- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation. USB computer data logging included.
- 📲 ALARMS: The detector records alarm events with date and time stamps.
- 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof exceeding Exib IIB T4 Gb.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

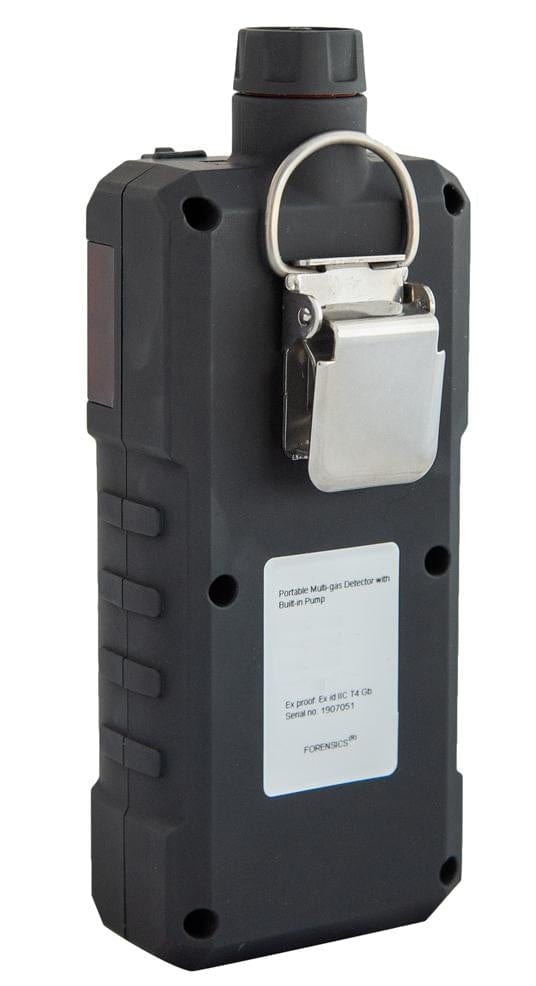

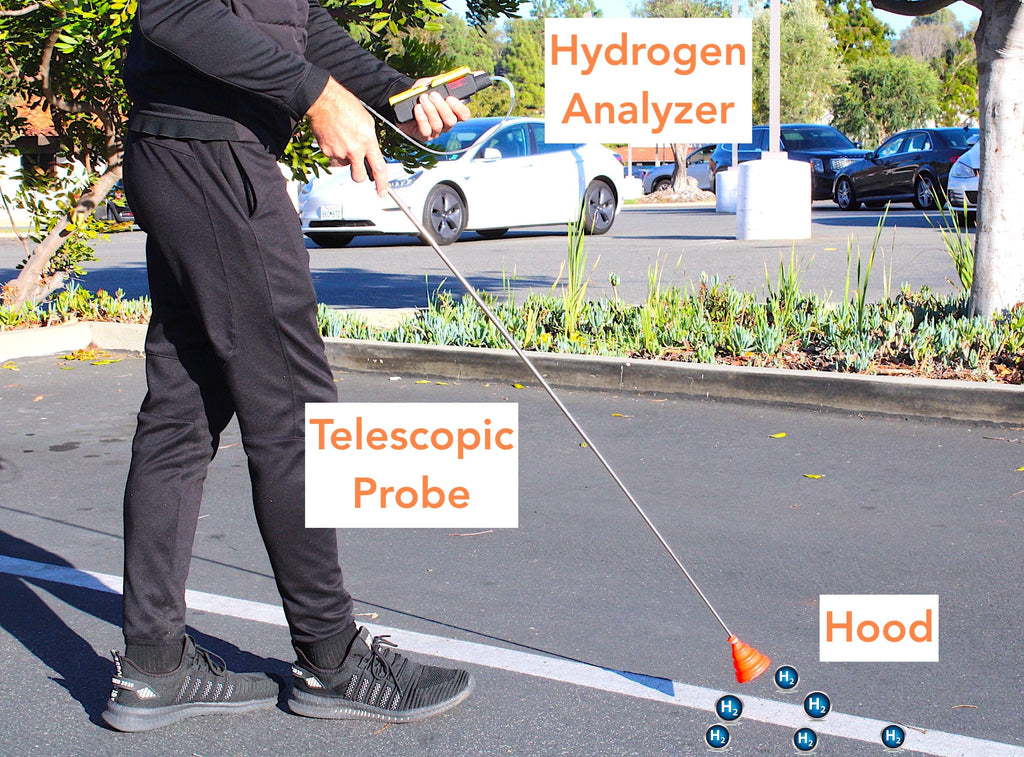

Details: This is a top-quality FORENSICS DETECTORS Hydrogen Gas Leak Detector with a built-in pump allowing for faster response, point probe sampling, and continuous monitoring. Perfect for (a) tracking hydrogen gas leaks in hydrogen storage and distribution facilities (b) detecting hydrogen tracer gas leaks for plumbing applications such as pipe leaks and system leaks, and (c) for testing hydrogen accumulation in battery rooms or a facility that may release hydrogen where it may be accumulating and pose a hazard. This Hydrogen Leak Detector is one of the most advanced on the market, having a 32-bit microprocessor, color LCD, and graphing capability. The detector is USA NIST traceable and calibrated to Hydrogen (H2) gas in Los Angeles, CA.
Included: Hydrogen Gas Leak Detector, English manual, USB charging cable, charger, analyzer case, stainless probe (with hood is optional), tubing, and USA NIST calibration certificate.
Calibration Kit Items(sold separately):
Calibration Gas (H2)
Calibration Gas Regulator (C10)
Bump Gas (H2)
Calibration T-piece & Tubing
Accessories (sold separately):
Gas Sensor Replacement (H2)
Gas Detector Waterproof Case
Gas Detector Stand
Gas Calibration Service (sold separately):
Gas Detector Calibration Service
Specifications
Hydrogen (H2) Gas Detection: 0 - 1000 ppm with 1 ppm resolution
Comes factory calibrated
Accuracy: ≤ ± 5% F.S.
Response Time: ≤ 20 sec
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas Sensor Life: 2 - 3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb
Protection Category: IP65
Weight: 14 oz
Dimensions: 5.1 in × 2.6 in x 1.2 in
Charge Time: 4 hours
Operating Time: > 10 hours
