Basic Combustion Analyzer | NIST Calibration

Save 50%

Price:
Sale price$345.00 Regular price$695.00


Brand: FORENSICS DETECTORS
Model: FD-4A-FLUE
User Manual: Click Here
Blog Article: Click Here

Features:

  • ⚛️  RESIDENTIAL: Perfect for residential combustion and ambient air quality analysis or probe / continuous sampling in confined or toxic spaces. Comes FACTORY-CALIBRATED. Turn ON and GO.
  • 🌇  ACCESSORIES: Comes with a quality water trap, particle filter, and NOx filter to reduce cross-sensitivity errors.
  • 🔬 SENSORS: High-quality electrochemical sensors with oxygen (O2) and carbon monoxide (CO). Calculates CO air free (COAF) and excess air (EA) for combustion analysis. Comes factory-calibrated. Detection error better than ≤±5% F.S. and response time: T < 60 sec. Zero and span calibration options for full control.

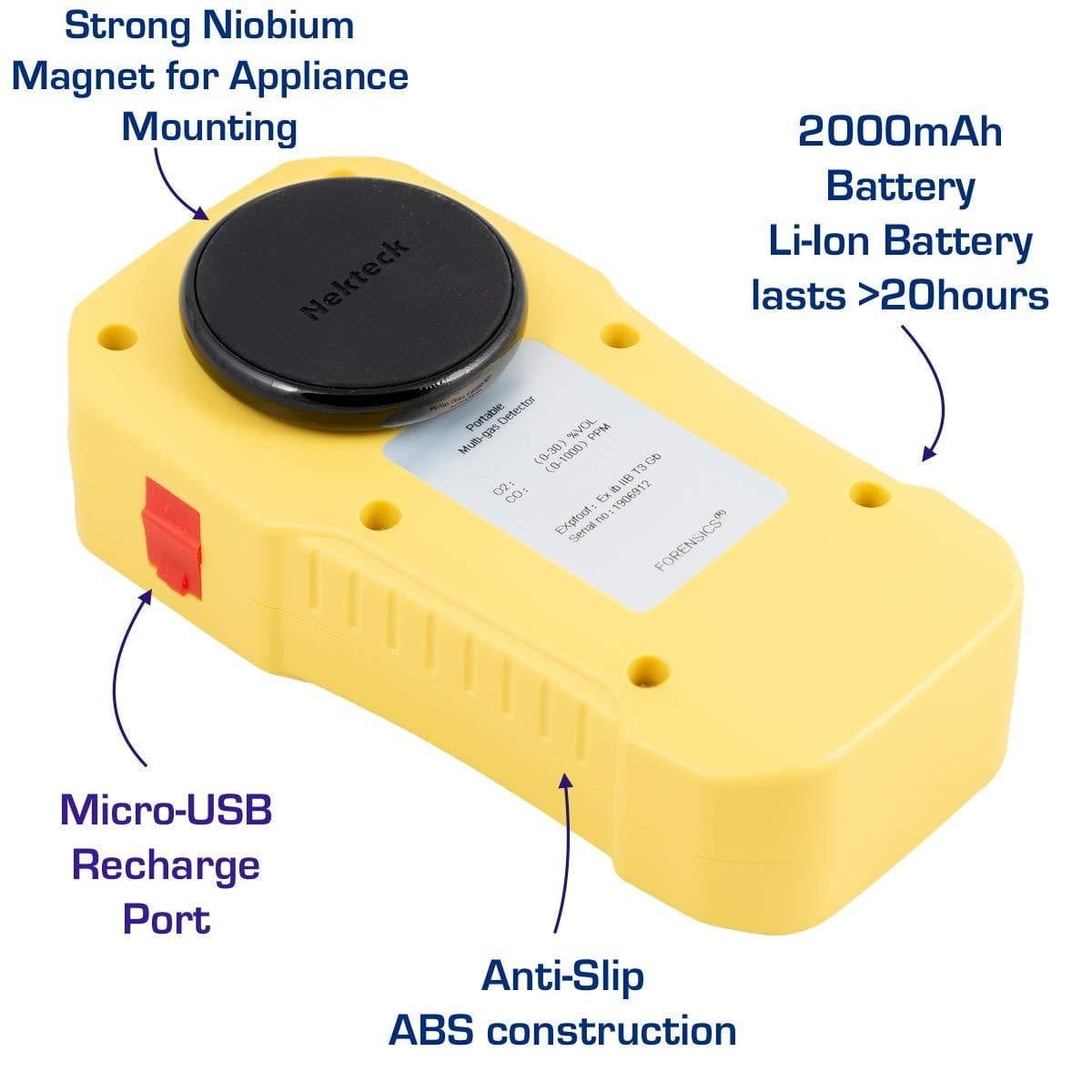

  • 💪 STRONG: Robust design constructed with ABS and anti-slip grip rubber. Comes with a strong magnet for appliance mounting. Water-resistant, dust-proof, and explosion-proof. ATEX certified Ex ib IIa T4.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

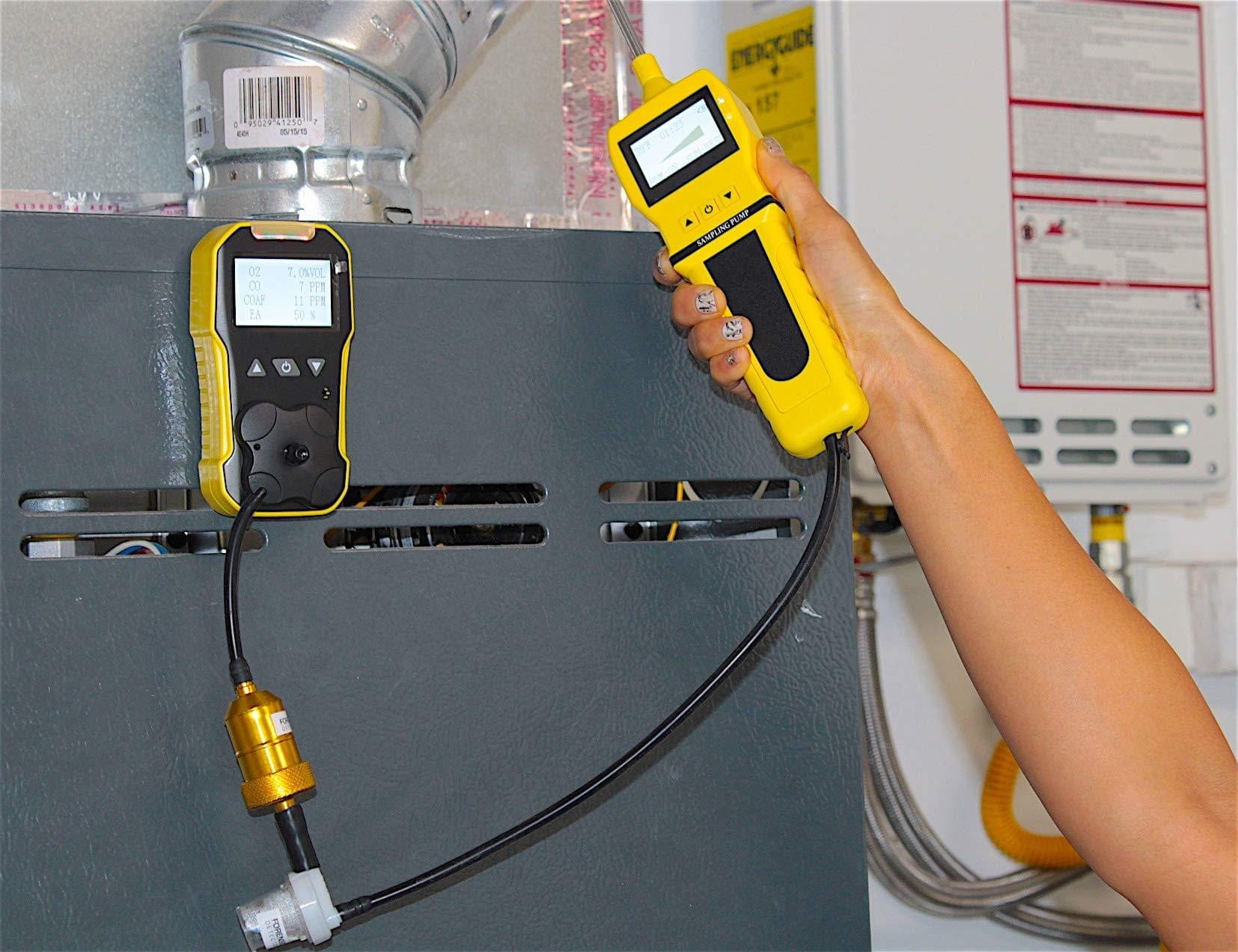

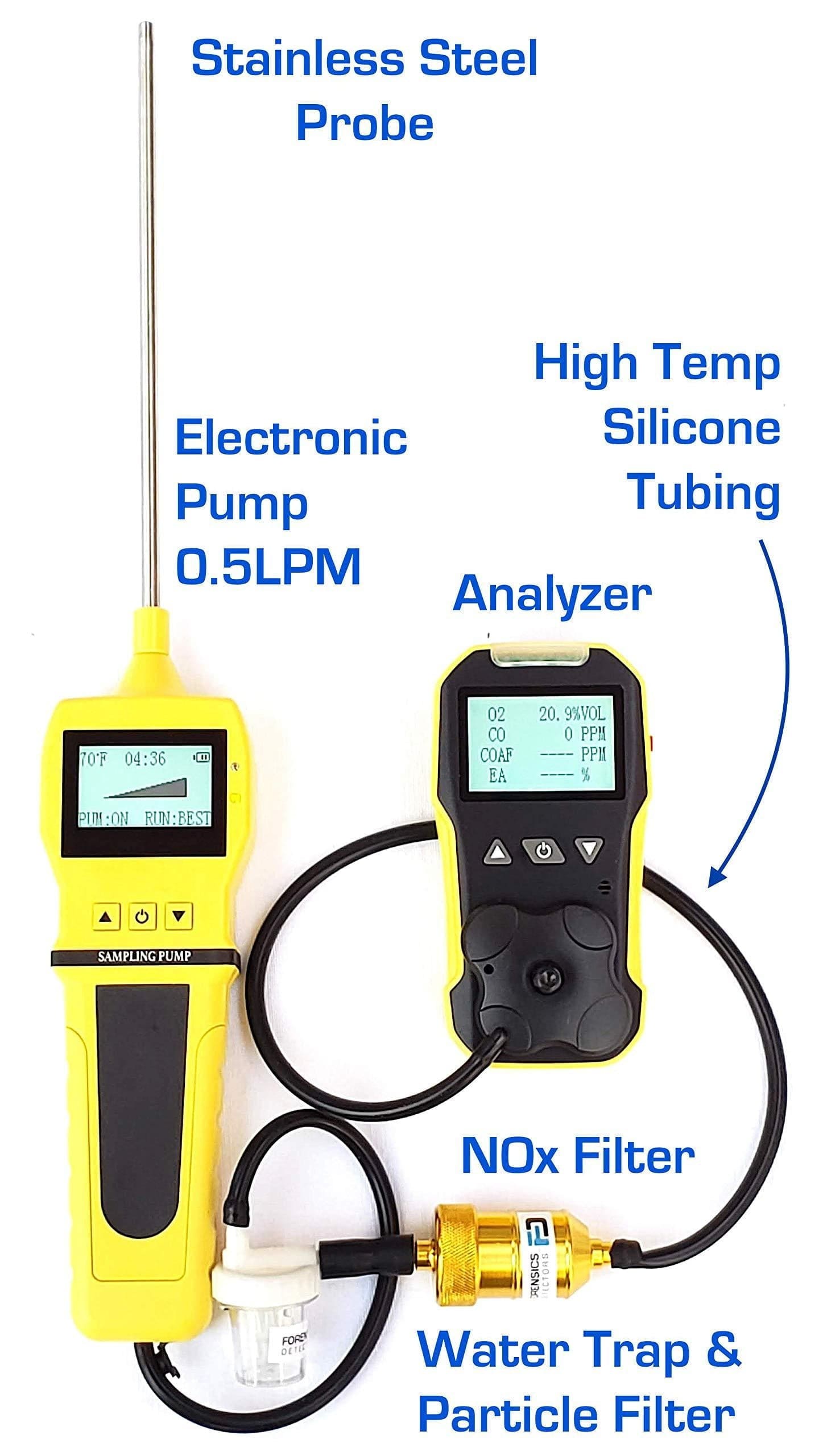

Details: A basic and affordable residential combustion analyzer + handheld pump with high-quality O2 and CO sensors and large LCD with backlight. We developed this unit for HVAC professionals, contractors, or maintenance engineers for residential boilers, heaters, and furnaces. The display screen shows CO, O2, COAF (CO air-free), and EA (excess air %). The detector can be used as an ambient detector for general air quality measurements. When plugged into the pump, the analyzer can also function as a spot detector or combustion and flue gas analyzer. Please note, that this analyzer does NOT detect flue temperature nor calculate combustion efficiency. We also offer our more professional combustion analyzer which is an all-inclusive unit with a built-in pump and pistol probe. Please note, that this analyzer does NOT detect flue temperature or calculate combustion efficiency and does not detect nor calculate carbon dioxide (CO2). In addition, also note that this unit is not made for automotive exhaust gases since the CO in automotive combustion engines typically exceeds 1000ppm CO and may blow out the CO sensor. For automotive exhaust applications, please see the auto exhaust gas analyzer.

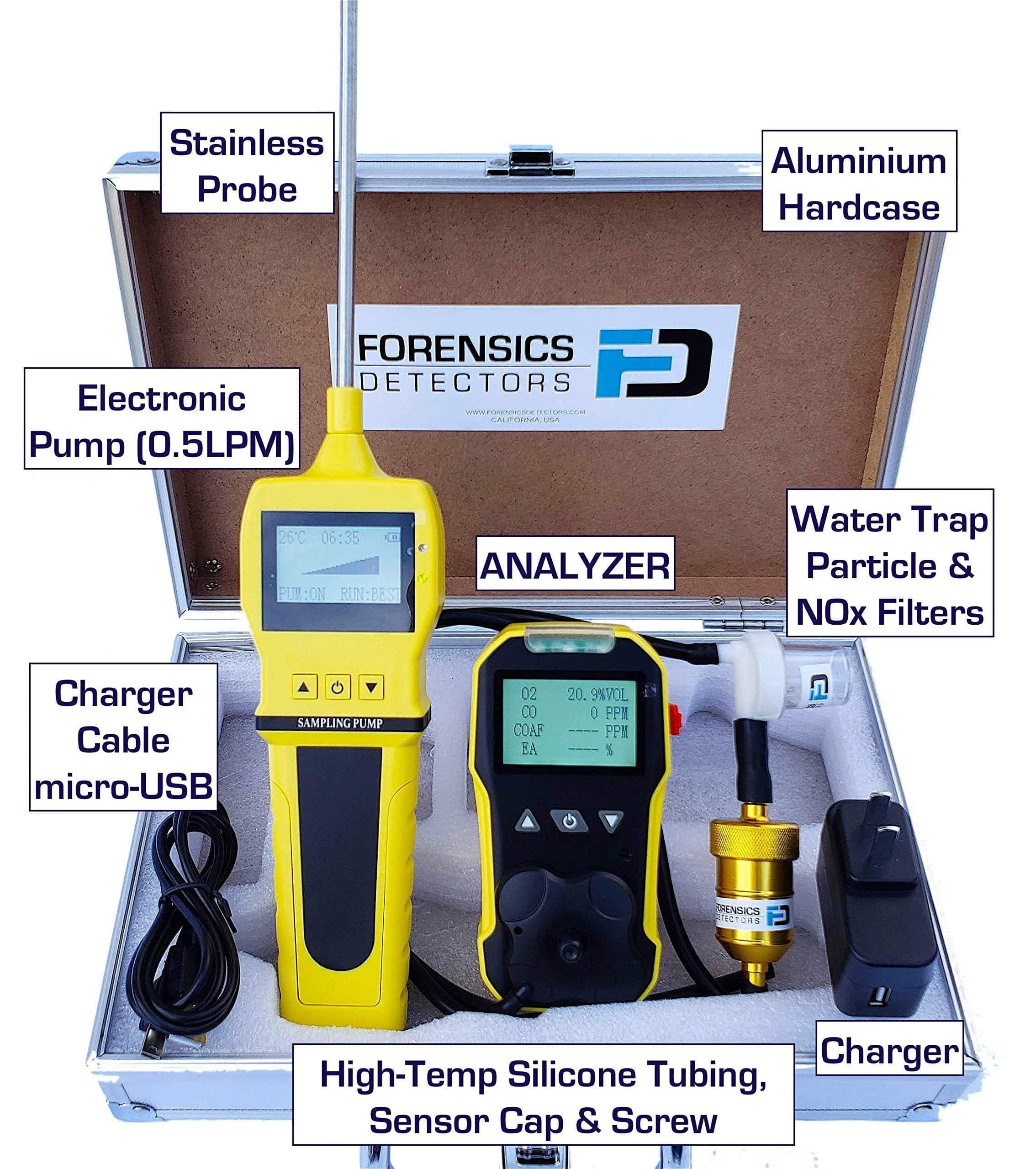

Included: The product comes with an aluminum hard case, analyzer containing CO and O2 sensors, strong niobium magnets for mounting on appliances while testing, an electronic pump with the stainless probe, hose assembly, 3 feet of high temp silicone tubing, water trap, particle filters, NOx filters with sensor cap, screw to mount sensor cap to the analyzer, USB charging cable, USB charger, NIST traceable calibration certificate, and English manual.

Calibration Kit:
Calibration Gas (Combustion Gas)
Calibration Gas Regulator (C10)
Tubing

Bump Gas:
Bump Gas (CO)
Bump Gas (N2)

Accessories and Parts:
Gas Sensor Replacement (CO)
Gas Sensor Replacement (O2)
Gas Detector Waterproof Case
Gas Detector Stand

Calibration Service:
Gas Detector Calibration Service (multigas)

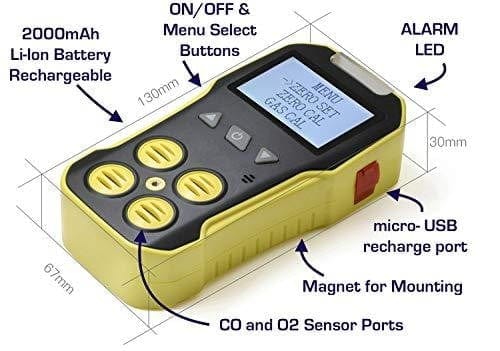

Detector Specifications

Oxygen (O2) Detection: 0 - 30% with 0.1 % resolution
Carbon Monoxide (CO) Detection: 0 - 999 ppm with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST traceable reference gas
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Accuracy: ≤ ± 5% F.S.
Response Time: ≤ 60 sec
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity:
<95%RH
Power Source: DC 3.7V Li-on battery, 2000 mAh
Explosion-Proof Grade: ATEX certified Ex ib IIa T4
Protection Grade: IP65
Alarm: LED
Weight: 230 g (with battery)
Dimensions: 130 mm × 67 mm × 30 mm (L×W×H)

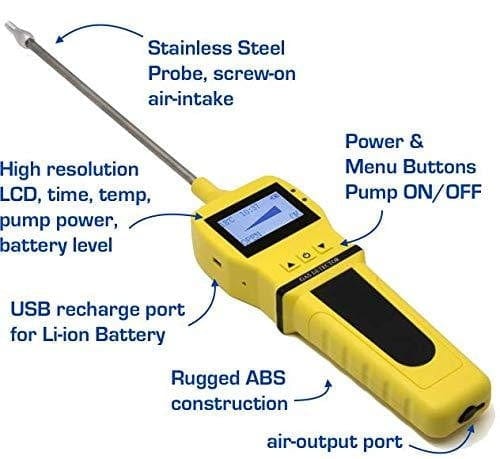

Pump Specifications

Power Source: Rechargeable DC 3.0V Li-battery 1800 mAh charged via USB connector
Backlit, high-resolution LCD shows ambient temperature, time, and date Temperature: 32F ~ 140F
Humidity: < 95% RH non-condensing
Voltage: DC 3.0V Li-battery 1800 mAh
Flow Rate: 0.5 LPM
Noise: <60 dB
Weight: 140g (with battery)
Dimensions: 65 mm x 30 mm x 225 mm
