Brand: FORENSICS DETECTORS
Model: FD-600M-O2
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
Features:
- 📊 GAS DATA LOGGER: Data logging functions with a built-in TF Memory Card (512MB) able to store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec.
- 🎆 DETECT: Oxygen analyzer measuring 0-30% with 0.01% resolution.

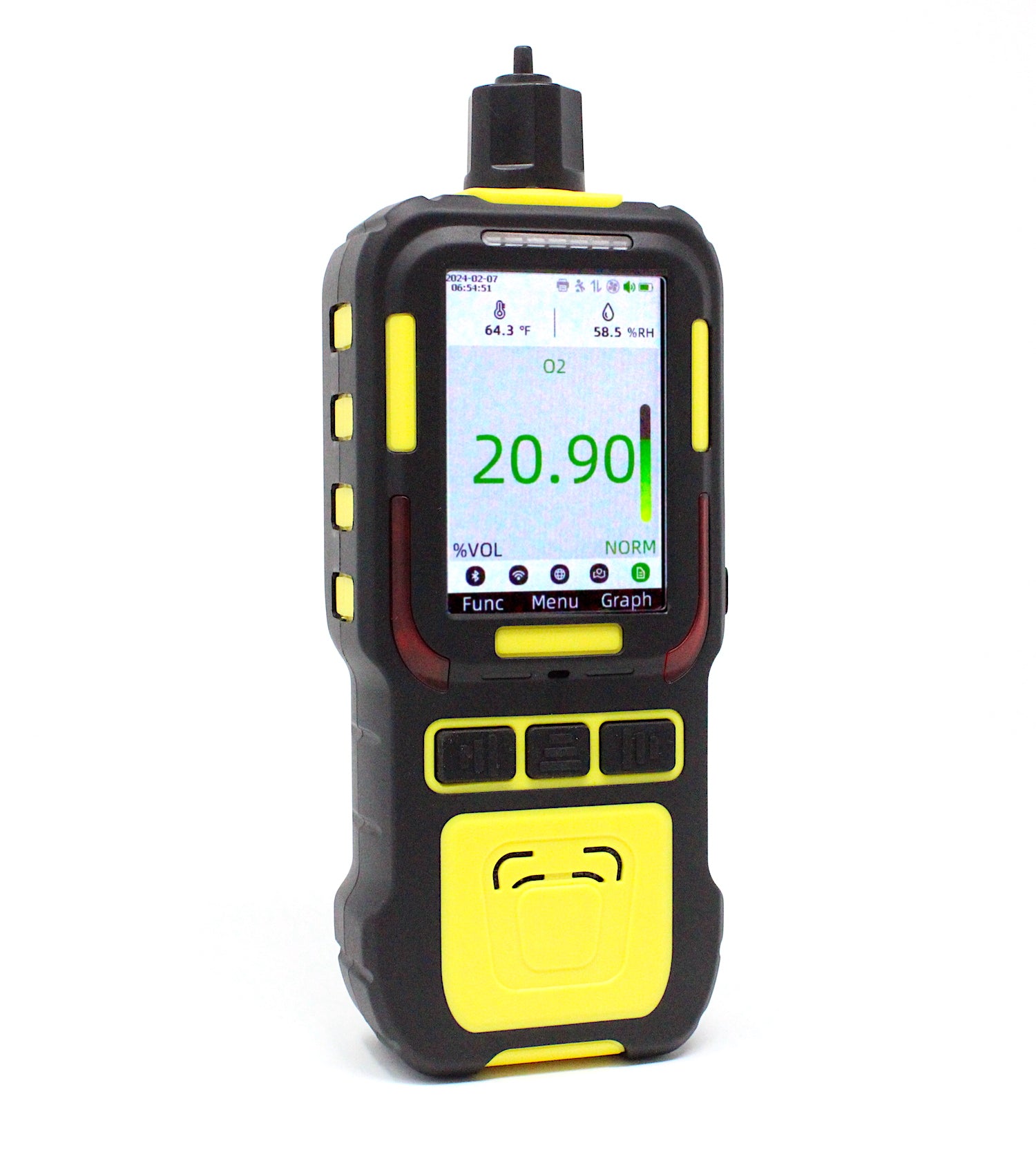

- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
- 📲 ALARMS: Adjustable low and high alarms.
- 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

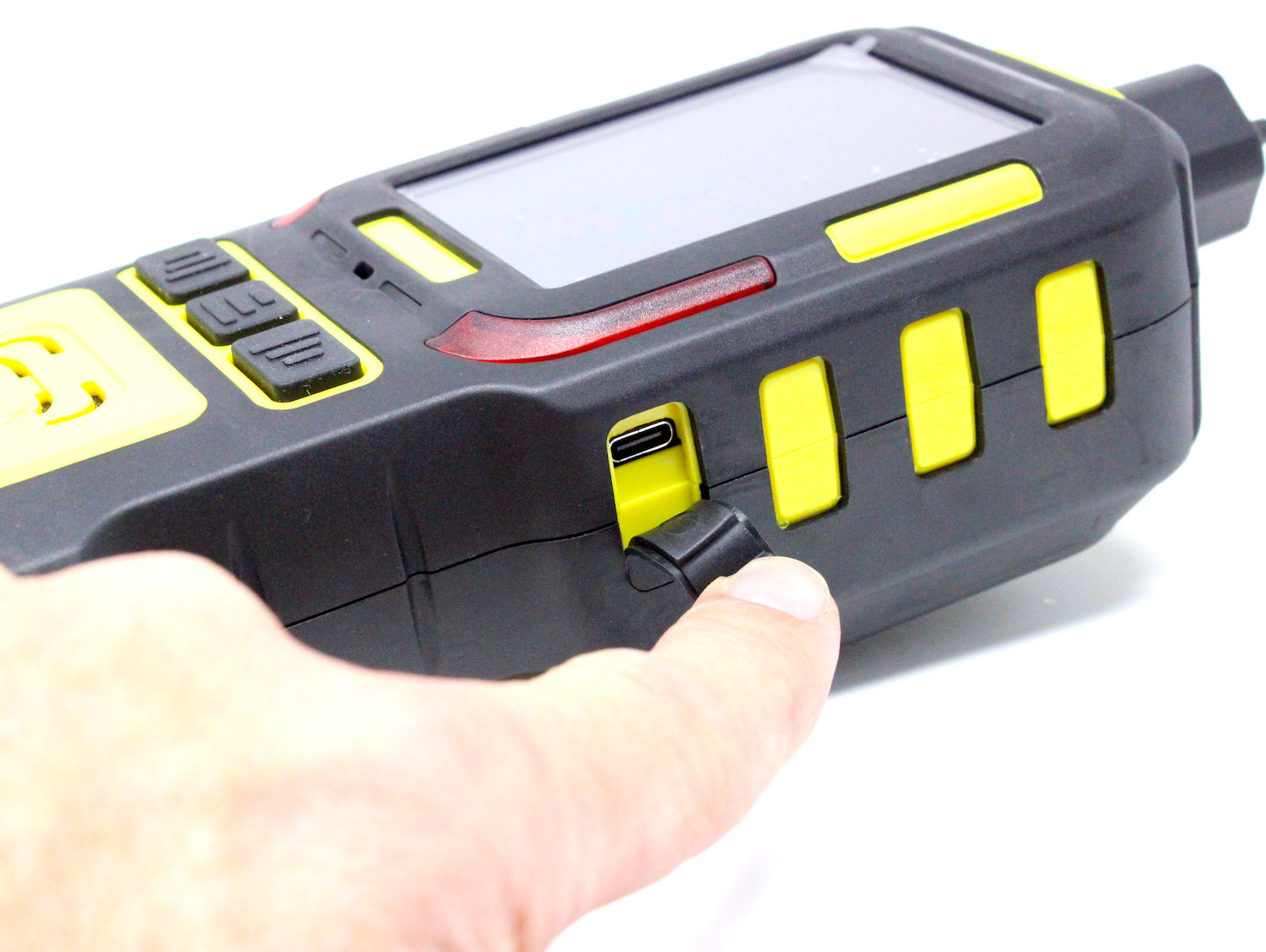

Details: Looking for a top-quality oxygen data logger? This is it. It has the advanced features of a high-end oxygen analyzer with graphing and data-logging functionality. The data logging function is built in which means the unit can run by itself, and the data will be captured by its internal Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec. The internally logged data is then retrieved by connecting a Type-C USB cable to a computer and viewing the logged *.CSV files, just like you would with an external USB drive. Very easy and simple, with no extra software required. The *.CSV file can then be imported into EXCEL to graph and manipulate as required.
If you want it to log data continuously with a long sample rate, then no problem. Just set the sample rate to a high value, plug the unit into cable power so it stays on and keeps charging, and you are good to go for many days of sampling.

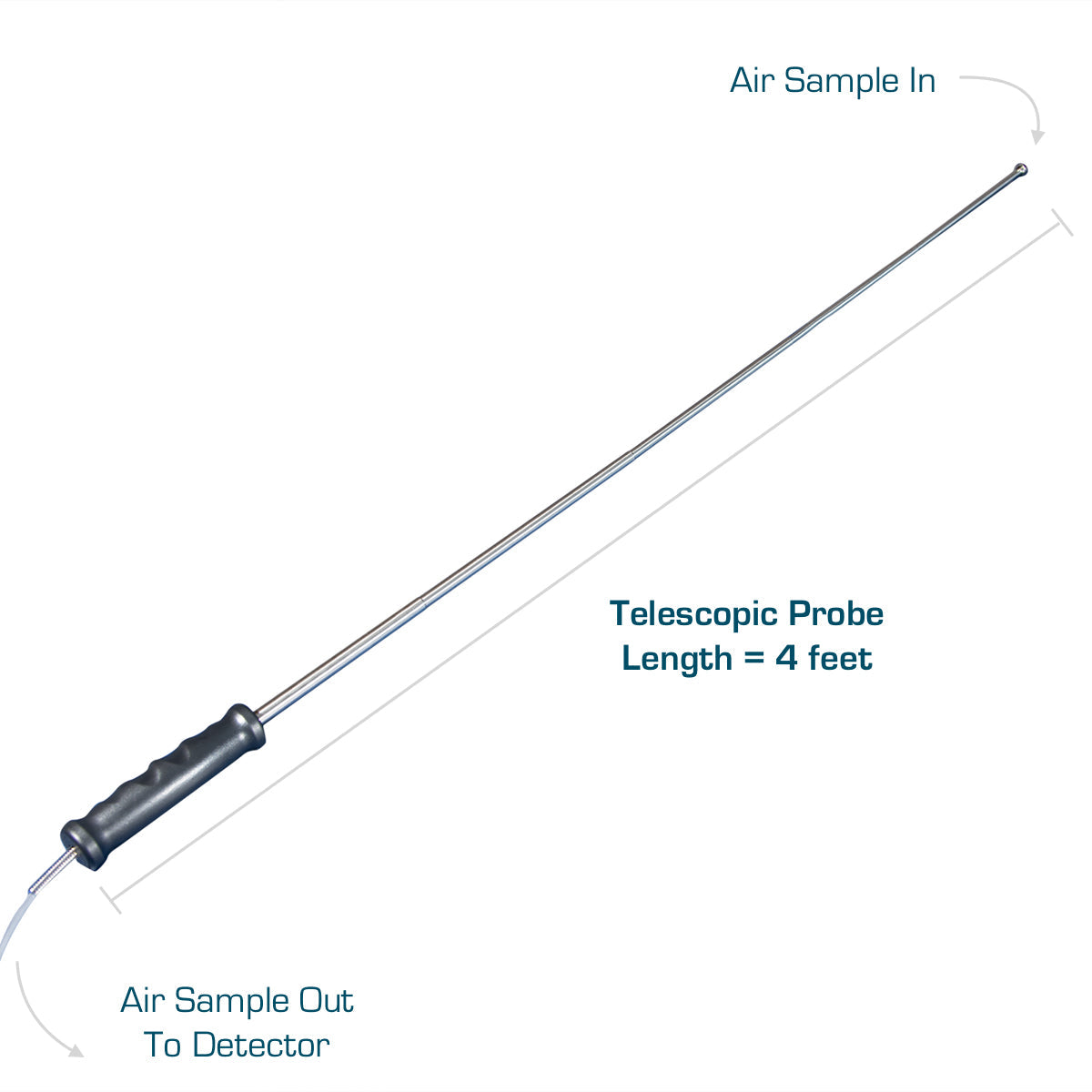

This powerful oxygen analyzer has a built-in pump allowing for super-fast detection & response and comes with a 4ft probe that is perfect for sampling gas in indoor or outdoor areas. If you require a personal safety oxygen monitor, we recommend our handheld oxygen monitor. Otherwise, for those who don't require a data logger function, a more affordable oxygen analyzer for leaks is available. For a wide range of 0-100% oxygen detection, we recommend our O2BOX oxygen analyzer.
Included: Oxygen Data Logger Analyzer, User manual, USB charging cable, charger, analyzer case, 4ft telescopic stainless probe, tubing, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit Items (needed to calibrate yourself - sold separately):
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (N2)
Accessories (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Stand
Telescopic Probe
Tubing (3ft)
Specifications
Oxygen (O2) Range: 0 - 30% with 0.01% resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 to 3 years
Sampling Type: Pumped (built-in sampling pump)
Recommended Calibration Period: 12 months
Datalogging: Yes (instructions included)
Error: <±5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Battery: DC3.7V Li-Ion battery 4000mAh
Charging Time: 4 hours
Operation Time: > 5 hours
Analyzer Dimensions: 9.1 × 3.4 × 2.4 inches (23 × 9 × 6 cm)
Analyzer Weight: 28.2 oz (800 g)
Rating: ATEX certified Ex ia IIC T4 Ga (PDF)
Pump Noise: < 60 dB
Pump Flow Rate: 0.3 to 0.7 LPM
Inlet Air Barb: 3mm (1/8 inch) outer diameter barb
Charger Port: USB Type-C (use at least 2A/5V charger)
Display: 3.5-inch color HD display
Carry Case Weight: 4.2 lb (1.9 kg) with analyzer & accessories
Carry Case Dimensions: 11.7 x 8.3 x 3.8 inches (30 × 21 × 10 cm)
Alarm: LED, Buzzer, and Vibration
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
