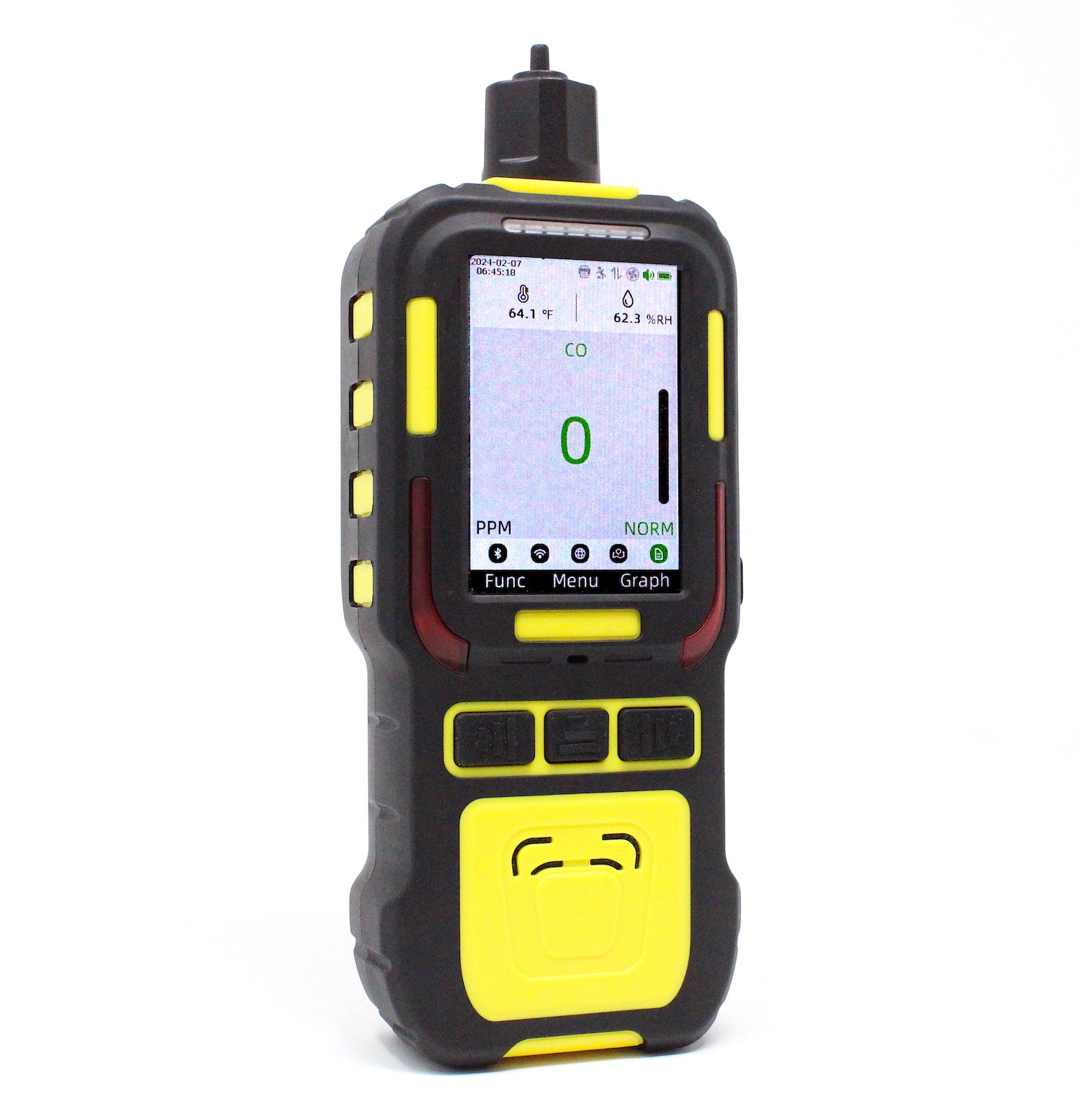

Carbon Monoxide Data Logger Analyzer | USA NIST Calibration

Save 40%

Price:
Sale price$895.00 Regular price$1,499.00

Brand: FORENSICS DETECTORS
Model: FD-600M-CO
Data Logging: Click Here
User Manual: Click Here
Blog Article:
Click Here

Features:

  • 📊 GAS DATA LOGGER: Data logging functions with built-in TF Memory Card (512MB) able to store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec.
    🎆 DETECT: Carbon monoxide analyzer measuring 0-1000 ppm with 1 ppm resolution. Comes USA NIST traceable calibrated from Los Angeles, CA.
  • 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
  • 📲 ALARMS: Adjustable low and high alarms.
  • 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof exceeding ATEX certified Ex ib IIC T4 Gb. IP65.
  • 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

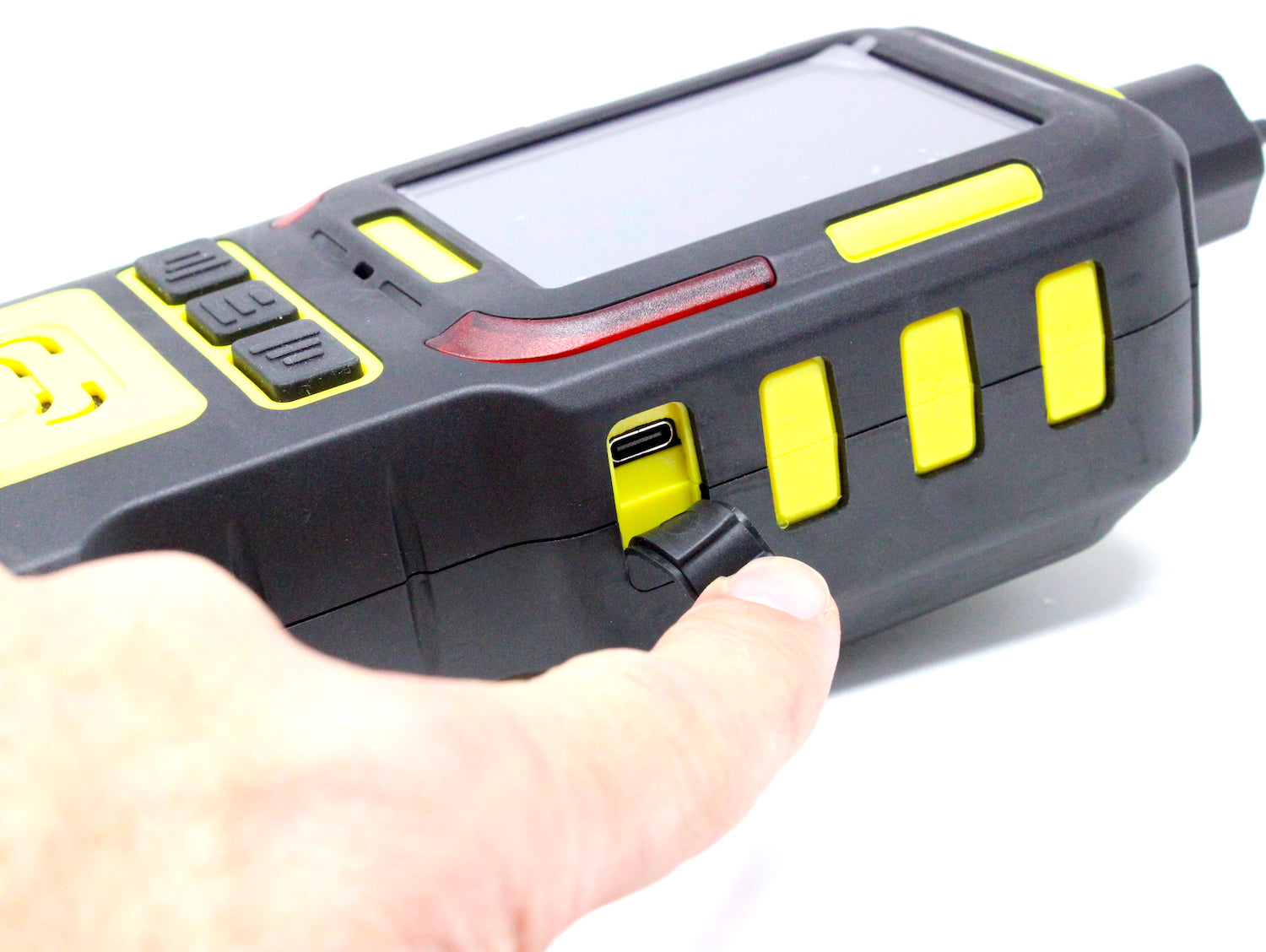

Details: Looking for a top-quality carbon monoxide gas data logger? This is it. It has the advanced features of a high-end carbon monoxide gas analyzer with graphing and data logging functionality. The data logging function is built in which means the unit can run by itself and the data will be captured by its internal Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec. The internally logged data is then retrieved by connecting a Type C USB cable to a computer and viewing the logged *.CSV files, just like you would with an external USB drive. Very easy and simple, with no extra software required. The *.CSV file can then be imported into EXCEL to graph and manipulate as required.

If you want it to data log continuously with a long sample rate, then no problem. Just set the sample rate to a large value and plug the unit into cable power so it is always charging ON, and you are good to go for many days of sampling.

This powerful analyzer has a built-in pump allowing for super-fast detection & response and comes with a 4ft probe that is perfect for sampling gas in indoor or outdoor areas. Customers use it for tracking indoor carbon monoxide levels and to help pinpoint carbon monoxide gas leaks.  The detector is USA NIST traceable and calibrated in Los Angeles. If you require a more basic CO detector, we recommend our handheld CO meter. For automotive applications and combustion anlaysis make sure you select the appropriate carbon monoxide analyzer. For home inspectors that don't require a data logger function, then a more affordable carbon monoxide analyzer is recommended.

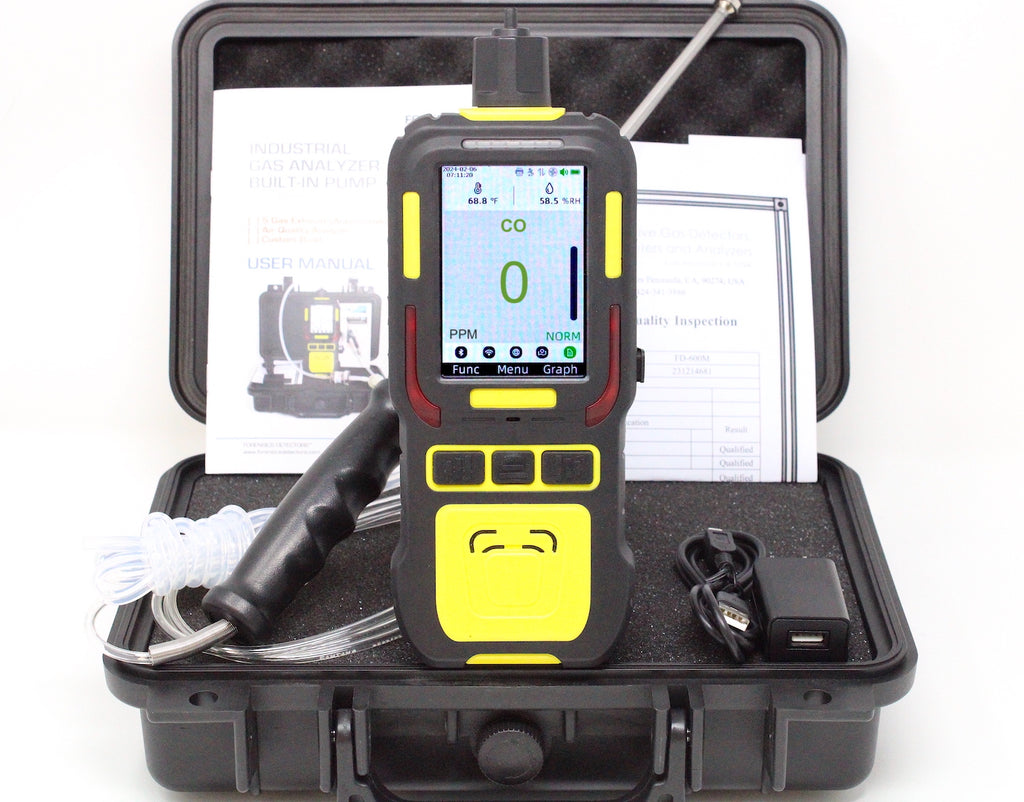

Included: Carbon Monoxide Data Logger Analyzer, English manual, USB charging cable, charger, analyzer case, 4ft telescopic stainless probe, tubing, and USA NIST calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (CO)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing

Accessories (sold separately):
Bump Gas (CO)
Gas Sensor Replacement (CO)
Gas Detector Stand

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Carbon Monoxide (CO) Range: 0 - 1000 ppm with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Source
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 to 3 years
Error (worst case): <±5% F.S.
Response Time: <30 seconds
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity:
<95%RH
Battery: DC3.7V Li-Ion battery 4000mAh
Charging Time: 4 hours
Operation Time: > 5 hours
Dimension/Weight: 9.09 x 3.43 x 2.36 inches, 800grams
Rating: ATEX certified Ex ib IIC T4 Gb. IP65.
Pump Noise: <60dB
Pump Flow Rate: 0.3 to 0.7 LPM
Inlet Air Barb: 3mm (1/8 inch) outer diameter barb
Charger Port: USB Type C (use at least 1A/5V charger)
Display: 3.5-inch color HD display

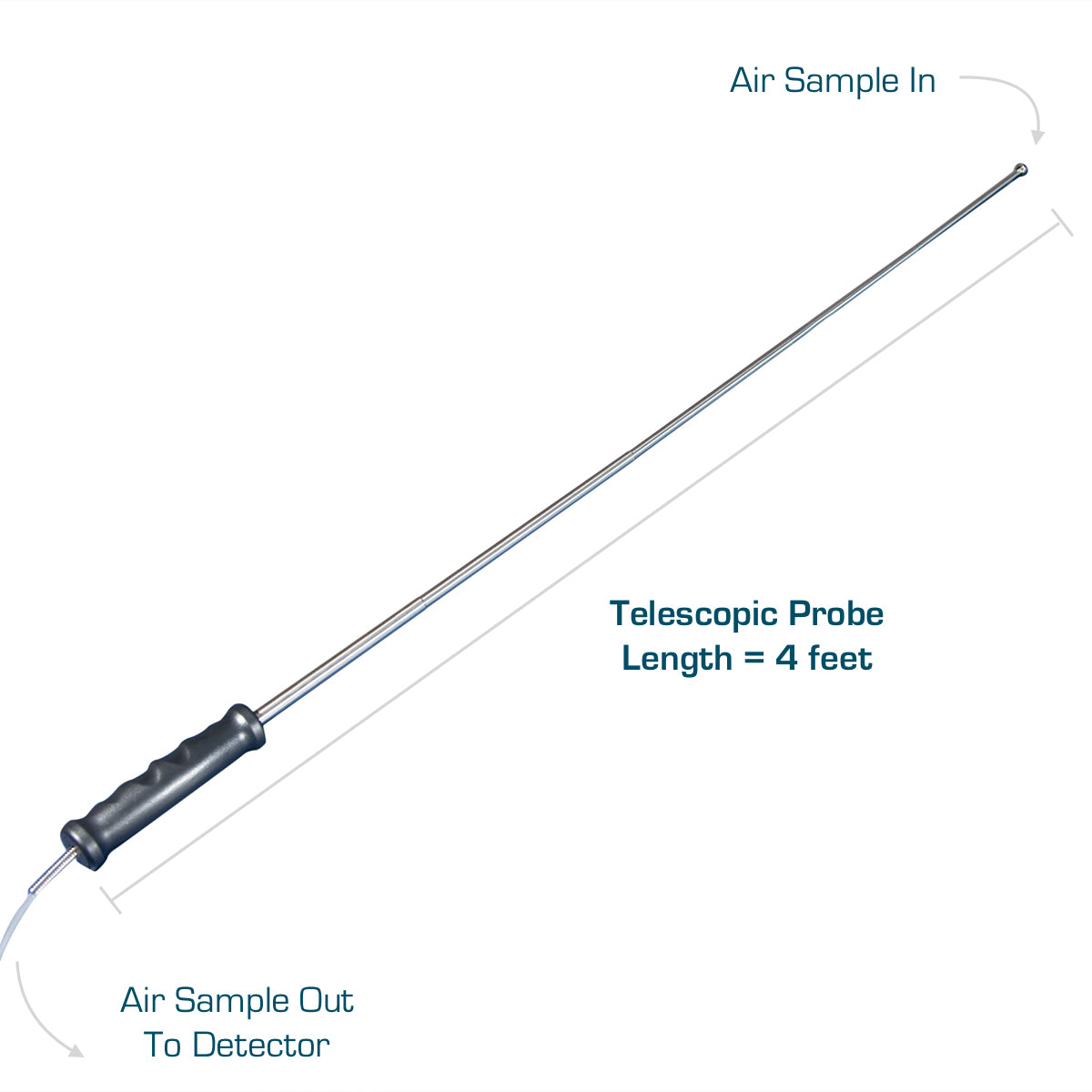

Probe Length: 4ft Telescopic Probe
Recommended Calibration Period: 12 months

Carry Case Weight: 3.1 lb with analyzer & accessories
Carry Case Dimensions: 9 x 7 x 5 inches
Alarm: LED, Buzzer, and Vibration
